Client-Server Communication Interfaces

Components in a platform environment can communicate by using client-server communication. To model client-server communication, use the Simulink Function and Function Caller blocks. A Simulink Function block represents a shared resource. You define the logic as a resource in a Simulink Function block, which separates the function interface (name and arguments) from the logic implementation. Function callers (Function Caller blocks, MATLAB Function blocks, and Stateflow charts) can use the function logic at different levels of the model hierarchy.

The Simulink Function block shares states between function callers. The code generator produces one function. If the Simulink Function block contains blocks that have states, such as a delay or memory, the states persist between function callers.

Implementation Options for Simulink Functions and Function Callers

Choose how to implement Simulink® functions and function callers based on your code generation requirements. Considerations include:

  • How you represent a function and function callers in a model

  • Scope of a function

  • Whether to export a function from a model

  • Function code interface customizations

  • Code generation requirements

  • Code generation limitations

Choose a Modeling Pattern

To choose a modeling pattern for client-server communication, review the function definition code and corresponding model elements in this table. The table shows C code for a function that multiplies an input value times two and a Simulink Function block that can represent that function in a component model.

Function DefinitionModeling Element

codegen-folder/subsystem.c

#include "timestwo_sf.h"

#include "ex_slfunc_comp_sf.h"
#include "ex_slfunc_comp_sf_private.h"

void timestwo_sf(real_T rtu_x, real_T *rty_y)
{
  *rty_y = 2.0 * rtu_x;
}

Simulink Function block

A Simulink function caller invokes a function defined with a Simulink Function block. From anywhere in a model or chart hierarchy, you can call a function defined with a Simulink Function block by using one of these modeling elements.

Function CallModeling Element

codegen-folder/model.c

void ex_slfunc_comp_sf_step(void)
{
  real_T rtb_FunctionCaller1;

timestwo_sf(ex_slfunc_comp_sf_U.In1, &rtb_FunctionCaller1);

ex_slfunc_comp_sf_Y.Out1 = rtb_FunctionCaller1;
.
.
.

Function Caller block

codegen-folder/model.c

void ex_slfunc_comp_gf_step(void)
{
  real_T rtb_y1_l;

  timestwo_gf(ex_slfunc_comp_gf_U.In4, &rtb_y1_l);

  ex_slfunc_comp_gf_Y.Out4 = rtb_y1_l;
  .
  .
  .

Stateflow® chart transition

codegen-folder/model.c

void ex_slfunc_comp_mf_step(void)
{
  real_T rtb_y;

  timestwo_mf(ex_slfunc_comp_mf_U.In3, &rtb_y);

  ex_slfunc_comp_mf_Y.Out3 = rtb_y;
  .
  .
  .

MATLAB Function block

For more information about modeling choices, see Simulink Functions Overview.

Specify Function Scope

Specify the scope of a Simulink function that you define with a Simulink Function block to be global or scoped.

  • Global --- The code generator places code for a global function in source and header files that are separate from model code files (for example, function.c and function.h) . The separate files make the function code available for sharing between function callers.

  • Scoped --- The code generator places code for a scoped function in model code files (model.c and model.h). To call a scoped function in the context of a model, the function caller must be at the same level as the function in the model hierarchy, or one or more levels below.

    To create a library of functions that are accessible from anywhere in the generated model code, set up each function as a scoped Simulink Function block. Place each scoped function within a virtual subsystem at the root level of a model.

For more information, see Scoped, Global, and Port-Scoped Simulink Function Blocks Overview.

Decide Whether to Generate Export Function Code

Function code is more reusable when you generate it as standalone, atomic components. Design the functions in the context of export-function models.

For information, see Generate Component Source Code for Export to External Code Base and Export-Function Models Overview.

Configure Function Code Interface

Simplify integration of the generated function code with external code by configuring generated function code interfaces for Simulink Function and Function Caller blocks. You can configure the function interfaces for:

  • Global Simulink Function blocks

  • Scoped Simulink Function blocks that are at the root level of a model

For more information, see Configure Entry-Point Function Interfaces for Simulink Function and Function Caller Blocks.

Uncalled Simulink Function Blocks

If you use a Simulink Function block in a rate-based model and do not call that function, the code generator treats the Simulink Function block as a constant and does not produce function code. For example, this can occur during model development, when you are ready to define a function, but are not ready to identify a caller.

To identify such blocks in a rate-based model, display sample time colors during simulation (see View Sample Time Information). By default, Constant blocks appear magenta. Because the code generator considers uncalled Simulink Function blocks constants during simulation, they appear magenta.

Requirements

  • Within a model hierarchy, function names are unique. If the code generator finds multiple functions with the same name, it issues an error. Change the name of one of the functions and delete the slprj folder.

  • The signature (for example, the arguments and argument data types) for a function and function callers must match.

    • If the code generator finds the function first and the signature of a function caller does not match, the code generator issues an error. Change the function caller signature to match the signature of the Simulink Function block or delete the slprj folder.

    • If the code generator finds a function caller first and the signature of the function does not match, the code generator issues a warning message. Change the signature of the function or function caller so that the signatures match.

  • In a Simulink Function block definition, do not define input and output signals for Argument Inport and Argument Outport blocks by using a storage class.

  • Do not specify Argument Inport and Argument Outport blocks as test points.

  • If you specify the data type of input and output signals for Argument Inport and Argument Outport blocks as a Simulink.IntEnumType, Simulink.AliasType, or Simulink.Bus, set the DataScope property to Imported or Exported.

  • A function interface and function callers must match in data type, complexity, dimension, and number of arguments.

Limitations

  • To generate code from a model that includes scoped Simulink functions, the model must be an export-function model. The code generator does not support rate-based models that include scoped Simulink functions.

  • You can use a Simulink Function block to define a scoped function in a referenced model. You cannot generate code for an export-function model that uses a Function Caller block in an atomic subsystem to invoke that function.

  • You can invoke a C++ function that the code generator produces from a Simulink Function block by using code generated from a Stateflow chart. Due to current scope limitations for generated C++ functions, you must invoke those functions with code generated from a Function Caller block.

  • Simulink functions and function callers do not honor the MaxStackSize parameter.

  • Code generation for a C++ class interface supports scoped Simulink functions only.

Client-Server C Code Communication Example

This example shows how to use the Simulink Function and Function Caller blocks to generate client-server communication code. The code generator produces a local server function and a global server function that complies with code requirements so that existing external code can call the function. The code generator also produces calls to the server functions. The call to the global server function shows that the global function is reused (shared).

Code requirements for the global function are:

  • Function names start with prefix func_.

  • Names of input arguments are of the form xn, where n is a unique integer value.

  • Names of output arguments are of the form yn, where n is a unique integer value.

  • Input and output arguments are integers (int) and are passed by reference. The native integer size of the target hardware is 32 bits.

You create a function that calls the generated server function code. Then, you construct and configure a model to match the code requirements.

Inspect External Code That Calls Server Functions

In your code generation root folder, create the files call_times2.h and call_times2.c. If you prefer, you can copy the files from matlabroot\help\toolbox\ecoder\examples.

call_times2.h

typedef int my_int;

call_times2.c

#include "call_times2.h"

void call_times2(void)
{
  int times2result;

  func_times2(x1, &y1);

  printf('Times 2 Value:', y1);
}

This C code calls global server function func_times2. The function multiplies an integer input value x1 by 2 and returns the result as y1.

Create Model

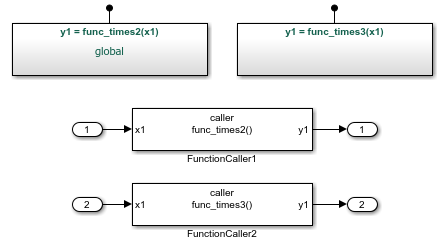

Open the example model ex_slfunc_comp, which is available in the folder matlabroot\help\toolbox\ecoder\examples. The model includes two Simulink functions modeled as Simulink Function blocks, func_times2 and func_times3, and a call to each function. As indicated in the model, the visibility of the Simulink Function block for func_times2 is set to global. That visibility setting makes the function code accessible to other code, including external code that you want to integrate with the generated code. The visibility for func_times3 is set to scoped.

If you configure the model for the code generator to use the GRT or ERT system target file with File packaging format set to Modular, the code generator produces function code for the model.

For more information, see Generate Code for a Simulink Function and Function Caller.

Configure Generated Code to Reuse Custom Data Type

The example assumes that the generated code runs on target hardware using a native integer size of 32 bits. The external code represents integers by using data type my_int, which is an alias of int. Configure the code generator to use my_int in place of the data type that the code generator uses by default, which is int32_T.

  1. Create a Simulink.AliasType object to represent the custom data type my_int.

    my_int = Simulink.AliasType

my_int =

  AliasType with properties:

    Description: ''
      DataScope: 'Auto'
     HeaderFile: ''
       BaseType: 'double'

  2. Set the alias type properties. Enter a description, set the scope to Imported, specify the header file that includes the type definition, and associate the alias type with the Simulink base type int32.

    my_int.Description='Custom 32-bit int representation';
my_int.DataScope='Imported';
my_int.HeaderFile='call_times2.h';
my_int.BaseType='int32';

my_int
  AliasType with properties:

    Description: 'Custom 32-bit int representation'
      DataScope: 'Imported'
     HeaderFile: 'call_times2.h'
       BaseType: 'int32'

  3. Configure the code generator to replace instances of type int32_T with my_int. In the Configuration Parameters dialog box, open the Code GenerationData Type Replacement pane.

    • Select Replace data type names in the generated code.

    • In the Data type names table, enter my_int for the replacement name for int32.

Configure Server Functions

For external code to call a global server function, configure the corresponding Simulink Function block to have global visibility and an interface that matches what is expected by the external callers.

  1. Open the block that represents the times2 function.

  2. Configure the function name and visibility by setting Trigger Port block parameters. For example, the code requirements specify that the function name start with the prefix func_.

    • Set Function name to func_times2.

    • Set Function visibility to global.

  3. Configure the function input and output arguments by setting Argument Inport and Argument Outport block parameters. For example, the code requirements specify that argument names be of the form xn and yn. The requirements also specify that arguments be type my_int.

    • On the Main tab, set Argument name to x1 (input) and y1 (output).

    • On the Signal Attributes tab, set Data type to int32. With the data type replacement that you specified previously, int32 appears in the generated code as myint.

  4. Configure the Simulink Function block code interface. At the top level of the model, right-click the block representing global function func_times2. From the context menu, select C/C++ Code > Configure C/C++ Function Interface.

    • Set C/C++ function name to func_times2.

    • Set C/C++ return argument to void.

    • Set C/C++ Identifier Name for argument x1 to x1.

    • Set C/C++ Identifier Name for argument y1 to y1.

    If the dialog box lists output argument y1 before input argument x1, reorder the arguments by dragging the row for x1 above the row for y1.

Configure Local Server Function

Configure a Simulink Function block that represents a local server function to use scoped visibility. Based on code requirements, you might also have to configure the function name, input and output argument names and types, and the function interface.

  1. Open the block that represents the times3 function.

  2. Configure the function name and visibility by setting Trigger Port block parameters. For example, the code requirements specify that the function name start with the prefix func_.

    • Set Function name to func_times3.

    • Set Function visibility to scoped.

  3. Configure the function input and output arguments by setting Argument Inport and Argument Outport block parameters. For example, the code requirements specify that argument names be of the form xn and yn. The requirements also specify that arguments be type my_int.

    • On the Main tab, set Argument name to x1 (input) and y1 (output).

    • On the Signal Attributes tab, set Data type to int32. With the data type replacement that you specified previously, int32 appears in the generated code as my_int.

  4. Configure the Simulink Function block code interface. At the top level of the model, right-click the scoped function func_times3. From the menu, select C/C++ Code > Configure C/C++ Function Interface. In this case, the code generator controls naming the function and arguments. The function name combines the name of the root model and the function name that you specify for the trigger port of the Simulink Function block. In this example, the name is ex_slfunc_comp_func_times3.

    You can set C/C++ return argument to the argument name that you specify for the Argument Outport block or void. For this example, set it to void.

    For arguments, the code generator prepends rtu_ (input) or rty_ (output) to the argument name that you specify for the Argument Inport block.

    If the dialog box lists output argument y1 before input argument x1, reorder the arguments by dragging the row for x1 above the row for y1.

Configure Function Callers

For each function caller, configure Function Caller block parameters:

  • Set Function prototype to y1 = func_times2(x1).

  • Set Input argument specifications to int32(1).

  • Set Output argument specifications to int32(1).

Generate and Inspect Code

Generate code for the model.

  • Global server function code

    Source code for global server function func_times2 is in the build folder in subsystem file, func_times2.c.

    #include "func_times2.h"

/* Include model header file for global data */
#include "ex_slfunc_comp.h"
#include "ex_slfunc_comp_private.h"

void func_times2(my_int x1, my_int *y1)
{
  *y1 = x1 << 1;
}

  • Local server function code

    The code generator places the definition for the local (scoped) function func_times3 in file build folder in file ex_slfunc_comp.c.

    void ex_slfunc_comp_func_times3(my_int rtu_x1, my_int *rty_y1)
{
  *rty_y1 = 3 * rtu_x1;
}

  • Calls to generated functions

    The model execution (step) function, in model file ex_slfunc_comp.c, calls the two Simulink functions: global function func_times2 and local function ex_slfunc_comp_func_times3. The name ex_slfunc_comp_func_times3 reflects the scope of the local function by combining the name of the model and the name of the function.

    void ex_slfunc_comp_step(void)
{
  my_int rtb_FunctionCaller2;

  func_times2(ex_slfunc_comp_U.In1, &rtb_FunctionCaller2);

  ex_slfunc_comp_Y.Out1 = rtb_FunctionCaller2;

  ex_slfunc_comp_func_times3(ex_slfunc_comp_U.In2, &rtb_FunctionCaller2);

  ex_slfunc_comp_Y.Out2 = rtb_functionCaller2;
  .
  .
  .

  • Entry-point declaration for local server function

    The model header file ex_slfunc_comp.h includes an extern declaration for function ex_slfunc_comp_func_times3. That statement declares the function entry point.

    extern void ex_slfunc_comp_func_times3(my_int rtu_x1, my_int *rty_y1);

  • Include statements for global server function

    The model header file ex_slfunc_comp.h lists include statements for the global functionfunc_times2.

    #include "func_times2_private.h"
#include "func_times2.h"

  • Local macros and data for global server function

    The subsystem header file func_times2_private.h defines macros and includes header files that declare data and functions for the global server function, func_times2.

    #ifndef RTW_HEADER_func_times2_private_h_
#define RTW_HEADER_func_times2_private_h_
#ifndef ex_slfunc_comp_COMMON_INCLUDES_
#define ex_slfunc_comp_COMMON_INCLUDES_
#include "rtwtypes.h"
#endif
#endif

  • Entry-point declaration for global server function

    The shared header file func_times2.h, in the shared utilities folder slprj/stf/_sharedutils, lists shared type includes for rtwtypes.h. The file also includes an extern declaration for the global server function, func_times2. That statement declares the function entry point.

    #ifndef RTW_HEADER_func_times2_
#define RTW_HEADER_func_times2_

#include "rtwtypes.h"

extern void func_times2(my_int rtu_x1, my_int *rty_y1);

#endif

Client-Server C++ Code Communication Example

You can generate C++ code to support client-server communication by generating abstract classes for modeled client and server components. This type of code generation is supported for models that use scoped function ports as described in Call Simulink Functions in Other Models Using Function Ports. After code generation, you must then handwrite code to implement the generated classes. The basic workflow is the following:

  1. Create your own main file. In the program, create concrete methods from the generated abstract pure virtual methods shown in the example as add and sub.

  2. Implement the class functions add and sub to call into your selected middleware to publish and subscribe data.

  3. Create an instance of your implemented client and server scoped function port classes.

  4. Create an instance of the model class by using the instances of each scoped function port class as arguments in the model constructor.

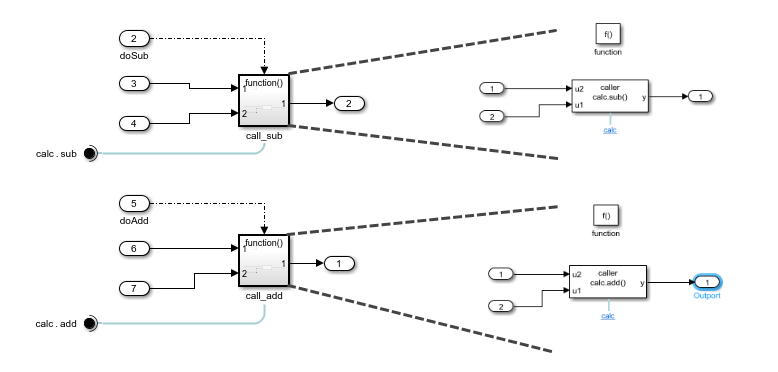

For example, the following modelled client requests the services of add and sub:Modeling pattern that requests service of class functions add and sub.

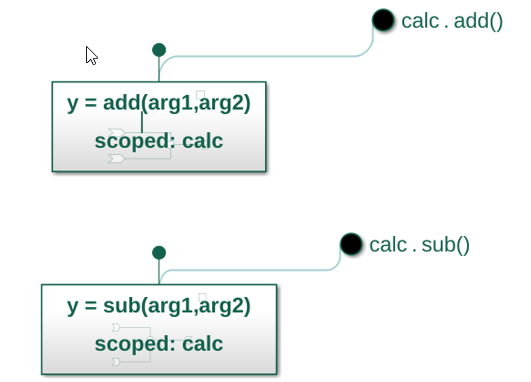

The corresponding modelled server provides these services:

Modeling pattern that provides services of class functions add and sub.

The resulting generated code, as shown in the header files, is the following:

Generated Client-Server Code

Client CodeServer Code
// Class declaration for model calc_client
class calc_client final
{
  // public data and function members
 public:
  // External inputs (root inport signals with default storage)
  struct ExtU_calc_client_T {
    real_T calc_add_p;                 // '<Root>/calc_add'
    real_T calc_sub_p;                 // '<Root>/calc_sub'
    real_T Input;                      // '<Root>/Input'
    real_T Input1;                     // '<Root>/Input1'
    real_T Input2;                     // '<Root>/Input2'
    real_T Input3;                     // '<Root>/Input3'
  };

  // External outputs (root outports fed by signals with default storage)
  struct ExtY_calc_client_T {
    real_T Outport;                    // '<Root>/Outport'
    real_T Outport1;                   // '<Root>/Outport1'
  };

  // Real-time Model Data Structure
  struct RT_MODEL_calc_client_T {
    const char_T * volatile errorStatus;
  };

 ...

  // Real-Time Model get method
  calc_client::RT_MODEL_calc_client_T * getRTM();

  // Constructor
  calc_client(calcT &calc_arg);

  // Root inports set method
  void setExternalInputs(const ExtU_calc_client_T *pExtU_calc_client_T)
  {
    calc_client_U = *pExtU_calc_client_T;
  }

  // Root outports get method
  const ExtY_calc_client_T &getExternalOutputs() const
  {
    return calc_client_Y;
  }

  // model initialize function
  static void initialize();

  // model step function
  void doAdd();

  // model step function
  void doSub();

  // model terminate function
  static void terminate();
...
  // private data and function members
 private:
  // External inputs
  ExtU_calc_client_T calc_client_U;

  // External outputs
  ExtY_calc_client_T calc_client_Y;
  calcT &calc;

  // Real-Time Model
  RT_MODEL_calc_client_T calc_client_M;
};

// Class declaration for model calc_server
// Forward declaration
class calc_server;
class calc_servercalcT : public calcT
{
  // public data and function members
 public:
  calc_servercalcT(calc_server &aProvider);
  virtual void add(real_T u2, real_T u1, real_T *y);
  virtual void sub(real_T u2, real_T u1, real_T *y);

  // private data and function members
 private:
  calc_server &calc_server_mProvider;
};

class calc_server final
{
 public:
  // Service port get method
  calcT & get_calc();
...
 private:
  calc_servercalcT calc;
...
};

To implement these abstract classes, you must handwrite the code. The following is a POSIX implementation example:

Implemented Client-Server Code

Client CodeServer Code
class mCalcModelClasscalcT : public calcT{
public:
    mCalcModelClasscalcT() {
        clnt = clnt_create (host, COMPUTE, COMPUTE_VERS, "udp");
        if (clnt == NULL) {
            clnt_pcreateerror (host);
            exit (1);
        }
    }
    void add( int32_T arg0, int32_T arg1, int32_T* arg2)
    {
        int32_T *result_1;
        operands add_6_arg;
        // Do data marshaling into struct
        add_6_arg.num1 = arg0;
        add_6_arg.num2 = arg1;
        result_1 = add_6(&add_6_arg, clnt);
        if (result_1 == (int *) NULL) {
            clnt_perror (clnt, "call failed");
        }
        // Marshal the result
        *arg2 = *result_1;
    }
    void sub( int32_T arg0, int32_T arg1, int32_T* arg2)
    {
        int32_T *result_2;
        operands sub_6_arg;
        sub_6_arg.num1 = arg0;
        sub_6_arg.num2 = arg1;
        result_2 = sub_6(&sub_6_arg, clnt);
        if (result_2 == (int *) NULL) {
            clnt_perror (clnt, "call failed");
        }
        *arg2 = *result_2;
    }
private:
    CLIENT *clnt;
};

static mCalcModelClasscalcT calc_arg;
static mCalcModelClass mCalc_Obj( calc_arg);// Instance of model class

static mServer mCalcSvr_Obj;

int *
add_6_svc(operands *argp, struct svc_req *rqstp)
{
    static int  result;
    mCalcSvr_Obj.get_calc().add(argp->num1, argp->num2, &result);
    return &result;
}

int *
sub_6_svc(operands *argp, struct svc_req *rqstp)
{
    static int  result;
    mCalcSvr_Obj.get_calc().sub(argp->num1, argp->num2, &result);
    return &result;
}

Client-server communication uses the same modeling pattern as messages by generating an abstract interface that can be elaborated on for each scoped function service port. For additional information, see Message Communication Interfaces.

See Also

|

Related Topics
