Visualize Task Scheduling in XCP External Mode Simulation

If you run an XCP-based external mode simulation with code execution profiling enabled, you can use the Simulation Data Inspector to visualize how the target hardware executes generated code.

This example shows how to configure and run the simulation and display task activity and diagnostics and CPU activity and utilization.

Model Configuration

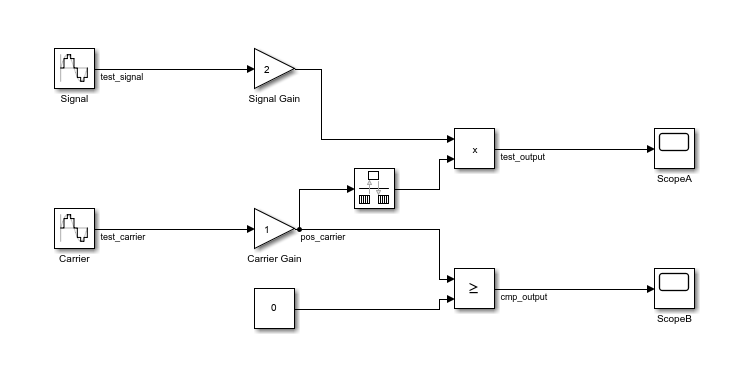

Create and configure a model in a folder.

In the Command Window, enter these commands:

% Create work folder
if mkdir('workFolder')
    rmdir 'workFolder' s
    mkdir('workFolder')
end
cd workFolder
open_system(new_system('myModel'));

% Add, configure, and connect blocks
add_block('simulink/Sources/Sine Wave','myModel/Signal',...
                                       'Bias','5',...
                                       'Amplitude','2',...
                                       'SampleTime','0.01');
set_param('myModel/Signal','position',[140,80,180,120]);

add_block('simulink/Math Operations/Gain','myModel/Signal Gain',...
                                       'Gain','2');
set_param('myModel/Signal Gain','position',[340,80,380,120]);
add_line('myModel','Signal/1','Signal Gain/1');

% Label signal
signal=get_param('myModel/Signal','PortHandles');
set_param(signal.Outport(1),'Name','test_signal');

% And so on
add_block('simulink/Math Operations/Product','myModel/Product');
set_param('myModel/Product','position',[540,160,580,200]);
add_line('myModel','Signal Gain/1','Product/1');

add_block('simulink/Sources/Sine Wave','myModel/Carrier',...
                                       'Bias','5',...
                                       'Amplitude','10',...
                                       'Frequency','3',...
                                       'SampleTime','0.02');

set_param('myModel/Carrier','position',[140,240,180,280]);

add_block('simulink/Math Operations/Gain','myModel/Carrier Gain');
set_param('myModel/Carrier Gain','position',[340,240,380,280]);
add_line('myModel','Carrier/1','Carrier Gain/1');

signal=get_param('myModel/Carrier','PortHandles');
set_param(signal.Outport(1),'Name','test_carrier');

add_block('simulink/Signal Attributes/Rate Transition',...
          'myModel/Rate Transition');
set_param('myModel/Rate Transition','position',[440,200,480,240]);
add_line('myModel','Carrier Gain/1','Rate Transition/1');
add_line('myModel','Rate Transition/1','Product/2');

add_block('simulink/Sources/Constant','myModel/Constant',...
          'Value','0');
set_param('myModel/Constant','position',[340,320,380,360]);

add_block('simulink/Logic and Bit Operations/Relational Operator',...
          'myModel/Relational Operator','Operator','>=');
set_param('myModel/Relational Operator','position',[540,300,580,340]);
add_line('myModel','Carrier Gain/1','Relational Operator/1');
add_line('myModel','Constant/1','Relational Operator/2');

signal=get_param('myModel/Carrier Gain','PortHandles');
set_param(signal.Outport(1),'Name','pos_carrier');

add_block('simulink/Sinks/Scope','myModel/ScopeA');
set_param('myModel/ScopeA','position',[740,160,780,200]);
add_line('myModel','Product/1','ScopeA/1');

signal=get_param('myModel/Product','PortHandles');
set_param(signal.Outport(1),'Name','test_output');

add_block('simulink/Sinks/Scope','myModel/ScopeB');
set_param('myModel/ScopeB','position',[740,300,780,340]);
add_line('myModel','Relational Operator/1','ScopeB/1');

signal=get_param('myModel/Relational Operator','PortHandles');
set_param(signal.Outport(1),'Name','cmp_output');

% Specify the ERT system target file
set_param('myModel', 'SystemTargetFile', 'ert.tlc');

% Configure an XCP-based external mode simulation
set_param('myModel', 'SimulationMode', 'external');

set_param('myModel', 'SolverType', 'Fixed-step');
set_param('myModel', 'ExtMode', 'on');

cs = getActiveConfigSet('myModel');
index = Simulink.ExtMode.Transports.getExtModeTransportIndex(cs, 'XCP on TCP/IP');
set_param('myModel', 'ExtModeTransport', index);

set_param('myModel', 'GenerateSampleERTMain', 'on');
set_param('myModel', 'TargetOS', 'BareBoardExample');

set_param('myModel', 'ReturnWorkspaceOutputs', 'off');

% Save the model
save_system('myModel');

Treat each discrete rate as a separate task.

set_param(gcs, 'EnableMultiTasking', 'on');

Enable code execution profiling.

set_param(gcs, 'CodeExecutionProfiling', 'on');
set_param(gcs, 'CodeProfilingInstrumentation', 'Detailed');
set_param(gcs, 'CodeProfilingSaveOptions', 'AllData');

Open the Simulation Data Inspector.
```
Simulink.sdi.view;
```

Start the simulation.

set_param(gcs, 'SimulationCommand', 'start');

Run-Time Visualization

In the Simulation Data Inspector, the Inspect pane provides display groups. This table describes the profiling information that is available.

Display Group	Information Available
Profiling	For each task, the variation of execution time over simulation time.
Task Activity	For each task, the variation of its state over time. A task can be in one of these states: `NotActive` — Task has not started. `Running` — Task is running on a processor core. `Preempted` — Execution of task is preempted by another task that has a higher priority.

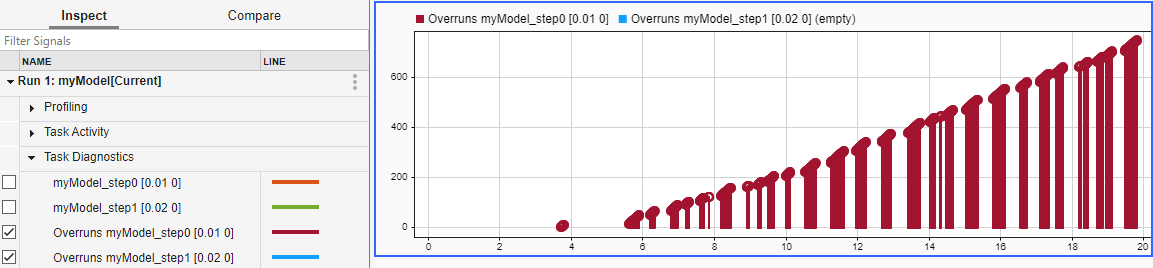

Task Diagnostics	For each task, the variation of task diagnostic values over simulation time. A task diagnostic can have one of these values: `OK` — No scheduling issue detected. `Warn` — Warning that the task is preempted by a task with lower priority. `PriorityInversion` — Priority inversion detected The software uses a rate-monotonic analysis to determine task priorities. Task diagnostics are available only for target applications that are generated to run on: Your development computer Target devices that are Linux^®-based.
CPU Activity	For each CPU core, the names of tasks that run on the CPU core over simulation time. At any instant, if no task is running on the CPU core, the value `idle` is displayed.
CPU Utilization	For each CPU core that tasks run on, normalized utilization over simulation time. Utilization values range between 0.0 and 1.0. For example, a value of 0.5 indicates that the CPU core is idle for 50% of the time.

To monitor task preemption and priority inversion:

Select a subplot. Then, on the Inspect pane, from the Task Activity display group, select the myModel_step0 [0.01 0] and myModel_step1 [0.02 0] check boxes.
Select the next subplot. Then, on the Inspect pane, from the Task Diagnostics display group, select the myModel_step0 [0.01 0] and myModel_step1 [0.02 0] check boxes.
Using the Zoom in Time (Ctrl+Shift+T) control, view a specific time section.

To monitor CPU core activity and utilization:

Select a subplot. On the Inspect pane, from the CPU Activity display group, select, for example, the Core 1, Core 2, Core 3, and Core 4 check boxes.
Select the next subplot. On the Inspect pane, from the CPU Utilization display group, select, for example, the Core 1, Core 2, Core 3, and Core 4 check boxes.
Using the Zoom in Time (Ctrl+Shift+T) control, view a specific time section.

Offline Visualization

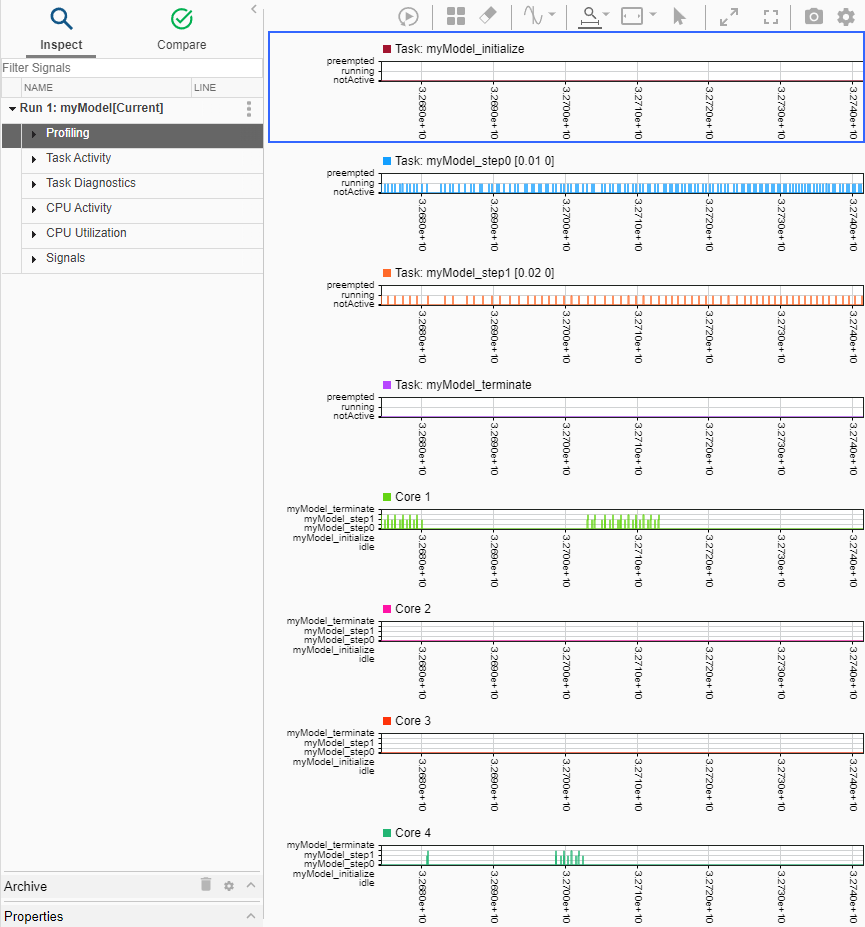

After the completion of the simulation, you can use the schedule function to regenerate displays (except for task diagnostics). For this example, run:

schedule(executionProfile)

The function adds the task activity, CPU core activity, and CPU core utilization displays to the Profiling group. By default, the function produces eight subplots.

To visualize specific task scheduling and related CPU activity for specific tasks, you can use Simulink.sdi functions. For example, to observe task activity for myModel_step0 and myModel_step1 and CPU core activity and utilization for Core 4:

Clear the displays and specify three subplots.

Simulink.sdi.clearAllSubPlots;
Simulink.sdi.setSubPlotLayout(3,1);

In the Simulation Data Inspector, perform these actions:
- Click subplot 1, and then select the Task: myModel_step0 [0.01 0] and Task: myModel_step1 [0.02 0] check boxes.
- Click subplot 2, and then select the Core 4 check box.
- Click subplot 3, and then select the Usage Core 4 check box.
Using the Zoom in Time (Ctrl+Shift+T) control, view activity for a specific time section.
