bndspread
Static spread over spot curve
In R2017b, the specification of optional input arguments has changed. While the
previous ordered inputs syntax is still supported, it may no longer be supported in
a future release. Use the optional name-value pair inputs:
Period
, Basis
,
EndMonthRule
,
IssueDate
,FirstCouponDate
,
LastCouponDate
,
StartDate
,Face
,
CompoundingFrequency
, DiscountBasis
,
and LastCouponInterest
.
Description
Examples
Compute the Static Spread Over a Spot Curve Using datetime Inputs
This example shows how to compute a Federal National Mortgage Association (FNMA) 4 3/8 spread over a Treasury spot curve using datetime
inputs for Settle
and Maturity
and a table for SpotInfo
and plot the results.
RefMaturity = [datenum('02/27/2003'); datenum('05/29/2003'); datenum('10/31/2004'); datenum('11/15/2007'); datenum('11/15/2012'); datenum('02/15/2031')]; RefCpn = [0; 0; 2.125; 3; 4; 5.375] / 100; RefPrices = [99.6964; 99.3572; 100.3662; 99.4511; 99.4299; 106.5756]; RefBonds = [RefPrices, RefMaturity, RefCpn]; Settle = datetime('26-Nov-2002','Locale','en_US'); [ZeroRates, CurveDates] = zbtprice(RefBonds(:, 2:end), ... RefPrices, Settle)
ZeroRates = 6×1
0.0121
0.0127
0.0194
0.0317
0.0423
0.0550
CurveDates = 6x1 datetime
27-Feb-2003
29-May-2003
31-Oct-2004
15-Nov-2007
15-Nov-2012
15-Feb-2031
% FNMA 4 3/8 maturing 10/06 at 4.30 pm Tuesday Price = 105.484; Coupon = 0.04375; Maturity = datetime('15-Oct-2006','Locale','en_US'); % All optional inputs are accounted by default, % except the accrued interest under 30/360 (SIA), so: Period = 2; Basis = 1; SpotInfo = table(CurveDates, ZeroRates); % Compute static spread over treasury curve, taking into account % the shape of curve as derived by bootstrapping method embedded % within bndspread. SpreadInBP = bndspread(SpotInfo, Price, Coupon, Settle, ... Maturity, Period, Basis)
SpreadInBP = 18.5669

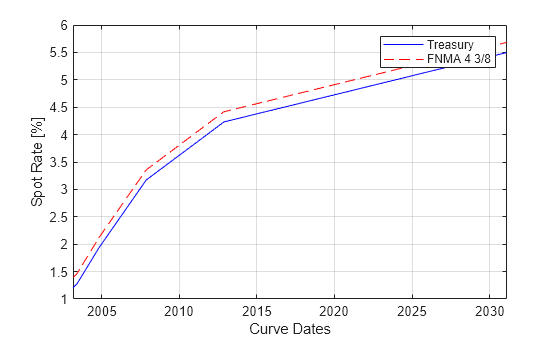

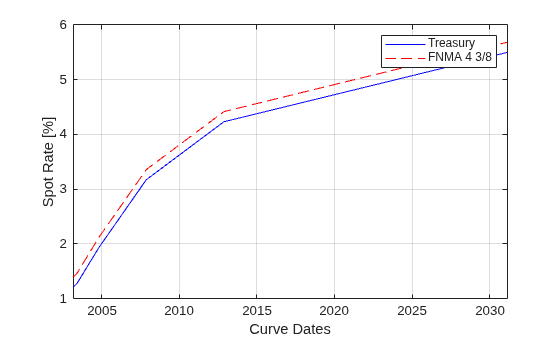

plot(CurveDates, ZeroRates*100, 'b', CurveDates, ... ZeroRates*100+SpreadInBP/100, 'r--') legend({'Treasury'; 'FNMA 4 3/8'}) xlabel('Curve Dates') ylabel('Spot Rate [%]') grid;
Input Arguments
SpotInfo
— Spot-rates information
matrix | table | term structure
Spot-rates information, specified as matrix of two columns, an
annualized term structure created by intenvset
(Financial Instruments Toolbox), or a table.
Matrix of two columns— The first column is the
SpotDate
, and the second column,ZeroRates
, is the zero-rate corresponding to maturities on theSpotDate
. It is recommended that the spot-rates are spaced as evenly apart as possible, perhaps one that is built from 3-months deposit rates. For example, using the 3-month deposit rates:SpotInfo = ... [datenum('2-Jan-2004') , 0.03840; datenum('2-Jan-2005') , 0.04512; datenum('2-Jan-2006') , 0.05086];
Annualized term structure — Refer to
intenvset
(Financial Instruments Toolbox) to create an annualized term structure. For example:Settle = datetime(2004,1,1); Rates = [0.03840; 0.04512; 0.05086]; EndDates = [datetime(2004,1,2) datenum('2-Jan-2004'); datetime(2005,1,2);... datetime(2006,1,2)]; SpotInfo = intenvset('StartDates' , Settle ,... 'Rates' , Rates ,... 'EndDates' , EndDates,... 'Compounding', 2 ,... 'Basis' , 0);
Table — If
SpotInfo
is a table, the first column can be either a datetime array, string array, or date character vector. The second column is numerical data representing zero rates. For example:ZeroRates = [0.012067955808764;0.012730933424479;0.019360902068703;0.031704525214251;0.042306085224510;0.054987415342936]; CurveDates = [731639;731730;732251;733361;735188;741854]; Settle = datetime(2002,11,26); Price = 105.484; Coupon = 0.04375; Maturity = datetime(2006,10,15); Period = 2; Basis = 1; SpotInfo = table(datestr(CurveDates), ZeroRates);
Data Types: double
| string
| char
| datetime
| table
| struct
Price
— Clean price for every $100 notional amount of bonds whose spreads are computed
numeric
Clean price for every $100 notional amount of bonds whose spreads are
computed, specified as numeric value using a scalar or a
NUMBONDS
-by-1
or
1
-by-NUMBONDS
vector.
The clean price is the price of a bond not including accrued interest payments. The clean price is typically the quoted price on financial news sites. This price does not include any interest accrued between the scheduled coupon payments for the bond.
Data Types: double
Coupon
— Annual coupon rate of bonds whose spreads are computed
decimal
Annual coupon rate of bonds whose spreads are computed, specified as
decimal value using a scalar or a
NUMBONDS
-by-1
or
1
-by-NUMBONDS
vector.
Data Types: double
Settle
— Settlement date of bond
datetime array | string array | date character vector
Settlement date of the bond, specified as a scalar or a
NUMBONDS
-by-1
or
1
-by-NUMBONDS
vector using a
datetime array, string array, or date character vectors. The
Settle
date must be before the
Maturity
date.
To support existing code, bndspread
also
accepts serial date numbers as inputs, but they are not recommended.
Data Types: char
| string
| datetime
Maturity
— Maturity date of bond
datetime array | string array | date character vector
Maturity date of the bond, specified as a scalar or a
NUMBONDS
-by-1
or
1
-by-NUMBONDS
vector using a
datetime array, string array, or date character vectors.
To support existing code, bndspread
also
accepts serial date numbers as inputs, but they are not recommended.
Data Types: char
| string
| datetime
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: Spread =
bndspread(SpotInfo,Price,Coupon,Settle,Maturity,'Period',4,'Basis',7)
Period
— Number of coupon payments per year
2
(default) | numeric with values 0
, 1
,
2
, 3
,
4
, 6
or
12
Number of coupon payments per year, specified as the
comma-separated pair consisting of 'Period'
and a
scalar or a NUMBONDS
-by-1
or
1
-by-NUMBONDS
vector using the
values: 0
, 1
,
2
, 3
, 4
,
6
, or 12
.
Data Types: double
Basis
— Day-count basis of instrument
0
(default) | numeric values: 0
,1
,
2
, 3
,
4
, 6
, 7
,
8
, 9
,
10
, 11
,
12
, 13
Day-count of the instrument, specified as the comma-separated pair
consisting of 'Basis'
and a scalar or a
NUMBONDS
-by-1
or
1
-by-NUMBONDS
vector using a
supported value:
0 = actual/actual
1 = 30/360 (SIA)
2 = actual/360
3 = actual/365
4 = 30/360 (PSA)
5 = 30/360 (ISDA)
6 = 30/360 (European)
7 = actual/365 (Japanese)
8 = actual/actual (ICMA)
9 = actual/360 (ICMA)
10 = actual/365 (ICMA)
11 = 30/360E (ICMA)
12 = actual/365 (ISDA)
13 = BUS/252
For more information, see Basis.
Data Types: double
EndMonthRule
— End-of-month rule flag
1
(in effect) (default) | nonnegative integer 0
or
1
End-of-month rule flag, specified as the comma-separated pair
consisting of 'EndMonthRule'
and a scalar or a
NUMBONDS
-by-1
or
1
-by-NUMBONDS
vector. This
rule applies only when Maturity
is an end-of-month
date for a month having 30 or fewer days.
0
= Ignore rule, meaning that a bond coupon payment date is always the same numerical day of the month.1
= Set rule on, meaning that a bond coupon payment date is always the last actual day of the month.
Data Types: logical
IssueDate
— Bond issue date
datetime array | string array | date character vector
Bond Issue date, specified as the comma-separated pair consisting
of 'IssueDate'
and a scalar or a
NUMBONDS
-by-1
or
1
-by-NUMBONDS
vector using a
datetime array, string array, or date character vectors.
If you do not specify an IssueDate
, the cash
flow payment dates are determined from other inputs.
To support existing code, bndspread
also
accepts serial date numbers as inputs, but they are not recommended.
Data Types: char
| string
| datetime
FirstCouponDate
— Irregular or normal first coupon date
datetime array | string array | date character vector
Irregular or normal first coupon date, specified as the
comma-separated pair consisting of 'FirstCouponDate'
and a scalar or a NUMBONDS
-by-1
or
1
-by-NUMBONDS
vector using a
datetime array, string array, or date character vectors.
If you do not specify a FirstCouponDate
, the
cash flow payment dates are determined from other inputs.
To support existing code, bndspread
also
accepts serial date numbers as inputs, but they are not recommended.
Data Types: char
| string
| datetime
LastCouponDate
— Irregular or normal last coupon date
datetime array | string array | date character vector
Irregular or normal last coupon date, specified as the
comma-separated pair consisting of 'LastCouponDate'
and a scalar or a NUMBONDS
-by-1
or
1
-by-NUMBONDS
vector using a
datetime array, string array, or date character vectors.
If you do not specify a LastCouponDate
, the
cash flow payment dates are determined from other inputs.
To support existing code, bndspread
also
accepts serial date numbers as inputs, but they are not recommended.
Data Types: char
| string
| datetime
StartDate
— Forward starting date of payments
datetime array | string array | date character vector
Forward starting date of payments, specified as the
comma-separated pair consisting of 'StartDate'
and a
scalar or a NUMBONDS
-by-1
or
1
-by-NUMBONDS
vector using a
datetime array, string array, or date character vectors. The
StartDate
is when a bond actually starts (the
date from which a bond cash flow is considered). To make an instrument
forward-starting, specify this date as a future date.
If you do not specify a StartDate
, the
effective start date is the Settle
date.
To support existing code, bndspread
also
accepts serial date numbers as inputs, but they are not recommended.
Data Types: char
| string
| datetime
Face
— Face value of bond
100
(default) | numeric
Face value of the bond, specified as the comma-separated pair
consisting of 'Face'
and a scalar or a
NUMBONDS
-by-1
or
1
-by-NUMBONDS
vector.
Data Types: double
CompoundingFrequency
— Compounding frequency for yield calculation
SIA bases uses2
, ICMA bases
uses 1
(default) | integer with value of 1
, 2
,
3
, 4
,
6
, or 12
Compounding frequency for yield calculation, specified as the
comma-separated pair consisting of
'CompoundingFrequency'
and a scalar or a
NUMBONDS
-by-1
or
1
-by-NUMBONDS
vector.
1
— Annual compounding2
— Semiannual compounding3
— Compounding three times per year4
— Quarterly compounding6
— Bimonthly compounding12
— Monthly compounding
Note
By default, SIA bases
(0
-7
) and
BUS/252
use a semiannual compounding
convention and ICMA bases
(8
-12
) use an annual
compounding convention.
Data Types: double
DiscountBasis
— Basis used to compute the discount factors for computing the yield
SIA uses 0
(default) | integers of the set [0...13]
| vector of integers of the set [0...13]
Basis used to compute the discount factors for computing the
yield, specified as the comma-separated pair consisting of
'DiscountBasis'
and a scalar or a
NUMBONDS
-by-1
or
1
-by-NUMBONDS
vector. Values
are:
0 = actual/actual
1 = 30/360 (SIA)
2 = actual/360
3 = actual/365
4 = 30/360 (PSA)
5 = 30/360 (ISDA)
6 = 30/360 (European)
7 = actual/365 (Japanese)
8 = actual/actual (ICMA)
9 = actual/360 (ICMA)
10 = actual/365 (ICMA)
11 = 30/360E (ICMA)
12 = actual/365 (ISDA)
13 = BUS/252
For more information, see Basis.
Note
If a SIA day-count basis is defined in the
Basis
input argument and there is
no value assigned for DiscountBasis
, the
default behavior is for SIA bases to use the actual/actual
day count to compute discount factors.
If an ICMA day-count basis or BUS/252 is defined in the
Basis
input argument and there is
no value assigned for DiscountBasis
, the
specified bases from the Basis
input
argument are used.
Data Types: double
LastCouponInterest
— Compounding convention for computing yield of a bond in last coupon period
compound
(default) | values are simple
or
compound
Compounding convention for computing the yield of a bond in the
last coupon period, specified as the comma-separated pair consisting of
'LastCouponInterest'
and a scalar or a
NUMBONDS
-by-1
or
1
-by-NUMBONDS
vector.
LastCouponInterest
is based on only the last
coupon and the face value to be repaid. Acceptable values are:
simple
compound
Data Types: char
| cell
Output Arguments
Spread
— Static spread to benchmark in basis points
numeric
Static spread to benchmark, returned in basis points as a scalar or a
NUMBONDS
-by-1
vector.
References
[1] Krgin, D. Handbook of Global Fixed Income Calculations. Wiley, 2002.
[2] Mayle, J. "Standard Securities Calculations Methods: Fixed Income Securities Formulas for Analytic Measures." SIA, Vol 2, Jan 1994.
[3] Stigum, M., Robinson, F. Money Market and Bond Calculation. McGraw-Hill, 1996.
Version History
Introduced before R2006aR2022b: Serial date numbers not recommended
Although bndspread
supports serial date numbers,
datetime
values are recommended instead. The
datetime
data type provides flexible date and time
formats, storage out to nanosecond precision, and properties to account for time
zones and daylight saving time.
To convert serial date numbers or text to datetime
values, use the datetime
function. For example:
t = datetime(738427.656845093,"ConvertFrom","datenum"); y = year(t)
y = 2021
There are no plans to remove support for serial date number inputs.
R2017b: Support for optional name-value input arguments
The specification of optional input arguments has changed. While the previous
ordered inputs syntax is still supported, it may no longer be supported in a future
release. Use the optional name-value pair inputs: Period
,
Basis
, EndMonthRule
,
IssueDate
,FirstCouponDate
,
LastCouponDate
,
StartDate
,Face
,
CompoundingFrequency
, DiscountBasis
,
and LastCouponInterest
.
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
