Price and Volume Trend (PVT)

Using a fints object for the Data argument of pvtrend is not recommended. Use a matrix, timetable, or table instead for financial time series. For more information, see Convert Financial Time Series Objects fints to Timetables.



trend = pvtrend(Data) calculates the Price and Volume Trend (PVT) from the series of closing stock prices and trade volume.


collapse all

Load the file SimulatedStock.mat, which provides a timetable (TMW) for financial data for TMW stock.

load SimulatedStock.mat
trend = pvtrend(TMW);
title('Price and Volume Trend for TMW')

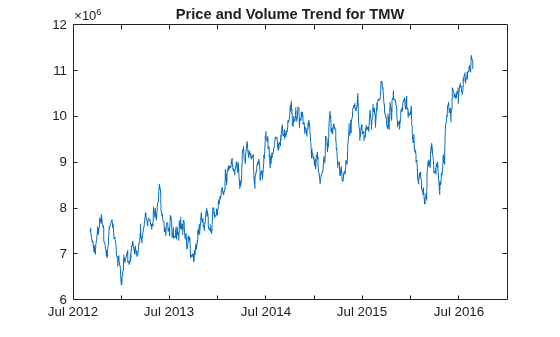

Figure contains an axes object. The axes object with title Price and Volume Trend for TMW contains an object of type line.

Input Arguments

collapse all

Data for closing prices and trade volume, specified as a matrix, table, or timetable. For matrix input, Data is an M-by-2 matrix of closing prices and trade volume. Timetables and tables with M rows must contain variables named 'Close' and 'Volume' (case insensitive).

Data Types: double | table | timetable

Output Arguments

collapse all

Price and volume trend (PVT), returned with the same number of rows (M) and the same type (matrix, table, or timetable) as the input Data.


[1] Achelis, S. B. Technical Analysis from A to Z. Second Edition. McGraw-Hill, 1995, pp. 239–240.

Version History

Introduced before R2006a
