Triangular membership function


This function computes fuzzy membership values using a triangular membership function. You can also compute this membership function using a fismf object. For more information, see fismf Object.

This membership function is related to the trapmf membership function.


y = trimf(x,params) returns fuzzy membership values computed using the following triangular membership function:


or, more compactly:


To specify the parameters, a, b, and c, use params.

Membership values are computed for each input value in x.


collapse all

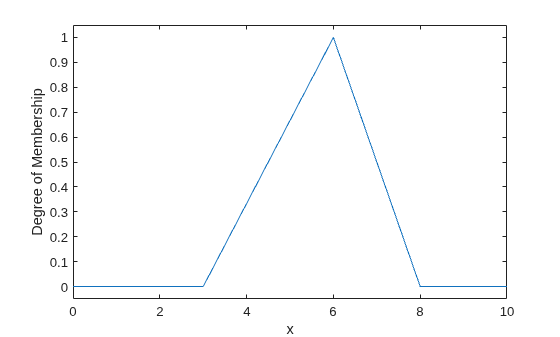

x = 0:0.1:10;
y = trimf(x,[3 6 8]);
xlabel('trimf, P = [3 6 8]')
ylim([-0.05 1.05])

Figure contains an axes. The axes contains an object of type line.

Input Arguments

collapse all

Input values for which to compute membership values, specified as a scalar or vector.

Membership function parameters, specified as the vector [a b c]. Parameters a and c define the feet of the membership function, and b defines its peak.

Output Arguments

collapse all

Membership value returned as a scalar or a vector. The dimensions of y match the dimensions of x. Each element of y is the membership value computed for the corresponding element of x.

Alternative Functionality

fismf Object

You can create and evaluate a fismf object that implements the trimf membership function.

mf = fismf("trimf",P);
Y = evalmf(mf,X);

Here, X, P, and Y correspond to the x, params, and y arguments of trimf, respectively.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Introduced before R2006a
