# cc2bw

Convert connected components to binary image

Since R2024a

## Syntax

``BW = cc2bw(CC)``
``BW = cc2bw(CC,ObjectsToKeep=objectsToKeep)``

## Description

example

````BW = cc2bw(CC)` creates a binary image from the connected components (objects) in `CC`.```

example

````BW = cc2bw(CC,ObjectsToKeep=objectsToKeep)` creates a binary image from a subset of connected components, specified by `objectsToKeep`.```

## Examples

collapse all

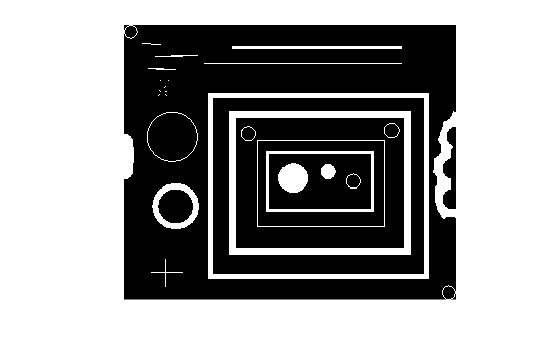

```I = imread("blobs.png"); imshow(I)```

Create a connected components structure.

`CC = bwconncomp(I);`

Filter the structure and keep round objects. Display the filtered image.

```CC = bwpropfilt(CC,"Circularity",[0.7 1]); imshow(cc2bw(CC))```

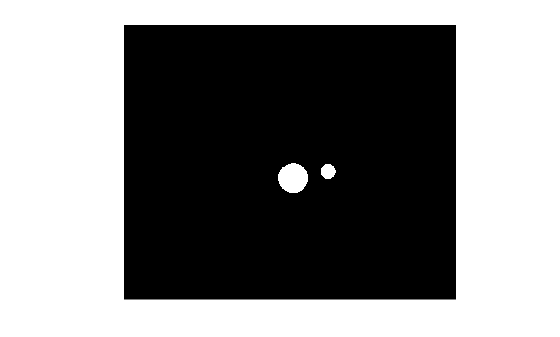

Filter the structure again and keep large objects. Display the filtered image.

```CC = bwpropfilt(CC,"Area",[20 Inf]); imshow(cc2bw(CC))```

Read a binary image and detect the connected components.

```BW = imread("text.png"); CC = bwconncomp(BW);```

Measure the area of each connected component and return the results as a table.

`p = regionprops("table",CC,"Area");`

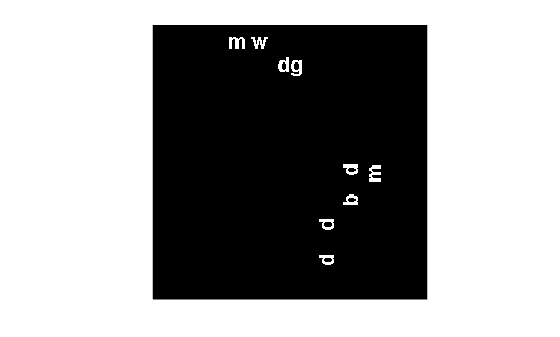

Create a binary image that contains only the 2nd through 10th largest connected components. Display the result.

```[~,idx] = sort(p.Area,"descend"); BWfilt = cc2bw(CC,ObjectsToKeep=idx(2:10)); imshow(BWfilt)```

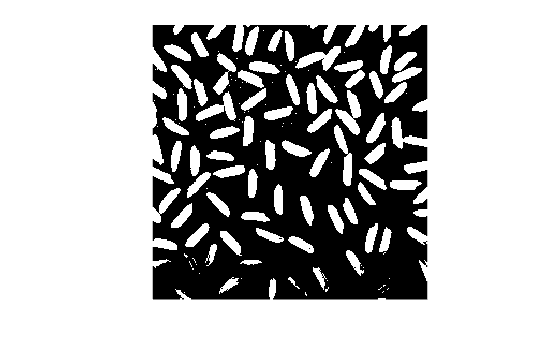

Read a grayscale image of grains of rice, then convert the image to binary.

```I = imread("rice.png"); BW = imbinarize(I); imshow(BW)```

Measure the area and bounding box of each region.

```CC = bwconncomp(BW); stats = regionprops("table",CC,"Area","BoundingBox");```

Select regions for whom these conditions apply:

• The area is greater than 50 pixels

• The bounding box is less than 15 pixels wide and is greater than or equal to 20 pixels tall.

```area = stats.Area; bbox = stats.BoundingBox; selection = (area > 50) & (bbox(:,3) < 15) & (bbox(:,4) >= 20); BW2 = cc2bw(CC,ObjectsToKeep=selection);```

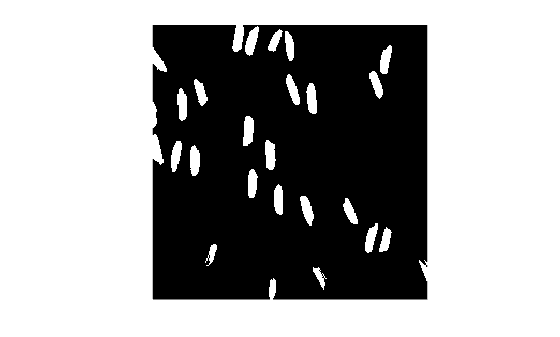

Display the filtered image.

`imshow(BW2)`

## Input Arguments

collapse all

Connected components (objects), specified as a structure with four fields.

FieldDescription
`Connectivity`Connectivity of the connected components
`ImageSize`Size of the binary image
`NumObjects`Number of connected components in the binary image.
`PixelIdxList`1-by-`NumObjects` cell array where the k-th element in the cell array is a vector containing the linear indices of the pixels in the k-th object.

Objects to keep, specified as one of these values.

• Positive integer or vector of positive integers — Keep the object or objects whose index is included in `objectsToKeep`. The length of `objectsToKeep` is less than or equal to `CC.NumObjects`.

• Logical vector — Keep the objects whose corresponding element in `objectsToKeep` is `true`. The length of `objectsToKeep` must be equal to `CC.NumObjects`.

## Output Arguments

collapse all

Binary image, returned as a logical array of the same size as `CC.ImageSize`.

Data Types: `logical`

## Version History

Introduced in R2024a
