Display Vector Maps as Lines or Patches

This example shows how to display vector maps as lines or patches (filled-in polygons). Mapping Toolbox functions let you display patch vector data that uses NaNs to separate closed regions.

Use the who command to examine the contents of the conus (conterminous U.S.) MAT-file and then load it into the workspace. Vector map data for lines or polygons can be represented by simple coordinate arrays, geostructs, or mapstructs. The variables uslat and uslon together describe three polygons (separated by NaNs) the largest of which represent the outline of the conterminous United States. The two smaller polygons represent Long Island, NY, and Martha's vineyard, an island off Massachusetts. The variables gtlakelat and gtlakelon describe three polygons (separated by NaNs) for the Great Lakes. The variables statelat and statelon contain line-segment data (separated by NaNs) for the borders between states, which is not formatted for patch display.

who -file conus.mat
Your variables are:

description  gtlakelon    statelat     uslat
gtlakelat    source       statelon     uslon
load conus

Verify that line and polygon data contains NaNs (hence multiple objects).

ans = 3×1


Read the worldrivers shapefile for the region that covers the conterminous United States.

uslatlim = [min(uslat) max(uslat)]
uslatlim = 1×2

   25.1200   49.3800

uslonlim = [min(uslon) max(uslon)]
uslonlim = 1×2

 -124.7200  -66.9700

rivers = shaperead('worldrivers.shp', 'UseGeoCoords', true, ...
    'BoundingBox', [uslonlim', uslatlim'])
rivers=23×1 struct array with fields:

Note that the Geometry field specifies whether the data is stored as a Point , MultiPoint , Line , or Polygon .

ans =

Set up a map axes to display the state coordinates, turning on the map frame, map grid, and the meridian and parallel labels.. As conic projections are appropriate for mapping the entire United States, create a map axes object using an Albers equal-area conic projection ( 'eqaconic' ). Specifying map limits that contain the region of interest automatically centers the projection on an appropriate longitude. The frame encloses just the mapping area, not the entire globe. As a general rule, you should specify map limits that extend slightly outside your area of interest ( worldmap and usamap do this for you). Conic projections need two standard parallels (latitudes at which scale distortion is zero). A good rule is to set the standard parallels at one-sixth of the way from both latitude extremes. Or, to use default latitudes for the standard parallels, simply provide an empty matrix in the call to axesm .

axesm('MapProjection', 'eqaconic', 'MapParallels', [], ...
      'MapLatLimit', uslatlim + [-2 2], ...
      'MapLonLimit', uslonlim + [-2 2])
axis off;

Plot a patch to display the area occupied by the conterminous United States. Use the geoshow function with DisplayType set to 'polygon' . Note that the order in which add layers to a map can affect visibility because some layers can hide other layers. For example, because some U.S. state boundaries follow major rivers, display the rivers last to avoid obscuring them.

geoshow(uslat,uslon, 'DisplayType','polygon','FaceColor',...
    [1 .5 .3], 'EdgeColor','none')

Plot the Great Lakes on top of the land area, using geoshow .

geoshow(gtlakelat,gtlakelon, 'DisplayType','polygon',...
    'FaceColor','cyan', 'EdgeColor','none')

Plot the line segment data showing state boundaries, using geoshow with DisplayType set to 'line' .

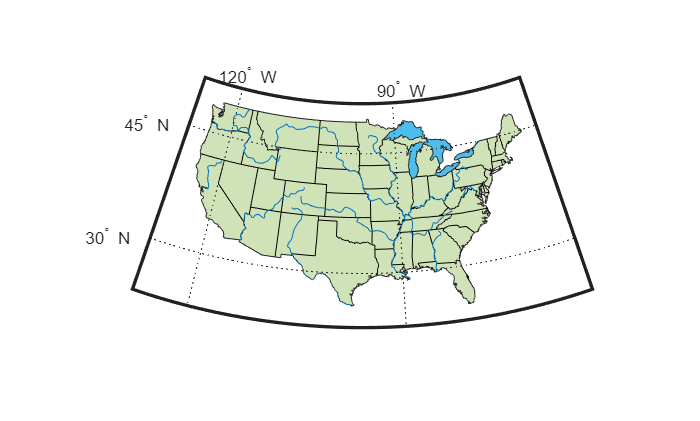

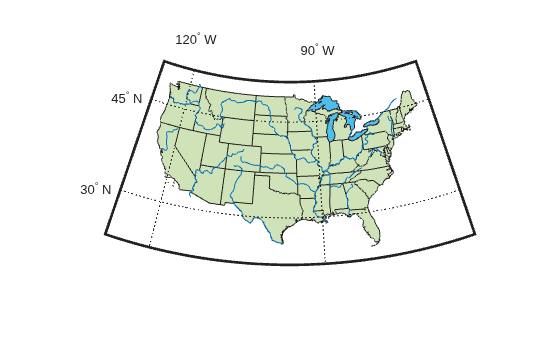

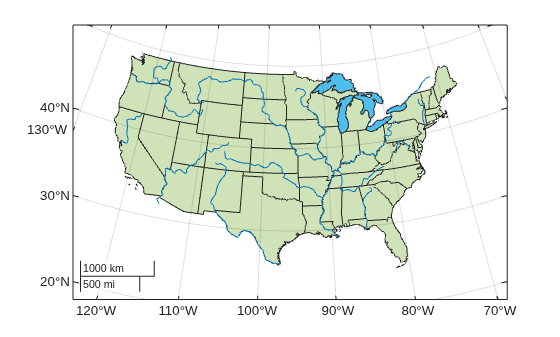

Use geoshow to plot the river network. Note that you can omit DisplayType

geoshow(rivers, 'Color', 'blue')
