geoplot3

Geographic globe plot

Syntax

geoplot3(g,lat,lon,h)

geoplot3(___,LineSpec)

geoplot3(___,Name=Value)

p = geoplot3(___)

Description

geoplot3(g,lat,lon,h) plots a 3-D line in the geographic globe specified by g at the vertices specified by lat, lon, and h.

geoplot3(___,LineSpec) sets the line style, marker, and color.

geoplot3(___,Name=Value) specifies additional options for the line using one or more name-value arguments. Specify the options after all other input arguments. For a list of options, see Line Properties.

p = geoplot3(___) returns a Line object. This syntax is useful for controlling the properties of the line.

Examples

Plot Line over Local Region

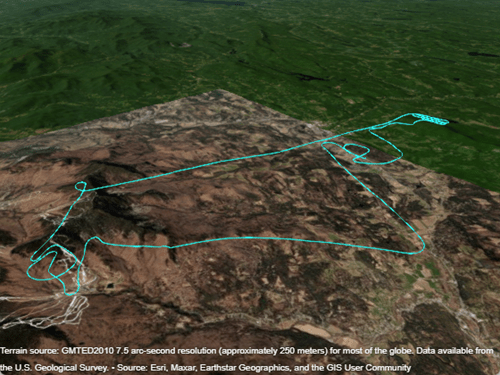

Plot the path of a glider above a local region. First, import sample data representing the path. Get the latitude, longitude, and geoid height values.

trk = readgeotable("sample_mixed.gpx",Layer="track_points");
lat = trk.Shape.Latitude;
lon = trk.Shape.Longitude;
h = trk.Elevation;

Create a geographic globe. Then, plot the path as a line.

uif = uifigure;
g = geoglobe(uif);
geoplot3(g,lat,lon,h,"c")

By default, the view is directly above the data. Change the view by setting the camera position, pitch angle, and heading angle.

campos(g,44.44,-72.81,9e3)
campitch(g,-30)
camheading(g,40)

Plot Line Between Distant Points

When you plot a line between points that are far apart, the data may be obscured because the line passes through the Earth. View the entire line by inserting points between the specified data points.

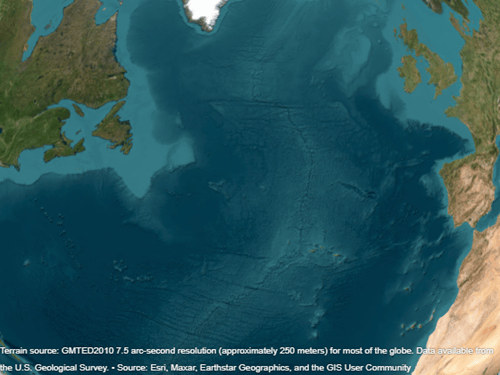

For example, specify the coordinates of New York City and Paris. Then, plot a line between them. Indicate there is no height data by specifying the fourth argument of geoplot3 as an empty array. Note that you cannot see the line because it passes through the Earth.

lat = [40.71 48.86];
lon = [-74.01 2.35];
uif = uifigure;
g = geoglobe(uif);
geoplot3(g,lat,lon,[],"y",LineWidth=2)

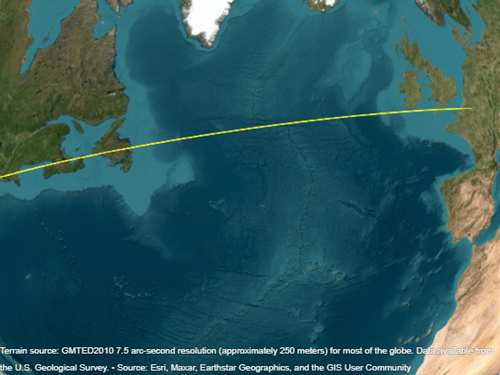

To see the line, insert points along a great circle using the interpm function. Then, plot the line again. Note that the line is visible.

[latI,lonI] = interpm(lat,lon,0.1,"gc");
geoplot3(g,latI,lonI,[],"y",LineWidth=2)

Plot Line over Global Region

When you plot a line over a large region such as a state or country, part of the line may be obscured because it passes through terrain. View the entire line by removing the terrain data from the globe.

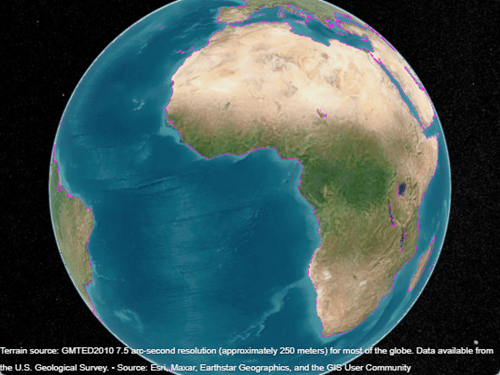

For example, import sample coastline data and plot it on a geographic globe. By default, the globe includes terrain data derived from the GMTED2010 model. Note that the line appears broken.

load coastlines
uif = uifigure;
g = geoglobe(uif);
p = geoplot3(g,coastlat,coastlon,[],"m");

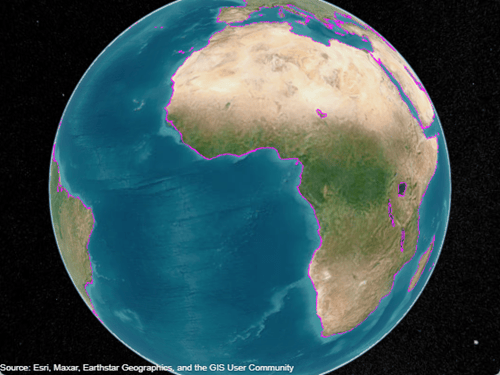

To see the line, set the Terrain property of the globe to "none". Indicate the plotted data sits on the WGS84 reference ellipsoid by setting the HeightReference property of the line to "ellipsoid". Note that the line is visible over the basemap.

g.Terrain = "none";
p.HeightReference = "ellipsoid";

Plot Circle Markers Instead of Line

Import sample data representing the path of a glider. Get the latitude, longitude, and geoid height values.

trk = readgeotable("sample_mixed.gpx",Layer="track_points");
lat = trk.Shape.Latitude;
lon = trk.Shape.Longitude;
h = trk.Elevation;

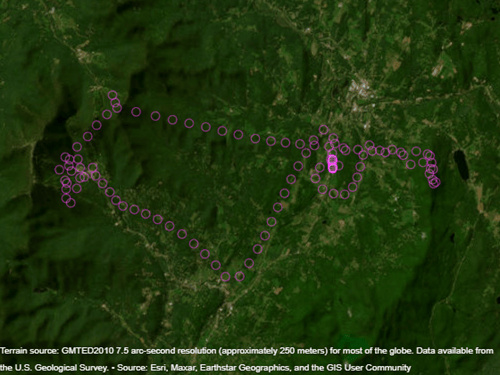

Create a geographic globe. Then, plot the data using circle markers. Plot a marker at every 25th data point by setting the MarkerIndices property.

uif = uifigure;
g = geoglobe(uif);
mskip = 1:25:length(lat);
geoplot3(g,lat,lon,h,"mo",MarkerIndices=mskip)

Plot Data with Height Referenced to Terrain

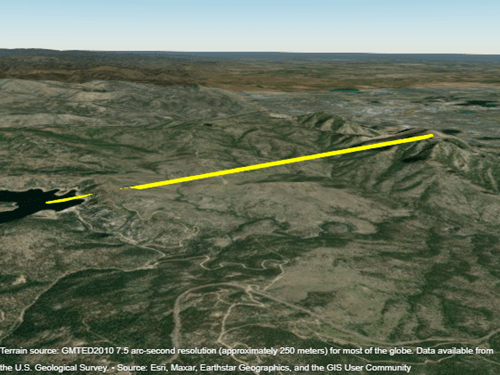

Plot a line from the surface of Gross Reservoir to a point above South Boulder Peak.

Specify the latitude, longitude, and height of the two endpoints. Specify the heights relative to the terrain, so that 0 represents ground level and not sea level.

lat = [39.95384 39.95];
lon = [-105.29916 -105.3608];
hTerrain = [10 0];

Plot the line on a geographic globe. Indicate that height values are referenced to the terrain using the HeightReference property. By default, the view is directly above the data. Tilt the view by holding Ctrl and dragging.

uif = uifigure;
g = geoglobe(uif);
geoplot3(g,lat,lon,hTerrain,"y",HeightReference="terrain",LineWidth=3)

Input Arguments

g — Geographic globe

GeographicGlobe object

Geographic globe, specified as a GeographicGlobe object.¹

lat — Geodetic latitudes

vector

Geodetic latitudes in degrees, specified as a vector.

lat and lon must be the same size.

Data Types: single | double

lon — Geodetic longitudes

vector

Geodetic longitudes in degrees, specified as a vector.

lat and lon must be the same size.

Data Types: single | double

h — Heights

vector

Heights in meters, specified as a vector. By default, height values are referenced to the geoid, or mean sea level.

Reference height values to the WGS84 reference ellipsoid by setting the HeightReference property of the line to "ellipsoid". Reference height values to the terrain, or ground, by setting the HeightReference property to "terrain".

h must be either a scalar or a vector of the same size as lat and lon. If h is a scalar, then every point is plotted at the same height.

Data Types: single | double

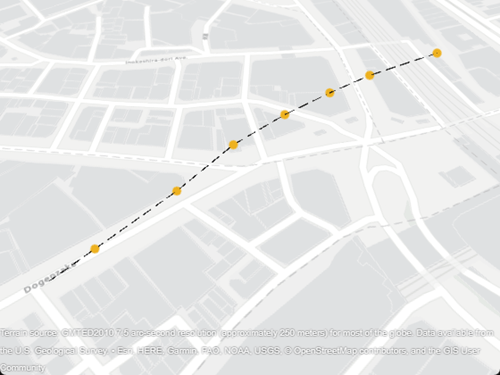

LineSpec — Line style, marker, and color

character vector | string scalar

Line style, marker, and color, specified as a character vector or string containing symbols. The symbols can appear in any order. You do not need to specify all three characteristics (line style, marker, and color). For example, if you omit the line style and specify the marker, then the plot shows only the marker and no line.

Example: "-or" is a red solid line with circle markers

Line Style and Marker	Description
-	Solid line (default)
o	Circle marker

Color	Description
y	yellow
m	magenta
c	cyan
r	red
g	green
b	blue
w	white
k	black

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: geoplot3(g,1:10,1:10,1:10,Color="r") changes the color of the line.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: geoplot3(g,1:10,1:10,1:10,"Color","r") changes the color of the line.

Note

Use name-value arguments to specify values for the properties of the Line objects created by this function. The properties listed here are only a subset. For a full list, see Line Properties.

HeightReference — Height reference

'geoid' (default) | 'terrain' | 'ellipsoid'

Height reference, specified as one of these values:

• 'geoid' – Height values are relative to the geoid (mean sea level).

• 'terrain' – Height values are relative to the ground.

• 'ellipsoid' – Height values are relative to the WGS84 reference ellipsoid.

For more information about terrain, geoid, and ellipsoid height, see Find Ellipsoidal Height from Orthometric and Geoid Height.

Color — Line color

RGB triplet | hexadecimal color code | "r" | "g" | "b" | ...

Line color, specified as an RGB triplet, a hexadecimal color code, a color name, or a short name.

RGB triplets and hexadecimal color codes are useful for specifying custom colors.

• An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1]; for example, [0.4 0.6 0.7].

• A hexadecimal color code is a character vector or a string scalar that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Thus, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.

Color Name	Short Name	RGB Triplet	Hexadecimal Color Code	Appearance
"red"	"r"	[1 0 0]	"#FF0000"
"green"	"g"	[0 1 0]	"#00FF00"
"blue"	"b"	[0 0 1]	"#0000FF"
"cyan"	"c"	[0 1 1]	"#00FFFF"
"magenta"	"m"	[1 0 1]	"#FF00FF"
"yellow"	"y"	[1 1 0]	"#FFFF00"
"black"	"k"	[0 0 0]	"#000000"
"white"	"w"	[1 1 1]	"#FFFFFF"

This table lists the default color palettes for plots in the light and dark themes.

Palette	Palette Colors
"gem" — Light theme default Before R2025a: Most plots use these colors by default.
"glow" — Dark theme default

You can get the RGB triplets and hexadecimal color codes for these palettes using the orderedcolors and rgb2hex functions. For example, get the RGB triplets for the "gem" palette and convert them to hexadecimal color codes.

RGB = orderedcolors("gem");
H = rgb2hex(RGB);

Before R2023b: Get the RGB triplets using RGB = get(groot,"FactoryAxesColorOrder").

Before R2024a: Get the hexadecimal color codes using H = compose("#%02X%02X%02X",round(RGB*255)).

LineStyle — Line style

'-' (default) | 'none'

Line style, specified as one of these options:

Line Style	Description	Resulting Line
'-'	Solid line (default)
'none'	No line	No line

Marker — Marker symbol

'none' (default) | 'o'

Marker symbol, specified as 'none' or 'o'. By default, the line does not display markers. Specify 'o' to display circle markers at each data point or vertex.

Markers do not tilt or rotate as you navigate the globe.

Limitations

• Unlike most Line objects, lines created using geoplot3 do not support having their parent changed to any object except a geographic globe.

Version History

Introduced in R2020a

R2023b: Improved camera placement on geographic globe

When you plot data on a geographic globe by using the geoplot3 function, the globe positions the camera using these improvements:

• The camera snaps to the plot. In R2023a and earlier releases, the camera flew to the plot. The image on the left shows the camera behavior in R2023a. The image on the right shows the camera behavior in R2023b.



• When the data covers a small region, the globe places the camera closer to the plotted data. In R2023a and earlier releases, the globe placed the camera farther away.

• When you set the hold state to "on", then pan or zoom within the globe, and then plot data, the camera does not move. In R2023a and earlier releases, the camera centered on the data. For an example that shows how to preserve the camera view in R2023a and earlier releases, see Preserve Camera View on the campos reference page.

R2022b: Adding new plot to geographic globe does not reset basemap or terrain

When you add a plot to a geographic globe by using the geoplot3 function, MATLAB^® does not reset the basemap or terrain. In R2022a and earlier releases, the basemap and terrain reset when you add new plots.

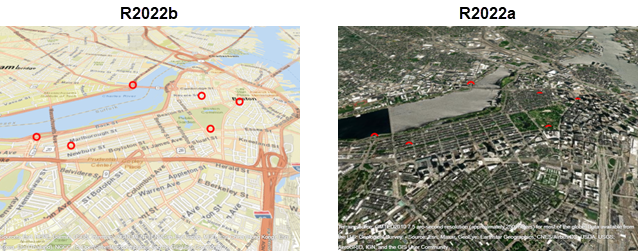

As a result, you can specify the basemap or terrain and then visualize data without using the hold function. For example, this code creates a globe using the "streets" basemap and no terrain data. Then, it displays a plot and adjusts the camera view. In R2022b, the basemap and terrain do not reset. In R2022a and earlier releases, the basemap reset to the default "satellite" and the terrain reset to the default "gmted2010".

lat = [42.3501 42.3515 42.3598 42.3584 42.3529 42.3626];
lon = [-71.0870 -71.0926 -71.0662 -71.0598 -71.0662 -71.0789];

uif = uifigure;
g = geoglobe(uif,Basemap="streets",Terrain="none");

p = geoplot3(g,lat,lon,0,"ro",LineWidth=3);
campos(g,42.33,-71.0756,2113)
campitch(g,-42.2458)

This change does not affect existing code that sets the hold state to "on" between commands.

To reset the basemap and terrain, set the Basemap and Terrain properties to the defaults after you create the plot.

g.Basemap = "satellite";
g.Terrain = "gmted2010";

For more information about changing the basemap and terrain of geographic globes, see Access Basemaps and Terrain for Geographic Globe.
