Combine Line and Stem Plots

This example shows how to combine a line plot and two stem plots. Then, it shows how to add a title, axis labels, and a legend.

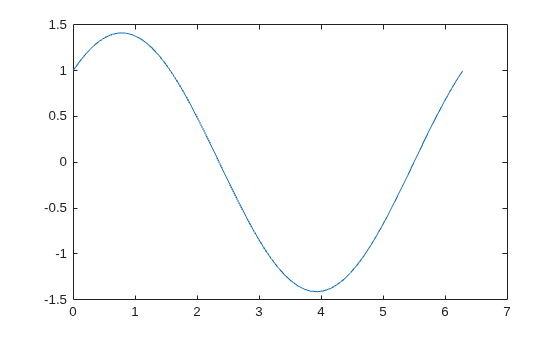

Create the data and plot a line.

x = linspace(0,2*pi,60);
a = sin(x);
b = cos(x);

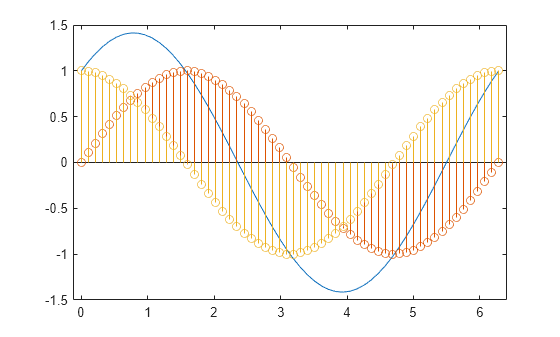

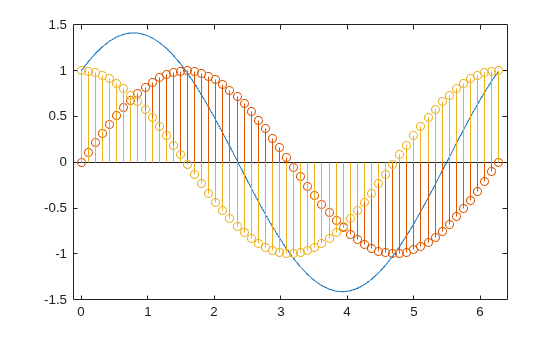

Add two stem plots to the axes. Prevent new plots from replacing existing plots using hold on.

hold on
hold off

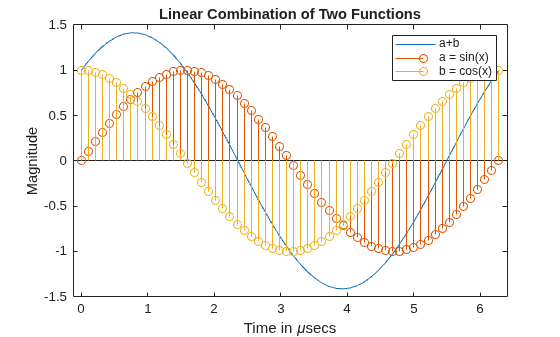

Add a title, axis labels, and a legend. Specify the legend descriptions in the order that you create the plots.

title('Linear Combination of Two Functions')
xlabel('Time in \musecs')
legend('a+b','a = sin(x)','b = cos(x)')
