Calculate Tangent Plane to Surface

This example shows how to approximate gradients of a function by finite differences. It then shows how to plot a tangent plane to a point on the surface by using these approximated gradients.

Create the function $f\left(x,y\right)={x}^{2}+{y}^{2}$ using a function handle.

f = @(x,y) x.^2 + y.^2;

Approximate the partial derivatives of $f\left(x,y\right)$ with respect to $x$ and $y$ by using the gradient function. Choose a finite difference length that is the same as the mesh size.

[xx,yy] = meshgrid(-5:0.25:5);

The tangent plane to a point on the surface, $P=\left({x}_{0},{y}_{0},f\left({x}_{0},{y}_{0}\right)\right)$, is given by

$z=f\left({x}_{0},{y}_{0}\right)+\frac{\partial f\left({x}_{0},{y}_{0}\right)}{\partial x}\left(x-{x}_{0}\right)+\frac{\partial f\left({x}_{0},{y}_{0}\right)}{\partial y}\left(y-{y}_{0}\right).$

The fx and fy matrices are approximations to the partial derivatives $\frac{\partial f}{\partial x}$ and $\frac{\partial f}{\partial y}$. The point of interest in this example, where the tangent plane meets the functional surface, is (x0,y0) = (1,2). The function value at this point of interest is f(1,2) = 5.

To approximate the tangent plane z you need to find the value of the derivatives at the point of interest. Obtain the index of that point, and find the approximate derivatives there.

x0 = 1;
y0 = 2;
t = (xx == x0) & (yy == y0);
indt = find(t);
fx0 = fx(indt);
fy0 = fy(indt);

Create a function handle with the equation of the tangent plane z.

z = @(x,y) f(x0,y0) + fx0*(x-x0) + fy0*(y-y0);

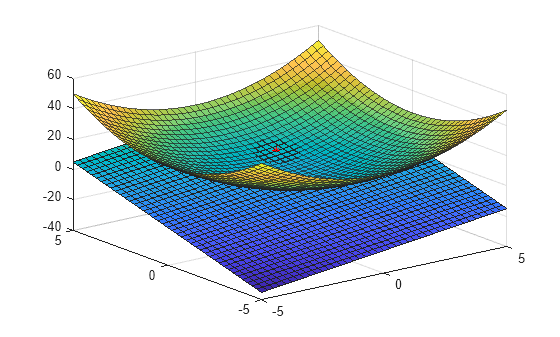

Plot the original function $f\left(x,y\right)$, the point P, and a piece of plane z that is tangent to the function at P.

surf(xx,yy,f(xx,yy),'EdgeAlpha',0.7,'FaceAlpha',0.9)
hold on
surf(xx,yy,z(xx,yy))
plot3(1,2,f(1,2),'r*') View a side profile.

view(-135,9)
