plan
Plan path between two states
Syntax
Description
returns a path
= plan(planner
,startState
,goalState
)path
from the start state to the goal state.
[
also returns path
,solutionInfo
] = plan(planner
,startState
,goalState
)solutionInfo
that contains the solution information of the
path planning.
Examples
Plan Path Between Two States
Create a state space.
ss = stateSpaceSE2;
Create an occupancyMap
-based state validator using the created state space.
sv = validatorOccupancyMap(ss);
Create an occupancy map from an example map and set map resolution as 10 cells/meter.
load exampleMaps
map = occupancyMap(simpleMap,10);
sv.Map = map;
Set validation distance for the validator.
sv.ValidationDistance = 0.01;
Update state space bounds to be the same as map limits.
ss.StateBounds = [map.XWorldLimits;map.YWorldLimits;[-pi pi]];
Create the path planner and increase the maximum connection distance.
planner = plannerRRT(ss,sv,MaxConnectionDistance=0.3);
Set the start and goal states.
start = [0.5 0.5 0]; goal = [2.5 0.2 0];
Plan a path with default settings.
rng(100,'twister'); % for repeatable result [pthObj,solnInfo] = plan(planner,start,goal);

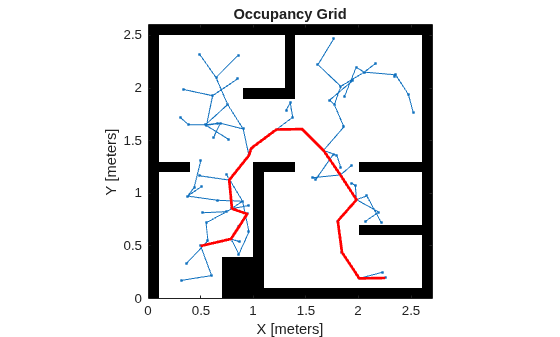

Visualize the results.
show(map) hold on % Tree expansion plot(solnInfo.TreeData(:,1),solnInfo.TreeData(:,2),'.-') % Draw path plot(pthObj.States(:,1),pthObj.States(:,2),'r-','LineWidth',2)
Plan Path Through 3-D Occupancy Map Using RRT Planner
Load a 3-D occupancy map of a city block into the workspace. Specify the threshold to consider cells as obstacle-free.
mapData = load("dMapCityBlock.mat");
omap = mapData.omap;
omap.FreeThreshold = 0.5;
Inflate the occupancy map to add a buffer zone for safe operation around the obstacles.
inflate(omap,1)
Create an SE(3) state space object with bounds for state variables.
ss = stateSpaceSE3([0 220;0 220;0 100;inf inf;inf inf;inf inf;inf inf]);
Create a 3-D occupancy map state validator using the created state space. Assign the occupancy map to the state validator object. Specify the sampling distance interval.
sv = validatorOccupancyMap3D(ss, ... Map = omap, ... ValidationDistance = 0.1);
Create a RRT path planner with increased maximum connection distance and reduced maximum number of iterations. Specify a custom goal function that determines that a path reaches the goal if the Euclidean distance to the target is below a threshold of 1 meter.
planner = plannerRRT(ss,sv, ... MaxConnectionDistance = 50, ... MaxIterations = 1000, ... GoalReachedFcn = @(~,s,g)(norm(s(1:3)-g(1:3))<1), ... GoalBias = 0.1);
Specify start and goal poses.
start = [40 180 25 0.7 0.2 0 0.1]; goal = [150 33 35 0.3 0 0.1 0.6];
Configure the random number generator for repeatable result.
rng(1,"twister");
Plan the path.
[pthObj,solnInfo] = plan(planner,start,goal);

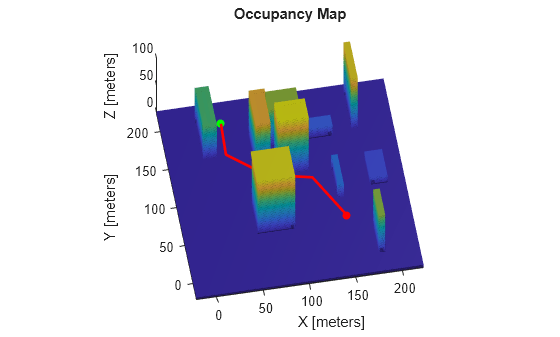

Visualize the planned path.
show(omap) axis equal view([-10 55]) hold on % Start state scatter3(start(1,1),start(1,2),start(1,3),"g","filled") % Goal state scatter3(goal(1,1),goal(1,2),goal(1,3),"r","filled") % Path plot3(pthObj.States(:,1),pthObj.States(:,2),pthObj.States(:,3), ... "r-",LineWidth=2)
Input Arguments
planner
— Path planner
plannerRRT
object | plannerRRTStar
object
Path planner, specified as a plannerRRT
object or a plannerRRTStar
object.
startState
— Start state of the path
N-element real-valued vector
Start state of the path, specified as an N-element real-valued vector. N is the dimension of the state space.
Example: [1 1 pi/6]
Example: [40 180 25 0.7 0.2 0 0.1]
Data Types: single
| double
goalState
— Goal state of the path
N-element real-valued vector
Goal state of the path, specified as an N-element real-valued vector. N is the dimension of the state space.
Example: [2 2 pi/3]
Example: [150 33 35 0.3 0 0.1 0.6]
Data Types: single
| double
Output Arguments
path
— Object that holds planned path information
navPath
object
An object that holds the planned path information, returned as a navPath
object.
solutionInfo
— Solution Information
structure
Solution Information, returned as a structure. The fields of the structure are:
Fields of solutionInfo
Fields | Description |
---|---|
IsPathFound | Indicates whether a path is found. It returns as 1 if a
path is found. Otherwise, it returns 0 . |
ExitFlag | Indicates the terminate status of the planner, returned as
|
NumNodes | Number of nodes in the search tree when the planner terminates (excluding the root node). |
NumIterations | Number of "extend" routines executed. |
TreeData | A collection of explored states that reflects the status of the search tree
when planner terminates. Note that NaN values are inserted as
delimiters to separate each individual edge. |
PathCosts | Contains the cost of the path at each iteration. Value for iterations when path has not
reached the goal is denoted by a Note This field is applicable only for
|
Data Types: structure
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Version History
Introduced in R2019b
