Eigenvalues and Eigenmodes of L-Shaped Membrane

This example shows how to calculate eigenvalues and eigenvectors. The eigenvalue problem is -Δu=λu. This example computes all eigenmodes with eigenvalues smaller than 100.

Create a model and include this geometry. The geometry of the L-shaped membrane is described in the file lshapeg.

model = createpde();
geometryFromEdges(model,@lshapeg);

Set zero Dirichlet boundary conditions on all edges.

applyBoundaryCondition(model,'dirichlet','Edge',1:model.Geometry.NumEdges,'u',0);

Specify the coefficients for the problem: d = 1 and c = 1. All other coefficients are equal to zero.

specifyCoefficients(model,'m',0,'d',1,'c',1,'a',0,'f',0);

Set the interval [0 100] as the region for the eigenvalues in the solution.

r = [0 100];

Create a mesh and solve the problem.

generateMesh(model,'Hmax',0.05);
results = solvepdeeig(model,r);
              Basis= 10,  Time=   0.40,  New conv eig=  0
              Basis= 11,  Time=   0.44,  New conv eig=  0
              Basis= 12,  Time=   0.46,  New conv eig=  0
              Basis= 13,  Time=   0.49,  New conv eig=  0
              Basis= 14,  Time=   0.53,  New conv eig=  0
              Basis= 15,  Time=   0.53,  New conv eig=  0
              Basis= 16,  Time=   0.54,  New conv eig=  0
              Basis= 17,  Time=   0.55,  New conv eig=  0
              Basis= 18,  Time=   0.55,  New conv eig=  1
              Basis= 19,  Time=   0.56,  New conv eig=  1
              Basis= 20,  Time=   0.57,  New conv eig=  1
              Basis= 21,  Time=   0.59,  New conv eig=  1
              Basis= 22,  Time=   0.61,  New conv eig=  3
              Basis= 23,  Time=   0.63,  New conv eig=  3
              Basis= 24,  Time=   0.64,  New conv eig=  4
              Basis= 25,  Time=   0.66,  New conv eig=  5
              Basis= 26,  Time=   0.68,  New conv eig=  6
              Basis= 27,  Time=   0.69,  New conv eig=  6
              Basis= 28,  Time=   0.70,  New conv eig=  6
              Basis= 29,  Time=   0.72,  New conv eig=  7
              Basis= 30,  Time=   0.76,  New conv eig=  7
              Basis= 31,  Time=   0.79,  New conv eig= 10
              Basis= 32,  Time=   0.80,  New conv eig= 10
              Basis= 33,  Time=   0.82,  New conv eig= 11
              Basis= 34,  Time=   0.84,  New conv eig= 11
              Basis= 35,  Time=   0.85,  New conv eig= 14
              Basis= 36,  Time=   0.88,  New conv eig= 14
              Basis= 37,  Time=   0.89,  New conv eig= 14
              Basis= 38,  Time=   0.91,  New conv eig= 14
              Basis= 39,  Time=   0.94,  New conv eig= 14
              Basis= 40,  Time=   0.96,  New conv eig= 14
              Basis= 41,  Time=   0.98,  New conv eig= 15
              Basis= 42,  Time=   1.00,  New conv eig= 15
              Basis= 43,  Time=   1.02,  New conv eig= 15
              Basis= 44,  Time=   1.07,  New conv eig= 16
              Basis= 45,  Time=   1.10,  New conv eig= 16
              Basis= 46,  Time=   1.12,  New conv eig= 16
              Basis= 47,  Time=   1.14,  New conv eig= 16
              Basis= 48,  Time=   1.14,  New conv eig= 17
              Basis= 49,  Time=   1.16,  New conv eig= 18
              Basis= 50,  Time=   1.20,  New conv eig= 18
              Basis= 51,  Time=   1.22,  New conv eig= 18
              Basis= 52,  Time=   1.24,  New conv eig= 18
              Basis= 53,  Time=   1.29,  New conv eig= 18
              Basis= 54,  Time=   1.31,  New conv eig= 21
End of sweep: Basis= 54,  Time=   1.31,  New conv eig= 21
              Basis= 31,  Time=   1.48,  New conv eig=  0
              Basis= 32,  Time=   1.51,  New conv eig=  0
              Basis= 33,  Time=   1.52,  New conv eig=  0
End of sweep: Basis= 33,  Time=   1.52,  New conv eig=  0

There are 19 eigenvalues smaller than 100.

length(results.Eigenvalues)
ans = 19

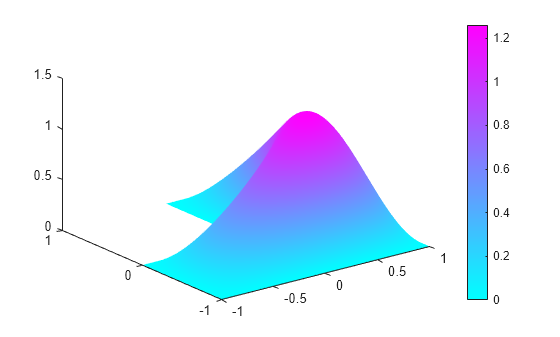

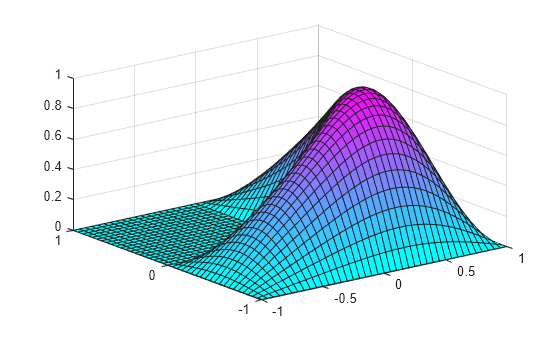

Plot the first eigenmode and compare it to the MATLAB's membrane function.

u = results.Eigenvectors;
pdeplot(model,'XYData',u(:,1),'ZData',u(:,1));

figure
membrane(1,20,9,9)

Eigenvectors can be multiplied by any scalar and remain eigenvectors. This explains the difference in scale that you see.

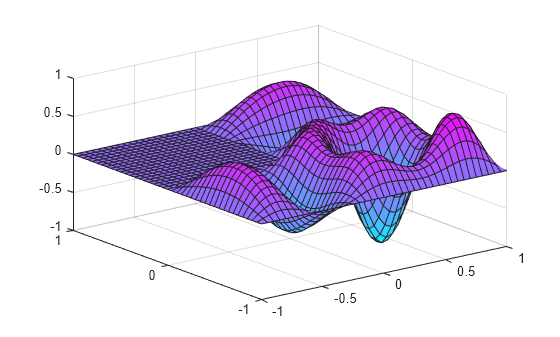

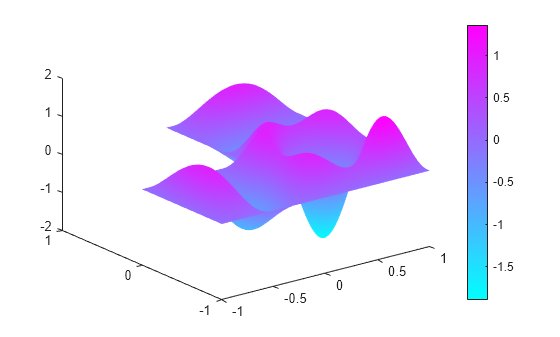

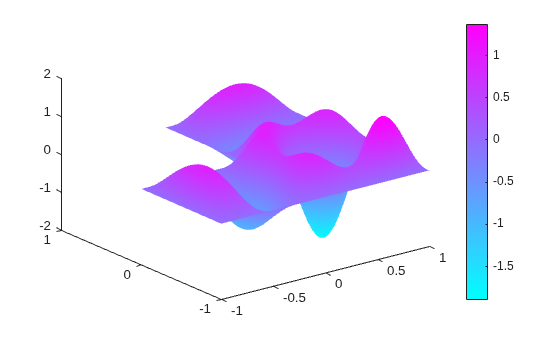

membrane can produce the first 12 eigenfunctions for the L-shaped membrane. Compare the 12th eigenmodes.

figure
pdeplot(model,'XYData',u(:,12),'ZData',u(:,12));

figure
membrane(12,20,9,9)
