# findStructuralProperties

Find structural material properties assigned to geometric region

## Syntax

``smpa = findStructuralProperties(structuralmodel.MaterialProperties,RegionType,RegionID)``

## Description

example

````smpa = findStructuralProperties(structuralmodel.MaterialProperties,RegionType,RegionID)` returns the structural material properties assigned to the specified region. Structural properties include the Young's modulus, Poisson's ratio, and mass density of the material.```

## Examples

collapse all

Find Young's modulus and Poisson's ratio for cells of a 3-D geometry.

Create a structural model.

`structuralmodel = createpde('structural','static-solid');`

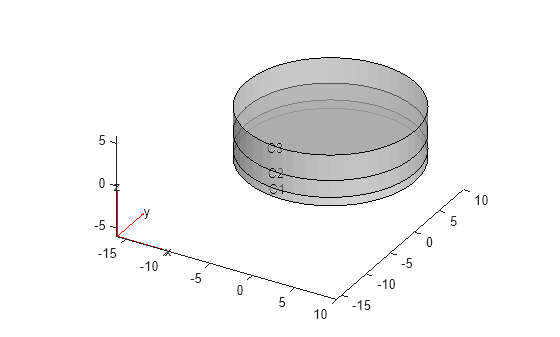

Create the geometry consisting of three stacked cylinders and include it in the model. Plot the geometry.

```gm = multicylinder(10,[1 2 3],'ZOffset',[0 1 3]); structuralmodel.Geometry = gm; pdegplot(structuralmodel,'CellLabels','on','FaceAlpha',0.5)```

Assign different values of the Young's modulus and Poisson's ratio to each cell.

```structuralProperties(structuralmodel,'Cell',1,'YoungsModulus',200E9, ... 'PoissonsRatio',0.3); structuralProperties(structuralmodel,'Cell',2,'YoungsModulus',210E9, ... 'PoissonsRatio',0.3); structuralProperties(structuralmodel,'Cell',3,'YoungsModulus',110E9, ... 'PoissonsRatio',0.35);```

Check the structural properties specification for cell 1.

```mC1 = findStructuralProperties(structuralmodel.MaterialProperties, ... 'Cell',1)```
```mC1 = StructuralMaterialAssignment with properties: RegionType: 'Cell' RegionID: 1 YoungsModulus: 2.0000e+11 PoissonsRatio: 0.3000 MassDensity: [] CTE: [] ```

Check the structural properties specification for cells 2 and 3.

```mC23 = findStructuralProperties(structuralmodel.MaterialProperties, ... 'Cell',[2,3]); mC2 = mC23(1)```
```mC2 = StructuralMaterialAssignment with properties: RegionType: 'Cell' RegionID: 2 YoungsModulus: 2.1000e+11 PoissonsRatio: 0.3000 MassDensity: [] CTE: [] ```
`mC3 = mC23(2)`
```mC3 = StructuralMaterialAssignment with properties: RegionType: 'Cell' RegionID: 3 YoungsModulus: 1.1000e+11 PoissonsRatio: 0.3500 MassDensity: [] CTE: [] ```

## Input Arguments

collapse all

Material properties of the model, specified as the `MaterialProperties` property of a `StructuralModel` object.

Example: `structuralmodel.MaterialProperties`

Geometric region type, specified as `'Face'` for a 2-D model or `'Cell'` for a 3-D model.

Example: `findStructuralProperties(structuralmodel.MaterialProperties,'Cell',1)`

Data Types: `char` | `string`

Geometric region ID, specified as a vector of positive integers. Find the region IDs by using `pdegplot`.

Example: `findStructuralProperties(structuralmodel.MaterialProperties,'Face',1:3)`

Data Types: `double`

## Output Arguments

collapse all

Material properties assignment, returned as a `StructuralMaterialAssignment` object. For details, see StructuralMaterialAssignment Properties.
