Create Regression model object for loss given default

Since R2021a


Create and analyze a Regression model object to calculate the loss given default (LGD) using this workflow:

  1. Use fitLGDModel to create a Regression model object.

  2. Use predict to predict the LGD.

  3. Use modelDiscrimination to return AUROC and ROC data. You can plot the results using modelDiscriminationPlot.

  4. Use modelCalibration to return the R-square, RMSE, correlation, and sample mean error of the predicted and observed LGD data. You can plot the results using modelCalibrationPlot.




RegressionLGDModel = fitLGDModel(data,ModelType) creates a Regression LGD model object.


RegressionLGDModel = fitLGDModel(___,Name,Value) specifies options using one or more name-value pair arguments in addition to the input arguments in the previous syntax. The optional name-value pair arguments set model object properties. For example, lgdModel = fitLGDModel(data,'regression','PredictorVars',{'LTV' 'Age' 'Type'},'ResponseVar','LGD','ResponseTransform','probit','BoundaryTolerance',1e-6,WeightsVar="Weights") creates a lgdModel object using a Regression model type.

Input Arguments

expand all

Data for loss given default, specified as a table where the first column and all other columns except the last column are PredictorVars, the last column is ResponseVar.

Data Types: table

Model type, specified as a string with the value of "Regression" or a character vector with the value of 'Regression'.

Data Types: char | string

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: lgdModel = fitLGDModel(data,'regression','PredictorVars',{'LTV' 'Age' 'Type'},'ResponseVar','LGD','ResponseTransform','probit','BoundaryTolerance',1e-6)

User-defined model ID, specified as the comma-separated pair consisting of 'ModelID' and a string or character vector. The software uses the ModelID text to format outputs and is expected to be short.

Data Types: string | char

User-defined description for model, specified as the comma-separated pair consisting of 'Description' and a string or character vector.

Data Types: string | char

Predictor variables, specified as the comma-separated pair consisting of 'PredictorVars' and a string array or cell array of character vectors. PredictorVars indicates which columns in the data input contain the predictor information. By default, PredictorVars is set to all the columns in the data input except for the ResponseVar.

Data Types: string | cell

Response variable, specified as the comma-separated pair consisting of 'ResponseVar' and a string or character vector. The response variable contains the LGD data and must be a numeric variable. An LGD value of 0 indicates no loss (full recovery), 1 indicates total loss (no recovery), and values between 0 and 1 indicate a partial loss. By default, the ResponseVar is set to the last column of data.

Data Types: string | char

Boundary tolerance, specified as the comma-separated pair consisting of 'BoundaryTolerance' and a positive scalar numeric. The BoundaryTolerance value perturbs the LGD response values away from 0 and 1, before applying a ResponseTransform.

Data Types: double

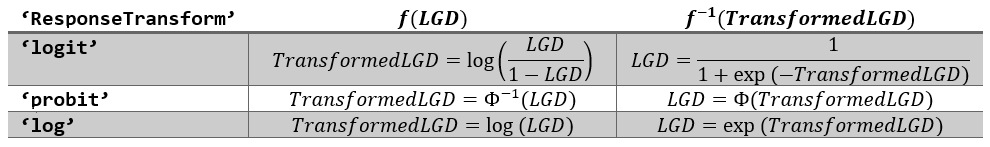

Response transform, specified as the comma-separated pair consisting of 'ResponseTransform' and a character vector or string.

Data Types: string | char

Column name of the input table containing weights, specified as a string scalar.

The default value ("") results in a weight of 1 for each row in the data.


expand all

User-defined model ID, returned as a string.

Data Types: string

User-defined description, returned as a string.

Data Types: string

Underlying statistical model, returned as a compact linear model object. The compact version of the underlying regression model is an instance of the classreg.regr.CompactLinearModel class. For more information, see fitlm and CompactLinearModel.

Data Types: CompactLinearModel

Predictor variables, returned as a string array.

Data Types: string

Response variable, returned as a scalar string.

Data Types: string

This property is read-only.

Boundary tolerance, returned as a scalar numeric.

Data Types: double

This property is read-only.

Response transform, returned as a string.

Data Types: string

Column name of the input table containing weights, returned as a string scalar. This property is also used to determine the weights variable for validation data when you use the modelDiscrimination or modelCalibration functions.

Object Functions

predictPredict loss given default
modelDiscriminationCompute AUROC and ROC data
modelDiscriminationPlotPlot ROC curve
modelCalibrationCompute R-square, RMSE, correlation, and sample mean error of predicted and observed LGDs
modelCalibrationPlotScatter plot of predicted and observed LGDs


collapse all

This example shows how to use fitLGDModel to create a Regression model for loss given default (LGD).

Load LGD Data

Load the LGD data.

load LGDData.mat
      LTV        Age         Type           LGD
    _______    _______    ___________    _________

    0.89101    0.39716    residential     0.032659
    0.70176     2.0939    residential      0.43564
    0.72078     2.7948    residential    0.0064766
    0.37013      1.237    residential     0.007947
    0.36492     2.5818    residential            0
      0.796     1.5957    residential      0.14572
    0.60203     1.1599    residential     0.025688
    0.92005    0.50253    investment      0.063182
NumObs = height(data);
c = cvpartition(NumObs,'HoldOut',0.4);
TrainingInd = training(c);
TestInd = test(c);

Create Regression LGD Model

Use fitLGDModel to create a Regression model using the TrainingInd data.

lgdModel = fitLGDModel(data(TrainingInd,:),'regression',...
        'ModelID','Example Probit',...
        'Description','Example LGD probit regression model.',...
        'PredictorVars',{'LTV' 'Age' 'Type'},...
  Regression with properties:

    ResponseTransform: "probit"
    BoundaryTolerance: 1.0000e-06
              ModelID: "Example Probit"
          Description: "Example LGD probit regression model."
      UnderlyingModel: [1x1 classreg.regr.CompactLinearModel]
        PredictorVars: ["LTV"    "Age"    "Type"]
          ResponseVar: "LGD"
           WeightsVar: ""

Display the underlying model. The underlying model's response variable is the probit transformation of the LGD response data. Use the 'ResponseTransform' and 'BoundaryTolerance' arguments to modify the transformation.

ans =
Compact linear regression model:
    LGD_probit ~ 1 + LTV + Age + Type

Estimated Coefficients:
                       Estimate       SE        tStat       pValue
                       ________    ________    _______    __________

    (Intercept)         -2.2212     0.14824    -14.984    2.7409e-48
    LTV                   1.192     0.17183     6.9372    5.3152e-12
    Age                -0.60356    0.035256    -17.119    1.3828e-61
    Type_investment     0.61814      0.1018     6.0723    1.4933e-09

Number of observations: 2093, Error degrees of freedom: 2089
Root Mean Squared Error: 1.74
R-squared: 0.197,  Adjusted R-Squared: 0.196
F-statistic vs. constant model: 171, p-value = 4.39e-99

Predict LGD

For LGD prediction, use predict. The LGD model applies the inverse transformation so the predictions are in the LGD scale, not in the transformed scale used to fit the underlying model.

predictedLGD = predict(lgdModel,data(TestInd,:))
predictedLGD = 1394×1


Validate LGD Model

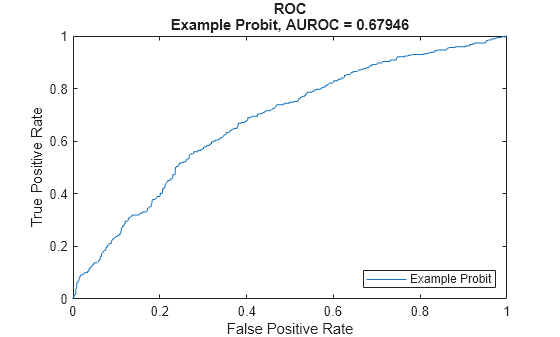

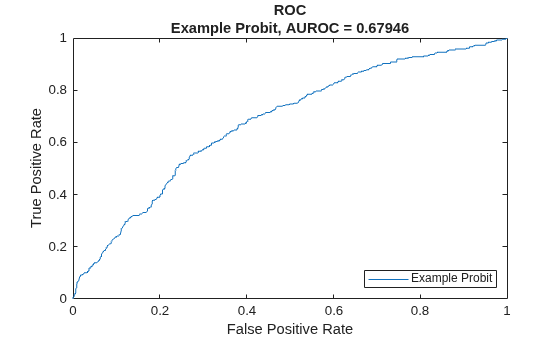

Use modelDiscriminationPlot to plot the ROC curve.

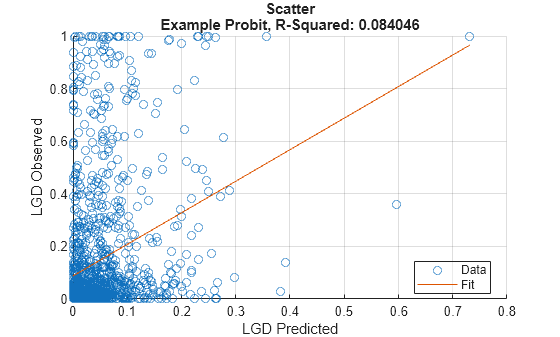

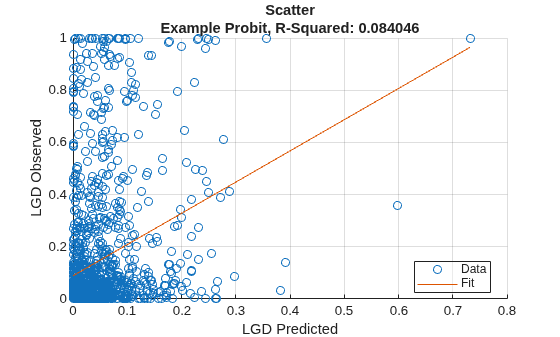

Use modelCalibrationPlot to show a scatter plot of the predictions.


More About

expand all


[1] Baesens, Bart, Daniel Roesch, and Harald Scheule. Credit Risk Analytics: Measurement Techniques, Applications, and Examples in SAS. Wiley, 2016.

[2] Bellini, Tiziano. IFRS 9 and CECL Credit Risk Modelling and Validation: A Practical Guide with Examples Worked in R and SAS. San Diego, CA: Elsevier, 2019.

Version History

Introduced in R2021a
