mlreportgen.report.TitlePage class

Package: mlreportgen.report
Superclasses: mlreportgen.report.Reporter

Title page reporter

Description

Use an object of the mlreportgen.report.TitlePage class to add a title page to a report.

The mlreportgen.report.TitlePage class is a handle class.

Class Attributes

HandleCompatible

true

Creation

Description

tp = mlreportgen.report.TitlePage() creates a title page reporter that uses the default title page template.

tp = mlreportgen.report.TitlePage(Name=Value) sets properties using name-value pairs. You can specify multiple name-value pair arguments in any order.

Properties

Title — Title page title

string scalar | character vector | ...

Title page title, specified as one of these values:

• String scalar or character vector

• DOM object

• 1-by-N or N-by-1 array of strings or DOM objects

• 1-by-N or N-by-1 cell array of strings, character vectors, or DOM objects

• A Reporter created by the getTitleReporter method of this title page

Example: tp.Title = "My Report";

Attributes:

GetAccess	public
SetAccess	public

Subtitle — Report subtitle

string scalar | character vector | ...

Report subtitle, specified as one of these values:

• String scalar or character vector

• DOM object

• 1-by-N or N-by-1 array of strings or DOM objects

• 1-by-N or N-by-1 cell array of strings, character vectors, or DOM objects

• Reporter created by the getSubtitleReporter method of this title page

Example: tp.Subtitle = "Part I";

Attributes:

GetAccess	public
SetAccess	public

Image — Title page image

string scalar | character vector | ...

Image to insert in title page, specified as one of these values:

• String scalar or character vector that specifies the file system path of the image

• mlreportgen.report.Figure reporter

• DOM object

• 1-by-N or N-by-1 cell array of image paths, snapshot makers, or DOM objects

• Reporter created by the getImageReporter method of this title page

Images formats with these file extensions are supported:

• .bmp – Bitmap

• .gif – Graphics Interchange Format

• .jpg – JPEG

• .png – Portable Network Graphics

• .emf – Enhanced metafile (supported only in .docx output on Windows)

• .svg – Scalable Vector Graphic

• .tif – Tag Image File

Example: tp.Image = "reports/imagedir/titleimage.jpg";

Attributes:

GetAccess	public
SetAccess	public

Author — Report author

environment variable user name (default) | string scalar | character vector | ...

Report author, specified as one of these values:

• String scalar or character vector

• DOM object

• 1-by-N or N-by-1 array of strings or DOM objects

• 1-by-N or N-by-1 cell array of strings, character vectors, or DOM objects

• Reporter created by the getAuthorReporter method of this title page

If the environment variable user name is not found, the default value is empty.

Example: TitlePage("Author","John Smith")

Attributes:

GetAccess	public
SetAccess	public

Publisher — Report publisher

string scalar | character vector | ...

Report publisher, specified as one of these values:

• String scalar or character vector

• DOM object

• 1-by-N or N-by-1 array of strings or DOM objects

• 1-by-N or N-by-1 cell array of strings, character vectors, or DOM objects

• Reporter created by the getPublisherReporter method of this title page

Example: tp.Publisher = "Smith Company";

Attributes:

GetAccess	public
SetAccess	public

PubDate — Report publication date

string scalar | character vector | ...

Report publication date, specified as one of these values:

• String scalar or character vector

• DOM object

• 1-by-N or N-by-1 array of strings or DOM objects

• 1-by-N or N-by-1 cell array of strings, character vectors, DOM objects

• Reporter created by the getPubDateReporter method of this title page

Example: tp.PubDate = "April 23, 2017";

Attributes:

GetAccess	public
SetAccess	public

Layout — Page layout for title page

mlreportgen.report.ReporterLayout object

Page layout for the title page, specified as an mlreportgen.report.ReporterLayout object. Use the properties of the ReporterLayout object to override the default page layout properties, such as page orientation.

Attributes:

GetAccess	public
SetAccess	Restricts access

TemplateSrc — Source of template for this reporter

[] (default) | character vector | string scalar | reporter or report | DOM document or document part

Source of the template for this reporter, specified in one of these ways:

• Character vector or string scalar that specifies the path of the file that contains the template for this reporter

• Reporter or report whose template is used for this reporter or whose template library contains the template for this reporter

• DOM document or document part whose template is used for this reporter or whose template library contains the template for this reporter

The specified template must be the same type as the report to which this reporter is appended. For example, for a Microsoft^® Word report, TemplateSrc must be a Word reporter template. If the TemplateSrc property is empty, this reporter uses the default reporter template for the output type of the report.

Attributes:

GetAccess	public
SetAccess	public

TemplateName — Name of template for this reporter

character vector | string scalar

Name of the template for this reporter, specified as a character vector or string scalar. The template for this reporter must be in the template library of the template specified by the TemplateSrc property of this reporter.

Attributes:

GetAccess	public
SetAccess	public

LinkTarget — Hyperlink target for this reporter

[] (default) | character vector | string scalar | mlreportgen.dom.LinkTarget object

Hyperlink target for this reporter, specified as a character vector or string scalar that specifies the link target ID, or an mlreportgen.dom.LinkTarget object. A character vector or string scalar value is converted to a LinkTarget object. The link target immediately precedes the content of this reporter in the output report.

Attributes:

GetAccess	public
SetAccess	public

Methods

Public Methods

Method	Purpose
mlreportgen.report.TitlePage.createTemplate	Create title page template
mlreportgen.report.TitlePage.customizeReporter	Create custom title page reported class
mlreportgen.report.TitlePage.getClassFolder	Get title page class definition file location
getAuthorReporter	Get title page author reporter
getImageReporter	Get title page image reporter
getPublisherReporter	Get title page publisher reporter
getSubtitleReporter	Get title page subtitle reporter
getTitleReporter	Get title page title reporter
getPubDateReporter	Get title page publication date reporter
getImpl	Get implementation of reporter
copy	Create copy of reporter object and make deep copies of property values that reference a reporter, ReporterLayout, or DOM object

Examples

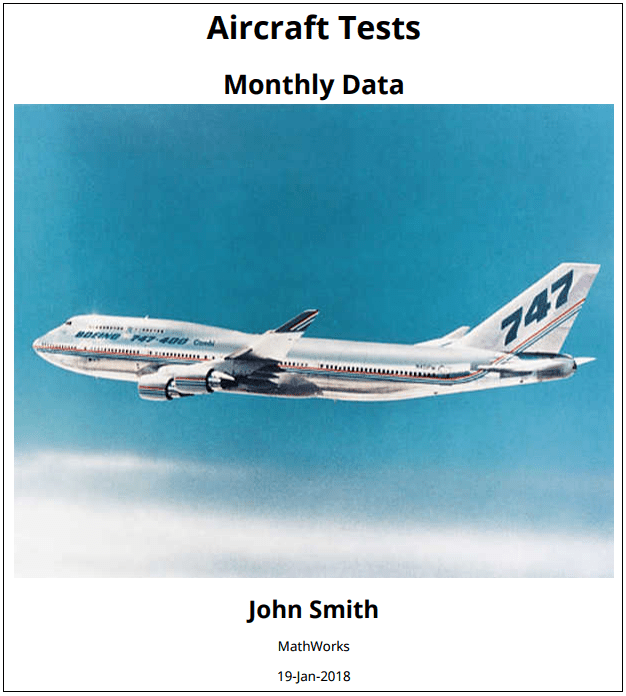

Default Title Page

Create a title page that uses the default formatting. Add the title page to the report and view the report.

import mlreportgen.report.*
rpt = Report("output","pdf");

tp = TitlePage();
tp.Title = "Aircraft Tests";
tp.Subtitle = "Monthly Data";
tp.Image = which("b747.jpg");
tp.Author = "John Smith";
tp.Publisher = "MathWorks";
tp.PubDate = date();

add(rpt,tp);
close(rpt);
rptview(rpt);

Title Page with Customized Color

Create a title page that uses the default title format, but changes the title color to red. Specify the Title property as a DOM Text object and set its color to red.

import mlreportgen.report.*
import mlreportgen.dom.*

rpt = Report("output","pdf");
tp = TitlePage;
tp.Title = Text("Aircraft Tests");
tp.Title.Color = "red";

add(rpt,tp);
close(rpt);
rptview(rpt);

Override Title Page Title Formatting

Create a title page that overrides the title property formatting. Change the title font to 24-point Arial, the title text color to white, and use a blue background. Any styles you do not specify use the mlreportgen.dom.Paragraph class defaults.

import mlreportgen.report.*
import mlreportgen.dom.*

rpt = Report("output","pdf");
tp = TitlePage();
title = Paragraph("Aircraft Tests");
title.Style = {HAlign("left"),FontFamily("Arial"),...
         FontSize("24pt"),Color("white"),...
         BackgroundColor("blue"),...
         OuterMargin("0in","0in",".5in","1in"),...
         HAlign("center")};
tp.Title = title;
tp.Subtitle = "Monthly Data";
tp.Image = which("b747.jpg");
tp.Author = "John Smith";
tp.Publisher = "MathWorks";
tp.PubDate = date();

add(rpt, tp);
close(rpt);
rptview(rpt);

Override Title Page Formatting and Layout Using Custom Template

The template for a TitlePage object determines the page orientation, page margins, page size, and other page layout properties. You can customize and override the title page layout by using a customized version of the default template. You can also customize individual title page elements by customizing those element templates. The TitlePage reporter supports two approaches to overriding title page element templates.

To use a custom TitlePage template:

Create a copy of the default title page template.

Edit the title page element templates as desired in the copy of the template. The names of the templates have the form TitlePageNAME where NAME is the name of the template in the template library. For example, the name of the title template is TitlePageTitle.

Set the TitlePage TemplateSrc property of the object to the path of the custom template.

Override Title Page Formatting and Layout Using Different template Library

This approach takes advantage of the fact that the TitlePage object uses specialized reporters, called hole reporters, to apply element templates to the elements. Consequently, you can use the TitlePage methods for getting the reporter to apply a template to a particular element. For example, the getTitleReporter method returns the reporter used for applying the TitlePageTitle template to the content of the report title.

Copy the title page element templates that you want to customize into a different template library. For example, you can copy the template library of the report or the template library of a DOM document part object. These template libraries are often libraries that you created to store customized versions of templates.

For each title page element to be customized, get its element reporter. For example, for the title, use the getTitleReporter method.

Set the TemplateSrc property of the element reporter to the source of the template library containing the customized version of the element template.

Set Content property of the element reporter to the element content.

Set the title page object element property to the element reporter object.

import mlreportgen.report.*
import mlreportgen.dom.*

rpt = Report("MyReport","pdf","MyCustomPDFTemplate");
tp = TitlePage;
titleReporter = getTitleReporter(tp);
titleReporter.TemplateSrc = rpt;
titleReporter.Content = "My Report";
tp.Title = titleReporter;

Version History

Introduced in R2017b
