# Extract Voices from Music Signal

Implement a basic digital music synthesizer and use it to play a traditional song in a three-voice arrangement. Specify a sample rate of 2 kHz. Save the song as a MATLAB® timetable.

```fs = 2e3; t = 0:1/fs:0.3-1/fs; fq = [-Inf -9:2]/12; note = @(f,g) [1 1 1]*sin(2*pi*440*2.^[fq(g)-1 fq(g) fq(f)+1]'.*t); mel = [5 3 1 3 5 5 5 0 3 3 3 0 5 8 8 0 5 3 1 3 5 5 5 5 3 3 5 3 1]+1; acc = [5 0 8 0 5 0 5 5 3 0 3 3 5 0 8 8 5 0 8 0 5 5 5 0 3 3 5 0 1]+1; song = []; for kj = 1:length(mel) song = [song note(mel(kj),acc(kj)) zeros(1,0.01*fs)]; end song = song'/(max(abs(song))+0.1); tune = timetable(song,SampleRate=fs);```

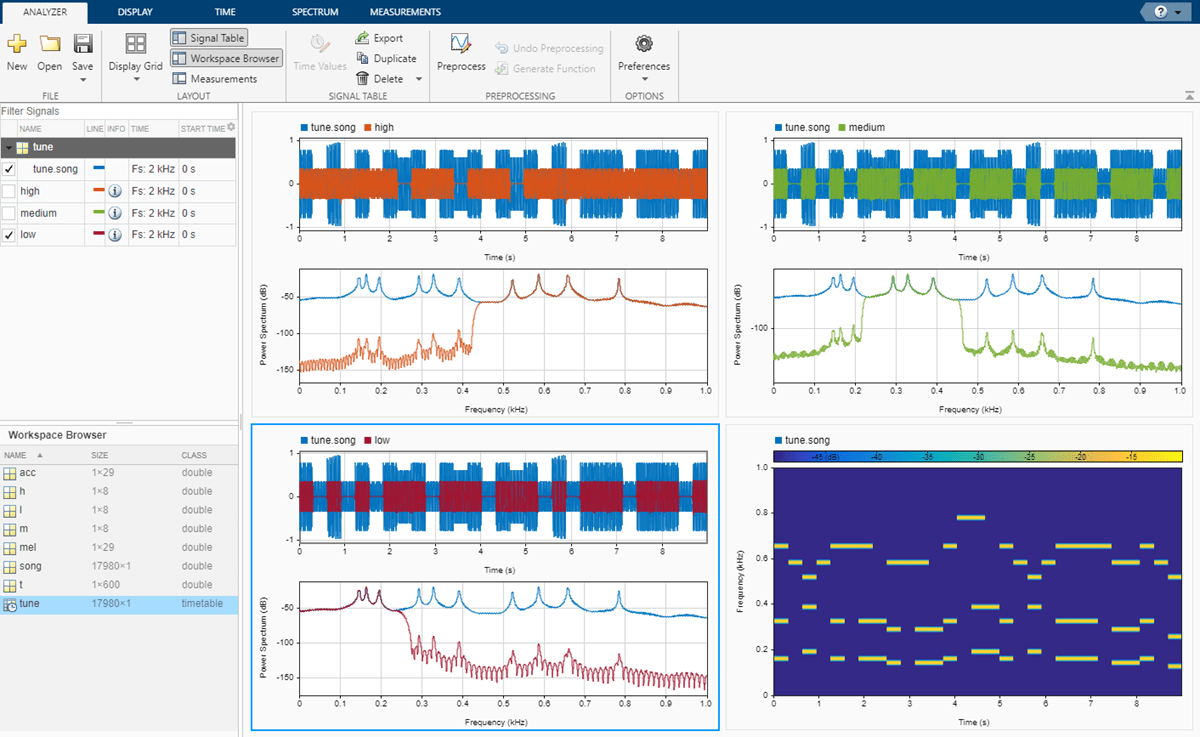

Open Signal Analyzer and drag the timetable from the Workspace Browser to the Signal table. To hear an audio signal, select it and click Play in the Playback section of the toolstrip under the Display tab to play the entire signal once. Select Play in Loop and then click Play to play the signal repeatedly. Click Display Grid to create a two-by-two grid of displays. Add a spectrum view to the top two displays and the lower left display. Select the lower right display, click Time-Frequency to add a spectrogram view, and click Time to remove the time view. Drag the song to all four displays. Select the lower right display, and on the Spectrogram tab, specify a time resolution of `0.31` second and `0`% overlap between adjoining segments. Set the Power Limits to `–50` dB and `–10` dB.

On the Analyzer tab, click Duplicate three times to create three copies of the song. Rename the copies as `high`, `medium`, and `low` by double-clicking the Name column in the Signal table. Move the copies to the top two and lower left displays.

Select all three duplicate signals in the Signal table and click Preprocess to enter the preprocessing mode.

1. Select the `high` signal by clicking its name in the Signal table. Select Highpass from the Functions gallery. In the Function Parameters panel, enter a passband frequency of `450` Hz and increase the steepness to `0.95`. Click Apply.

2. Select the `medium` signal by clicking its name in the Signal table. Select Bandpass from the Functions gallery. In the Function Parameters panel, enter `230` Hz and `450` Hz as the lower and upper passband frequencies, respectively. Increase the steepness to `0.95`. Click Apply.

3. Select the `low` signal by clicking its name in the Signal table. Select Lowpass from the Functions gallery. In the Function Parameters panel, enter a passband frequency of `230` Hz and increase the steepness to `0.95`. Click Apply.

Click Accept All to save the preprocessing results and exit the mode.

View a spectrogram on each of the three displays containing filtered signals.

1. Remove the original signal by clearing the check box next to its name.

2. On the Display tab, click Time-Frequency to add a spectrogram view and click Time to remove the time view.

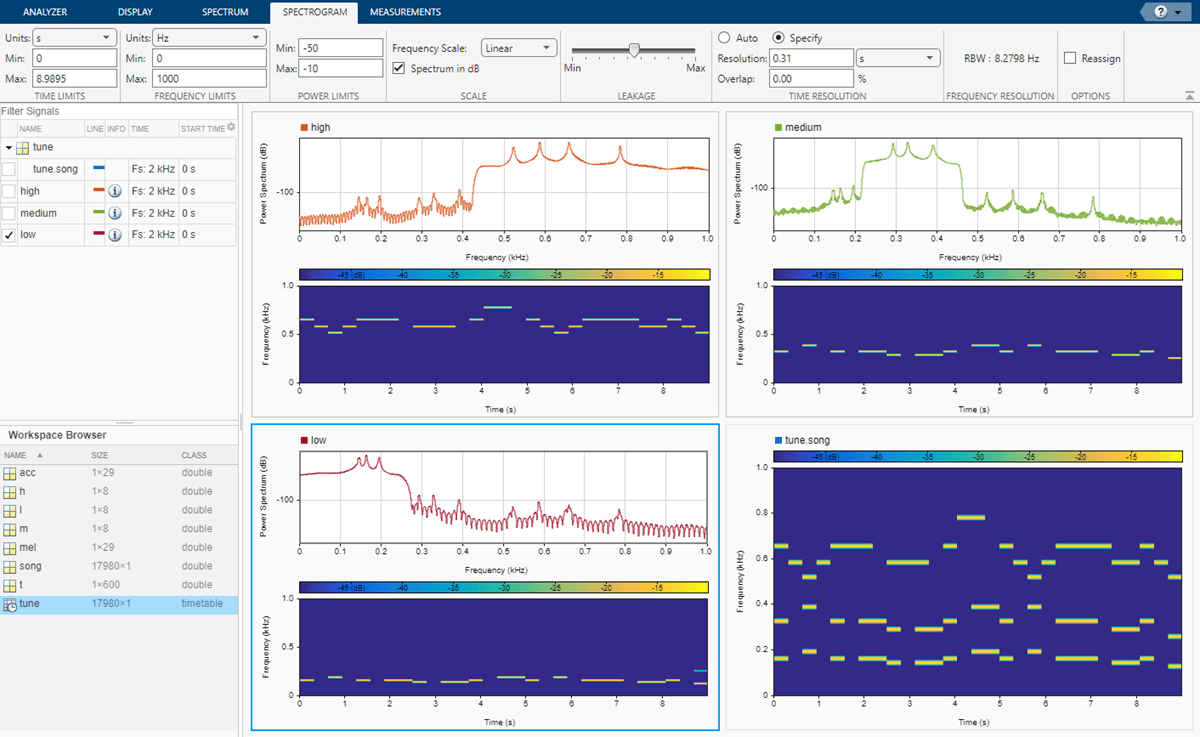

3. On the Spectrogram tab, specify a time resolution of `0.31` second and `0`% overlap between adjoining segments. Set the Power Limits to `–50` dB and `–10` dB.

Select the three filtered signals by clicking their Name column in the Signal table. On the Analyzer tab, click Export and save the signals to a MAT-file called `music.mat`. In MATLAB, load the file to the Workspace. Plot the spectra of the three signals.

```load music pspectrum(low) hold on pspectrum(medium) pspectrum(high) hold off```

```% To hear the different voices, type % sound(low.low,fs), pause(5), sound(medium.medium,fs), pause(5), sound(high.high,fs)```
