# sbiodose

Construct dose object

## Syntax

``dose = sbiodose(DoseName)``
``dose = sbiodose(DoseName,DoseType)``
``dose = sbiodose(DoseName,Name,Value)``

## Description

example

````dose = sbiodose(DoseName)` creates a `RepeatDose object` and sets its `Name` property to `DoseName`.```

example

````dose = sbiodose(DoseName,DoseType)` creates either a `RepeatDose object` or `ScheduleDose object` based on `DoseType`.```

example

````dose = sbiodose(DoseName,Name,Value)` uses name-value pair arguments to define the properties of the dose object. You can enter the name-value pairs in the same format supported by the function `set`. Use the `get` function to view all the properties of the object.```

## Examples

collapse all

This example shows how to set up a dosing regimen that follows the first-order absorption kinetics.

Background

Suppose you have a one-compartment model with a species named `drug` that represents the total amount of drug in the body. The drug is added to the body via the first-order dosing represented by the reaction `dose -> drug`, with the absorption rate constant `ka`. It is removed from the body via the first-order elimination represented by the reaction `drug -> null`, with the elimination rate constant `ke`. This example shows how to set up such a one-compartment model, the first-order absorption and elimination.

Create a One-compartment Model

Create a SimBiology model named `onecomp`.

`m1 = sbiomodel('onecomp');`

Define the drug elimination by adding a reaction `drug -> null` to the model. The `drug` species represents the total amount of drug in the compartment.

`r1 = addreaction(m1,'drug -> null');`

Note that a compartment and the species `drug` are automatically created, and `drug` is added to the compartment. The `null` species is a reserved species that acts as a sink in this reaction.

Add a mass action kinetic law to the reaction. This kinetic law defines the drug elimination to follow the first-order kinetics.

`k1 = addkineticlaw(r1,'MassAction');`

Define the elimination rate parameter `ke` and add it to the kinetic law.

`p1 = addparameter(k1,'ke','Value',1.0,'ValueUnits','1/hour');`

Specify the rate parameter `ke` as the forward rate parameter of the reaction by setting the `ParameterVariableNames` property of kinetic law object `k2`. This allows SimBiology to determine the reaction rate for `drug -> null` reaction.

`k1.ParameterVariableNames = 'ke';`

Set up the First-order Dosing

Add a reaction that represents the drug absorption using the second species `dose`. It represents an intermediate species that will be dosed directly and is required to set up the first-order absorption kinetics.

`r2 = addreaction(m1,'dose -> drug');`

Add a mass action kinetic law to the reaction. This kinetic law defines the drug absorption to follow the first-order kinetics.

`k2 = addkineticlaw(r2,'MassAction');`

Define the absorption rate parameter `ka` and add it to the kinetic law.

`p2 = addparameter(k2,'ka','Value',0.1,'ValueUnits','1/hour');`

Specify the rate parameter `ka` as the forward rate parameter of the reaction by setting the `ParameterVariableNames` property of kinetic law object `k1`. This allows SimBiology to determine the reaction rate for `dose -> drug` reaction.

`k2.ParameterVariableNames = 'ka';`

Suppose you want to increase the drug concentration in the system by administering a series of doses: 250 mg three times a day (t.i.d) for two days. Specify the amount of the dose (`Amount`), the time interval between each dose (`Interval`), and the total number of doses (`RepeatCount`). You also need to set the `Active` property of the dose object to `true` so that the dose will be applied to the model during simulation. `RepeatCount` was set to 5, instead of 6 since it represents the number of doses after the first dose at the default dose start time (`d1.StartTime` = 0).

```d1 = sbiodose('d1','repeat'); d1.Amount = 250; d1.AmountUnits = 'milligram'; d1.Interval = 8; d1.TimeUnits = 'hour'; d1.RepeatCount = 5; d1.Active = true;```

Specify the target species of the dose object. The target must be the `dose` species, not the `drug` species, so that the drug absorption follows the first-order kinetics.

`d1.TargetName = 'dose';`

Simulate the Model

Change the simulation stop time to 48 hours to match the dosing schedule.

```cs = getconfigset(m1); cs.StopTime = 48; cs.TimeUnits = 'hour';```

In addition, do not log the dose species data as you are mainly interested in monitoring the drug species which is the drug concentration in the system. This makes visualizing the species in a plot more convenient. To accomplish this, set the `StatesToLog` property to include the species `drug` only.

`cs.RuntimeOptions.StatesToLog = {'drug'};`

Simulate the model using the dosing schedule defined by the |d1 |dose object.

`[t,sd,species] = sbiosimulate(m1,d1);`

Plot Results

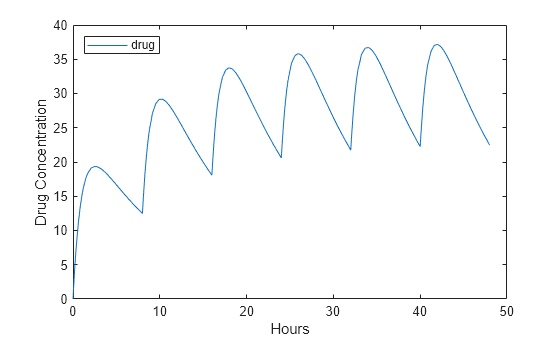

Plot the concentration versus the time profile of the drug in the compartment.

```plot(t,sd); legend(species,'Location','NorthWest'); xlabel('Hours'); ylabel('Drug Concentration');```

This example shows how to add a series of bolus doses to one-compartment model.

Background

Suppose you have a one-compartment model with a species named `drug` that represents the total amount of drug in the body. The drug is removed from the body via the first-order elimination represented by the reaction `drug -> null`, with the elimination rate constant `ke`. In other words, the drug concentration versus the time profile follows the monoexponential decline ${C}_{t}={C}_{0}{e}^{-{k}_{e}t}$, where ${C}_{t}$ is the drug concentration at time t, ${C}_{0}$ is the initial concentration, and `ke` is the elimination rate constant. This example shows how to set up such a one-compartment model and administer a series of bolus doses, namely 250 mg three times a day (tid) for two days.

Create a One-compartment Model

First create a SimBiology model named `onecomp`.

`m1 = sbiomodel('onecomp');`

Define the elimination of the drug from the system by adding a reaction `drug -> null` to the model.

`r1 = addreaction(m1,'drug -> null');`

The species `drug` is automatically created and the reaction is added to the compartment. The `null` species is a reserved species that acts as a sink in this reaction.

Add a mass action kinetic law to the reaction. This kinetic law defines the drug elimination to follow the first-order kinetics.

`k1 = addkineticlaw(r1,'MassAction');`

Define the elimination rate parameter `ke` and add it to the kinetic law.

`p1 = addparameter(k1,'ke','Value',1.0,'ValueUnits','1/hour');`

Specify the rate parameter `ke` as the forward rate parameter of the reaction by setting the `ParameterVariableNames` property of kinetic law object `k1`. This allows SimBiology to determine the reaction rate for `drug -> null` reaction.

`k1.ParameterVariableNames = 'ke';`

Set up a Series of Bolus Doses

Suppose you want to increase the drug concentration in the system by administering a series of bolus doses: 250 mg three times a day (tid) for two days. Create a repeat dose object. Specify the amount of the dose (`Amount`), the dose target, the time interval between each dose (`Interval`), and the total number of doses (`RepeatCount`). You also need to set the `Active` property of the dose object to `true` so that the dose is applied to the model during simulation.

```d1 = sbiodose('d1','repeat'); d1.Amount = 250; d1.AmountUnits = 'milligram'; d1.TargetName = 'drug'; d1.Interval = 8; d1.TimeUnits = 'hour'; d1.RepeatCount = 5; d1.Active = true;```

`RepeatCount` was set to 5, instead of 6 since it represents the number of doses after the first dose at the default dose start time (`d1.StartTime` = 0).

Simulate the Model

Change the simulation stop time to 48 hours to match the dosing schedule defined by the `d1` dose object.

```cs = getconfigset(m1); cs.StopTime = 48; cs.TimeUnits = 'hour'; [t,sd,species] = sbiosimulate(m1,d1);```

Plot Results

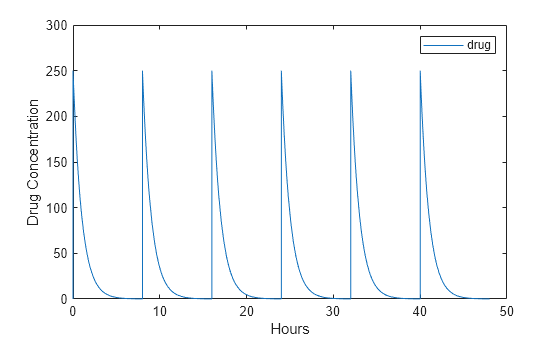

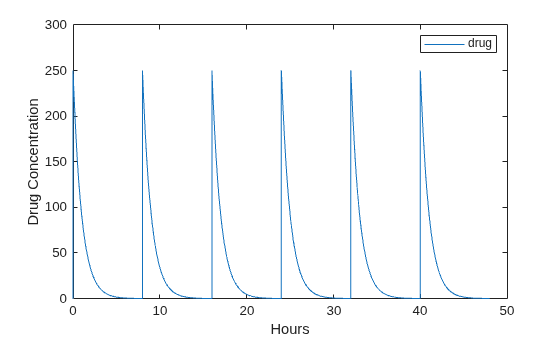

Plot the concentration versus the time profile of the drug in the system.

```plot(t,sd); legend(species); xlabel('Hours'); ylabel('Drug Concentration');```

This example shows how to set up a dosing regimen that follows the zero-order absorption kinetics.

Background

Suppose you have a one-compartment model with a species named `drug` that represents the total amount of drug in the body. The drug is removed from the body via the first-order elimination represented by the reaction `drug -> null`, with the elimination rate constant `ke`. In other words, the drug concentration versus the time profile follows the monoexponential decline ${C}_{t}={C}_{0}{e}^{-{k}_{e}t}$, where ${C}_{t}$ is the drug concentration at time t, ${C}_{0}$ is the initial concentration, and `ke` is the elimination rate constant. This example shows how to set up such a one-compartment model and increase the drug concentration in the compartment via the zero-order absorption that takes 25 hours to administer the total dose amount of 250 mg.

Create a One-compartment Model

Create a SimBiology model named `onecomp`.

`m1 = sbiomodel('onecomp');`

Define the elimination of the drug from the system by adding a reaction `drug -> null` to the model.

`r1 = addreaction(m1,'drug -> null');`

The species `drug` is automatically created and added to the compartment. The `null` species is a reserved species that acts as a sink in this reaction.

Add a mass action kinetic law to the reaction. This kinetic law defines the drug elimination to follow the first-order kinetics.

`k1 = addkineticlaw(r1,'MassAction');`

Define the elimination rate parameter `ke` and add it to the kinetic law.

`p1 = addparameter(k1,'ke','Value',1.0,'ValueUnits','1/hour');`

Specify the rate parameter `ke` as the forward rate parameter of the reaction by setting the `ParameterVariableNames` property of kinetic law object `k1`. This allows SimBiology to determine the reaction rate for `drug -> null` reaction.

`k1.ParameterVariableNames = 'ke';`

Set up Zero-order Dosing

To set up zero-order dosing, first create a zero-order duration parameter `p2` that represents the time it takes to administer a dose. Next, specify the amount of the dose (`Amount`), the dose target (`TargetName`), and the name of the zero-order duration parameter (`DurationParameterName`). You also need to set the `Active` property of the dose object to `true` so that the dose is applied to the model during simulation.

```p2 = addparameter(m1,'duration','Value',25,'ValueUnits','hour'); d1 = sbiodose('d1'); d1.Amount = 250; d1.AmountUnits = 'milligram'; d1.TargetName = 'drug'; d1.DurationParameterName = 'duration'; %Name of the duration parameter |p2| d1.Active = true;```

Simulate the Model

Change the simulation stop time to 48 hours to see the complete time profile. Apply the dosing schedule defined by `d1` to the model during simulation.

```cs = getconfigset(m1); cs.StopTime = 48; cs.TimeUnits = 'hour'; [t,sd,species] = sbiosimulate(m1,d1);```

Plot results

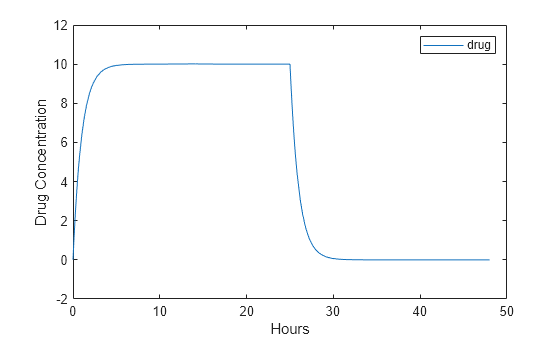

Plot the concentration versus the time profile of the drug in the compartment.

```plot(t,sd); legend(species); xlabel('Hours'); ylabel('Drug Concentration');```

This example shows how to add a constant-rate infusion dose to one-compartment model.

Background

Suppose you have a one-compartment model with a species named `drug` that represents the total amount of drug in the body. The drug is removed from the body via the first-order elimination represented by the reaction `drug -> null`, with the elimination rate constant `ke`. In other words, the drug concentration versus the time profile follows the monoexponential decline ${C}_{t}={C}_{0}{e}^{-{k}_{e}t}$, where ${C}_{t}$ is the drug concentration at time t, ${C}_{0}$ is the initial concentration, and `ke` is the elimination rate constant. This example shows how to set up such a one-compartment model and add an infusion dose at a constant rate of 10 mg/hour for the total dose amount of 250 mg.

Create a One-compartment Model

Create a SimBiology model named `onecomp`.

`m1 = sbiomodel('onecomp');`

Define the elimination of the drug from the system by adding a reaction `drug -> null` to the model.

`r1 = addreaction(m1,'drug -> null');`

The species `drug` is automatically created and added to the compartment. The `null` species is a reserved species that acts as a sink in this reaction.

Add a mass action kinetic law to the reaction. This kinetic law defines the drug elimination to follow the first-order kinetics.

`k1 = addkineticlaw(r1,'MassAction');`

Define the elimination rate parameter `ke` and add it to the kinetic law.

`p1 = addparameter(k1,'ke','Value',1.0,'ValueUnits','1/hour');`

Specify the rate parameter `ke` as the forward rate parameter of the reaction by setting the `ParameterVariableNames` property of kinetic law object `k1`. This allows SimBiology to determine the reaction rate for `drug -> null` reaction.

`k1.ParameterVariableNames = 'ke';`

Set up an Infusion Dose

Specify the amount of the dose (`Amount`), the dose target (`TargetName`), and the infusion rate (`Rate`). You also need to set the `Active` property of the dose object to `true` so that the dose is applied to the model during simulation.

```d1 = sbiodose('d1'); d1.Amount = 250; d1.TargetName = 'drug'; d1.Rate = 10; d1.RateUnits = 'milligram/hour'; d1.Active = true;```

Simulate the Model

Change the simulation stop time to 48 hours to see the complete time course. Apply the dosing schedule defined by `d1` to the model during simulation.

```cs = getconfigset(m1); cs.StopTime = 48; cs.TimeUnits = 'hour'; [t,sd,species] = sbiosimulate(m1,d1);```

Plot results

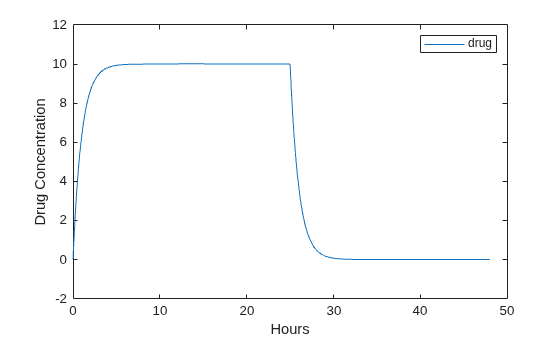

Plot the concentration versus the time profile of the drug in the system.

```plot(t,sd); legend(species); xlabel('Hours'); ylabel('Drug Concentration');```

## Input Arguments

collapse all

Name of the dose object, specified as a character vector or string.

Example: `'250mg_tid'`

Data Types: `char`

Type of the dose object, specified as `'schedule'` for a `ScheduleDose object` and `'repeat'` for a `RepeatDose object`.

Example: `'schedule'`

Data Types: `char`
