Specify Data Types Using DataTypeStr Parameter

Similar to any mask parameter, the DataTypeStr parameter can be added on a mask dialog box from the Mask Editor. Adding the DataTypeStr parameter to the mask dialog box allows the end user of the block to specify the acceptable data types for the associated Edit type parameter. While defining the mask, you can specify single or multiple data types for the Edit parameter. The end user of the block can select from one of these data types. Specifying a data type for the Edit parameter defines a rule for the input value that can be provided through the mask dialog box.

The DataTypeStr parameter also allows you to specify a minimum and maximum value for the Edit parameter. You can do so by using the Min and Max mask parameters and associating these parameters to the DataTypeStr parameter. DataTypeStr parameter can be used to do fixed-point analysis.

Associate Data Types to Edit Parameter

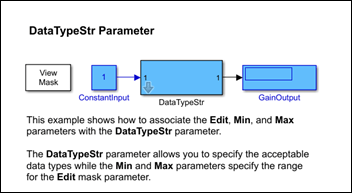

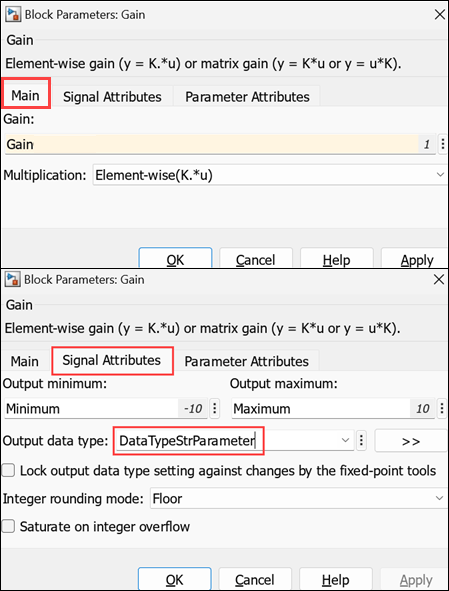

  1. Open the model in which you want to mask a block. For example, open the DataTypeStr model in Mask Parameters.

  2. Right-click the Subsystem block and select Mask > Create Mask.

    Note

    If you are editing an existing mask, to open the Mask Editor, select Mask > Edit Mask.

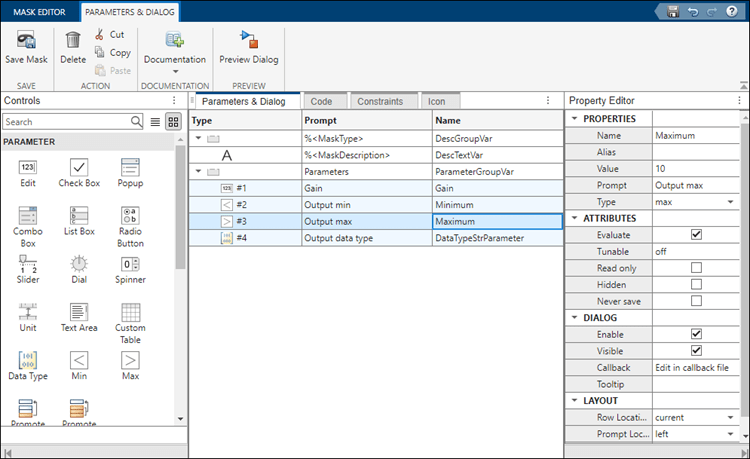

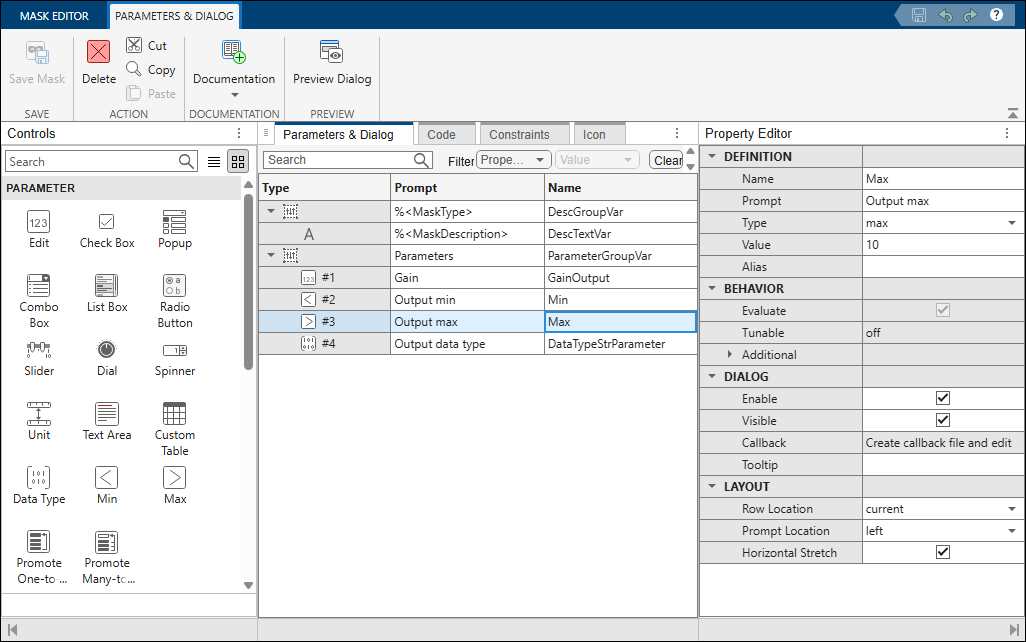

  3. In the Mask Editor, click the Parameters & Dialog pane and add the Edit, Min, Max, DataTypeStr parameters.

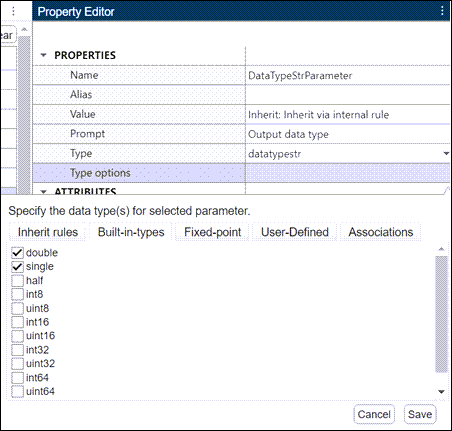

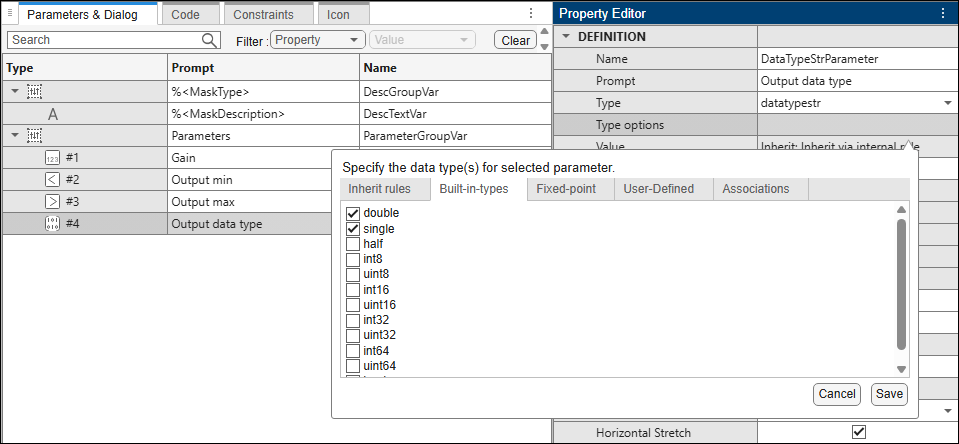

  4. To specify data types for the Edit parameter, select DataTypeStr in the Dialog box section of the Mask Editor and click the button next to Type options in the Property editor pane. The Type options editor has a tabbed user interface containing these tabs for data type rules.

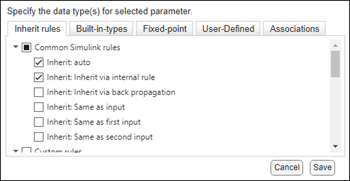

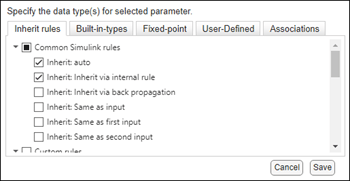

    1. Inherit rules- Specify inheritance rules for determining the data types. The inherit rules are grouped under three categories: Common Simulink rules, Custom rules, and Advanced Simulink rules. By default, the Common Simulink rules and Advanced Simulink rules are available under Inherit rules tab. The Advanced rules section allows you to inherit rules from breakpoint data, constant value, gain, table data, logic data, accumulator, product output, and Simulink. It also allows you to have same word length as input and have same data types for all ports. The Custom rules are listed under Inherit rules tab only if there are any custom inheritance rules registered on the MATLAB search path. For definitions of some Inherit rules, see Data Type Inheritance Rules.

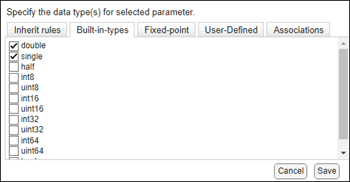

    2. Built-in types: Specify one or more built-in Simulink® data types, such as double or single. For more information, see Data Types Supported by Simulink.

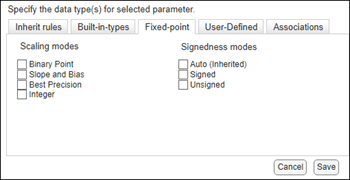

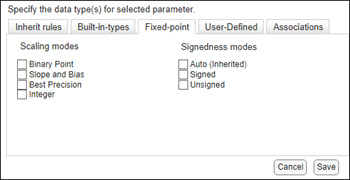

    3. Fixed-point: Specify the scaling and signed modes for a fixed-point data type. For more information, see Specifying a Fixed-Point Data Type.

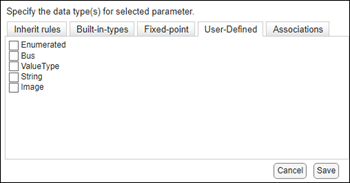

    4. User-defined: Specify a bus object or enumerated (enum) data type, or both. For more information, see Specify an Enumerated Data Type and Specify a Bus Object Data Type.

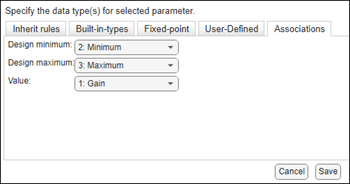

    5. Associations: Associate a data type parameter with an Edit parameter. You can also associate the Min and Max parameters to the Edit parameter.

  5. To save the rules selection, click OK in the Type Options Editor.

  6. To save changes and exit the Mask Editor, click OK.

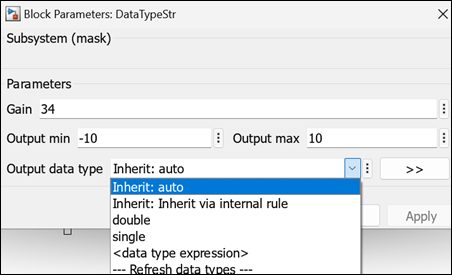

View DataTypeStr Programmatically

You can use the Simulink.Mask.get command in the MATLAB® command window to view the data type values specified for a block mask. MATLAB uses a predefined nomenclature to represent the data type information in the command line.

This example shows how to view the DataTypeStr Parameter for the example model Mask Parameters programmatically.

maskobj = Simulink.Mask.get(gcb)
maskobj =

Mask with properties:

                  Type: ''
                  Description: ''
                         Help: ''
               Initialization: ''
               SelfModifiable: 'off'
                      Display: ''
                    IconFrame: 'on'
                   IconOpaque: 'opaque'
         RunInitForIconRedraw: 'off'
                   IconRotate: 'none'
                   PortRotate: 'default'
                    IconUnits: 'autoscale'
                   Parameters: [1×4 Simulink.MaskParameter]
                     BaseMask: [0×0 Simulink.Mask]
         ParameterConstraints: [0×0 Simulink.Mask.Constraints]
         BlockConstraintRules: [0×0 Simulink.Mask.BlockConstraints]
    ConstraintParamAssociator: [0×0 Simulink.Mask.ConstraintParamAssociator]

maskobj.getParameter('DataTypeStrParameter')
ans =

MaskParameter with properties:

Type: 'unidt({a=4|2|3|1}{i=Inherit: auto|Inherit: Inherit via internal rule}{b=double|single})'
    TypeOptions: {0×1 cell}
           Name: 'DataTypeStrParameter'
         Prompt: 'Output data type'
          Value: 'Inherit: auto'
       Evaluate: 'on'
        Tunable: 'off'
      NeverSave: 'off'
         Hidden: 'off'
       ReadOnly: 'off'
        Enabled: 'on'
        Visible: 'on'
    ShowTooltip: 'on'
       Callback: ''
          Alias: ''

The result displays the properties that are defined for the DataTypeStr parameter. This example defines the nomenclature for the specified type options:

Type: 'unidt({a=4|2|3|1}{i=Inherit: auto|Inherit: Inherit via internal rule}{b=double|single})'

Here, Type displays the values specified for the DataTypeStr parameter and has these definitions:

  • a defines Associations and its corresponding values are 4, 2, 3, 1. These values are index numbers for the parameter and represent the DataTypeStr, Min, Max, and Edit parameters sequentially.

  • i defines the Inherit rules and its corresponding value as Inherit: Same as first input.

  • b defines the Built-in types and its corresponding value as double and single.

See Also
