Microsoft Excel Import, Export, and Logging Format

Using the Simulation Data Inspector or Simulink® Test™, you can import data from a Microsoft® Excel® file or export data to a Microsoft Excel file. You can also log data to an Excel file using the Record block. The Simulation Data Inspector, Simulink Test, and the Record block all use the same file format, so you can use the same Microsoft Excel file with multiple applications.

Tip

When the format of the data in your Excel file does not match the specification in this topic, you can write your own file reader to import the data using the io.reader class.

Basic File Format

In the simplest format, the first row in the Excel file is a header that lists the names of the signals in the file. The first column is time. The name for the time column must be time, and the time values must increase monotonically. The rows below the signal names list the signal values that correspond to each time step.

The import operation does not support time data that includes Inf or NaN values or signal data that includes Inf values. Empty or NaN signal values imported from the Excel file render as missing data in the Simulation Data Inspector. All built-in data types are supported.

Multiple Time Vectors

When your data includes signals with different time vectors, the file can include more than one time vector. Every time column must be named time. Time columns specify the sample times for signals to the right, up to the next time vector. For example, the first time column defines the time for signal1 and signal2, and the second time column defines the time steps for signal3.

Signal columns must have the same number of data points as the associated time vector.

Signal Metadata

The file can include metadata for signals such as data type, units, and interpolation method. The metadata is used to determine how to plot the data, how to apply unit and data conversions, and how to compute comparison results. For more information about how metadata is used in comparisons, see How the Simulation Data Inspector Compares Data.

Metadata for each signal is listed in rows between the signal names and the signal data. You can specify any combination of metadata for each signal. Leave a blank cell for signals with less specified metadata.

Label each piece of metadata according to this table. The table also indicates which tools and operations support each piece of metadata. When an imported file does not specify signal metadata, double data type, zoh (zero order hold) interpolation, and union synchronization are used.

Signal Property LabelValuesSimulation Data Inspector ImportRecord Block Logging and Simulation Data Inspector ExportSimulink Test Import and Export
Data typeType:Built-in data type.

Supported

Supported

Supported

UnitsUnit:

Supported unit. For example, Unit: m/s specifies units of meters per second.

For a list of supported units, enter showunitslist in the MATLAB® Command Window.

Supported

Supported

Supported

Interpolation methodInterp:linear, zoh for zero order hold, or none.

Supported

Supported

Supported

Synchronization methodSync:union or intersection.

Supported

Not Supported

Metadata not included in exported file.

Supported

Relative toleranceRelTol:Percentage, represented as a decimal. For example, RelTol: 0.1 specifies a 10% relative tolerance.

Supported

Not Supported

Metadata not included in exported file.

Supported

Absolute toleranceAbsTol:Numeric value.

Supported

Not Supported

Metadata not included in exported file.

Supported

Time toleranceTimeTol:Numeric value, in seconds.

Supported

Not Supported

Metadata not included in exported file.

Supported

Leading toleranceLeadingTol:Numeric value, in seconds.

Supported

Only visible in Simulink Test.

Not Supported

Metadata not included in exported file.

Supported

Lagging toleranceLaggingTol:Numeric Value, in seconds.

Supported

Only visible in Simulink Test.

Not Supported

Metadata not included in exported file.

Supported

Block PathBlockPath:Path to the block that generated the signal.

Supported

Supported

Supported

Port IndexPortIndex:Integer.

Supported

Supported

Supported

NameName:Signal name

Supported

Not Supported

Metadata not included in exported file.

Supported

User-Defined Data Types

In addition to built-in data types, you can use other labels in place of the DataType: label to specify fixed-point, enumerated, alias, and bus data types.

Data Type LabelValuesSimulation Data Inspector ImportRecord Block Logging and Simulation Data Inspector ExportSimulink Test Import and Export
EnumerationEnum:Name of the enumeration class.

Supported

Enumeration class definition must be saved on the MATLAB path.

Supported

Enumeration class definition must be saved on the MATLAB path.

Supported

Enumeration class definition must be saved on the MATLAB path.

AliasAlias:

Name of a Simulink.AliasType object in the MATLAB workspace.

Supported

For matrix and complex signals, specify the alias data type on the first channel.

Not Supported

Supported

For matrix and complex signals, specify the alias data type on the first channel.

Fixed-pointFixdt:

Supported

Not Supported

Supported

BusBus:

Name of a Simulink.Bus object in the MATLAB workspace.

Supported

Not Supported

Supported

When you specify the type using the name of a Simulink.Bus object and the object is not in the MATLAB workspace, the data still imports from the file. However, individual signals in the bus use data types described in the file rather than data types defined in the Simulink.Bus object.

Complex, Multidimensional, and Bus Signals

You can import and export complex, multidimensional, and bus signals using an Excel file. The signal name for a column of data indicates whether that data is part of a complex, multidimensional, or bus signal. Excel file import and export do not support array of bus signals.

Note

When you export data from a nonvirtual bus with variable-size signals to an Excel file, the variable-size signal data is expanded to individual channels, and the hierarchical nature of the data is lost. Data imported from this file is returned as a flat list.

Multidimensional signal names include index information in parentheses. For example, the signal name for a column might be signal1(2,3). When you import data from a file that includes multidimensional signal data, elements in the data not included in the file take zero sample values with the same data type and complexity as the other elements.

Complex signal data is always in real-imaginary format. Signal names for columns containing complex signal data include (real) and (imag) to indicate which data each column contains. When you import data from a file that includes imaginary signal data without specifying values for the real component of that signal, the signal values for the real component default to zero.

Multidimensional signals can contain complex data. The signal name includes the indication for the index within the multidimensional signal and the real or imaginary tag. For example, signal1(1,3)(real).

Dots in signal names specify the hierarchy for bus signals. For example:

  • bus.y.a

  • bus.y.b

  • bus.x

Tip

When the name of your signal includes characters that could make it appear as though it were part of a matrix, complex signal, or bus, use the Name metadata option to specify the name you want the imported signal to use in the Simulation Data Inspector and Simulink Test.

Function-Call Signals

Signal data specified in columns before the first time column is imported as one or more function-call signals. The data in the column specifies the times at which the function-call signal was enabled. The imported signals have a value of 1 for the times specified in the column. The time values for function-call signals must be double, scalar, and real, and must increase monotonically.

When you export data from the Simulation Data Inspector, function-call signals are formatted the same as other signals, with a time column and a column for signal values.

Simulation Parameters

You can import data for parameter values used in simulation. In the Simulation Data Inspector, the parameter values are shown as signals. Simulink Test uses imported parameter values to specify values for those parameters in the tests it runs based on imported data.

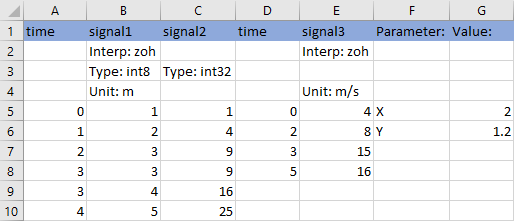

Parameter data is specified using two or three columns. The first column specifies the parameter names, with the cell in the header row for that column labeled Parameter:. The second column specifies the value used for each parameter, with the cell in the header row labeled Value:. Parameter data may also include a third column that contains the block path associated with each parameter, with the cell in the header row labeled BlockPath:. Specify names, values, and block paths for parameters starting in the first row that contains signal data, below the rows used to specify signal metadata. For example, this file specifies values for two parameters, X and Y.

Multiple Runs

You can include data for multiple runs in a single file. Within a sheet, you can divide data into runs by labeling data with a simulation number and a source type, such as Input or Output. Specify the simulation number and source type as additional signal metadata, using the label Simulation: for the simulation number and the label Source: for the source type. The Simulation Data Inspector uses the simulation number and source type only to determine which signals belong in each run. Simulink Test uses the information to define inputs, parameters, and acceptance criteria for tests to run based on imported data.

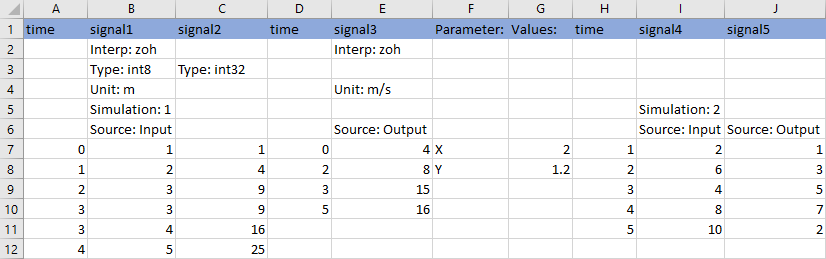

You do not need to specify the simulation number and output type for every signal. Signals to the right of a signal with a simulation number and source use the same simulation number and source until the next signal with a different source or simulation number. For example, this file defines data for two simulations and imports into four runs in the Simulation Data Inspector:

  • Run 1 contains signal1 and signal2.

  • Run 2 contains signal3, X, and Y.

  • Run 3 contains signal4.

  • Run 4 contains signal5.

You can also use sheets within the Microsoft Excel file to divide the data into runs and tests. When you do not specify simulation number and source information, the data on each sheet is imported into a separate run in the Simulation Data Inspector. When you export multiple runs from the Simulation Data Inspector, the data for each run is saved on a separate sheet. When you import a Microsoft Excel file that contains data on multiple sheets into Simulink Test, an iteration is created for each sheet .
