Compensate for Disturbances in Spring-Mass-Damper System

Since R2024a

This example shows how to compensate for disturbances in a spring-mass-damper system using the Disturbance Compensator block.

Spring-Mass-Damper Model

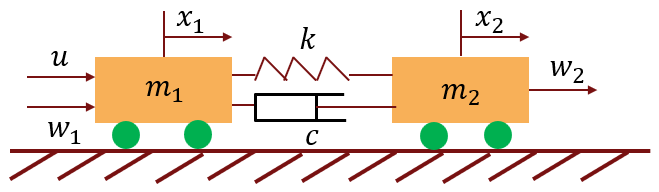

The spring-mass-damper system consists of two carts of mass ${\mathit{m}}_{1}$ and ${\mathit{m}}_{2}$, connected to each other through a spring with stiffness coefficient $\mathit{k}$ and a damper with damping coefficient $\mathit{c}$ [1].

Define the values of these physical constants in the model.

```k = 1.2; m1 = 1.5; m2 = 1.5; c = 1.2;```

You can represent this system as a state-space model with four states $\mathit{x}=\left[\begin{array}{c}{\mathit{x}}_{1}\\ {\mathit{x}}_{2}\\ {\mathit{x}}_{3}\\ {\mathit{x}}_{4}\end{array}\right]$.

`$\begin{array}{l}\stackrel{˙}{\mathit{x}}={\mathit{A}}_{\mathit{p}}\mathit{x}+{\mathit{B}}_{\mathit{u}}\left(\mathit{u}+{\mathit{w}}_{1}\right)+{\mathit{B}}_{\mathit{d}}{\mathit{w}}_{2}\\ \mathit{y}={\mathit{C}}_{\mathit{p}}\mathit{x}\end{array}$`

Here:

• ${\mathit{x}}_{1}$ and ${\mathit{x}}_{2}$ are the positions of mass 1 and mass 2.

• ${\mathit{x}}_{3}$ and ${\mathit{x}}_{4}$ are the velocities of mass 1 and mass 2.

• $\mathit{u}$ is the control input acting on mass 1.

• $\mathit{y}$ is the measured output.

• ${\mathit{w}}_{1}$ and ${\mathit{w}}_{2}$ are the disturbances acting on mass 1 and mass 2.

In this example, set ${\mathit{w}}_{1}=0$, thus the disturbance ${\mathit{w}}_{2}$ and control input $\mathit{u}$ come from different channels.

Specify the state-space model for the plant ${\mathit{G}}_{\mathit{p}}$.

```Ap = [0, 0, 1, 0; 0, 0, 0, 1; -k/m1, k/m1, -c/m1, c/m1; k/m2, -k/m2, c/m2, -c/m2]; Bu = [0;0;1/m1;0]; Bd = [0;0;0;1/m2]; Cp = [0, 1, 0, 0]; Bp = [Bu,Bd]; Gp = ss(Ap,Bp,Cp,0);```

Plant Knowledge for Control Design

You can approximate a mathematical model of the spring-mass-damper system by taking higher-order derivatives of $\mathit{y}$ in the dynamics equation until you find an explicit dependence on the input $\mathit{u}$. Here, the approximation is given by ${\mathit{y}}^{\left(4\right)}=\frac{\mathit{k}}{{\mathit{m}}_{1}{\mathit{m}}_{2}}\mathit{u}+\mathit{d}$, where $\mathit{d}$ represents unknown dynamics and disturbances in the system. You cannot approximate these dynamics well with a single or double integrator. Therefore, the Active Disturbance Rejection Control block is not suitable for control design and may not achieve a good performance. In this example, use the Disturbance Compensator block for satisfactory performance.

For controller design, the example considers two levels of plant knowledge.

• Minimal knowledge of plant model: ${\mathit{y}}^{\left(4\right)}=\mathit{f}\left(\mathit{t}\right)+\mathit{b}\mathit{u}$, where $\mathit{f}\left(\mathit{t}\right)$ denotes the unknown dynamics and disturbances of the system model.

• Full knowledge of plant model: $\begin{array}{l}\stackrel{˙}{\mathit{x}}={\mathit{A}}_{\mathit{p}}\mathit{x}+{\mathit{B}}_{\mathit{u}}\mathit{u}+{\mathit{B}}_{\mathit{d}}{\mathit{w}}_{2}\\ \mathit{y}={\mathit{C}}_{\mathit{p}}\mathit{x}\end{array}$.

Specify the model information for controller design with minimal plant model.

```b = k/(m1*m2); A1 = [0, 1, 0, 0; 0, 0, 1, 0; 0, 0, 0, 1; 0, 0, 0, 0]; B1 = [0;0;0;b]; C1 = [1, 0, 0, 0]; sys1 = ss(A1,B1,C1,0);```

Specify the model information for controller design with full plant model.

`sys2 = ss(Ap,Bu,Cp,0);`

Design Controller for Disturbance Compensation

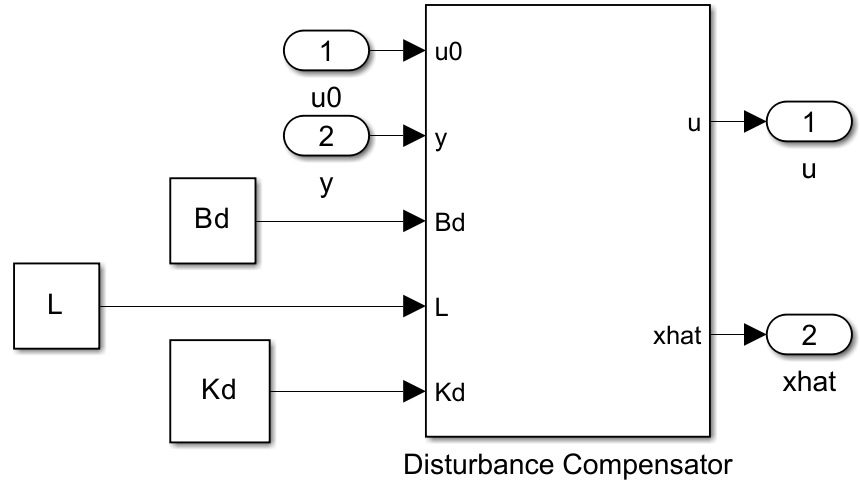

First consider the case where you have full knowledge of plant model. When the variant of `Disturbance Compensation` is set to `full knowledge`, the Disturbance Compensator block is configured to have these five inports in the model.

• Nominal controller ${\mathit{u}}_{0}$

• Plant output $\mathit{y}$

• Disturbance input matrix ${\mathit{B}}_{\mathit{d}}$

• Observer gain matrix $\mathit{L}$

• Disturbance compensation gain ${\mathit{K}}_{\mathit{d}}$

Design a nominal state-feedback controller ${\mathit{u}}_{0}=\mathit{K}\stackrel{ˆ}{\mathit{x}}$ at bandwidth ${\mathit{w}}_{\mathit{c}}=1$rad/s.

`wc = 1;`

Specify the pole locations and differences.

```dist = 1e-3; % pole location differences p = -[wc,wc+dist,wc+dist*2,wc+dist*3]; % pole locations```

To calculate the state-feedback matrix for both plant models, use the `place` command.

```K2 = place(Ap,-Bu,p); % K2 for full knowledge of plant model K1 = place(A1,-B1,p); % K1 for minimal knowledge of plant model```

Design the observer gain matrix $\mathit{L}$ at bandwidth ${\mathit{w}}_{\mathit{o}}=5$ rad/s.

Specify the pole locations and spacing, extended model matrices, and use the `place` command to obtain the gain matrix.

```wo = 5; % observer bandwidth dist = 1e-2; % pole location differences p = -[wo,wo+dist,wo+dist*2,wo+dist*3,wo+dist*4];% pole locations Ae = [Ap,Bd;zeros(1,4),0]; % extended model matrix Ce = [Cp,0]; % extended model matrix L = place(Ae',Ce',p)'; % observer gain matrix```

Compute the disturbance compensation gain ${\mathit{K}}_{\mathit{d}}$ based on [2]. For discrete-time modeling, you calculate the observer gain $\mathit{L}$ and disturbance gain $\mathit{Kd}$ matrices differently [3].

```Af = Ap+Bu*K2; Kd = -(Cp/Af*Bu)\(Cp/Af*Bd);```

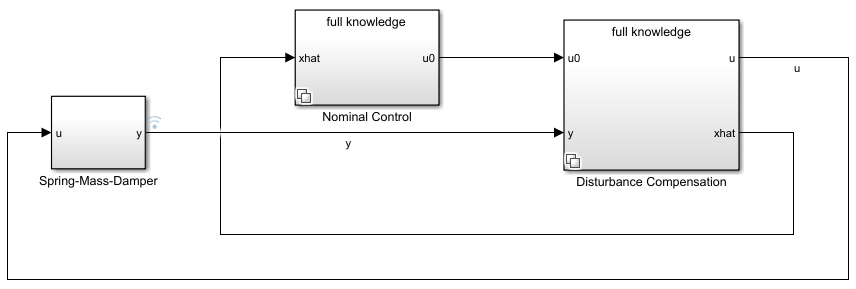

Open the Simulink model® with full knowledge of plant model.

```mdl = 'scdSpringMassDamper'; open_system(mdl) level = 2; % for full knowledge of plant model```

Simulate the model and view the results.

```out = sim(mdl); logsout = out.logsout; y1 = logsout.getElement('y'); y1data = y1.Values.Data(:,:)'; plot(y1.Values.Time,y1data); xlabel('time') ylabel('y') grid on; hold on;```

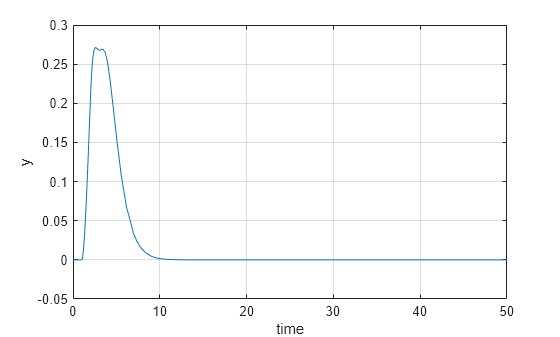

The plot shows that the disturbance is fully rejected within 10 seconds.

Compare Results

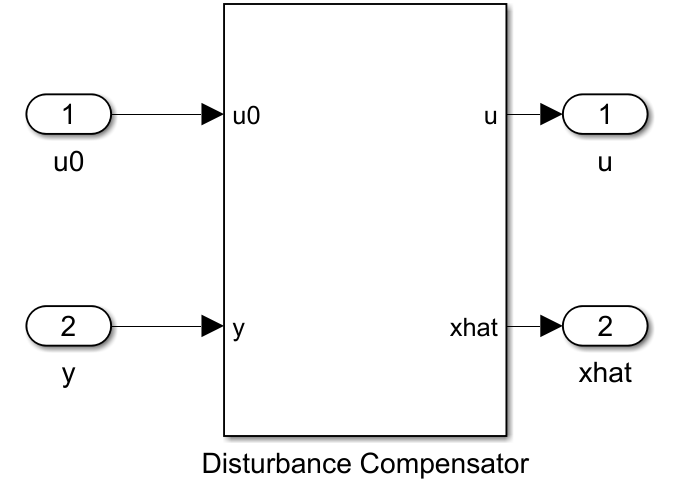

For the case where you have minimal knowledge of plant model, the linear relationship ${\mathit{B}}_{\mathit{d}}=\frac{{\mathit{m}}_{1}}{\mathit{k}}{\mathit{B}}_{1}$ holds. The Disturbance Compensator block also lets you automatically computes $\mathit{L}$ and $\mathit{Kd}$ using the block parameters. For the nominal control ${\mathit{u}}_{0}=\mathit{K}\stackrel{ˆ}{\mathit{x}}$, you computed the state feedback gains ${\mathit{K}}_{1}$ at the bandwidth ${\mathit{w}}_{\mathit{c}}=1$rad/s in the previous section. When the variant of `Disturbance Compensation` is set to `minimal knowledge`, the Disturbance Compensator block is configured to have two default inports as shown in the model.

Set controller with minimal knowledge. Simulate the model and view the results.

```level = 1; % for minimal knowledge of plant model out = sim(mdl); logsout = out.logsout; y2 = logsout.getElement('y'); y2data = y2.Values.Data(:,:)'; plot(y2.Values.Time,y2data); legend('full knowledge','minimal knowledge')```

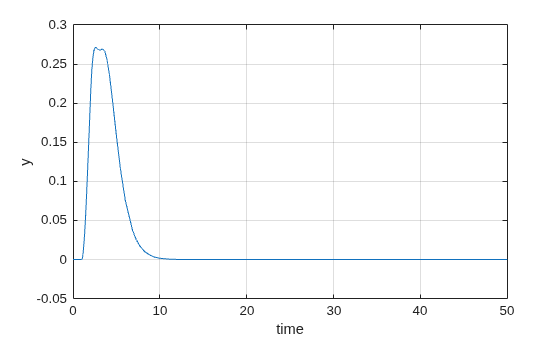

The plot shows that, for this example, more knowledge of plant model leads to better disturbance rejection performance given the same controller and observer bandwidth.

Close the model.

`bdclose(mdl)`

References

[1] Wie, Bong, and Dennis S. Bernstein. “Benchmark Problems for Robust Control Design.” In 1991 American Control Conference, 1929–30. Boston, MA, USA: IEEE, 1991. https://doi.org/10.23919/ACC.1991.4791727.

[2] Li, Shihua, Jun Yang, Wen-Hua Chen, and Xisong Chen. “Generalized Extended State Observer Based Control for Systems With Mismatched Uncertainties.” IEEE Transactions on Industrial Electronics 59, no. 12 (December 2012): 4792–4802. https://doi.org/10.1109/TIE.2011.2182011.

[3] Zhang, Pengcheng, Jianyu Wang, Yun Cheng, and Shiyu Jiao. “Reduced-Order Generalized Extended State Observer Based Control for Discrete-Time Systems.” In 2022 International Conference on Cyber-Physical Social Intelligence (ICCSI), 670–75. Nanjing, China: IEEE, 2022. https://doi.org/10.1109/ICCSI55536.2022.9970623.
