Asynchronous Machine Direct Torque Control with Space Vector Modulator

This example shows how to control an asynchronous machine (ASM) using the direct-torque control method with space vector modulator. A PI-based speed controller supplies the torque reference. The direct-torque controller generates the reference voltages required by the space vector modulator. A DC voltage source feeds the ASM through a controlled average-value voltage source converter.


Simulation Results from Simscape Logging

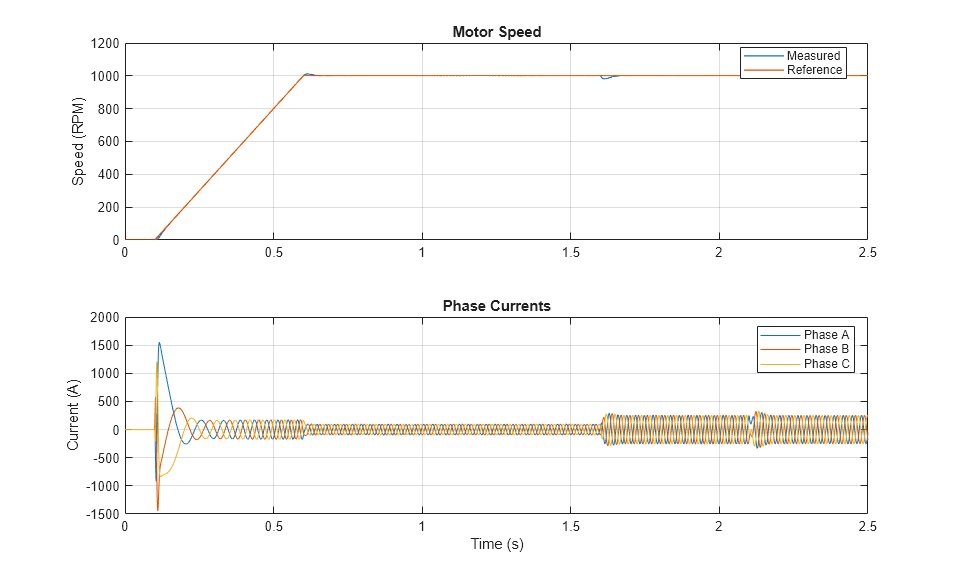

The plot below shows the requested and measured speed for the test, as well as the phase currents in the electric drive.
