This example shows how to model a faulted PMSM using Simscape™ Electrical™. Normally when modeling a PMSM, you can represent each winding as a single entity with associated inductance, induced back EMF, and mutual inductive coupling to adjacent windings. However, when a winding fault occurs, the single entity assumption breaks down. To correctly capture the resulting dynamics, you have to model at a winding slot level. This requires modeling in the magnetic domain.
This example shows how to create a model of a PMSM in the magnetic domain using the Simscape Electrical fundamental blocks for a winding and for a rotor air gap. It also shows how to invoke and assess the impact of winding and rotor permanent magnet faults.

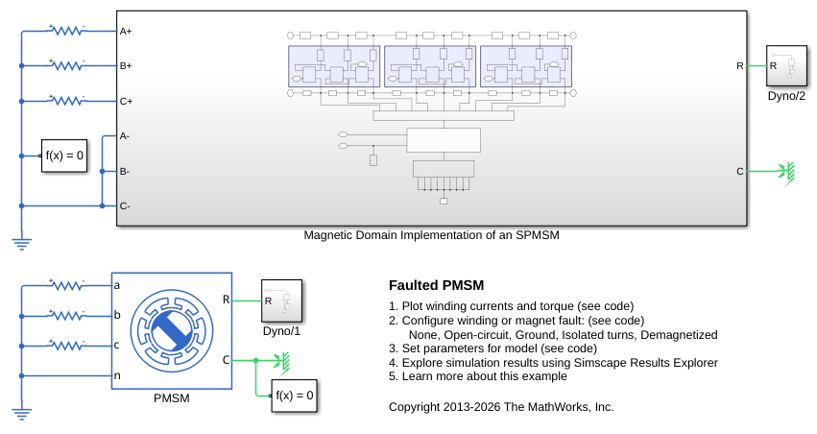

At the top level the model compares the standard library PMSM block with the custom magnetic-domain subsystem that represents an SPMSM. You can then use the magnetic-domain model to study different fault behaviors, once validated for the no-fault case.
Magnetic Domain SPMSM Subsystem Overview

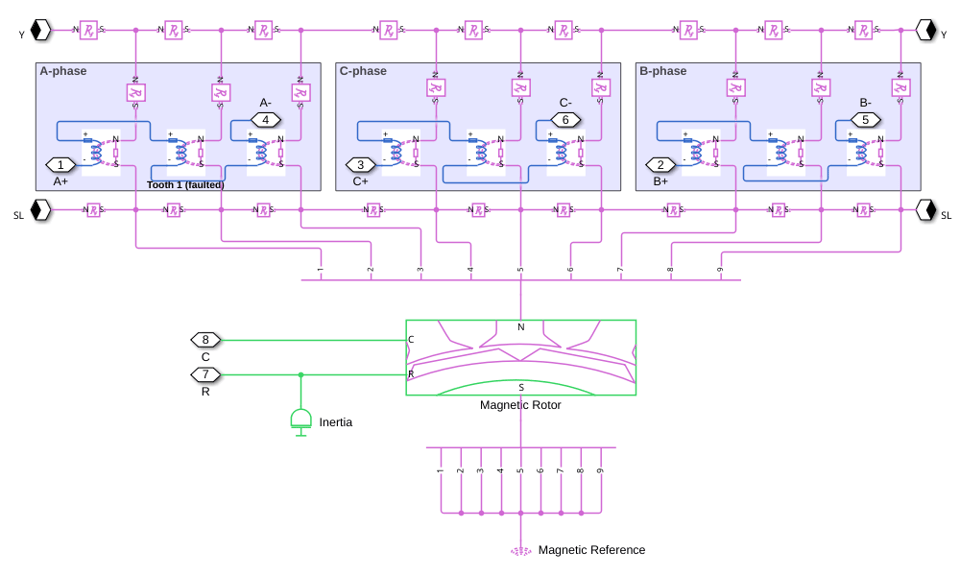

The figure shows the model architecture of a surface mount permanent magnet synchronous motor (SPMSM) with ten rotor poles and nine stator winding slots. The reference slot, Slot 1, is the middle of the three A-phase slots. Winding faults are introduced in this slot.
Validation Against Reference Model

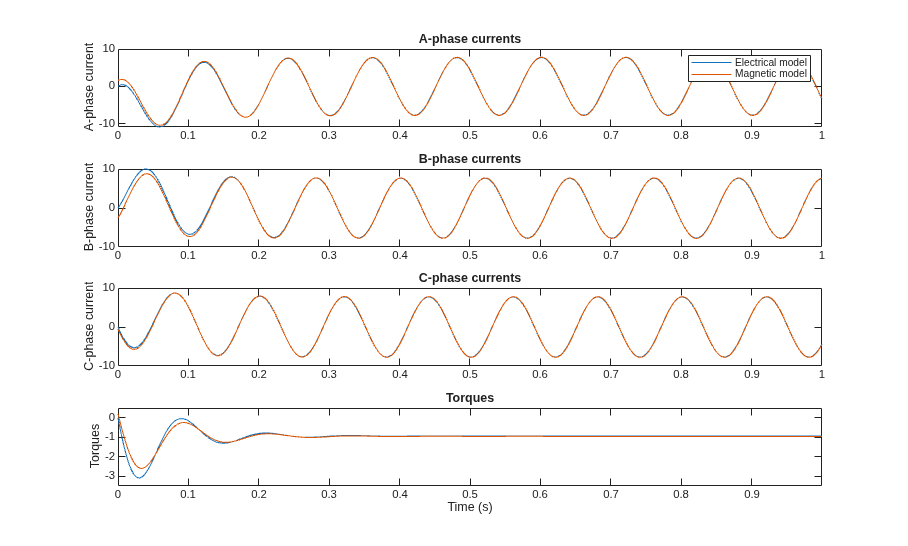

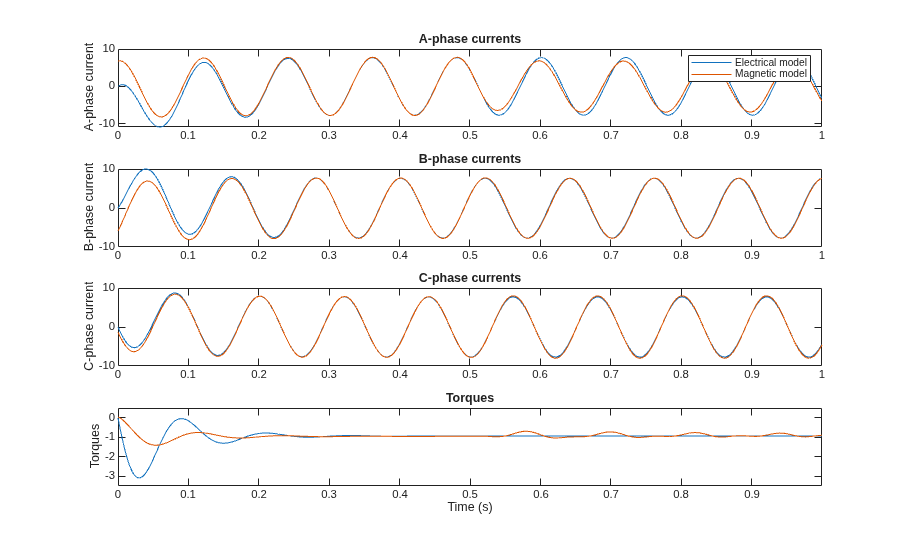

The plot below shows simulation results from the custom magnetic domain model superimposed on simulation results from the Simscape Electrical standard PMSM library block.
Open Circuit Fault

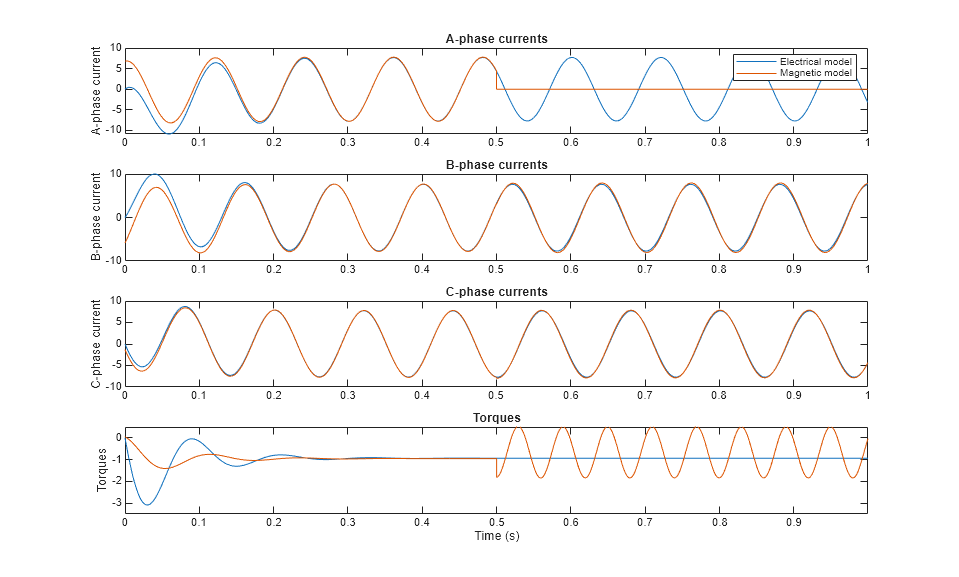

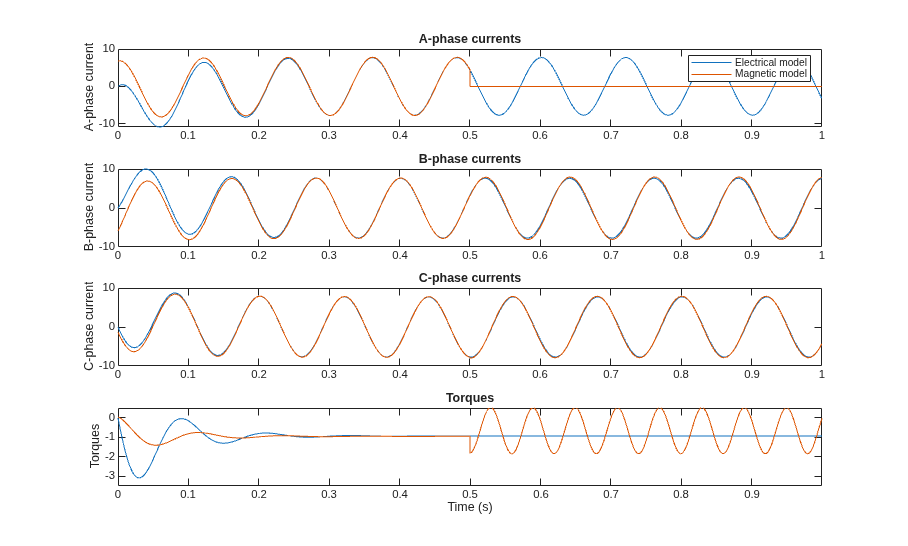

The Slot 1 turns are open-circuited half-way through the simulation.

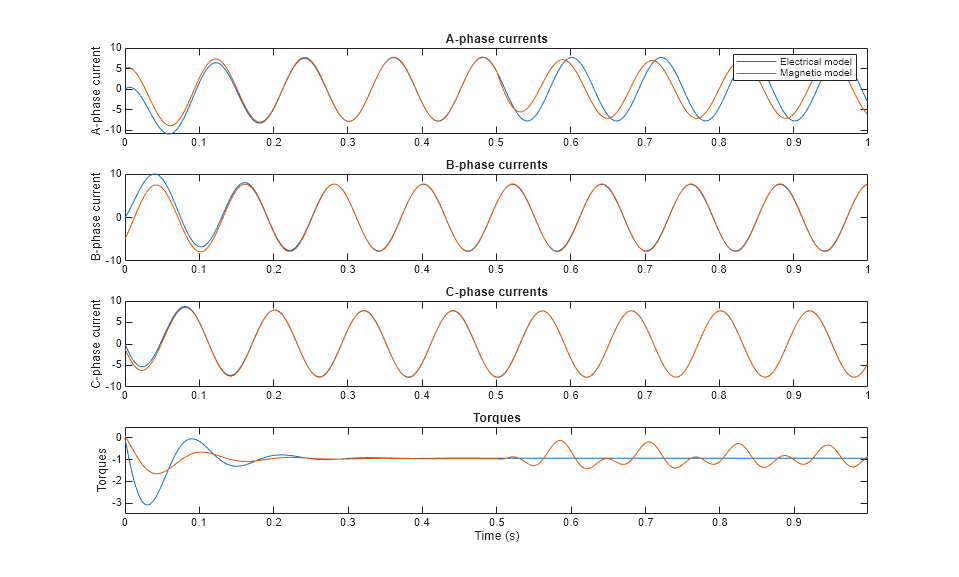

The midpoint of the Slot 1 turns is shorted to ground half-way through the simulation.
Isolated Turns Fault

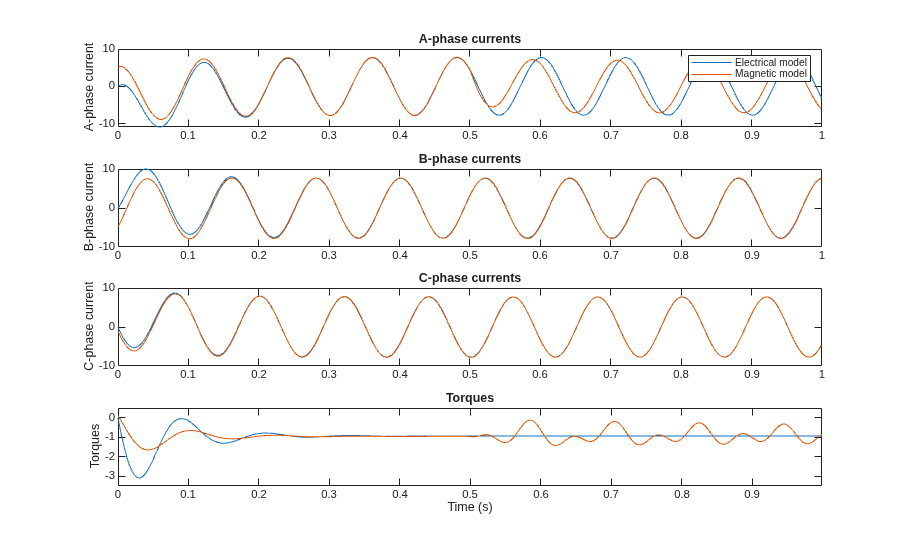

Half of the Slot 1 turns become isolated half-way through the simulation.
Reduced Magnet Strength Fault

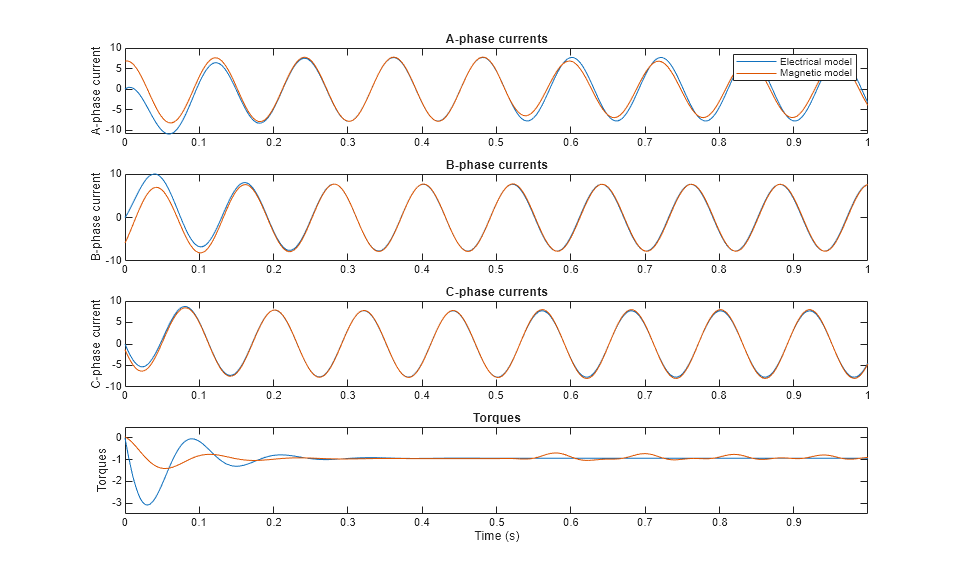

One of the rotor permanent magnets is reduced in strength halfway through the simulation. To implement this, each of the Rotating Air Gap models is fault-enabled and the same fault is applied to each instance.
