# nlparci

Nonlinear regression parameter confidence intervals

## Syntax

ci = nlparci(beta,r,"Covar",CovB)
ci = nlparci(beta,r,"Jacobian",J)
ci = nlparci(___,"Alpha",alpha)

## Description

ci = nlparci(beta,r,"Covar",CovB) returns the 95% confidence intervals ci for the nonlinear least-squares parameter estimates beta. Before calling nlparci, get the estimated coefficients beta, residuals r, and estimated covariance matrix CovB by using the nlinfit function to fit a nonlinear regression model.If you use a robust option with nlinfit, you must use this syntax for nlparci. The covariance matrix CovB is required with robust fitting.
ci = nlparci(beta,r,"Jacobian",J) returns the 95% confidence intervals ci for the nonlinear least-squares parameter estimates beta. Before calling nlparci, get the estimated coefficients beta, residuals r, and Jacobian J by using the nlinfit function to fit a nonlinear regression model.

example

ci = nlparci(___,"Alpha",alpha) returns the 100(1 — alpha)% confidence intervals, using any of the input argument combinations in the previous syntaxes.

## Examples

collapse all

Fit an exponential decay model of the form

${\mathit{y}}_{\mathit{i}}={\beta }_{1}+{\beta }_{2}\mathrm{exp}\left(-{\beta }_{3}{\mathit{x}}_{\mathit{i}}\right)+{ϵ}_{\mathit{i}}$,

where ${\beta }_{j}$ are the parameters to estimate, ${x}_{i}$ are the data points, ${y}_{i}$ are the responses, and ${\epsilon }_{i}$ is the noise term.

Write a function handle that represents the model.

mdl = @(beta,x)(beta(1) + beta(2)*exp(-beta(3)*x));

Generate synthetic data with true parameter values beta = [1;3;2], x data points distributed exponentially with parameter 2, and noise distributed normally with mean 0 and standard deviation 0.1.

rng(9845,'twister') % For reproducibility beta = [1;3;2]; x = exprnd(2,100,1); epsn = normrnd(0,0.1,100,1); y = mdl(beta,x) + epsn;

Fit the model to data starting from the arbitrary value beta0 = [2;2;2].

beta0 = [2;2;2]; [betahat,r,J,CovB,mse] = nlinfit(x,y,mdl,beta0); betahat
betahat = 3×1 1.0153 3.0229 2.1070

Check the 95% confidence intervals using the covariance matrix. Note that the true parameter values [1;3;2] are within all three intervals.

ci = nlparci(betahat,r,"Covar",CovB)
ci = 3×2 0.9869 1.0438 2.9401 3.1058 1.9963 2.2177

You can obtain the same result using the Jacobian.

ci = nlparci(betahat,r,"Jacobian",J)
ci = 3×2 0.9869 1.0438 2.9401 3.1058 1.9963 2.2177

Determine if the true parameter values [1;3;2] are in the narrower 90% confidence intervals. Note that ${\beta }_{1}$ and ${\beta }_{2}$ are within these intervals, but ${\beta }_{3}$ is not.

ci = nlparci(betahat,r,"Covar",CovB,"Alpha",0.1)
ci = 3×2 0.9915 1.0392 2.9536 3.0923 2.0144 2.1996

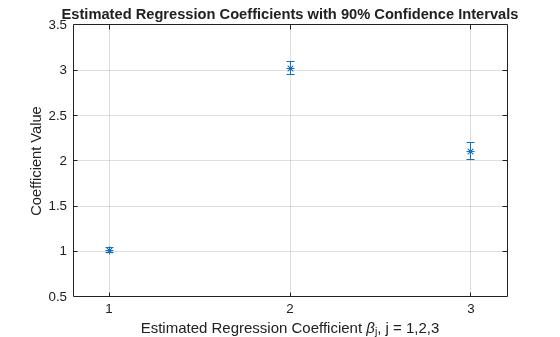

Plot the estimated regression coefficients with the 90% confidence intervals.

lowerBars = betahat - ci(:,1); upperBars = ci(:,2) - betahat; errorbar(1:3,betahat,lowerBars,upperBars,'*'), grid title('Estimated Regression Coefficients with 90% Confidence Intervals') ylabel('Coefficient Value') xlabel('Estimated Regression Coefficient \beta_j, j = 1,2,3') xticks([1 2 3]) xlim([.8 3.2]) ## Input Arguments

collapse all

Estimated regression coefficients, specified as a numeric vector returned by the nlinfit function.

Data Types: single | double

Residuals, specified as a numeric vector returned by the nlinfit function.

Data Types: single | double

Estimated covariance matrix for the fitted coefficients beta, specified as a numeric matrix returned by the nlinfit function.

Data Types: single | double

Estimated Jacobian, specified as a numeric matrix returned by the nlinfit function.

Data Types: single | double

Significance level for the confidence intervals, specified as a scalar value in the range (0,1). The confidence level is 100(1 — alpha)%, where alpha is the probability that the confidence intervals do not contain the true value.

The default confidence level is 95% (alpha = 0.05).

Example: "Alpha",0.1

Data Types: single | double

## Output Arguments

collapse all

Confidence intervals for the estimated regression coefficients, returned as an N-by-2 numeric matrix, where N is the number of rows in beta. The first column of ci represents the lower confidence interval bounds, and the second column represents the upper bounds.

Data Types: single | double

## Algorithms

• nlparci treats NaN values in the residuals r, or the Jacobian J as missing values, and ignores the corresponding observations.

• The confidence interval calculation is valid for systems where the length of the residuals r exceeds the length of the coefficients beta, and the Jacobian J has full column rank. When J is ill-conditioned, the confidence intervals might be inaccurate.

## Alternative Functionality

You can also get the confidence intervals by using the fitnlm function instead of nlinfit and the coefCI function instead of nlparci.

## Version History

Introduced before R2006a
