Compute statistics for labeled regions
Statistics
visionstatistics
Use the Blob Analysis block to calculate statistics for labeled regions in a binary image. The block returns quantities such as the centroid, bounding box, label matrix, and blob count. The Blob Analysis block supports input and output variable size signals. You can also use the Selector block from Simulink^{®}, to select certain blobs based on their statistics.
For information on pixel and spatial coordinate system definitions, see Image Coordinate Systems (Image Processing Toolbox) and Coordinate Systems.
Port  Input/Output  Supported Data Types

BW  Vector or matrix that represents a binary image  Boolean
Area  Vector that represents the number of pixels in labeled regions  32bit signed integer
Centroid  Mby2 matrix of centroid coordinates, where M represents the number of blobs

BBox  Mby4 matrix of [x y width height] bounding box coordinates, where M represents the number of blobs and [x y] represents the upper left corner of the bounding box.  32bit signed integer
MajorAxis  Vector that represents the lengths of major axes of ellipses

MinorAxis  Vector that represents the lengths of minor axes of ellipses  Same as MajorAxis port
Orientation  Vector that represents the angles between the major axes of the ellipses and the xaxis.  Same as MajorAxis port
Eccentricity  Vector that represents the eccentricities of the ellipses  Same as MajorAxis port
Diameter ^2  Vector that represents the equivalent diameters squared  Same as Centroid port
Extent  Vector that represents the results of dividing the areas of the blobs by the area of their bounding boxes  Same as Centroid port
Perimeter  Vector containing an estimate of the perimeter length, in pixels, for each blob  Same as Centroid port
Label  Label matrix  8, 16, or 32bit unsigned integer
Count  Scalar value that represents the actual number of labeled regions in each image  Same as Label port
The Main pane of the Blob Analysis
dialog box appears as shown in the following figure. Use the check
boxes to specify the statistics values you want the block to output.
For a full description of each of these statistics, see the regionprops
function reference page in
the Image Processing
Toolbox™ documentation.
Select this check box to output a vector that represents the number of pixels in labeled regions
Select this check box to output an Mby2
matrix of [x y] centroid coordinates. The rows represent the coordinates
of the centroid of each region, where M represents
the number of blobs.
Example:
Suppose there are two blobs, where the row and column coordinates
of their centroids are x_{1}, y_{1} and x_{2}, y_{2},
respectively. The block outputs:
$$\left[\begin{array}{cc}{x}_{1}& {y}_{1}\\ {x}_{2}& {y}_{2}\end{array}\right]$$
at the Centroid port.
Select this check box to output an Mby4
matrix of [x y width height] bounding boxes. The rows represent the
coordinates of each bounding box, where M represents
the number of blobs.
Example:
Suppose there are two blobs, where x and y define
the location of the upperleft corner of the bounding box, and w, h define
the width and height of the bounding box. The block outputs
$$\left[\begin{array}{cccc}{x}_{1}& {y}_{1}& {w}_{1}& {h}_{1}\\ {x}_{2}& {y}_{2}& {w}_{2}& {h}_{2}\end{array}\right]$$
at the BBox port.
Select this check box to output a vector with the following characteristics:
Represents the lengths of the major axes of ellipses
Has the same normalized second central moments as the labeled regions
Select this check box to output a vector with the following characteristics:
Represents the lengths of the minor axes of ellipses
Has the same normalized second central moments as the labeled regions
Select this check box to output a vector that represents the
angles between the major axes of the ellipses and the xaxis.
The angle values are in radians and range between:
$$\frac{\pi}{2}$$ and $$\frac{\pi}{2}$$
Select this check box to output a vector that represents the eccentricities of ellipses that have the same second moments as the region
Select this check box to output a vector that represents the equivalent diameters squared
Select this check box to output a vector that represents the results of dividing the areas of the blobs by the area of their bounding boxes
Select this check box to output an Nby1 vector of the perimeter lengths, in pixels, of each blob, where N is the number of blobs.
Specify the data type of the outputs as double
,
single
, or to Specify via Data Types
tab
. The fields on the Data Types tab appear when you set
the output data type to Specify via Data Types tab
.
Define which pixels connect to each other. If you want to connect pixels located on the
top, bottom, left, and right, select 4
. If you want to connect
pixels to the other pixels on the top, bottom, left, right, and diagonally, select
8
. For more information about this parameter, see the Label block reference page.
The Connectivity parameter also affects how the block calculates the perimeter of a blob. For example:
The following figure illustrates how the block calculates the perimeter when you set the
Connectivity parameter to 4
.
The block calculates the distance between the center of each pixel (marked by the black dots) and estimates the perimeter to be 22.
The next figure illustrates how the block calculates the perimeter of a blob when you set
the Connectivity parameter to 8
.
The block takes a different path around the blob and estimates the perimeter to be $$18+2\sqrt{2}$$.

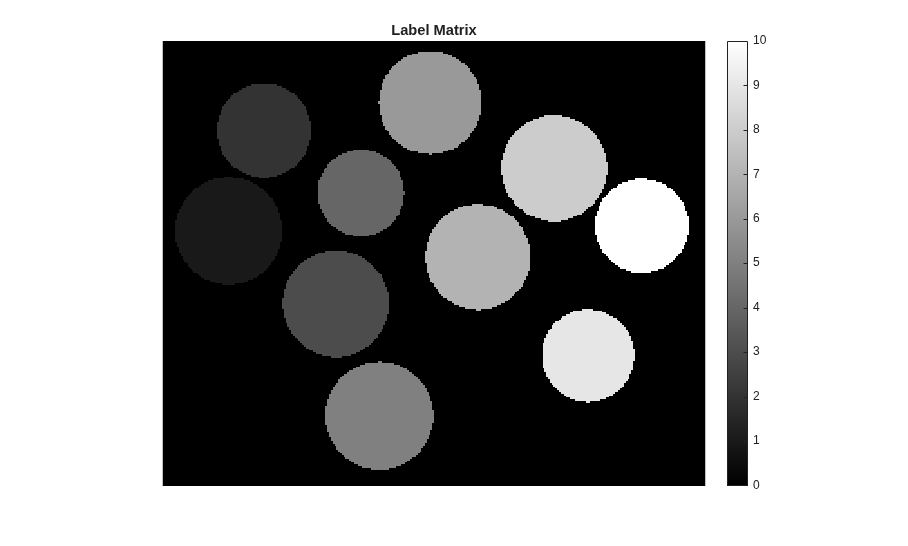

Select this check
box, to output the label matrix at the Label port. The pixels equal to
0
represent the background. The pixels equal to 1
represent the first object. The pixels equal to 2
represent the second
object, and so on.
The Blob Properties pane of the Blob Analysis dialog box appears as shown in the following figure.
Specify the maximum number of labeled regions in each input image. The block uses this value to preallocate vectors and matrices to ensure that they are long enough to hold the statistical values. The maximum number of blobs the block outputs depends on both the value of this parameter, and on the size of the input image. The number of blobs the block outputs may be limited by the input image size.
Select this check box to output a warning when the number of blobs in an image is greater than the value of Maximum number of blobs parameter.
Select this check box to output a scalar value that represents the actual number of connected regions in each image at the Count port.
Select this check box to enter the minimum blob area in the edit box that appears beside the check box. The blob gets a label if the number of pixels meets the minimum size specified. This parameter is tunable.
Select this check box to enter the maximum blob area in the edit box that appears beside the
check box. The blob gets a label if the number of pixels meets the minimum size specified. The
maximum allowable value is the maximum of uint32
data type. This parameter
is tunable.
Select this check box to exclude a labeled blob that contains at least one border pixel.
Select this check box to output blob statistics as a variablesize signal. Selecting this check box means that you do not need to specify fill values.
Select this check box to fill empty spaces in the statistical vectors with the values you specify in the Fill values parameter.
The Fill empty spaces in outputs check box does not appear when you select the Output blob statistics as a variablesize signal check box.
If you enter a scalar value, the block fills all the empty spaces in the statistical vectors with this value. If you enter a vector, it must have the same length as the number of selected statistics. The block uses each vector element to fill a different statistics vector. If the empty spaces do not affect your computation, you can deselect the Fill empty spaces in outputs check box. As a best practice, leave this check box selected.
The Fill values parameter is not visible when you select the Output blob statistics as a variablesize signal check box.
The Data Types pane of the Blob Analysis dialog box appears as shown in the following figure.
The parameters on the Data Types tab apply only when you
set the Statistics output data type parameter to Specify via
Data Types tab
.
Select the rounding mode
Floor
, Ceiling
,
Nearest
or Zero
for fixedpoint
operations.
Select the overflow mode, Wrap
or
Saturate
for fixedpoint operations.
When you select Binary point scaling
, you can enter the
Word length and the Fraction length of the product
output, in bits.
When you select Slope and bias scaling
, you can enter the
Word length in bits, and the Slope of the product
output. All signals in the Computer
Vision System Toolbox™ software have a bias of 0
.
The block places the output of the multiplier into the Product output data type and scaling. The computation of the equivalent diameter squared uses the product output data type. During this computation, the block multiplies the blob area (stored in the accumulator) by the 4/pi factor. This factor has a word length that equals the value of Equivalent diameter squared output data type Word length. The value of the Fraction length equals its word length minus two. Use this parameter to specify how to designate this product output word and fraction lengths.
When you select Same as product output
the characteristics
match the characteristics of the product output.
When you select Binary point scaling
, you can enter the
Word length and the Fraction length of the
accumulator, in bits.
When you select Slope and bias scaling
, you can enter the
Word length, in bits, and the Slope of the
Accumulator. All signals in the Computer
Vision System Toolbox software have a bias of 0.
Inputs to the Accumulator get cast to the accumulator data type. Each element of the input gets added to the output of the adder, which remains in the accumulator data type. Use this parameter to specify how to designate this accumulator word and fraction lengths.
Choose how to specify the Word length and Fraction length of the output at the Centroid port:
When you select Same as accumulator
, these characteristics
match the characteristics of the accumulator.
When you select Binary point scaling
, you can enter the
Word length and Fraction length of the output,
in bits.
When you select Slope and bias scaling
, you can enter the
Word length, in bits, and the Slope of the
output. All signals in the Computer
Vision System Toolbox software have a bias of 0.
Choose how to specify the Word length and Fraction length of the output at the Diameter ^2 port:
When you select Same as accumulator
, these characteristics
match the characteristics of the Accumulator.
When you select Same as product output
, these
characteristics match the characteristics of the Product
output.
When you select Binary point scaling
, you can enter the
Word length and Fraction length of the output,
in bits.
When you select Slope and bias scaling
, you can enter the
Word length, in bits, and the Slope of the
output. All signals in the Computer
Vision System Toolbox software have a bias of 0.
Choose how to specify the Word length and Fraction length of the output at the Extent port:
When you select Same as accumulator
, these characteristics
match the characteristics of the accumulator.
When you select Binary point scaling
, you can enter the
Word length and Fraction length of the output,
in bits.
When you select Slope and bias scaling
, you can enter the
Word length, in bits, and the Slope of the
output. All signals in the Computer
Vision System Toolbox software have a bias of 0.
Choose how to specify the Word length and Fraction length of the output at the Perimeter port:
When you select Same as accumulator
, these characteristics
match the characteristics of the accumulator.
When you select Binary point scaling
, you can enter the
Word length and Fraction length of the output,
in bits.
When you select Slope and bias scaling
, you can enter the
word length, in bits, and the Slope of the output. All signals in the
Computer
Vision System Toolbox software have a bias of 0.
Select this parameter to prevent the autoscaling tool in the FixedPoint Tool from
overriding any fixedpoint scaling you specify in this block mask. For more information, see
fxptdlg
, a reference page on the FixedPoint
Tool in the Simulink documentation.
