ind2depo

R2026b

Node index to node depth-position

Syntax

[d,p] = ind2depo(ord,n)

Description

ind2depo is a tree-management utility.

[d,p] = ind2depo(ord,n) returns, for a tree of order ord, the depths d and positions p (at those depths) for the nodes with indices n.

The nodes are numbered from left to right and from top to bottom. The root index is 0.

Examples

Depth and Position in Wavelet Packet Tree

Create a binary wavelet packet tree with three levels.

Ord = 2;
Lev = 3;
T = ntree(Ord,Lev);

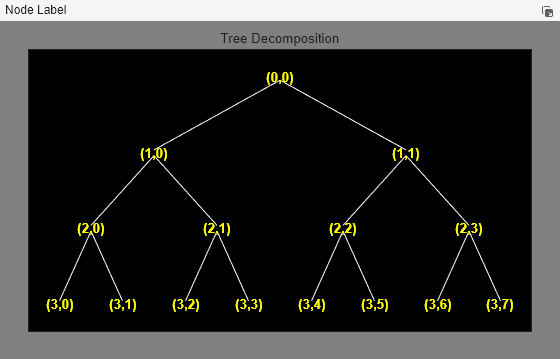

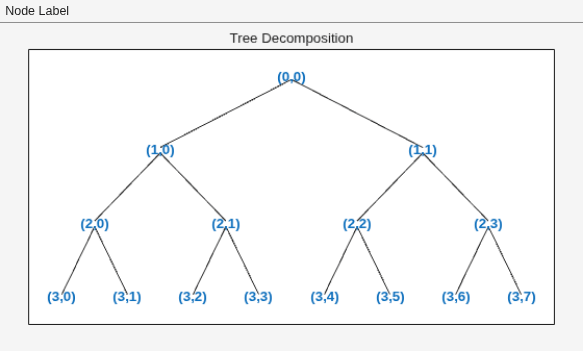

Plot the tree.

plot(T)

Use the allnodes function to obtain the indices of the nodes in linear order.

idx = allnodes(T);

Convert the indices to depth-position format.

[depth,pos] = ind2depo(Ord,idx);
table(idx,depth,pos)

ans = 15×3 table
    idx    depth    pos
    ___    _____    ___

     0       0       0
     1       1       0
     2       1       1
     3       2       0
     4       2       1
     5       2       2
     6       2       3
     7       3       0
     8       3       1
     9       3       2
    10       3       3
    11       3       4
    12       3       5
    13       3       6
    14       3       7

Input Arguments

ord — Order of a tree

positive integer

Order of a tree, specified as a positive integer.

Example: A binary tree is a tree of order 2.

n — Node indices

column vector

Node indices, specified as a column vector with nonnegative integer entries.

Output Arguments

d,p — Depths and positions

pair of column vectors

Depths and positions (at those depths) for the nodes with indices n, returned as a pair of column vectors with nonnegative integer entries.

The values of the depths D and positions N are such that 0≤D and 0≤ P ≤ ord^D-1.

Note

If n is a M-by-2 matrix, we have ind2depo(ord,n) = [n(:,1),n(:,2)].

Extended Capabilities

Thread-Based Environment

Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

The ind2depo function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.

Version History

Introduced before R2006a

R2026b: Use thread-based environments

You can use ind2depo in thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.
