LTE HDL PBCH Transmitter

This example shows how to implement an LTE transmitter multiple-input multiple-output (MIMO) design, including PSS, SSS, CRS, and MIB, optimized for HDL code generation.


The model in this example generates a baseband waveform specified by 3GPP TS 36.211. The waveform includes the primary synchronization signal (PSS), secondary synchronization signal (SSS), cell-specific reference signals (CRS), and the master information block (MIB) for transmission through the physical broadcast channel (PBCH) for multiple antennas. The model supports dynamic change of NCellID and NDLRB. The MIMO transmitter design is optimized for HDL code generation and when implemented on an FPGA, it can be used to transmit MIMO signals in real time over the air. The MIMO design aids the decoding process in the presence of LTE fading channel. This example supports 1, 2, or 4 antennas and uses transmit diversity as specified in the [ 1 ].

The architecture presented in this example is extensible and allows for integration of additional physical transmission channels such as physical downlink control channel (PDCCH), physical downlink shared channel (PDSCH), physical control format indicator channel (PCFICH), and physical HARQ indicator channel (PHICH).

Architecture and Configuration

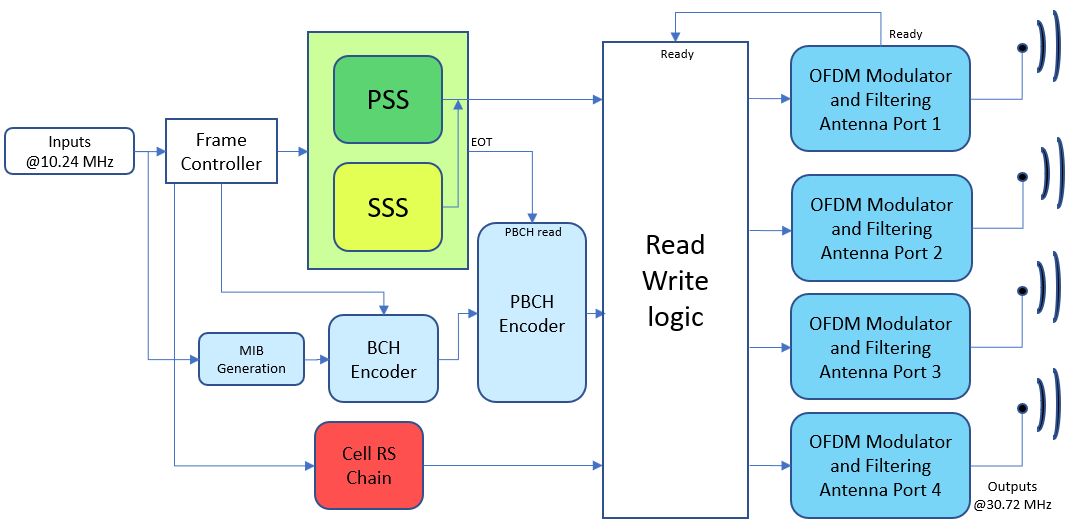

This figure shows the LTE HDL Transmitter architecture with PSS, SSS, CRS, and PBCH transmission chains.

The input sampling rate is assumed to be at 10.24 MHz. PSS, SSS, PBCH, and CRS signals are generated in parallel, based on the input configuration. A single stream of PSS and SSS signals is used for all the antennas. Multiple streams of PBCH data are generated for multiple antennas through the layer mapping and precoding stages. Each antenna is associated with a corresponding LTE memory bank, which is sized to store one subframe of LTE data samples. These generated data streams are written into LTE memory bank corresponding to indices generated, based on the output ready signal of LTE OFDM Modulator. Then, the data is read out of all LTE memory bank in parallel, modulated and transmitted on the antennas simultaneously. The LTE OFDM Modulator block uses a 2048-point FFT to support all NDLRBs.

In this example, the transmitter transmits LTE MIMO signals for the following configurations:

        Property              Value
    ________________    __________________

    Duplex mode         FDD
    CellRefP            1/2/4
    Bandwidth           1.4 - 20 MHz
    Cyclic prefix       Normal/Extended
    Initial subframe    0
    Initial frame       0
    Ng                  Sixth/Half/One/Two
    PHICH duration      Normal/Extended

Structure of Example Model

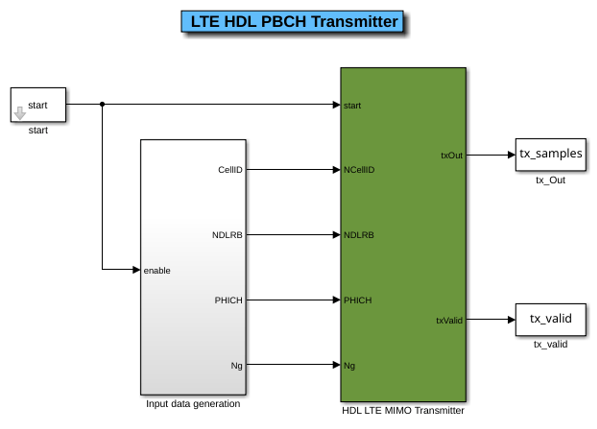

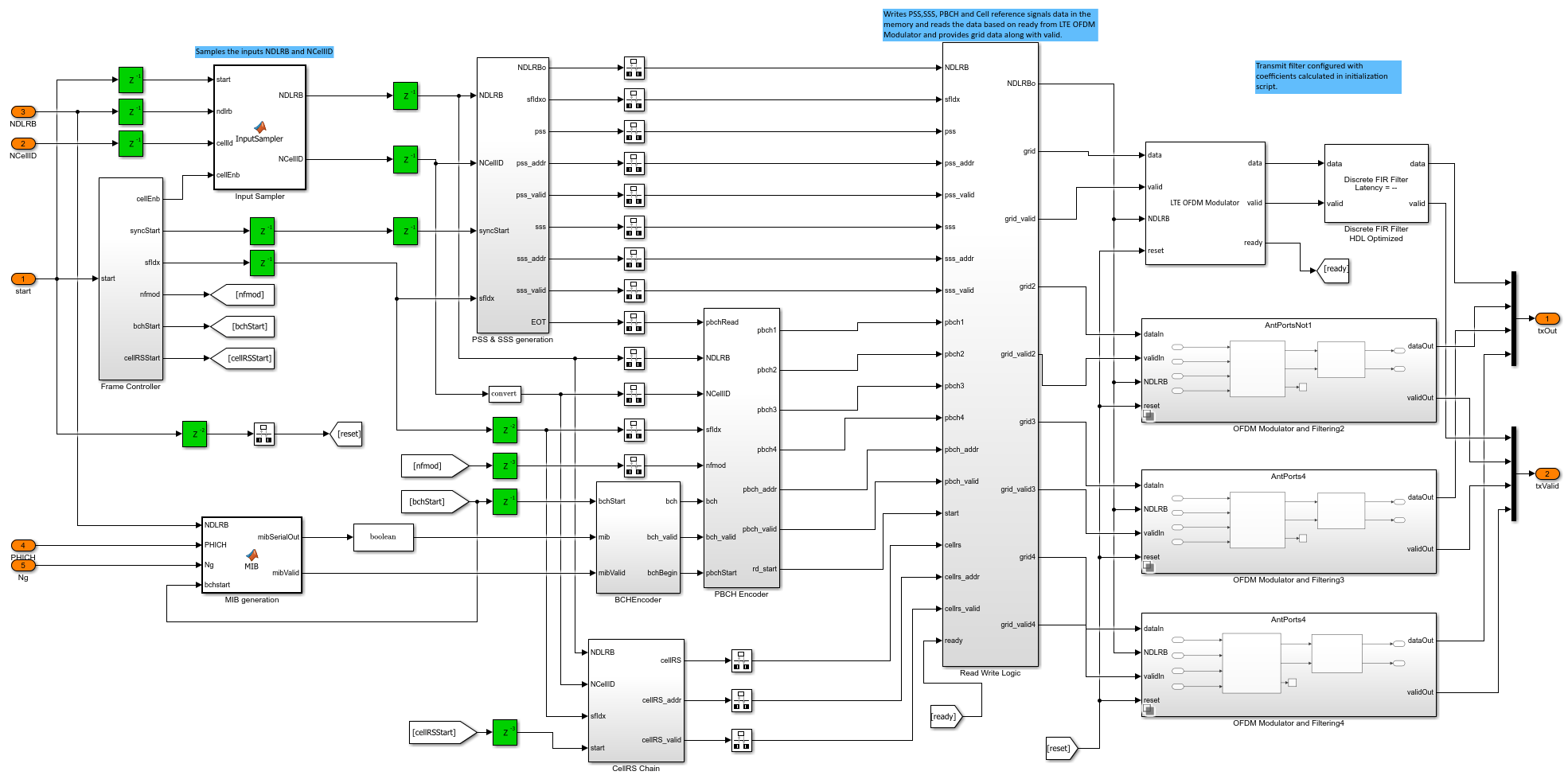

The top level structure of the ltehdlTransmitter model is shown below. You can generate HDL code for the HDL LTE MIMO Transmitter subsystem.

Input start is a pulse signal to trigger the transmission. You can configure other parameters, including NDLRB, NCellID, Cyclic prefix, Ng, PHICH duration and CellRefP in the workspace after loading or opening the ltehdlTransmitter.slx model. The ltehdlTransmitter_init.m script is executed automatically by the model's InitFcn callback. This script configures the individual blocks in the HDL LTE MIMO Transmitter subsystem. The default transmitter configuration used by the ltehdlTransmitter_init.m script is:

enb.NDLRB = 6;                      % {6,15,25,50,75,100}
enb.CyclicPrefix = 'Normal';        % {'Normal','Extended'}
enb.Ng = 'Sixth';                   % {'Sixth','Half','One','Two'}
enb.PHICHDuration = 'Normal';       % {'Normal','Extended'}
enb.CellRefP = 4;                   % {1,2,4}
tx_cellids = [390 89 501 231 500];  % {0 to 503}
outRate = 1;                        % {1,2}
TotalSubframes = 45;                % {positive integer}

This default configuration can be changed to use other possible values for each variable, as noted in the comment on each line.

HDL LTE MIMO Transmitter

The structure of the HDL LTE MIMO Transmitter subsystem is shown below. The Frame Controller controls the subframe and frame indices. The Input Sampler samples the inputs NDLRB and NCellID and then propagates the values to the subsequent blocks. The PSS & SSS generation generates PSS, SSS, and the corresponding memory address based on NDLRB and subframe index. The MIB generation block generates the serial MIB data. The BCH Encoder and PBCH Encoder generate information for PBCH channel and memory addresses for all the antennas. The CellRS Chain generates cell-specific reference signals and corresponding addresses for each antenna. The Read Write Logic writes and reads the grid data from each LTE Memory Bank and provides the data to the corresponding LTE OFDM Modulator. The Discrete FIR Filter block filters the modulated data using coefficients that are calculated based on the input configuration.

Frame Controller

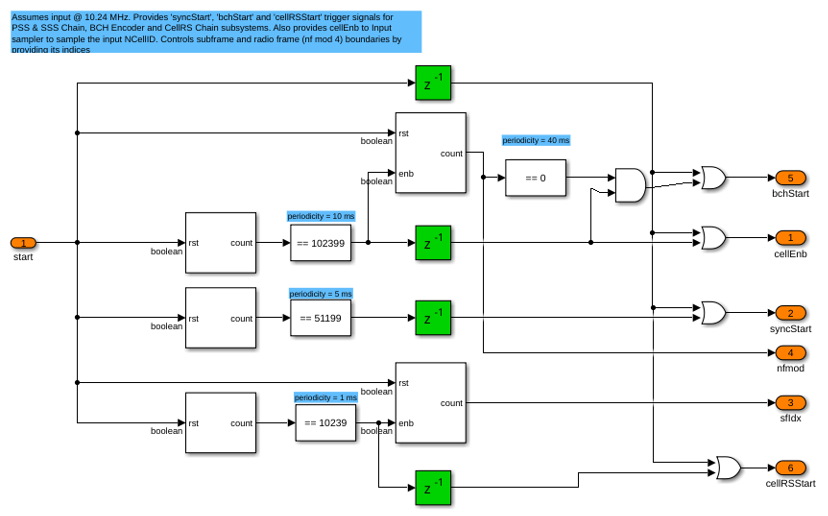

This subsystem assumes an input sampling rate of 10.24 MHz. It controls the subframe and radio frame boundaries by providing cellEnb signal to sample NCellID. It returns radio frame and subframe indices. It also provides syncStart, bchStart, and cellRSStart trigger signals to control the downstream blocks.

PSS & SSS Generation

This subsystem generates the primary synchronization signal (PSS), secondary synchronization signal (SSS), and respective write addresses for LTE Memory Bank based on inputs NDLRB and NCellID. syncStart triggers the generation of PSS and SSS. The PSS and SSS occupy the same central 62 subcarriers of two OFDM symbols in a resource grid [ 1 ]. This subsystem generates both the signals and their corresponding addresses at the same time, so that a single stream of both PSS and SSS can be written to all the LTE Memory Banks corresponding to each antenna simultaneously.

The PSS sequence is generated from a frequency-domain Zadoff-Chu sequence [ 1 ]. The Zadoff-Chu root sequence index depends on NCellID2, which is derived from NCellID. There are three possible NCellID2 values, so all possible PSS sequences are precalculated and stored in PSS_LUT.

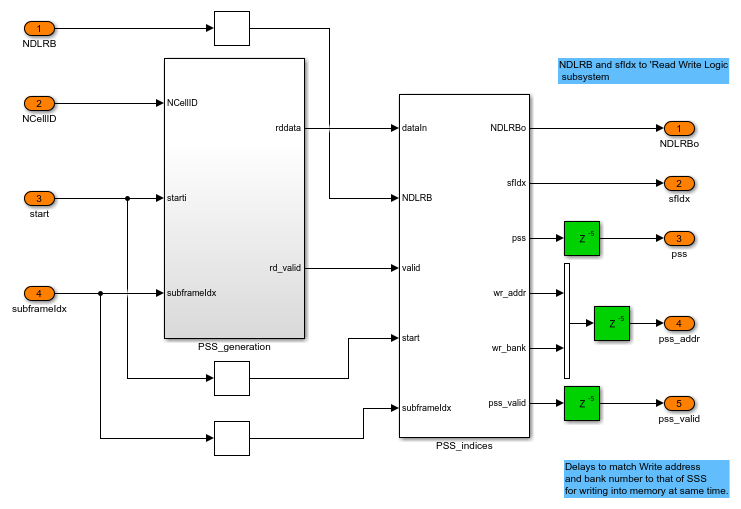

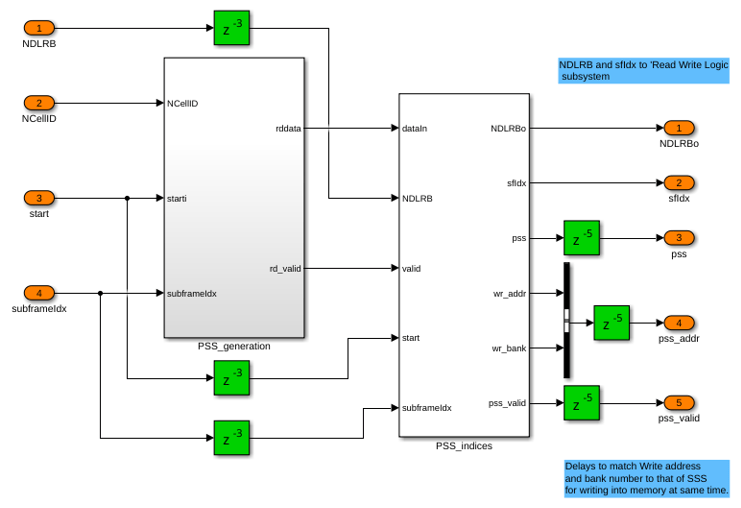

  • PSS_generation: Determines NCellID2 and reads the corresponding PSS sequence out of PSS_LUT sequentially.

  • PSS_indices: Computes the memory addresses required to write PSS data into LTE Memory Bank. This subsystem is equivalent to the LTE Toolbox™ function ltePSSIndices.

The SSS sequence is an interleaved concatenation of two 31-bit length binary sequences. The concatenated sequence is scrambled with a scrambling sequence given by PSS. The combination of these sequences differs between subframe 0 and subframe 5 [ 1 ]. The indices m0 and m1 are derived from the physical-layer cell identity group, NCellID1 [ 1 ]. These indices and the sequences s(n), c(n), and z(n) are calculated and stored in m0_LUT, m1_LUT, S_LUT, C_LUT, and Z_LUT respectively.

  • SSS_generation: Computes m0 and m1 based on the NCellID and calculates indices required for sequences s(n), c(n), and z(n) based on the subframe index. Generates SSS sequence as specified in [ 1 ].

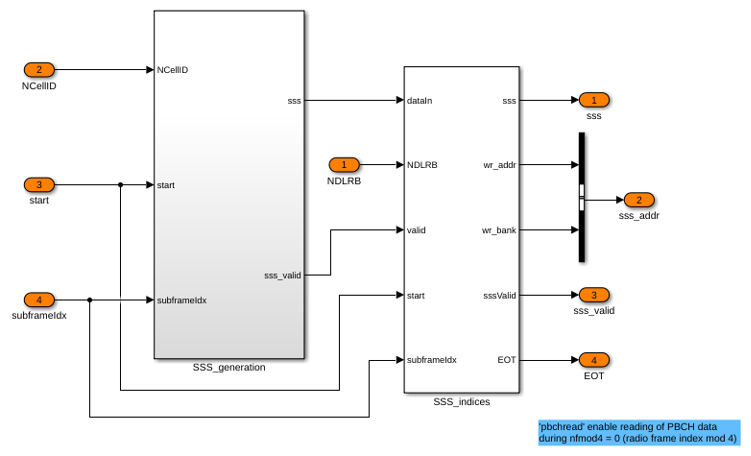

  • SSS_indices: Computes memory addresses required to write SSS data into LTE Memory Bank. This subsystem is equivalent to the LTE Toolbox™ function lteSSSIndices.

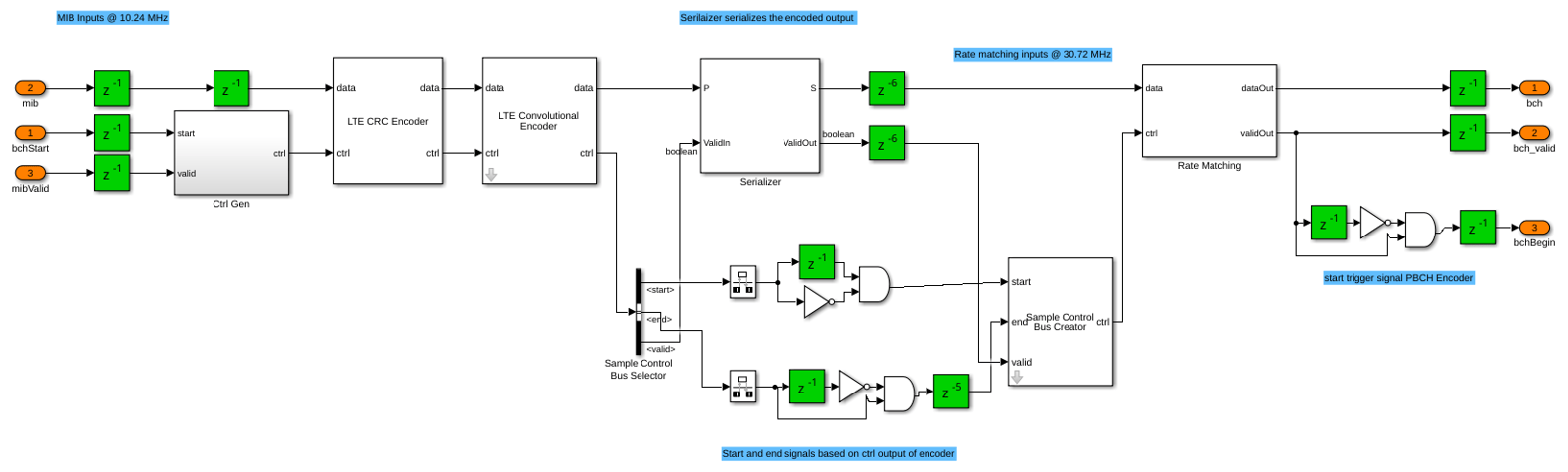

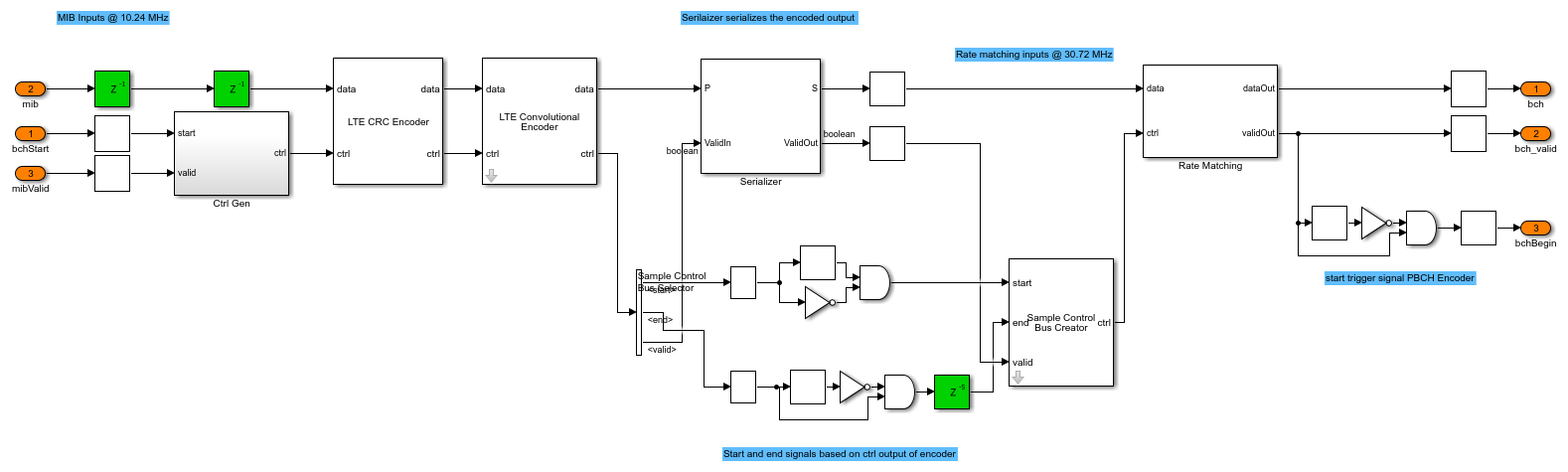

BCH Encoder

Broadcast Channel (BCH) processes the MIB information arriving to the block in the form of a maximum of one transport block for every transmission time interval (TTI) of 40 ms. The block implements the following coding steps.

  • CRC Encoding: The entire transport block is used to calculate the CRC parity bits for a polynomial specified in [ 2 ]. The parity bits are then appended to the transport block. After appending, CRC bits are scrambled according to the transmit configuration. The LTE CRC Encoder block uses the CRC mask set by the ltehdlTransmitter_init.m script based on the input configuration.

  • Channel Coding: The LTE Convolutional Encoder block encodes the information bits using tail-biting convolutional code with constraint length 7, and polynomial $ G_0 = 133, G_1 = 171, G_2 = 165 $ in octal. Because the coding rate of the encoder is 1/3, the coded bits are then serialized using a Serializer1D (HDL Coder) block and control signals are resampled to 30.72 MHz (3 * 10.24 MHz).

  • Rate Matching: The coded bits are interleaved, followed by selection of bits for a particular length using an interleaved address [ 2 ]. For broadcast channel, because the length of the MIB is constant, interleaved write and read addresses are precalculated and stored in wr_addrLUT and rd_addrLUT respectively. Once all serialized coded bits have been written into interleaved addresses of RAM, the bits are read back using interleaved read addresses.

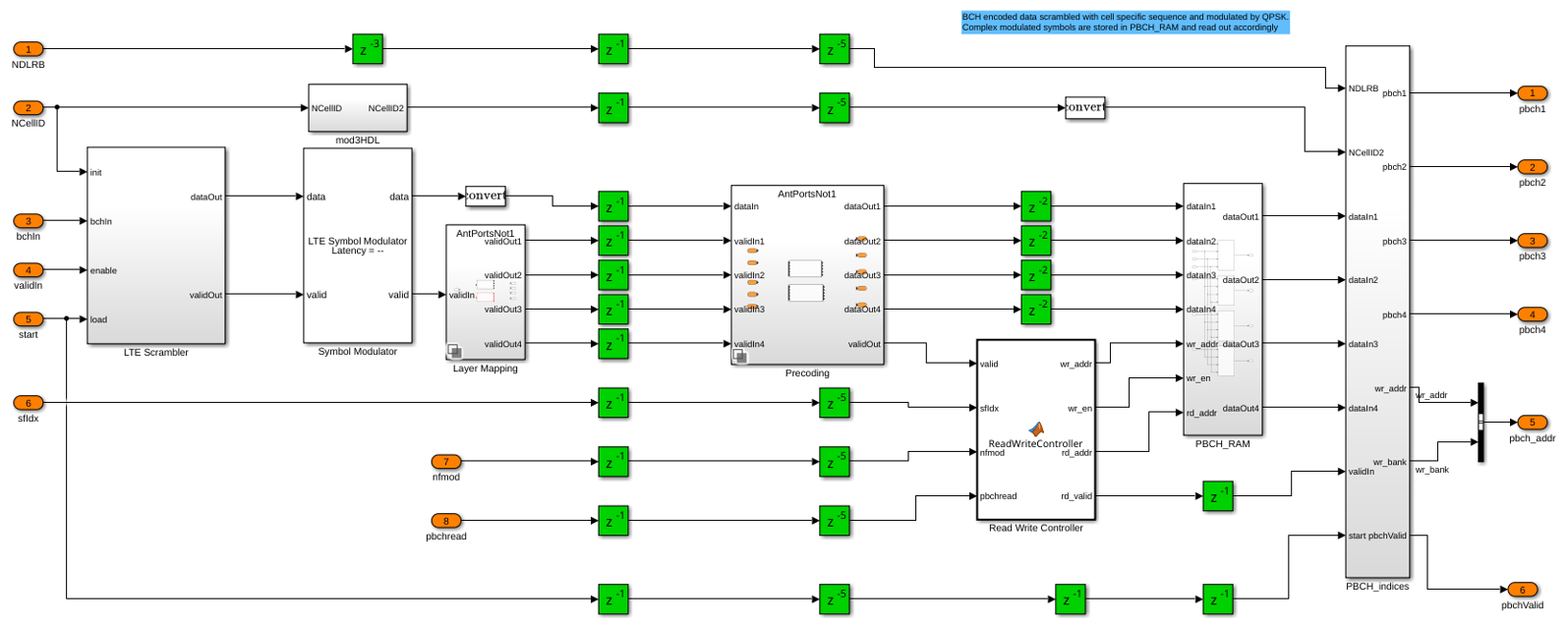

PBCH Encoder

The physical broadcast channel processes the coded bits in the following steps.

  • Scrambling: Coded bits from BCH Encoder are scrambled with a cell-specific sequence using a LTE Gold Sequence Generator block. The sequence is initialized with NCellID in each radio frame($ n_f $) fulfilling $ n_f mod 4 = 0 $. The generated cell-specific sequence is scrambled with the input coded bits.

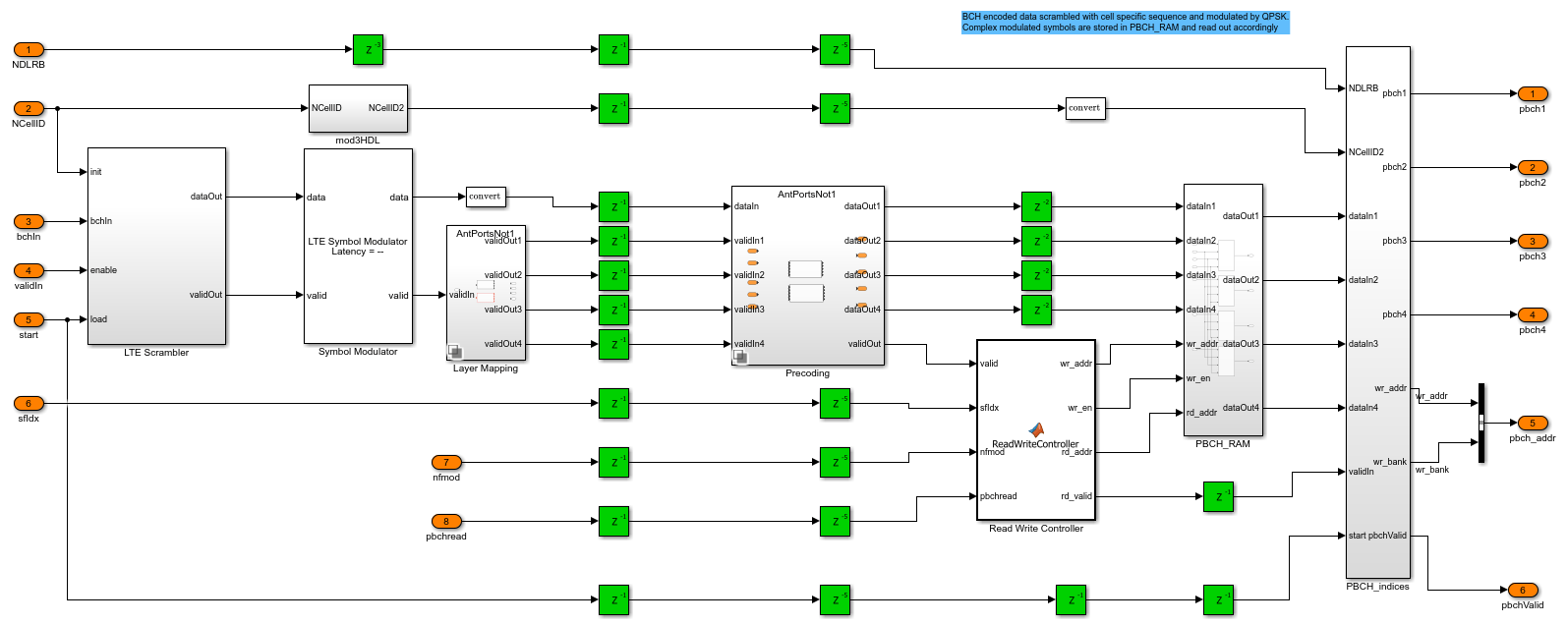

  • QPSK Mapping: The modulation scheme specified for PBCH channel is QPSK [ 1 ]. The LTE Symbol Modulator block generates complex-valued QPSK modulation symbols.

  • Layer Mapping: Three subsystems are defined for the layer mapping. These subsystems are placed inside a variant subsystem. Based on the number of antennas used in the input configuration enb.CellRefP, the ltehdlTransmitter_init.m script selects one of the three subsystems in the variant subsystem. This Layer Mapping block separates the input streaming samples into 1, 2, or 4 sequences based on the number of antennas used. The input is streamed out without any processing for a single antenna. For multiple antennas, this block generates a valid signal for each antenna. Only one of the valid signals will be high for each input sample.

  • Precoding: This block also uses variant subsystem to process input samples differently based on the number of antennas in the transmitter configuration. For enb.CellRefP set to 1 the input is streamed out without any processing. For enb.CellRefP set to 4 (or 2), every four (or two) consecutive samples X0, X1, X2, X3 (or X0, X1) are processed to generate four (or two) streams of 4 (or 2) samples each in four (or two) time instants.

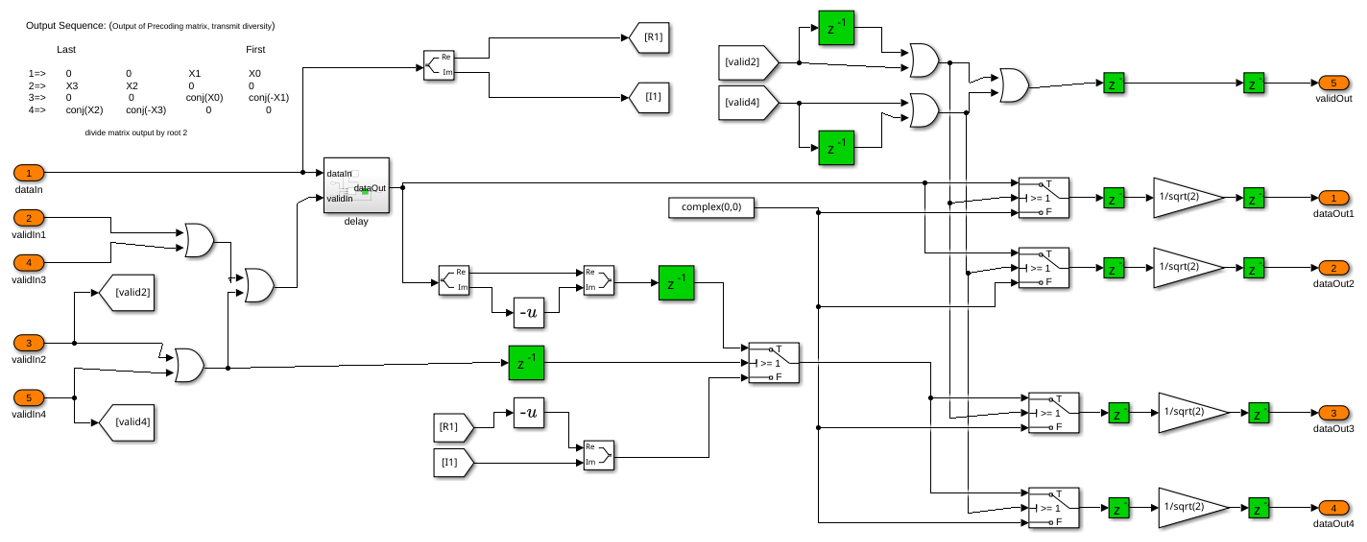

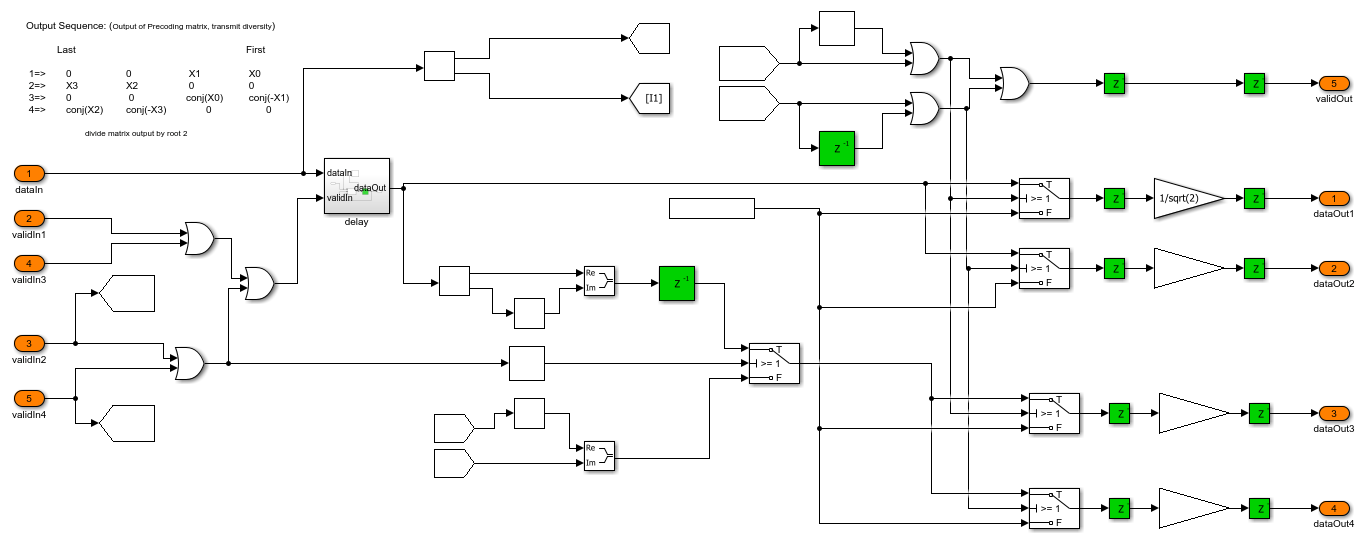

The subsystem shown generates the output sequence for 4 antennas as specified in [ 1 ].

  • Memory: Complex modulated symbols corresponding to the physical broadcast channel for the initial radio frame are stored in PBCH_RAM. For four consecutive radio frames, the number of bits to be transmitted on the physical broadcast channel is 1920 for normal cyclic prefix and 1728 for extended cyclic prefix. The Read Write Controller controls read and write addresses based on $ n_f mod 4 $, since the periodicity of the broadcast channel (BCH) is 40 ms.

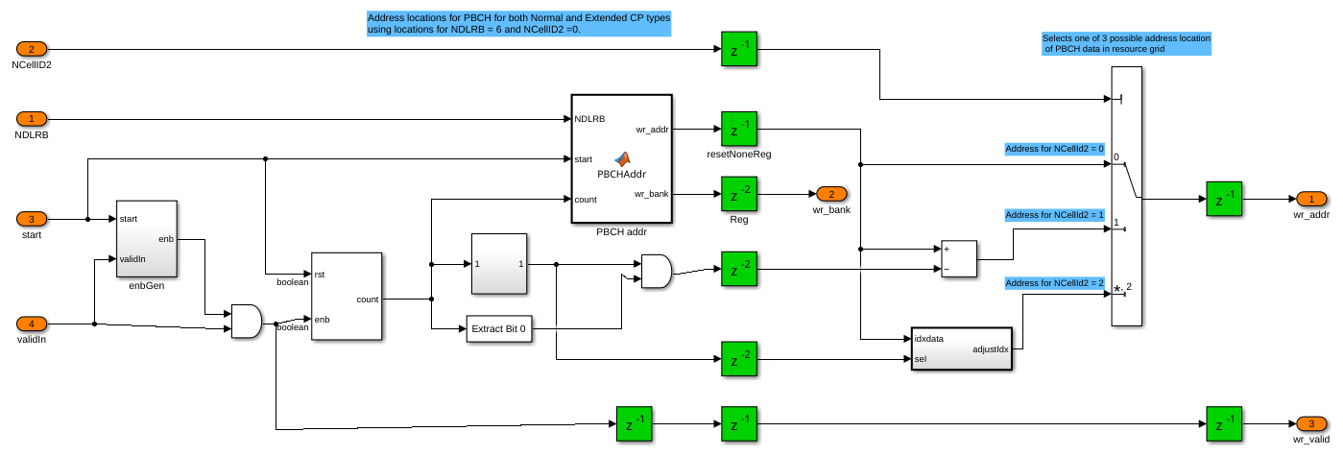

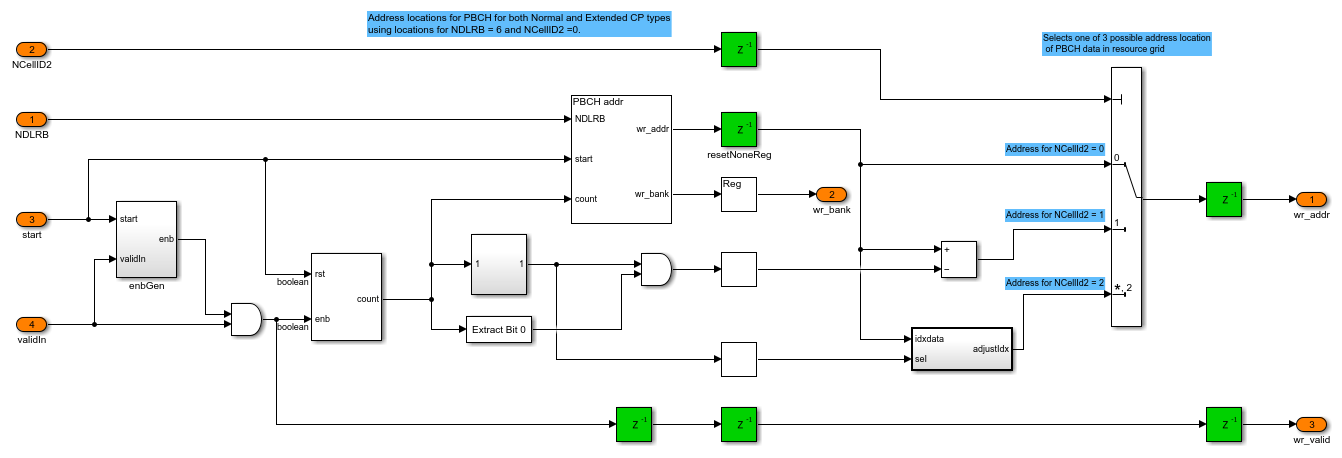

  • PBCH Indexing: Computes the memory addresses required to write PBCH data into LTE Memory Bank. The PBCH_indices subsystem is equivalent to the LTE Toolbox™ function ltePBCHIndices.

CellRS Chain

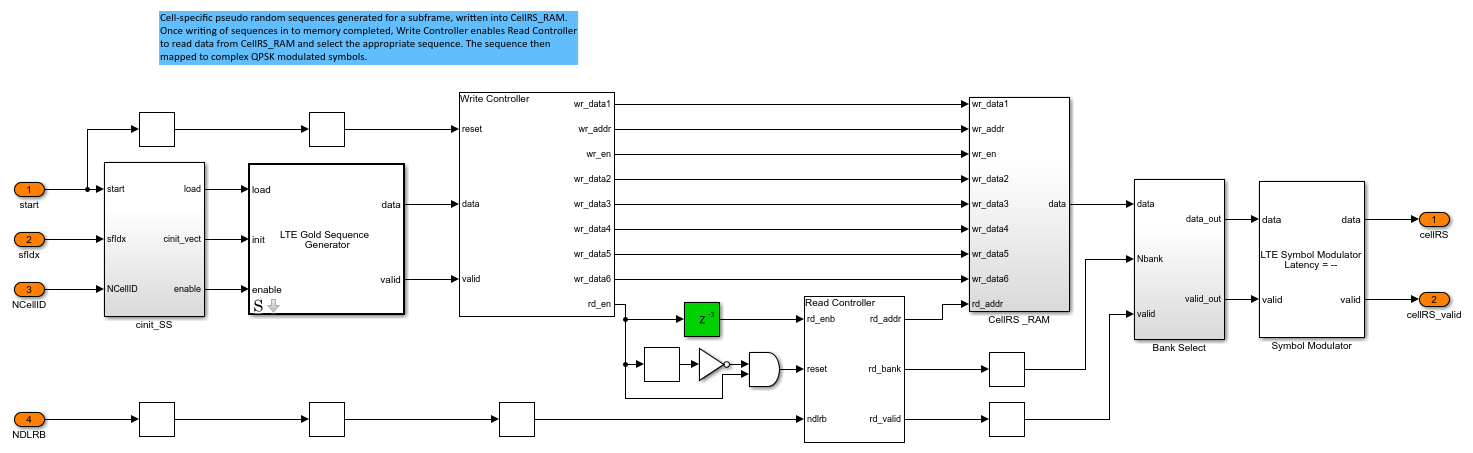

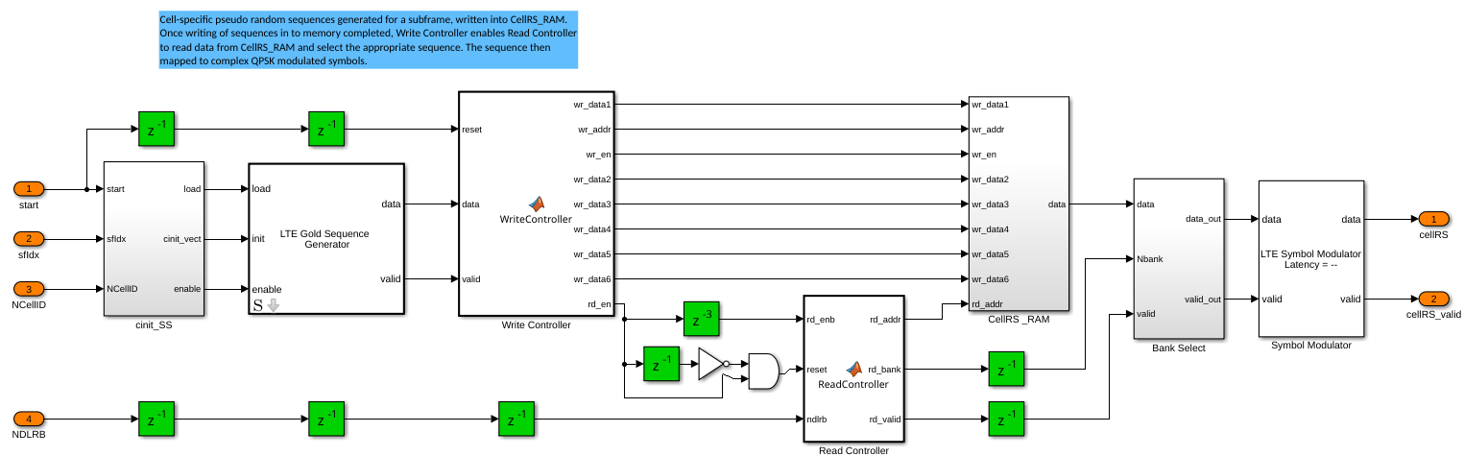

The cell-specific reference sequence is complex modulated values of a pseudo-random sequence as defined in [ 1 ]. The pseudo-random sequence generator is initialized with $ c_{init} $ at the start of each OFDM symbol,as specified in [ 1 ].

  • CellRS_generation: Input cellRSStart triggers the generation of CRS signals. Since the CRS is available in six OFDM symbols (four OFDM symbols in antenna port 0 and port 1, and two OFDM symbols in antenna port 2 and port 3) of a single subframe, this subsystem calculates a 6-element $ c_{init} $ vector for every subframe. The LTE Gold Sequence Generator block is initialized with vector $ c_{init} $ to represent multiple channels and provides six different cell-specific pseudo-random sequences. The Write Controller controls writing of these sequences into six memory banks in CellRS_RAM. It also returns rd_en, which enables reading data out of CellRS_RAM. The Read Controller controls reading of CRS data. It reads six OFDM symbols if four antennas are used, and reads only 4 OFDM symbols if one or two antennas are used. It returns rd_bank and rd_valid signals to select an appropriate symbol for the six/four OFDM symbols. The sequence is then mapped to complex QPSK modulated symbols.

  • CellRS_indices: This subsystem computes the addresses for each LTE Memory Bank required to write CRS data. It is equivalent to the LTE Toolbox™ function lteCellRSIndices.

Read Write Logic

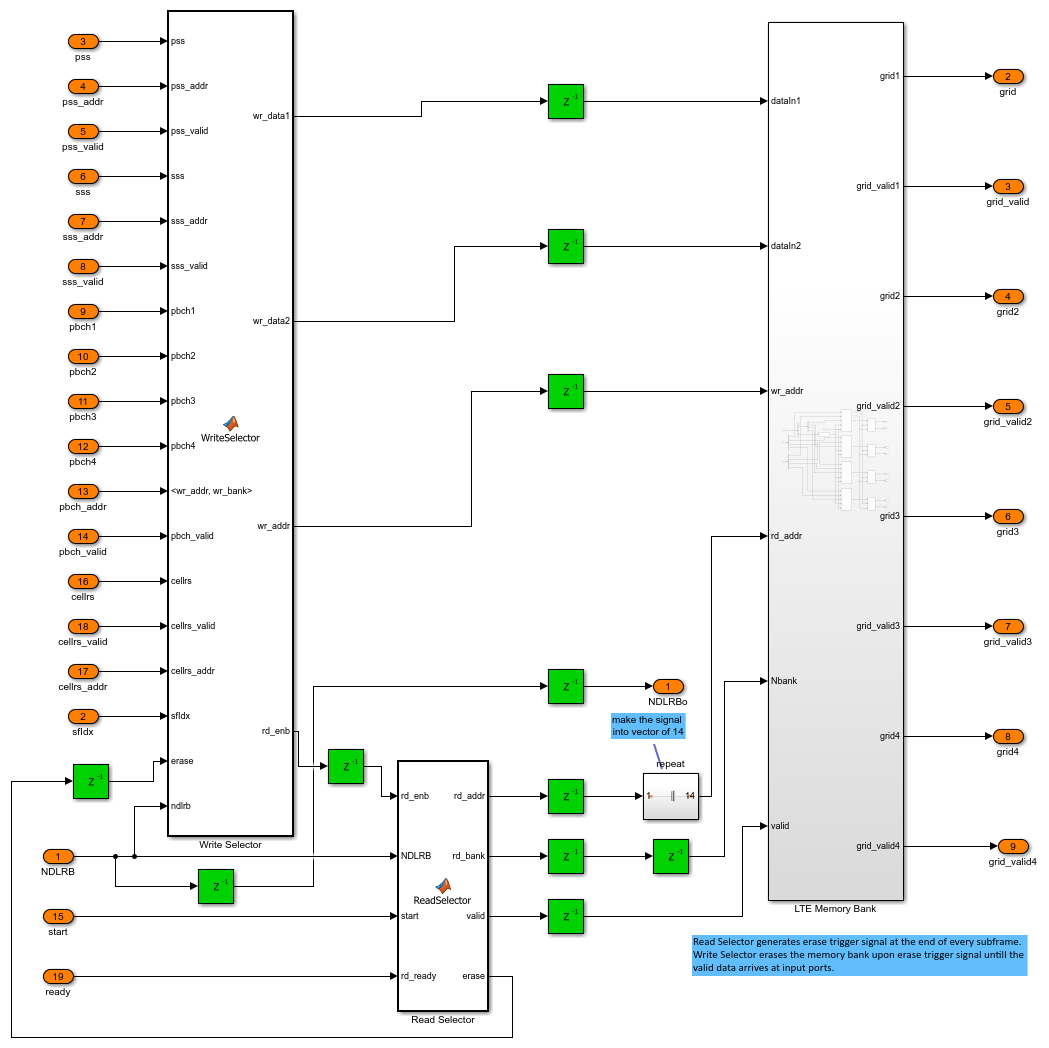

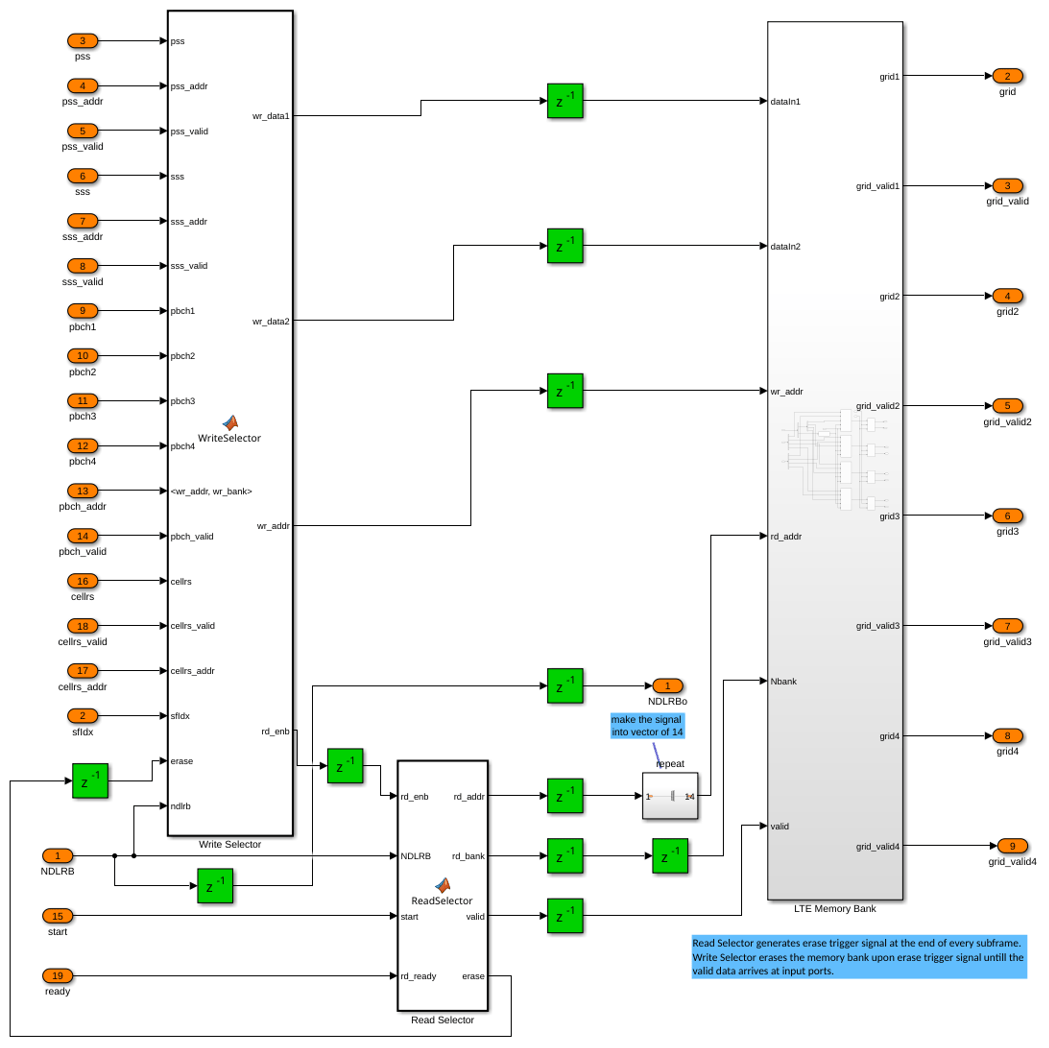

The Read Write Logic subsystem contains a Write Selector, Read Selector, four LTE Memory Banks with a Grid Bank Select associated with each of the LTE Memory Bank. The LTE Memory Bank storage capacity is one subframe of complex modulated symbols at the largest supported LTE bandwidth (20 MHz). Each LTE Memory Bank can store 14 x 2048 x 16-bit complex values, that is, 14 OFDM symbols, each containing 2048 complex values.

The Write Selector writes subframes of data into the memory banks. The PSS and SSS occupy central subcarriers. A single stream of PSS and SSS data is used for all the antennas. The PBCH data consists of multiple streams corresponding to each antenna port. The CRS data generated is mapped to the grid based on the four addresses generated for each LTE Memory bank in CellRS_indices block. The Write Selector first writes PSS and SSS simultaneously into corresponding locations in all LTE Memory Banks. Then, it writes PBCH data and CRS data into the corresponding LTE Memory Banks and returns rd_enb to indicate that the write is complete.

The Read Selector reads the samples from each LTE Memory Bank based on rd_enb and ready from the LTE OFDM Modulator block. Each LTE Memory Bank returns a 14 element vector corresponding to a single subcarrier. The Grid Bank Select selects the appropriate sample from the 14 element vector to form the resource grid output for each antenna.

Since the scope of this example is limited to PSS, SSS, CRS, and PBCH transmission, all the LTE Memory Banks are erased at the start of every subframe, before writing new data into the memory.

OFDM Modulation and Filtering

Grid data from LTE Memory Bank is OFDM-modulated using the LTE OFDM Modulator block with 'Output data sample rate' parameter set to 'Match output data sample rate to NDLRB'. The modulated data is filtered using a Discrete FIR Filter block with coefficients generated at a sampling rate corresponding to the NDLRB. Variant subsystems control the number of OFDM modulators and FIR filters used based on the number of antennas, which reduces the resource utilization when a single antenna is used.

Verification and Results

After running the simulation, the ltehdlTransmitter_PostSim.m script is executed automatically by the StopFcn callback of the model. In this example, the transmitter output is verified by the following methods:

Verification of model's transmitted signal:

The transmitter output signal in this model is cross-verified with a reference transmitter signal that is generated using LTE Toolbox™ functions by the following two subplots for each antenna.

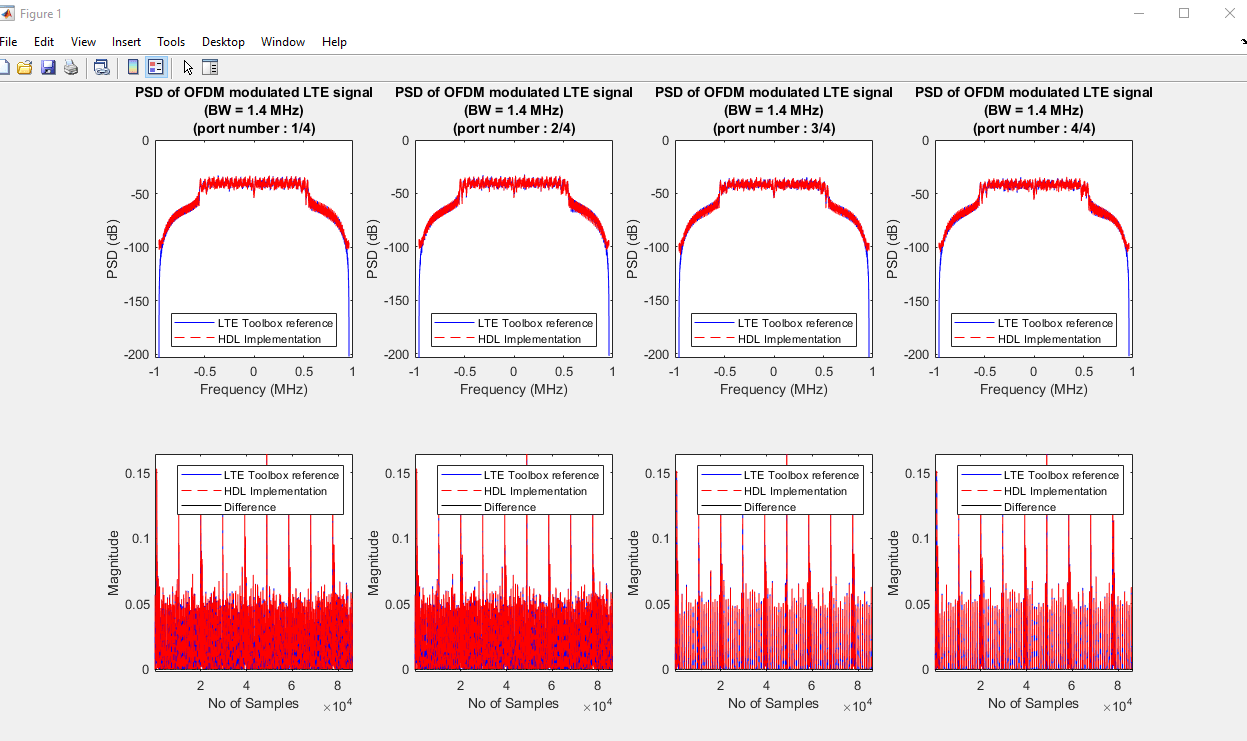

  1. The first subplot shows the Power Spectral Density (PSD) output of the filtered data. The result is compared with the PSD of the reference output signal generated using LTE Toolbox™. This comparison shows the equivalence of the two signals. The figure shows a transmission bandwidth of BW = 1.4MHz.

  2. The second subplot shows the absolute-value of the transmitted waveform. The result is plotted on top of the absolute-value of the reference transmitter signal generated using LTE Toolbox™. The plot also shows the difference between the samples obtained through HDL implementation and the reference signal. This comparison shows the minimal error between the two transmitter signals.

Cell Search & MIB Decoding Results:

The valid samples of the transmitter output signal are stored to the workspace variable txSamples. These samples are passed through an LTE fading channel to create the receiver input signal, rxSamples. The lteFadingChannel (LTE Toolbox) function models the LTE fading channel.

This example uses the following channel configuration:

chcfg.NRxAnts = 1;
chcfg.MIMOCorrelation = 'Medium';
chcfg.NormalizeTxAnts = 'On';
chcfg.DelayProfile = 'EPA';               % {'off','EPA'}
% The below model configuration exist only if Delay profile is not set
% to 'off'.
chcfg.DopplerFreq = 5;
chcfg.SamplingRate = 30.72e6;
chcfg.InitTime = 0;
chcfg.NTerms = 16;
chcfg.ModelType = 'GMEDS';
chcfg.NormalizePathGains = 'On';
chcfg.InitPhase = 'Random';
chcfg.Seed = 1;

To create a fading-free channel, set the chcfg.DelayProfile to 'off' in the ltehdlTransmitter_PostSim.m script.

This channel configuration works with the default enb structure, and supports changes only in the enb.PHICHDuration and enb.Ng fields.

The following figures show the results of the cell search and MIB decoding of the channel output, rxSamples, using LTE toolbox™ functions. These figures verify the transmitter performance and compare the HDL transmitter implementation against the input configuration defined in tx_cellids and enb.

  • NCellID after Cell Search: Displays the LTE cell search results performed on the fading channel output.

  • Cell-wide settings after MIB decoding: Displays the fields of MIB after MIB decoding - NDLRB, Ng, PHICH duration, and System Frame Number (SFN) performed on the fading channel output.

The example model does not support simulation in rapid accelerator mode.

Validation with Cell Search and MIB Recovery Example

You can verify the LTE HDL PBCH Transmitter example by connecting it to the LTE HDL MIB Recovery example model and checking that the output of the transmitter is decoded correctly. To make the transmitter model compatible with the receiver model, make these changes to the transmitter:

  • Set the outRate = 2 (default value 1) before running the model. This will set the output rate of each LTE OFDM Modulator and generate the fir filter coefficients associated with each antennas.

  • Set the enb.CellRefP = 2 (default value 4) before running the model.

  • Use the same NCellID for all radio frames in the transmission. i.e. set tx_cellids to a scalar value in the range 0-503.

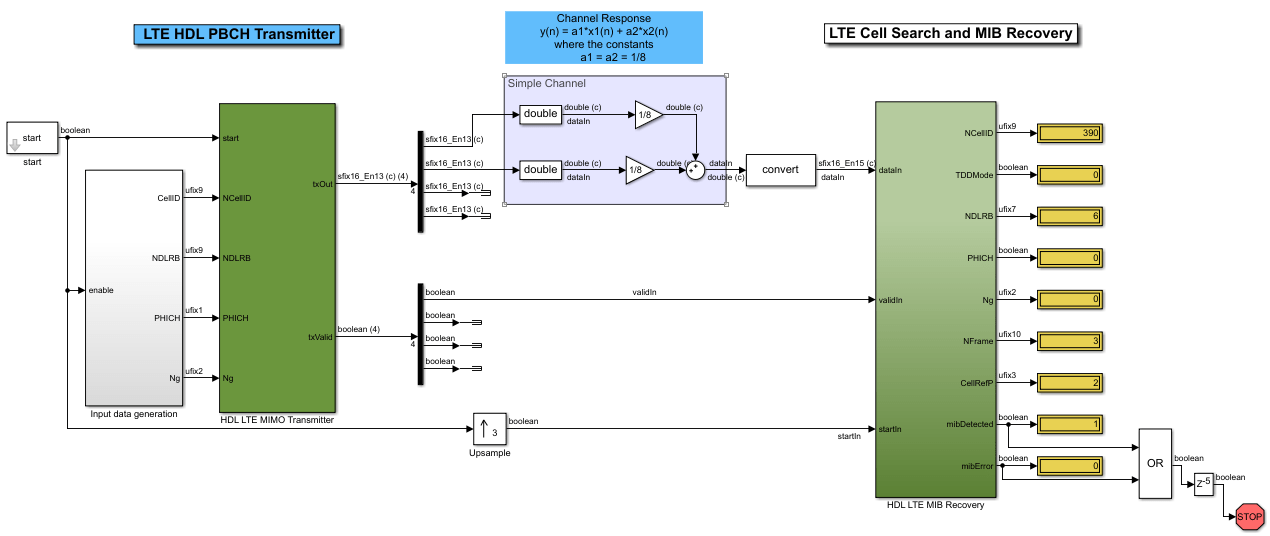

The figure shows the HDL LTE MIMO Transmitter and HDL LTE MIB Recovery subsystems connected together. It also shows the result of simulating the model. The display blocks show the CellID and MIB fields (NDLRB, Ng, PHICH duration and System Frame Number (SFN)) that the receiver decoded from the output of the HDL LTE MIMO Transmitter subsystem.

You can also verify the design without using a channel by terminating the output from the second antenna and bypassing the channel system with the output from the first antenna.

HDL Code Generation

To check and generate HDL for this example, you must have an HDL Coder™ license. Use the makehdl and makehdltb commands to generate the HDL code and test bench for the HDL LTE MIMO Transmitter subsystem. Because the stopTime in this example depends on TotalSubframes, the test bench generation time depends on the TotalSubframes.

The HDL LTE MIMO Transmitter subsystem is synthesized on a Xilinx® Zynq®-7000 ZC706 evaluation board. The post place and route resource utilization results are shown in the table below.

         Resources          No. of antennas used = 1    No. of antennas used = 2    No. of antennas used = 4
    ____________________    ________________________    ________________________    ________________________

    Slice Registers                  12788                       23839                       45787
    Slice LUT                        11984                       22220                       42861
    RAMB36                           41                          82                          164
    RAMB18                           11                          21                          41
    DSP                              49                          93                          177
    Max. Frequency (MHz)             210.08                      206.39                      204.75


  1. 3GPP TS 36.211 "Physical channels and modulation".

  2. 3GPP TS 36.212 "Multiplexing and channel coding".
