colorbarf

version 1.0.0.0 (4.39 KB) by Blair Greenan
Add an accurate colorbar to your filled contour plot.

5 Downloads

Updated 04 Apr 2006

View License

Editor's Note: This file was a File Exchange Pick of the Week

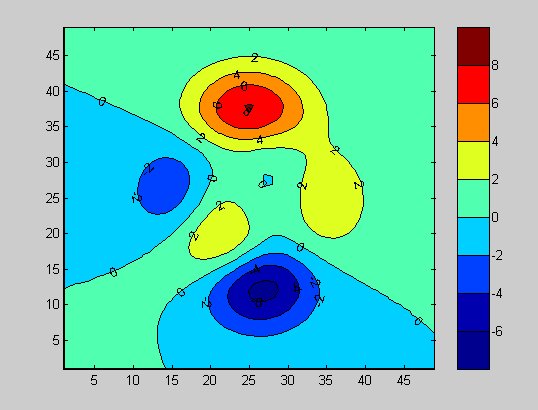

This m-file produces a colorbar with solid blocks of color between the contour levels that correspond precisely to the colors in the filled contour plot. This is in contrast to the standard MATLAB colorbar which simply plots all the colors in the colormap and, therefore, only approximates what is being plotted in the filled contour plot.
