ArduPilot software-in-the-loop (SIL) connector for Simulink

version 1.0.0 (1.16 MB) by Kiril Boychev
Simulink C++ S-function for software-in-the-loop (SIL) simulation with ArduPilot.

24 Downloads

Updated 29 Jun 2022

From GitHub

View License on GitHub

ArduPilot SIL Connector for Simulink

Simulink C++ S-function for software-in-the-loop simulation with ArduPilot.

View ArduPilot software-in-the-loop (SIL) connector for Simulink on File Exchange

Requirements

  • MATLAB & Simulink (MATLAB R2022a or earlier)
  • MinGW-w64 or MSVC C/C++ Compiler
  • MissionPlanner

Files

ardupilot_sil_connector.cpp

make.m

includes.zip (contains the Asio C++ library)

Build instructions

  • Install MATLAB-supported compiler
    https://mathworks.com/support/requirements/supported-compilers.html.
  • Download the "ardupilot_sil_connector.cpp" and "make.m" files and the "includes.zip" archive.
  • Unzip the "includes.zip archive".
  • Run "make.m" to create a "ardupilot_sil_connector.mexw64" (Windows), "ardupilot_sil_connector.mexa64" (Linux), "ardupilot_sil_connector.mexmaci64" (macOS) file.

Use instructions

  • Download and install MissionPlanner https://ardupilot.org/planner/docs/mission-planner-installation.html.
  • Open MissionPlanner, select the "Simulation" tab and click on the "Plane" icon to download the ArduPlane SIL simulator.
  • After downloading the ArduPlance SIL simulator, open a command prompt and navigate to "C:\Users\Documents\Mission Planner\sitl".
  • Execute the following command in the command prompt:
ArduPlane.exe --home 42.841448,24.770727,0.5,0 --model json
  • Click the connect icon in Mission Planner. Use the default host and port options.
  • Open and run "ardupilot_sitl_connector_example.slx".

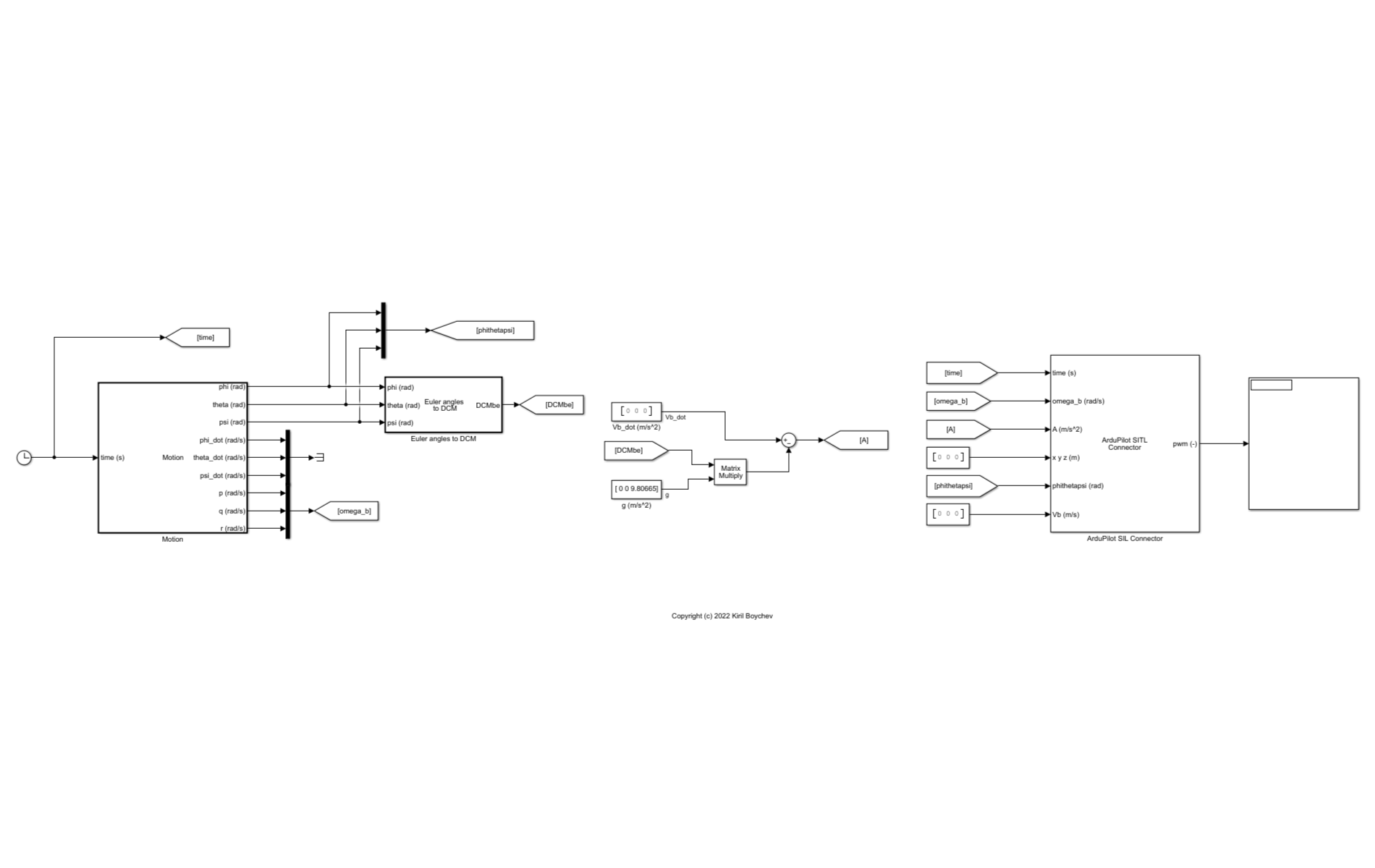

Example use of the ArduPilot SIL connector

Example use of the ArduPilot SIL connector

ArduPilot SIL connector example

ArduPilot SIL connector example

Additional information available at

https://fst.aviumtechnologies.com/ardupilot-sil-connector

Cite As

Kiril Boychev (2022). ArduPilot software-in-the-loop (SIL) connector for Simulink (https://github.com/aviumtechnologies/ardupilot-sil-connector/releases/tag/1.0.0), GitHub. Retrieved .
