Lattice Structures

Version 1.0.0 (7.48 MB) by Kamal s

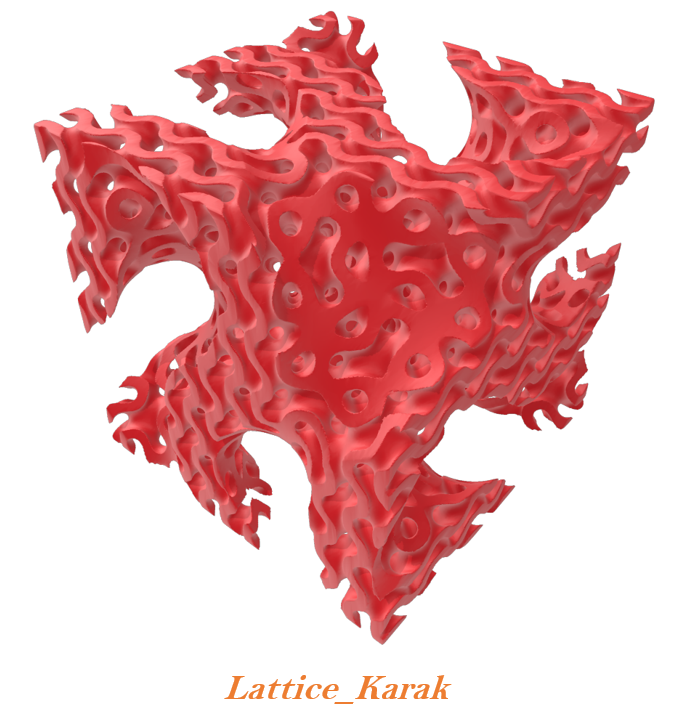

Lattice_Karak : Helps in creating Triple Periodic Minimalistic Surface.

https://github.com/Kamal-k-s/Lattice

0.0

(0)

304 Downloads

Updated 27 Jun 2022

View License on GitHub

Lattice_Karak:

Is an user freindly software for generating TPMS strucutres.

This software allows the effortless generation of these lattices effectively as per the requirements. Finite Element Analysis is can be implemented on the output obtained by the Lattice_Karak (I.e. STL file). This analysis allows for a better understanding of lattice structures.

The application can also be downloaded by using the below links:

https://drive.google.com/file/d/1WWL-UbPzErFCFVFJqw1as9w0M61aMxB4/view

DOI: doi.org/10.1016/j.simpa.2022.100425

Acknowledgments

The work is highly inspired from the work done by Prof. Rashid Abu Al Rub et. al.

This work also uses STLWrite, a Matlab script created by Sven Holcombe and available on the Matlab File Exchange.

Cite As

Raju, S. Kamal Krishnam, and Prasad S. Onkar. “Lattice_Karak: Lattice Structure Generator for Tissue Engineering, Lightweighting and Heat Exchanger Applications.” Software Impacts, vol. 14, Elsevier BV, Nov. 2022, p. 100425, doi:10.1016/j.simpa.2022.100425.
