Rankine Cycle Interactive Demo

Version 1.0.0 (34.5 KB) by Rodney Tan

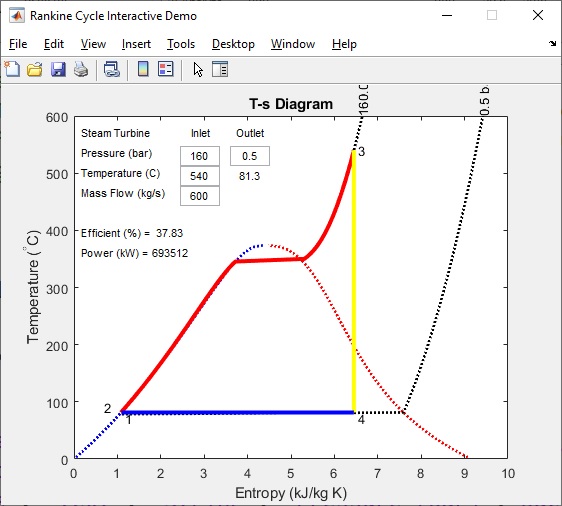

This demo plot all 4 stages of ideal Rankine cycle on T-s diagram and computes its thermal efficiency and mechanical power
107 Downloads
Updated 3 Jan 2023

View License

Written by Rodney Tan (PhD)
Version 1.00 (Jan 2023)
Rankine cycle interactive demo plot all 4 stages of ideal rankine cycle on T-s diagram and computes its thermal efficiency and mechanical power from turbine inlet pressure (bar), temperature (⁰C), mass flow rate (kg/s) and turbine outlet pressure (bar).
This interactive demo utilized XSteam function written by Magnus Holmgren https://www.mathworks.com/matlabcentral/fileexchange/9817-x-steam-thermodynamic-properties-of-water-and-steam

Cite As

Rodney Tan (2024). Rankine Cycle Interactive Demo (https://www.mathworks.com/matlabcentral/fileexchange/122802-rankine-cycle-interactive-demo), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2022a
Compatible with any release
Platform Compatibility
Windows macOS Linux
