bwmorph c-mex example

version 1.0.0.0 (1.89 KB) by James Tursa
This file is the c-mex equivalent of the example given in the bwmorph.m file comments.

1.4K Downloads

Updated 05 Mar 2008

No License

bwmorph_example converts the following example taken from the comment section of bwmorph.m to a c-mex file:

BW1 = imread('circles.png');
figure, imshow(BW1)
BW2 = bwmorph(BW1,'remove');
BW3 = bwmorph(BW1,'skel',Inf);
figure, imshow(BW2)
figure, imshow(BW3)

To create the dll, do the following at the MATLAB prompt:

>> mex -setup
(then pick any C/C++ compiler, such as lcc)
>> mex bwmorph_example.c

That's it. Now you are ready to use bwmorph_example as follows:

>> bwmorph_example

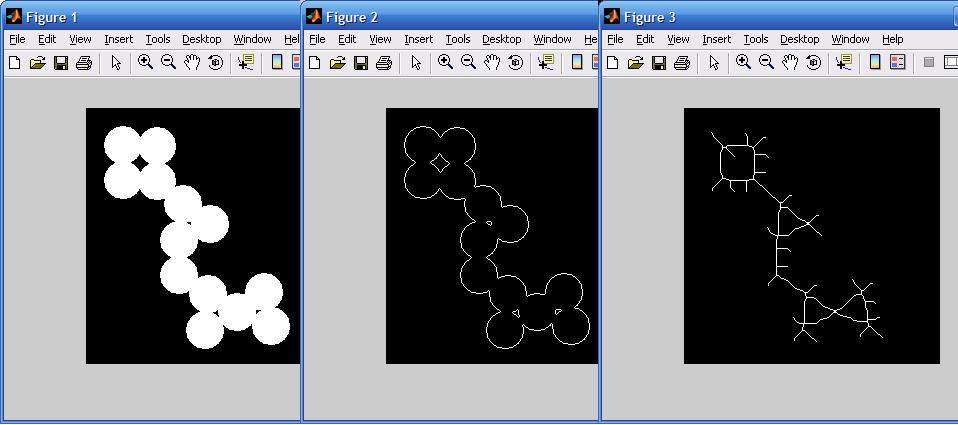

Three figures should appear on the screen (shown above), which are the same exact figures that appear when you run the example code directly from the MATLAB workspace.

The purpose of this submission is simply to show how to use these functions and get plots from within a c-mex file.

Cite As

James Tursa (2021). bwmorph c-mex example (https://www.mathworks.com/matlabcentral/fileexchange/19057-bwmorph-c-mex-example), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2006a
Compatible with any release
Platform Compatibility
Windows macOS Linux
