Simscape Language: Nonlinear Spring

version 2.0.0.1 (232 KB) by Steve Miller
Simscape™ language example of nonlinear mechanical springs

6 Downloads

Updated 01 Sep 2016

View Version History

View License

Editor's Note: This file was selected as MATLAB Central Pick of the Week

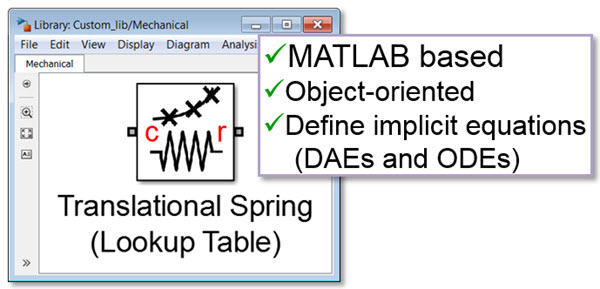

This file contains Simscape language source code for nonlinear springs. One example uses a custom equation and the other uses a lookup table.
To view a video (3 minutes) showing a nonlinear spring example, go to: http://www.mathworks.com/videos/simscape-language-mechanical-example-68868.html
To view a webinar (35 minutes) about the Simscape language, go to:
http://www.mathworks.com/videos/physical-modeling-with-the-simscape-language-81733.html

To learn more about MathWorks Simscape products, go to:
http://www.mathworks.com/physical-modeling/
