vtkpipe

version 1.0.0.0 (5.54 KB) by LeFlaux
Pipe visualization data to vtk files.

3 Downloads

Updated 07 Nov 2011

View License

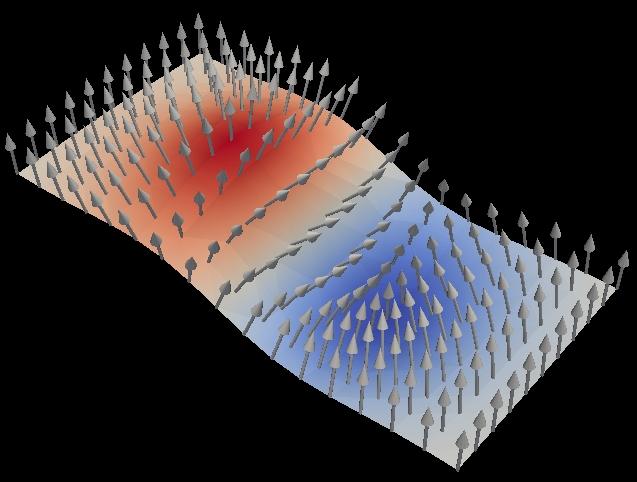

This package contains simple visualization scripts which work similar to Matlab's quiver, quiver3, trisurf or related functions, but in contrast, they pipe the data to vtk-files which may be called and visualized via Paraview, Mayavi2 or others.

Note: If You have any suggestions or discover any bugs, please let me know and send me an eMail. This is my very first public release and i would like to improve it whereever I can -- Your help is kindely appreciated!

Comments and Ratings (4)

Is it possible to add an optional variable VALS to vtkquiver as in vtktrisurf in order to colorize the quiver vectors?

LeFlaux

>> Romain W: Hi, is it possible to actually generate the streamlines from the glyphs, once exported to paraFoam?

Since vtkquiver stores only the vectors without underlying mesh, such a one has to be generated first. For instance, in ParaView:

1. Load pvd file that was generated by vtkquiver
2. Filter -> Delaunay 2D
3. Filter -> Stream Tracer
4. In Stream Tracer, set 'Interpolator Type' to 'Cell Locator' and set 'Seed Type' to 'Line Source'
