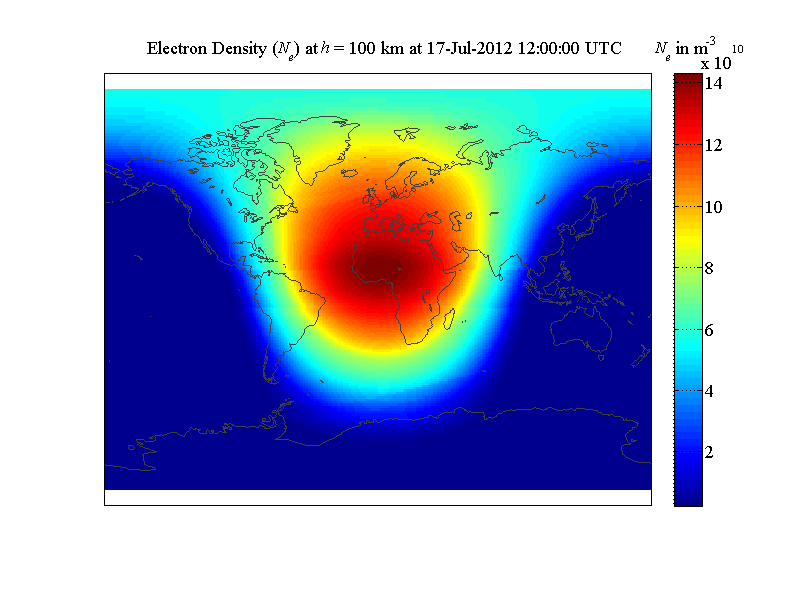

image thumbnail

International Reference Ionosphere (IRI) Model

version 1.14.0.0 (28 KB) by Drew Compston
Get the International Reference Ionosphere (IRI) output parameters.

37 Downloads

Updated 06 Oct 2014

View License

Computes the International Reference Ionosphere (IRI), which is an internationally recognized model for various ionospheric properties. I would call it more of a hack than a true IRI implementation as it works by querying an online interface using the curl command on an operating system terminal. Because of this, it requires an internet connection and is pretty slow, but if high speed is not an important issue for you, this can be an easy way to get IRI data into MATLAB. There are two functions that call different IRI versions. Function iri2007 calls the 2007 version found at http://omniweb.gsfc.nasa.gov/vitmo/iri_vitmo.html, and function iri2012 calls the more recent 2012 version whose online interface is at http://omniweb.gsfc.nasa.gov/vitmo/iri2012_vitmo.html.
An example script for how to use the functions is given as iritest.m. This is also the script that generated the attached screenshot. Using a parfor loop on my dual core computer, both the iri2007 and the iri2012 functions took about 5 minutes to run. (For comparison, the IGRF (commented out in the script) takes just over 1 second to run.) You can select which of the two provided functions to test with the function handle fun2test on line 13, and when using a parfor loop (set by the boolean useparfor on line 14), the function's progress can be displayed by utilizing the function parfor_progress on the File Exchange (File ID: 32101).
As stated, the query is made using the command curl in an operating system terminal. This program is built-in to Unix (and Mac I believe) but not Windows. Windows users can download cURL from http://curl.haxx.se/download.html. You'll have to download the appropriate executable for your operating system, and I recommend putting it in the same directory as the provided functions.

There is an odd quirk for the iri2007 program: Sweeps in longitude are only possible for the default altitude (100 km). If you input a vector of longitudes and the altitude is not 100 km, the function will make as many single calls to the online interface as longitudes input rather than utilize the profile sweep functionality (since that does not work). Previously, there were some different quirks in the iri2012 interface, but those have been fixed, and I currently know of no issues with the interface itself. Let me know if you have trouble with the iri2012 version.

Comments and Ratings (55)

whe I run iritest.m using 2012 I got same error that Candice got. Also I don't have any problem with iri2007.
Any body can help me?

Candice

Hi

I am running a Mac on Matlab 2018a. When I run iritest.m using iri2012 I keep getting an error, but when I run iri2007 I dont get the error, and the test runs successfully. My printout, when using iritest.m @iri2012 is:
-------
Error using iri2012>parseresult (line 1058)
Index exceeds array bounds.

Error in iri2012 (line 940)
(index-1)) = parseresult(fname, sweeplen(index));

Error in iritest (line 52)
parfor index = 1:N
-------

The only modifications I have made to iri2012 are the ones suggested by Lutz. Specifically:
-------
(lines 795 to 797)
'" https://ccmc.gsfc.nasa.gov/cgi-bin/modelweb/models/vitmo_model.cgi > "' ...
...'" http://ccmc.gsfc.nasa.gov/cgi-bin/modelweb/models/vitmo_model.cgi > "' ...
fname '"'];

(line 806) initialcmd = 'curl -d "model=iri2012';
(line 808) initialcmd = ['"' fullfile(curldir, 'curl"') ' -d "model=iri2012'];

(line 1047) if length(newlines) < 237
(line 1056) data = sscanf(result(newlines(236)+1 : newlines(236 + sweeplen)-1), '%f');
-------

I can use iri2007, but I would still like to know the source of this error, and if anyone else has come across it. Any help would be appreciated.

Thank you!

Omniweb at GSFC stopped offering running the IRI model online. The service has been shifted to the Comminut Coordinated Modeling Center (CCMC). These changed are needed:
1) All instances of "https://omniweb.sci.gsfc.nasa.gov/cgi/vitmo/vitmo_models.cgi" should be replaced by "https://ccmc.gsfc.nasa.gov/cgi-bin/modelweb/models/vitmo_model.cgi".
2) The model name is slightly different from the Omniweb implementation for IRI-2012: "iri2012" (not iri_2012):
initialcmd = 'curl --insecure -d "model=iri2012';
3) Success in parseresult() is different since the CCMC web page returns more HTML code:
For IRI-2007 returned data used to start at line 71, now data start at line 234 (also replace 70 with 233). For IRI-2012 data returned started at line 78, now data start at line 237 (also replace 77 with 236).

Notes on IRI-2016: The model name is "iri2016". A Matlab driver variant for this model has to be developed and tested.

Lutz Rastaetter, Community Coordinated Modeling Center (https://ccmc.gsfc.nasa.gov)

Gabe

Gabe (view profile)

I tried to run this today and got a 404 error at " 'https://omniweb.sci.gsfc.nasa.gov/cgi/vitmo/vitmo_model.cgi' ". A little digging let me to this site: " 'https://omniweb.sci.gsfc.nasa.gov/vitmo/' ". States the NASA Goddard isn't supporting IRI (amoung other models) anymore. Redirects to the IRI website. Anyone have a fix for this yet?

Hello, I 've been using this programm for a year now. Obviously, i installed curl and i changed the web address to : ('" https://omniweb.sci.gsfc.nasa.gov/cgi/vitmo/vitmo_model.cgi > "'). However, i tried to run it today and i get the error : Error using iri2012 (line 938)
In an assignment A(:) = B, the number of elements in A and B must be the same.
Can anyone help me with this error? I already installed a new curl and tried many of the suggestions. I don't know what's the problem and i need it for my thesis.

zuxiang xue

Maybe there Is an error in line 1054 of iri2012.m . The start line of the result for sscanf shoud be newlines(79) rather than newlines(77),I think. After I chang 77 to 79 the code works well and I get the same figure like yours.

Any chance there's an updated version for IRI2016?

It seems that CURL doesn't work well with the SHTTP, even when using the "--insecure" option that avoids the security certificate. I would recomend to reinstall your curl. My current version is the following (use "curl -V" to get it):
curl 7.49.0 (x86_64-pc-win32) libcurl/7.49.0 WinSSL zlib/1.2.11

dear sir, i just did what you recommend me run the code but still it comes out with error like
Error using iri2012 (line 929)
Curl command did not work. It returned status:1, curl: (1) Protocol "https" not supported or
disabled in libcurl
.

Hi Asmelash. I think you have had a problem making changes to the code. This error indicates you are not putting the web address correctly ('" https://omniweb.sci.gsfc.nasa.gov/cgi/vitmo/vitmo_model.cgi > "'). I suggest you to change all the function iri2012.m code with this codes:

function out = iri2012(time, latitude, longitude, height, utc, coord, ...
curldir, Rz12, IG12, f10_7_daily, f10_7_81day, tec_hmax, ne_top, ...
fpeak, f2storm, bottom, f1_prob, auroral_boundary, foE_storm, ...
Ne_Dreg, Te_top, ioncomp, NmF2_foF2, hmF2_M3000F2, NmE_foE, hmE)

% IRI2012 International Reference Ionosphere 2012 output parameters.
%
% Usage: OUT = IRI2012(TIME, LATITUDE, LONGITUDE, HEIGHT, UTC, COORD,
% CURLDIR, Rz12, IG12, F10_7_DAILY, F10_7_81DAY, TEC_HMAX,
% Ne_TOP, FPEAK, F2STORM, BOTTOM, F1_PROB,
% AURORAL_BOUNDARY, foE_STORM, Ne_Dreg, Te_TOP, IONCOMP,
% NmF2_foF2, hmF2_M3000F2, NmE_foE, hmE)
%
% Computes the International Reference Ionosphere (IRI) 2012, which is an
% internationally recognized model for various ionospheric properties. The
% position and time inputs can be scalars or arrays; when they are arrays,
% they should all have the same number of elements. The output is a matrix
% with 44 columns and the same number of rows as elements in the position
% and time inputs (possibly just 1). The ith row has the IRI output for the
% ith position/time input.
%
% The function makes the computation by querying the online interface at
% http://omniweb.gsfc.nasa.gov/vitmo/iri2012_vitmo.html (hence internet
% access is required), which makes it pretty slow, especially when either
% more than one of the position and time inputs are made to vary or if the
% position and time inputs are not spaced linearly. If more than one input
% is varied, the function can be sped up by using a for loop and holding
% the smaller arrays constant, assuming the largest array is spaced
% linearly. This will result in fewer calls to the website since the
% website allows for a linear sweep in one variable. See the script
% iritest.m for an example of this.
%
% The query is made using the command curl in an operating system terminal.
% This is built-in to Unix but not Windows. curl for Windows can be
% downloaded from http://curl.haxx.se/download.html. The directory where
% the curl.exe file can be found should be passed into CURLDIR for Windows
% computers. CURLDIR defaults to the same directory as this function.
%
% A value for -1 means the output is invalid for the given input. A value
% of -1 for TEC means the input TEC_HMAX was not set. All string inputs are
% case insensitive.
%
% Inputs:
%
% -TIME: Times to compute IRI model either in MATLAB serial date number
% format or a string that can be converted into MATLAB serial date number
% format using DATENUM with no format specified (see documentation of
% DATENUM for more information). Whether the times are local or UTC are
% determined by the input UTC. Valid range is from year 1958 to year 2016
% currently (optional, default is January 1, 2000 at 01:30).
%
% -LATITUDE: Latitude in degrees to compute IRI model. Whether this is
% geodetic, geocentric, or geomagnetic latitude is determined by the
% input COORD. Valid range is -90 degrees to 90 degrees (optional,
% default is 50 degrees).
%
% -LONGITUDE: Longitude in degrees to compute IRI model. Whether this is
% geodetic, geocentric, or geomagnetic longitude is determined by the
% input COORD. Valid range is 0 degrees to 360 degrees (optional, default
% is 40 degrees).
%
% -HEIGHT: For geodetic or geomagnetic coordiates, the height in km above
% the Earth's surface. For geocentric coordiates, the radius in km from
% the center of the Earth. Valid range for altitude is 60 km to 2000 km,
% although the recommended upper limit is 1500 km (optional, default when
% all other inputs are scalars is to sweep from 100:50:2000 km and when
% any other input is an array is 100 km).
%
% -UTC: Set to true (or 'UTC', 'U') if the times in TIME are in
% Coordinated Universal Time (UTC) or false (or 'Local', 'LT', 'L') if
% the times in TIME are in local time (optional, default is true).
%
% -COORD: String specifying the coordinate system to use. Can be
% geodetic ('geodetic', 'geod', or 'gd'), geomagnetic ('geomagnetic',
% 'geom', or 'gm'), or geocentric ('geocentric', 'geom', or 'gm')
% (optional, default is geodetic).
%
% -CURLDIR: Directory where curl.exe can be found (optional, only
% necessary for Windows computers, and default for those is the same
% directory that this function is located).
%
% -Rz12: 13-month running mean of sunspot number index. This index is
% typically calculated automatically from the time you specify, but you
% can enter your own index here and not rely on the internal index file.
% Valid range is 0 to 400.
%
% -IG12: Index based on foF2 measurements from a dozen ionosondes
% correlated with the CCIR foF2 maps [1]. This index is typically
% calculated automatically from the time you specify, but you can enter
% your own index here and not rely on the internal index file. Valid
% range is -50 to 400.
%
% -F10_7_DAILY: F10.7 radio flux, a daily index based on full disc solar
% flux measurements at 2800 MHz (10.7 cm wavelength) first made at the
% Algonquin Radio Observatory, near Ottawa, Canada (1947 until May 31,
% 1991) and then from the Dominion Radio Astrophysical Observatory, near
% Penticton, British Columbia at local noon (1700 UT at Ottawa and 2000
% UT at Penticton). The flux values are expressed in solar flux units
% (1 s.f.u. = 10-22 W*m-2*Hz-1 ). Indices are tabulated in two forms: the
% "observed flux" (S), and the "adjusted flux" (Sa). The former are the
% actual measured values, and are affected by the changing distance
% between the Earth and Sun throughout the year, whereas the latter are
% scaled to a standard distance of 1 AU. The "observed flux" values are
% used in IRI. This index is typically calculated for you, but you can
% enter your own and not rely on the internal index file. Valid range is
% 0 to 400.
%
% -F10_7_81DAY: The 81-day running mean of the daily F10.7 index
% described above. 81 days are about 3 solar rotations and statistical
% studies have found good correlation between this parameter or
% PF10.7=(F10.7_daily + F10.7_81day)/2 and ionospheric parameters. This
% index is typically calculated for you, but you can enter your own and
% not rely on the internal index file. Valid range is 0 to 400.
%
% -TEC_HMAX: Electron content upper boundary in km. The electron content
% is the vertical electron content (vTEC) calculated using numerical
% integration from a lower to an upper boundary. You must enter a value
% for the upper boundary if you want to obtain electron content values.
% The value should not be higher than 2000 km because this is the upper
% limit of the IRI validity range for electron density profiles. The
% lower boundary is set to the starting height of the IRI validity range
% (60 km during the day and 80 km during the night).
%
% -Ne_TOP: Ne Topside. There are three options here:
% 1. IRI-2001: The IRI-2001 model that was based primarily on Alouette
% 1 topside sounder data with some AE-C, AEROS, and DE-2 in situ data
% [2]. Selected by inputting one of 3, 'IRI01', 'IRI2001', or '2001'.
% 2. IRI01-corr: A correction of the 2001 model with the help of
% Aloutte 2, ISIS 1 and 2 topside sounder data [3]. Selected by
% inputting one of 2, 'IRI01-corr', 'IRI2001-corr', 'corr', or 'c'.
% 3. NeQuick: The model developed by Radicella and his group at ICTP
% using Intercosmos 19 topside sounder data in addition to the ISIS 1
% and 2 data [4]. Selected by inputing one of 1, 'NeQuick', 'Quick',
% 'Qu', 'Q', or 'Ne'.
% The default option is NeQuick.
%
% -FPEAK: F peak model. There are two options here:
% 1. CCIR: The CCIR model for the F peak plasma frequency foF2 was
% developed by Jones and Gallet [5] using data from the worldwide
% network of ionosondes. It is the model recommended by the Comite
% Consultatif International des Radiocommunications (CCIR) of the
% International Telecommunications Union [6]. Selected by inputting one
% of 2, 'CCIR', or 'C'.
% 2. URSI: The URSI model was developed by Rush et al. [7] using a
% physical model to obtain screen points over regions not covered by
% ionosondes instead of the extrapolation along magnetic field lines
% employed by Jones and Gallet [5]. Selected by inputting one of 1,
% 'URSI', or 'U'.
% The default option is URSI. The CCIR model is recommended over the
% continents and the URSI model over the oceans. NOTE: Changes here will
% also affect the height of the F peak hmF2 because the hmF2 model
% depends on the ratio foF2/foE where foE is the plasma frequency at the
% E peak.
%
% -F2STORM: foF2 Storm model on (true or 'on') or off (false or 'off')
% (optional, default is on). The F peak storm model describes the average
% storm behavior in terms of the ratio foF2_storm/foF2_quiet based on the
% ap history over the preceding 33 hours [8]. A large volume of ionosonde
% data for storms during the 1980-1990 time period were used to describe
% the most coherent and repeatable features of the ionospheric storm
% response.
%
% -BOTTOM: Bottomside thickness. The bottomside thickness is the height
% difference between the F peak height hmF2 and the height where the
% electron density profile has dropped down to half the F peak value
% (NmF2/2). There are three options here:
% 1. Bilitza-2000: This (table-)option is based on incoherent scatter
% data [9]. Selected by inputting one of 1, 'B0 Table', 'B0Table',
% 'B0', or 'B'.
% 2. Gulyaeva: This option is based on ionosonde data mostly from mid-
% latitudes [10]. Selected by inputting one of 2, 'Gulyaeva', 'Guly',
% or 'G'.
% 3. ABT-2009: Altadill et al. [11] used a large volume of ionosonde
% data to develop a much improved representation of latitudinal and
% solar cycle variation of B0 and B1. B1 is a parameter describing the
% bottomside profile shape. Selected by inputting one of 3, 'ABT-2009',
% or 'ABT'.
% The default option is ABT-2009.
%
% -F1_PROB: This parameter describes the occurrence probability of an F1
% layer. There are three options here:
% 1. IRI-95: This option uses the ITU-recommended Ducharme et al. model
% [12] that applies a simple cutoff solar zenith angle, so probability
% is either 0 or 1. Selected by inputting one of 3, 'IRI-95', 'IRI95',
% 'IRI', or '95'.
% 2. Scotto-1997 no L: This option uses the model developed by Scotto
% et al. [13] using only ionograms with clear F1 layer presence and
% excluding the more uncertain L condition cases. Ionograms often
% exhibit a Fl ledge rather than a fully developed cusp, primarily
% during the time period just before the Fl layer disappears. These
% cases are described as L condition according to the URSI standard
% nomenclature. Selected by inputting one of 1, 'Scotto-1997 no L',
% 'no L', or 'nL'.
% 3. Scotto-1997 with L: Here L-condition cases were included. Selected
% by inputting one of 2, 'Scotto-1997 with L', 'with L', or 'wL'.
% The default option is Scotto-1997 no L.
%
% -AURORAL_BOUNDARY: Turn auroral boundary on (true or 'on') or off
% (false or 'off') (optional, default is off). Leaving this off will
% produce faster results.
%
% -foE_STORM: Turn the E peak auroral storm model on (true or 'on') or
% off (false or 'off') (optional, default is on). The model was developed
% by Mertens et al. [14] and Fernandez et al. [15] and describes the
% average storm behavior in terms of the ratio foE_storm/foE_quite based
% on the ap index history.
%
% -Ne_Dreg: D-region electron density. There are two options here:
% 1. FT-2001: Model based on Friedrich's compilation of reliable rocket
% data [16]. Selected by inputting one of 2, 'FPT-2000', 'FPT', or
% '2000'.
% 2. IRI-95: Model based on a much smaller selection of typical rocket
% profiles [17]. Selected by inputting one of 1, 'IRI-95', 'IRI95',
% 'IRI', or '95'.
% The default option is IRI-95.
%
% -Te_TOP: Topside electron temperature. There are two options here:
% 1. IRI-95 is using the global models at fixed altitudes developed by
% Brace and Theis [18] based on their ISIS and AE-C electron
% temperature measurements. The model is described in [19] and also in
% the IRI-90 report that is available as PDF document from the
% references section of the IRI homepage. Selected by inputting one of
% 2, 'IRI-95', 'IRI95', 'IRI', or '95'.
% 2. TBT-2012 model is newer and uses a large volume of satellite in
% situ measurements and includes variations with solar activity [20].
% Selected by inputting one of 1, 'TBT-2012', 'TBT', or '2012'.
% The default option is TBT-2012.
%
% -IONCOMP: Ion composition. There are two options here:
% 1. DS95/DY85: Uses the Danilov and Smirnova model [21] based on their
% compilation of rocket data in the region below the F-peak and the
% Danilov and Yaichnikov model [22] based on their compilation of
% Russian high-altitude rocket measurements. Selected by inputting one
% of 2, 'DS95/DY85', or 'DS95'.
% 2. RBV10/TTS03: Based on an adjustment of the ion composition from
% the FLIP-model photochemistry to the IRI electron density profile in
% region below the F peak [23]. In the region above the F-peak the
% model of Triskova et al. [24] based on satellite ion mass
% spectrometer measurements. Selected by inputting one of 1,
% 'RBV10/TTS03', or 'RBV10'.
% The default option is RBV10/TTS03.
%
% -NmF2_foF2: A measured value to update the IRI profile to actual
% conditions. Only valid when varying HEIGHT linearly. If this number is
% between 10^3 and 10^8, it represents the F2 peak density (NmF2) in
% cm^-3. If instead it is between 2 and 14, it represents the F2 plasma
% frequency foF2 in MHz.
%
% -hmF2_M3000F2: A measured value to update the IRI profile to actual
% conditions. Only valid when varying HEIGHT linearly. If this number is
% between 100 and 1000, it represents the F2 peak height (hmF2) in km. If
% instead it is between 1.5 and 4, it represents the propagation factor
% M(3000)F2.
%
% -NmE_foE: A measured value to update the IRI profile to actual
% conditions. Only valid when varying HEIGHT linearly. If this number is
% between 20 and 10^8, it represents the E peak density (NmE) in cm^-3.
% If instead it is between 0.1 and 14, it represents the E plasma
% frequency in MHz.
%
% -hmE: Measured E peak height in km to update the IRI profile to actual
% conditions. Valid range is between 70 km and 200 km.
%
% Outputs:
%
% -OUT: Array with the same number of rows as elements in the position
% and time inputs and the following data in each column:
% 1. Electron density (Ne) in m^-3.
% 2. Ratio of Ne to the F2 peak density (NmF2).
% 3. Neutral temperature (Tn) in K.
% 4. Ion temperature (Ti) in K.
% 5. Electron temperature (Te) in K.
% 6. Atomic oxygen ions (O+) percentage.
% 7. Atomic hydrogen ions (H+) percentage.
% 8. Atomic helium ions (He+) percentage.
% 9. Molecular oxygen ions (02+) percentage.
% 10. Nitric oxide ions (NO+) percentage.
% 11. Cluster ions percentage.
% 12. Atomic nitrogen ions (N+) percentage.
% 13. Total electron content (TEC) in 10^16 m^-2.
% 14. TEC top percentage.
% 15. Height of the F2 peak (hmF2) in km.
% 16. Height of the F1 peak (hmF1) in km.
% 17. Height of the E peak (hmE) in km.
% 18. Height of the D peak (hmD) in km.
% 19. Density of the F2 peak (NmF2) in m^-3.
% 20. Density of the F1 peak (NmF1) in m^-3.
% 21. Density of the E peak (NmE) in m^-3.
% 22. Density of the D peak (NmD) in m^-3.
% 23. Propagation factor M(3000)F2.
% 24. Bottomside thickness (B0) in km.
% 25. Bottomside shape (B1).
% 26. E-valley width in km.
% 27. E-valley depth (Nmin/NmE) in km.
% 28. F2 plasma frequency (foF2) in MHz.
% 29. F1 plasma frequency (foF1) in MHz.
% 30. E plasma frequency (foE) in MHz.
% 31. D plasma frequency (foD) in MHz.
% 32. Equatorial vertical ion drift in m/s.
% 33. Ratio of foF2 storm to foF2 quiet.
% 34. F1 probability.
% 35. CGM latitude of auroral oval boundary.
% 36. Spread F probability.
% 37. Ratio of foE storm to foE quiet.
% 38. 12-month running mean of sunspot number Rz12 used by the model.
% 39. Ionospheric index IG12 used by the model.
% 40. Daily solar radio flux F107D used by the model.
% 41. 81 day solar radio flux F107_81D used by the model.
% 42. 3 hour ap index used by the model.
% 43. Daily ap index used by the model.
% 44. 3 hour Kp index used by the model.
% A value of -1 for any output indicates that the parameter is not
% available for the specified range. TEC = -1 means you have not entered
% an upper boundary height for TEC_HMAX.
%
% References:
%
% [1] R. Y. Liu, P. A. Smith, and J. W. King, “A New Solar Index Which
% Leads to Improved foF2 Predictions Using the CCIR Atlas,"
% _Telecommunication_Journal_, vol. 50, no. 8, pp. 408-414, 1983.
% [2] D. Bilitza, B. W. Reinisch, S. M. Radicella, S. Pulinets, T.
% Gulyaeva, and L. Triskova, "Improvements of the International Reference
% Ionosphere model for the topside electron density profile," _Radio_
% _Sci._, vol. 41, p. RS5S15, 2006, doi:10.1029/2005RS003370.
% [3] D. Bilitza, "A correction for the IRI topside electron density
% model based on Alouette/ISIS topside sounder data," _Adv._Space_Res._,
% vol. 33, no. 6, 838-843, 2004.
% [4] Coisson P., S. Radicella, R. Leitinger, and B. Nava, "Topside
% electron density in IRI and NeQuick," _Adv._Space_Res._, vol. 37, no.
% 5, pp. 937-942, 2006.
% [5] W. B. Jones and R. M. Gallet, "The Representation of Diurnal and
% Geographic Variations of Ionospheric Data by Numerical Methods,"
% _Telecomm._J._, vol. 29, no. 129, 1962, and vol. 32, no. 18, 1965.
% [6] Report 340-4, ITU, Geneva, 1967.
% [7] C. Rush, M. Fox. D. Bilitza, K. Davies, L. McNamara, F. Stewart,
% and M. PoKempner, "Ionospheric Mapping-An Update of foF2 Coefficients,"
% _Telecomm._J._, vol. 56, no. 179, 1989.
% [8] T. Fuller-Rowell, E. Araujo-Pradere, and M. Codrescu, "An empirical
% ionospheric storm-time correction model," _Adv._Space_Res._, vol. 25,
% no. 1, pp. 139-148, 2000.
% [9] D. Bilitza, S. M. Radicella, B. W. Reinisch, J. O. Adeniyi, M. E.
% Mosert Gonzalez, S. R. Zhang, O. Obrou, "New B0 and B1 models for IRI,"
% _Adv._Space_Res._, vol. 25, no. 1, pp. 89-95, 2000,
% doi:10.1016/S0273-1177(99)00902-3.
% [10] T. L. Gulyaeva, "Progress in ionospheric informatics based on
% electron-density profile analysis of ionograms," _Adv._Space_Res._,
% vol. 7, no. 6, 1987, doi:10.1016/0273-1177(87)90269-9.
% [11] D. Altadilla, J. M. Tortaa, and E. Blanch, "Proposal of new models
% of the bottom-side B0 and B1 parameters for IRI,", _Adv._Space_Res._,
% vol. 43, no. 11, 2009, doi:10.1016/j.asr.2008.08.014.
% [12] E. D. DuCharme, L. E. Petrie, and R. Eyfrig, "A method for
% predicting the F1 layer critical frequency based on the Zurich smoothed
% sunspot number," _Radio_Sci._, vol. 8, no. 10, pp. 837-839, 1973,
% doi:10.1029/RS008i010p00837.
% [13] C. Scotto, S. M. Radicella, and B. Zolesi, "An improved
% probability function to predict the F1 layer occurrence and L
% condition," _Radio_Sci._, vol. 33, no. 6, pp. 1763-1765, 1998,
% doi:10.1029/98RS02637.
% [14] C. J. Mertens, X. Xu, D. Bilitza, M. G. Mlynczak, and J. M. Russel
% III, "Empirical STORM-E model: I. Theoretical and observational basis,"
% _Adv._Space_Res._, vol 51, no. 4, pp. 554-574,
% doi:10.1016/j.asr.2012.09.009.
% and C. J. Mertens, X. Xu, D. Bilitza, M. G. Mlynczak, and J. M. Russel
% III, "Empirical STORM-E model: II. Geomagnetic corrections to
% nighttime ionospheric E-region electron densities," _Adv._Space_Res._,
% vol 51, no. 4, pp. 575-98, doi:10.1016/j.asr.2012.09.014.
% [15] J. R. Fernandez, C. J. Mertens, D. Bilitza, X. Xu, J. M. Russel
% III, M. G. Mlynczak, "Feasibility of developing an ionospheric E-region
% electron density storm model using TIMED/SABER measurements," vol 46,
% no. 8, pp. 1070-1077, doi:10.1016/j.asr.2010.06.008.
% [16] M. Friedrich and K. M. Torkar, "FIRI: A semiempirical model of the
% lower ionosphere," _J._Geophys._Res._, vol 106, no. A10, 2001,
% doi:10.1029/2001JA900070.
% [17] E. Mechtly and D. Bilitza, "Models of D-region electron
% concentration," Rep. IPW-WB1, Inst. fur phys. Weltraumforsch.,
% Freiburg, Germany, 1974.
% [18] L. H. Brace and R. F. Theis, "Global empirical models of
% ionospheric electron temperature in the upper F region and plasmasphere
% based on in situ measurements from the Atmospheric Explorer-C, ISIS-1
% and ISIS-2 satellites," _J._Atmos._Terr._Phys._, vol. 43, pp.
% 1317–1343, 1981.
% [19] D. Bilitza, L. H. Brace, R. F. Theis, "Modelling of ionospheric
% temperature profiles," _Adv._Space_Res._, vol. 5, no. 7, pp. 53-58,
% 1985, doi:10.1016/0273-1177(85)90356-4.
% [20] V. Truhlík, D. Bilitza, and L. T?ísková, "A new global empirical
% model of the electron temperature with the inclusion of the solar
% activity variations for IRI," _Earth_Planets_Space_, vol. 64, no. 6,
% pp. 531-543, 2012 doi:10.5047/eps.2011.10.016.
% [21] A. D. Danilov, and N. V. Smirnova, "Improving the 75 to 300 km ion
% composition model of the IRI," _Adv._Space_Res._, vol. 15, no. 2, pp.
% 171-177, 1995, doi:10.1016/S0273-1177(99)80044-1.
% [22] A. D. Danilov, and A. P. Yaichnikov, "A new model of the ion
% composition model at 75 to 1000 km for IRI," _Adv._Space_Res._,
% vol. 5, no. 7, pp. 75–79, 1985, doi:10.1016/0273-1177(85)90360-6.
% [23] P. G. Richards, D. Bilitza, and D. Voglozin, "Ion density
% calculator (IDC): A new efficient model of ionospheric ion densities,"
% _Radio_Sci._, vol. 45, p. RS5007, 2010, doi:10.1029/2009RS004332.
% [24] V. Truhlík, L. T?ísková, J. Šmilauer, "An empirical model of
% ion composition in the outer ionosphere," _Adv._Space_Res._, vol. 31,
% no. 3, pp. 653-663, doi:10.1016/S0273-1177(03)00040-1.
%
% See also: IRI2007, IRITEST, MSIS, IGRF, DATENUM.

% Directory of this function.
fpath = fileparts(mfilename('fullpath'));

% Default behavior.
if nargin < 1 || isempty(time)
time = datenum([2000 1 1 1 30 0]);
end
if nargin < 2 || isempty(latitude)
latitude = 50;
end
if nargin < 3 || isempty(longitude)
longitude = 40;
end
if nargin < 4 || isempty(height)
if (ischar(time) || numel(time) == 1) && ...
numel(latitude) == 1 && numel(longitude) == 1
height = 100:50:2000;
else
height = 100;
end
end
if nargin < 5 || isempty(utc)
utc = true;
elseif ischar(utc)
switch lower(utc)
case {'utc', 'u'}
utc = true;
case {'local', 'lt', 'l'}
utc = false;
otherwise
error('iri:badUTC', ['Unrecognized command ' utc '. Valid ' ...
'options are ''utc'', ''u'', ''local'', ''lt'', or ' ...
'''l''.']);
end
end
if nargin < 6 || isempty(coord)
coord = 'geod';
end
if isunix || ismac % Curl is built-in to operating system.
curldir = [];
elseif nargin < 7 || isempty(curldir)
curldir = fpath;
end
if nargin < 8
Rz12 = [];
end
if nargin < 9
IG12 = [];
end
if nargin < 10
f10_7_daily = [];
end
if nargin < 11
f10_7_81day = [];
end
if nargin < 12
tec_hmax = [];
end
if nargin < 13 || isempty(ne_top)
ne_top = 'NeQuick';
end
if nargin < 14 || isempty(fpeak)
fpeak = 'URSI';
end
if nargin < 15 || isempty(f2storm)
f2storm = true;
elseif ischar(f2storm)
if strcmpi(f2storm, 'on')
f2storm = true;
elseif strcmpi(f2storm, 'off')
f2storm = false;
else
error('iri:invalidf2storm', ...
'Unrecognized input ''%s'' for F2STORM.', f2storm);
end
end
if nargin < 16 || isempty(bottom)
bottom = 'ABT-2009';
end
if nargin < 17 || isempty(f1_prob)
f1_prob = 'Scotto-1997 no L';
end
if nargin < 18 || isempty(auroral_boundary)
auroral_boundary = false;
elseif ischar(auroral_boundary)
if strcmpi(auroral_boundary, 'on')
auroral_boundary = true;
elseif strcmpi(auroral_boundary, 'off')
auroral_boundary = false;
else
error('iri:invalid_auroral_boundary', ...
'Unrecognized input ''%s'' for AURORAL_BOUNDARY.', ...
auroral_boundary);
end
end
if nargin < 19 || isempty(foE_storm)
foE_storm = true;
elseif ischar(foE_storm)
if strcmpi(foE_storm, 'on')
foE_storm = true;
elseif strcmpi(foE_storm, 'off')
foE_storm = false;
else
error('iri:invalid_foE_storm', ...
'Unrecognized input ''%s'' for foE_STORM.', foE_storm);
end
end
if nargin < 20 || isempty(Ne_Dreg)
Ne_Dreg = 'IRI-95';
end
if nargin < 21 || isempty(Te_top)
Te_top = 'TBT-2012';
end
if nargin < 22 || isempty(ioncomp)
ioncomp = 'RBV10/TTS03';
end
if nargin < 23 || isempty(NmF2_foF2)
NmF2_foF2 = 0;
end
if nargin < 24 || isempty(hmF2_M3000F2)
hmF2_M3000F2 = 0;
end
if nargin < 25 || isempty(NmE_foE)
NmE_foE = 0;
end
if nargin < 26 || isempty(hmE)
hmE = 0;
end

% Convert time to a datenumber if it is a string.
if ischar(time)
time = datenum(time);
end

% Convert the coordinates.
switch lower(coord)
case {'geodetic', 'geod', 'gd'}
geo_flag = '0.';
case {'geocentric', 'geoc', 'gc'}
% Convert coordinates to geodetic. The function ecef2geod assumes
% meters, but we want km here.
[x, y, z] = sph2cart(longitude*pi/180, latitude*pi/180, ...
height*1e3);
[latitude, longitude, height] = ecef2geod(x, y, z);
height = height/1e3;
geo_flag = '0.';
case {'geomagnetic', 'geom', 'gm'}
geo_flag = '1.';
otherwise
error('iri:coordCommandUnknown', ['Command ' coord ' unknown. ' ...
'Valid options are ''geodetic'', ''geocentric'', and ' ...
'''geomagnetic''.']);
end

% Error checking and input conversion.
if any(latitude < -90) || any(latitude > 90)
error('iri:invalidLatitude', ['Input LATITUDE must be between ' ...
'-90 degrees and 90 degrees.']);
end
latitude = latitude(:).';
longitude = mod(longitude(:).', 360);
if any(height < 0) || any(height > 2e3)
error('iri:invalidHeight', ...
'Input HEIGHT must be between 0 km and 2000 km.');
end
height = height(:).';
if isempty(Rz12) || (Rz12 >= 0 && Rz12 <= 400)
Rz12 = sprintf('&sun_n=%#g', Rz12);
else
error('iri:invalidRz12', ...
'Input RZ12 is %g but must be between 0 and 400.', Rz12);
end
if isempty(IG12) || (IG12 >= -50 && IG12 <= 400)
IG12 = sprintf('&ion_n=%#g', IG12);
else
error('iri:invalidIG12', ...
'Input IG12 is %g must be between -50 and 400.', IG12);
end
if isempty(f10_7_daily) || (f10_7_daily >= 0 && f10_7_daily <= 400)
f10_7_daily = sprintf('&radio_f=%#g', f10_7_daily);
else
error('iri:invalidf10_7_daily', ...
'Input f10_7_daily is %g must be between 0 and 400.', f10_7_daily);
end
if isempty(f10_7_81day) || (f10_7_81day >= 0 && f10_7_81day <= 400)
f10_7_81day = sprintf('&radio_f81=%#g', f10_7_81day);
else
error('iri:invalidf10_7_81day', ...
'Input f10_7_81day is %g must be between 0 and 400.', f10_7_81day);
end
if isempty(tec_hmax) || (tec_hmax >= 50 && tec_hmax <= 2000)
tec_hmax = sprintf('&htec_max=%#g', tec_hmax);
else
error('iri:invalidTec_hmax', ['Input TEC_HMAX is %g km but must ' ...
'be between 50 km and 2000 km.'], tec_hmax);
end
switch lower(ne_top)
case {1, 'nequick', 'quick', 'qu', 'q', 'ne'}
ne_top = '0.';
case {2, 'iri01-corr', 'iri2001-corr', 'corr', 'c'}
ne_top = '1.';
case {3, 'iri01', 'iri2001', '2001'}
ne_top = '2.';
otherwise
if ~ischar(ne_top)
ne_top = num2str(ne_top);
else
ne_top = ['' ne_top ''];
end
error('iri:invalidNe_top', ['Unrecognized command ' ne_top ...
' for input NE_TOP. Valid options are NeQuick (1, ' ...
'''NeQuick'', ''Quick'', ''Qu'', ''Q'', or ''Ne''), ' ...
'IRI01-corr (2, ''IRI01-corr'', ''IRI2001-corr'', ' ...
'''corr'', or ''c'') and IRI2001 (3, ''IRI01'', ' ...
'''IRI2001'', or ''2001'').']);
end
switch lower(fpeak)
case {1, 'ursi', 'u'}
fpeak = '0.';
case {2, 'ccir', 'c'}
fpeak = '1.';
otherwise
if ~ischar(fpeak)
fpeak = num2str(fpeak);
else
fpeak = ['' fpeak ''];
end
error('iri:invalidFpeak', ['Unrecognized command ' fpeak ...
' for input FPEAK. Valid options are URSI (1, ''URSI'', ' ...
' or ''U'') and CCIR (2, ''CCIR'', or ''C'').']);
end
if f2storm
f2storm = '0.';
else
f2storm = '1.';
end
switch lower(bottom)
case {1, 'b0 table', 'b0table', 'b0', 'b'}
bottom = '0.';
case {2, 'gulyaeva', 'guly', 'g'}
bottom = '1.';
case {3, 'abt-2009', 'abt'}
bottom = '2.';
otherwise
if ~ischar(bottom)
bottom = num2str(bottom);
else
bottom = ['' bottom ''];
end
error('iri:invalidBottom', ['Unrecognized command ' bottom ...
' for input BOTTOM. Valid options are B0 Table (1, ' ...
'''B0 Table'', ''B0Table'', ''B0'', or ''B''), Gulyaeva ' ...
'(2, ''Gulyaeva'', ''Guly'', or ''G''), and ABT-2009 ' ...
'(3, ''ABT-2009'', or ''ABT'').']);
end
switch lower(f1_prob)
case {1, 'scotto-1997 no l', 'no l', 'nl'}
f1_prob = '0.';
case {2, 'scotto-1997 with l', 'with l', 'wl'}
f1_prob = '1.';
case {3, 'iri-95', 'iri95', 'iri', '95'}
f1_prob = '2.';
otherwise
if ~ischar(f1_prob)
f1_prob = num2str(f1_prob);
else
f1_prob = ['' f1_prob ''];
end
error('iri:invalidF1prob', ['Unrecognized command ' f1_prob ...
' for input F1PROB. Valid options are Scotto-1997 no L ' ...
'(1, ''Scotto-1997 no L'', ''no L'', or ''nL'') ' ...
'Scotto-1997 with L (2, ''Scotto-1997 with L'', ' ...
'''with L'', or ''wL''), and IRI-95 (3, ''IRI-95'', ' ...
'''IRI95'', ''IRI'', or ''95'').']);
end
if auroral_boundary
auroral_boundary = '0.';
else
auroral_boundary = '1.';
end
if foE_storm
foE_storm = '0.';
else
foE_storm = '1.';
end
switch lower(Ne_Dreg)
case {1, 'iri-95', 'iri95', 'iri', '95'}
Ne_Dreg = '0.';
case {2, 'fpt-2000', 'fpt', '2000'}
Ne_Dreg = '1.';
otherwise
if ~ischar(Ne_Dreg)
Ne_Dreg = num2str(Ne_Dreg);
else
Ne_Dreg = ['' Ne_Dreg ''];
end
error('iri:invalidD_reg', ['Unrecognized command ' Ne_Dreg ...
' for input D_REG. Valid options are IRI-95 (1, ' ...
'''IRI-95'', ''IRI95'', ''IRI'', or ''95'') and ' ...
'FPT-2000 (2, ''FPT-2000'', ''FPT'', or ''2000'').']);
end
switch lower(Te_top)
case {1, 'tbt-2012', 'tbt', '2012'}
Te_top = '0.';
case {2, 'iri-95', 'iri95', 'iri', '95'}
Te_top = '1.';
otherwise
if ~ischar(Te_top)
Te_top = num2str(Te_top);
else
Te_top = ['' Te_top ''];
end
error('iri:invalidTe_top', ['Unrecognized command ' Te_top ...
' for input TE_TOP. Valid options are TBT-2012 (1, ' ...
'''TBT-2012'', ''TBT'', or ''2012'') and IRI-95 (2, ' ...
'''IRI-95'', ''IRI95'', ''IRI'', or ''95'').']);
end
switch lower(ioncomp)
case {1, 'rbv10/tts03', 'rbv10'}
ioncomp = '0.';
case {2, 'ds95/dy85', 'ds95'}
ioncomp = '1.';
otherwise
if ~ischar(ioncomp)
ioncomp = num2str(ioncomp);
else
ioncomp = ['' ioncomp ''];
end
error('iri:invalidIoncomp', ['Unrecognized command ' ioncomp ...
' for input IONCOMP. Valid options are RBV10/TTS03 (1, ' ...
'''RVB10/TTS03'', ''RBV10'') and DS95/DY85 (2, ' ...
'''DS95/DY85'' or ''DS95'').']);
end
if ~(NmF2_foF2 == 0 || (NmF2_foF2 >= 2 && NmF2_foF2 <= 14) || ...
(NmF2_foF2 >= 1e3 && NmF2_foF2 <= 1e8))
error('iri:invalidNmF2_foF2', ['Input NmF2_foF2 is %g but must be ' ...
'one of 0, between 2 and 14 (MHz), or between 10^3 and 10^8 ' ...
'(cm^-3).'], ...
NmF2_foF2);
end
if ~(hmF2_M3000F2 == 0 || ...
(hmF2_M3000F2 >= 100 && hmF2_M3000F2 <= 1000) || ...
(hmF2_M3000F2 >= 1.5 && hmF2_M3000F2 <= 4))
error('iri:invalidhmF2_M3000F2', ['Input hmF2_M3000F2 is %g but ' ...
'must be one of 0, between either 1.5 and 4, or between 100 ' ...
'and 1000 (km).'], hmF2_M3000F2);
end
if ~(NmE_foE == 0 || (NmE_foE >= 20 && NmE_foE <= 1e8) || ...
(NmE_foE >= 0.1 && NmE_foE <= 14))
error('iri:invalidNmE_foE', ['Input NmE_foE is %g but must be ' ...
'one of 0, between 20 and 10^8 (cm^-3), or between 0.1 and 14 ' ...
'(MHz).'], ...
NmE_foE);
end
if ~(hmE == 0 || (hmE >= 70 && hmE <= 200))
error('iri:invalidhmE', ['Input hmE is %g but must be either 0 or ' ...
'between 70 and 200 (km).'], hmE);
end

% Get the file name to create for the curl command. To allow function to
% run in a parfor loop, append the current task and a random number to the
% usual file name.
if license('test', 'Distrib_Computing_Toolbox')
t = getCurrentTask();
if isempty(t)
fname = 'temp';
else
fname = sprintf('temp%i', t.ID);
end
else
fname = 'temp';
end
fname = fullfile(fpath, sprintf('%s_%i.html', fname, randi(2^53-1, 1)));

% End of the string to be input into the system function.
endcmd = [Rz12 IG12 f10_7_daily f10_7_81day tec_hmax ...
'&ne_top=' ne_top ...
'&imap=' fpeak ...
'&ffof2=' f2storm ...
'&ib0=' bottom ...
'&probab=' f1_prob ...
'&fauroralb=' auroral_boundary ...
'&ffoE=' foE_storm ...
'&dreg=' Ne_Dreg ...
'&tset=' Te_top ...
'&icomp=' ioncomp ...
sprintf('&nmf2=%#g', NmF2_foF2) ...
sprintf('&f2=%#g', hmF2_M3000F2) ...
sprintf('&user_nme=%#g', NmE_foE) ...
sprintf('&user_hme=%#g', hmE) ...
sprintf('&vars=%i', 17:60) ...11:50) ...
'" https://omniweb.sci.gsfc.nasa.gov/cgi/vitmo/vitmo_model.cgi > "' ...
...'" https://omniweb.sci.gsfc.nasa.gov/cgi/vitmo/vitmo_model.cgi > "' ...
fname '"'];

% Get year, month, day, hour for IRI.
[year, month, day, hour, minute, second] = datevec(time);
hour = hour + minute/60 + second/3600;
dayyear = dayofyear(year, month, day);

% Get the beginning of the string to be input into the system function.
if isunix || ismac % Curl is built-in to operating system.
initialcmd = 'curl --insecure -d "model=iri_2012';
else % Use the input curldir (possibly the default for that input).
initialcmd = ['"' fullfile(curldir, 'curl"') ' --insecure -d "model=iri_2012'];
end

% If one of the inputs can be swept keeping the others constant, run a
% sweep on the model.
A = [numel(unique(height)), numel(unique(latitude)), ...
numel(unique(longitude)), numel(unique(year)), ...
numel(unique(dayyear)), numel(unique(hour))];
if all(A == [1 1 1 1 1 1]) % Just one unique input.
profile = 0;
elseif all(A == [A(1) 1 1 1 1 1]) % Sweep altitude.
[sweep, tmp, sortind] = unique(height);
if all(abs(diff(diff(sweep))) < 1e-12)
profile = 1;
height = sweep(1);
sweepmax = 2000;
else % Altitude is unsweepable because steps are not linear.
profile = 9;
end
elseif all(A == [1 A(2) 1 1 1 1]) % Sweep latitude.
[sweep, tmp, sortind] = unique(latitude);
if all(abs(diff(diff(sweep))) < 1e-12)
profile = 2;
latitude = sweep(1);
sweepmax = 90;
else % Latitude is unsweepable because steps are not linear.
profile = 9;
end
elseif all(A == [1 1 A(3) 1 1 1]) % Sweep longitude.
[sweep, tmp, sortind] = unique(longitude);
if all(abs(diff(diff(sweep))) < 1e-12)
profile = 3;
longitude = sweep(3);
sweepmax = 360;
else % Longitude is unsweepable because steps are not linear.
profile = 9;
end
elseif all(A == [1 1 1 A(4) 1 1]) % Sweep year.
[sweep, tmp, sortind] = unique(year);
if all(abs(diff(diff(sweep))) < 1e-12)
profile = 4;
year = sweep(1);
sweepmax = 2016;
else % Year is unsweepable because steps are not linear.
profile = 9;
end
elseif all(A == [1 1 1 1 A(5) 1]) % Sweep day of year or month.
[sweep, tmp, sortind] = unique(dayyear);
if all(abs(diff(diff(sweep))) < 1e-12)
profile = 7;
dayyear = sweep(1);
sweepmax = 365 + ( (~mod(year(1), 4)...
& mod(year(1), 100)) | (~mod(year(1), 400)) );
% Day of year steps are not linear, but maybe month steps are.
elseif numel(day(1)) == 1
[sweep, tmp, sortind] = unique(month);
profile = 5;
month = sweep(1);
sweepmax = 12;
else % Day of year is unsweepable because steps are not linear.
profile = 9;
end
elseif all(A == [1 1 1 1 1 A(6)]) % Sweep hour in a day.
[sweep, tmp, sortind] = unique(hour);
if all(abs(diff(diff(sweep))) < 1e-12)
profile = 8;
hour = sweep(1);
sweepmax = 24;
else % Hour is unsweepable because steps are not linear.
profile = 9;
end
else
profile = 9;
end

% Call curl depending on the sweep profile.
switch profile
case 0
[status, result] = system([initialcmd ...
sprintf('&year=%i', year) ...
sprintf('&month=%i', month) ...
sprintf('&day=%i', day) ...
sprintf('&time_flag=%i', ~utc) ...
sprintf('&hour=%#g', hour) ...
'&geo_flag=' geo_flag ...
sprintf('&latitude=%#g', latitude) ...
sprintf('&longitude=%#g', longitude) ...
sprintf('&height=%#g', height) ...
'&profile=1' ...
sprintf('&start=%#g', height) ...
sprintf('&stop=%#g', height) ...
'&step=1.' ...
endcmd]);
if status == 0
out = parseresult(fname, 1);
else
error('iri:curlError', ['Curl command did not work. ' ...
'It returned status:%i, %s.'], status, result);
end
case {1 2 3 4 5 7 8}
% The online interface will only output up to a sweep length of
% 1000, so split the sweep into increments of 1000.
nsweeps = ceil(numel(sweep) / 1e3);
sweepstart = sweep(1 : 1e3 : end);
sweepstop = sweep(1e3 : 1e3 : end);
if numel(sweepstart) - 1 == numel(sweepstop)
sweepstop(end + 1) = sweep(end);
end
sweepstep = mode(diff(sweep));
sweeplen = round((sweepstop - sweepstart) ./ sweepstep + 1);
prevsweeplen = [0 sweeplen(1:end-1)];
sweepstop = min([sweep(end) + sweepstep/10, sweepmax]);
out = zeros(44*sum(sweeplen), 1);
for index = 1:nsweeps
[status, result] = system([initialcmd ...
sprintf('&year=%i', year(1)) ...
sprintf('&month=%i', month(1)) ...
sprintf('&day=%i', day(1)) ...
sprintf('&time_flag=%i', ~utc) ...
sprintf('&hour=%#g', hour(1)) ...
'&geo_flag=' geo_flag ...
sprintf('&latitude=%#g', latitude(1)) ...
sprintf('&longitude=%#g', longitude(1)) ...
sprintf('&height=%#g', height(1)) ...
sprintf('&profile=%i', profile) ...
sprintf('&start=%#g', sweepstart(index)) ...
sprintf('&stop=%#g', sweepstop) ...
sprintf('&step=%#g', sweepstep) ...
endcmd]);
if status == 0
out((1:44*sweeplen(index)) + 44*prevsweeplen(index)*...
(index-1)) = parseresult(fname, sweeplen(index));
else
error('iri:curlError', ['Curl command did not work. ' ...
'It returned status:%i, %s.'], status, result);
end
end
% profile = 9 means there is more than one unique run to make. Turn all
% the scalars into vectors with the same number of elements as the
% largest array. If there is an array smaller than the largest array,
% throw an error.
case 9
maxnum = max([numel(height), numel(latitude), ...
numel(longitude), numel(year), numel(day), numel(month), ...
numel(hour)]);
if numel(height) == 1
height = repmat(height, maxnum, 1);
elseif numel(height) ~= maxnum && numel(height) > 1
error('iri:invalidSize', ['Input vectors must all have ' ...
'the same number of elements.']);
end
if numel(latitude) == 1
latitude = repmat(latitude, maxnum, 1);
elseif numel(latitude) ~= maxnum && numel(latitude) > 1
error('iri:invalidSize', ['Input vectors must all have ' ...
'the same number of elements.']);
end
if numel(longitude) == 1
longitude = repmat(longitude, maxnum, 1);
elseif numel(longitude) ~= maxnum && numel(longitude) > 1
error('iri:invalidSize', ['Input vectors must all have ' ...
'the same number of elements.']);
end
if numel(time) == 1
year = repmat(year, maxnum, 1);
month = repmat(month, maxnum, 1);
day = repmat(day, maxnum, 1);
hour = repmat(hour, maxnum, 1);
elseif numel(time) ~= maxnum && numel(time) > 1
error('iri:invalidSize', ['Input vectors must all have ' ...
'the same number of elements.']);
end
out = zeros(44*maxnum, 1);
for index = 1:maxnum
[status, result] = system([initialcmd ...
sprintf('&year=%i', year(index)) ...
sprintf('&month=%i', month(index)) ...
sprintf('&day=%i', day(index)) ...
sprintf('&time_flag=%i', ~utc) ...
sprintf('&hour=%#g', hour(index)) ...
'&geo_flag=' geo_flag ...
sprintf('&latitude=%#g', latitude(index)) ...
sprintf('&longitude=%#g', longitude(index)) ...
sprintf('&height=%#g', height(index)) ...
'&profile=1' ...
sprintf('&start=%#g', height(index)) ...
sprintf('&stop=%#g', height(index)) ...
'&step=1.' ...
endcmd]);
if status == 0
out((1:44) + 44*(index-1)) = parseresult(fname, 1);
else
error('iri:curlError', ['Curl command did not work. ' ...
'It returned status:%i, %s.'], status, result);
end
end
end % End case

% Right now, out has all the data in one long vector, but we want it to be
% an array, so reshape.
out = reshape(out, 44, []).';

% Resort the output if we did a sweep.
if profile >= 1 && profile <= 8
out = out(sortind, :);
end

% Return the day of the year.
function dayyear = dayofyear(year, month, day)

previous = cumsum([0, 31, 28, 31, 30, 31, 30, 31, 31, 30, 31, 30]);
dayyear = previous(month) + day + double( ...
(~mod(year, 4) & mod(year, 100)) | (~mod(year, 400)) & (month > 2) );

% Parse the result file output by the system command.
function data = parseresult(fname, sweeplen)

% Get the data from fname into a string, then delete the file.
fid = fopen(fname);
if fid == -1
error('iri:parseresult:cannotOpenFile', ['Cannot open %s ' ...
'file generated by curl command.'], fname);
end
result = fread(fid, '*char').';
f = fclose(fid);
if f == -1
error('iri:parseresult:cannotCloseFile', ['Cannot close %s ' ...
'file generated by curl command.'], fname);
end
delete(fname);

% Data starts at line 78. If there isn't a line 78, there was an error.
% Also, if line 4 says "No data for your input selection" there was an
% error.
newlines = find(result == sprintf('\n'));
if length(newlines) < 78
% Output the error with the HTML tags removed.
error('iri:parseresult:modelWebError', regexprep(['The online ' ...
'interface returned:\n' result], '<[^>]*>', ''));
elseif strfind( result( newlines(3)+1 : newlines(4)-1 ), ...
'No data for your input selection' )
error('iri:parseresult:modelWebError', ['The online interface ' ...
'returned: No data for your input selection.']);
end
data = sscanf(result(newlines(77)+1 : newlines(77 + sweeplen)-1), '%f');

Sir please help: i did some changes as you recommend me and i run the code it shows a mistake: like this
Error using iri2012 (line 939)
Curl command did not work. It returned status:2, curl: no URL specified!
curl: try 'curl --help' or 'curl --manual' for more information
.

When the Matlab error indicates "301 Moved Permanently" indicates that the web access it is trying to access is a wrong one. Also the error "Error using iri2007>parseresult (line 913) " indicates you are using the IRI2007 version. I recommend to use the IRI2012 version. Change the version by hanging in iritest: "fun2test = @iri2012;".
- change Line 778 code to:
% End of the string to be input into the system function.
endcmd = [Rz12 IG12 f10_7_daily f10_7_81day tec_hmax ...
'&ne_top=' ne_top ...
'&imap=' fpeak ...
'&ffof2=' f2storm ...
'&ib0=' bottom ...
'&probab=' f1_prob ...
'&fauroralb=' auroral_boundary ...
'&ffoE=' foE_storm ...
'&dreg=' Ne_Dreg ...
'&tset=' Te_top ...
'&icomp=' ioncomp ...
sprintf('&nmf2=%#g', NmF2_foF2) ...
sprintf('&f2=%#g', hmF2_M3000F2) ...
sprintf('&user_nme=%#g', NmE_foE) ...
sprintf('&user_hme=%#g', hmE) ...
sprintf('&vars=%i', 17:60) ...11:50) ...
'" https://omniweb.sci.gsfc.nasa.gov/cgi/vitmo/vitmo_model.cgi > "' ...
...'" https://omniweb.sci.gsfc.nasa.gov/cgi/vitmo/vitmo_model.cgi > "' ...
fname '"'];
- And now change code of line 804:
% Get the beginning of the string to be input into the system function.
if isunix || ismac % Curl is built-in to operating system.
initialcmd = 'curl --insecure -d "model=iri_2012';
else % Use the input curldir (possibly the default for that input).
initialcmd = ['"' fullfile(curldir, 'curl"') ' --insecure -d "model=iri_2012'];
end

Sir please help: I install the curl and runed the iritest.m without changing, there shows a mistake:
Error using iri2007>parseresult (line 913)
The online interface returned:

301 Moved Permanently

Moved Permanently
The document has moved here.

Error in iri2007 (line 801)
out((1:41*sweeplen(index)) + 41*prevsweeplen(index)*...

Hi, I've found a problem of the IRI2012 Matlab code. It tries to access a web address at NASA that does not further exist.
It uses the CURL program to access this link (line 795 of code IRI2012): http://omniweb.gsfc.nasa.gov/cgi/vitmo/vitmo_model.cgi. To solve it change this address to: https://omniweb.sci.gsfc.nasa.gov/cgi/vitmo/vitmo_model.cgi.
But now CURL may give you also other kind of problems. It fails because requires a certificate (now the access is through a https secure site). Then to solve this second issue simply put 'curl --insecure -d "model=iri_2012' in lines 806 and 808. This disables the secure access. Good coding! Miguel

Sir I got this message what will be the solution Please help me
Error using iri2012 (line 941)
Curl command did not work. It returned status:-1073741515, .

Error in iritest (line 52)
parfor index = 1:N

mayz

mayz (view profile)

Sir please help: I install the curl and runed the iritest.m without changing, there shows a mistake:
iri2012>parseresult (line 1047)
The online interface returned:
301 Moved Permanently
Moved Permanently
The document has moved here.

Huy Hoang

D

D (view profile)

The hmF2_M3000F2 seems to be not parsed by the server. Output results are independent of hmF2_M3000F2 parameter (Try comparing the results from MATLAB and Web interface). For a quick fix, make the following changes in the function iri2012:

Change Line 791
From: sprintf('&f2=%#g', hmF2_M3000F2)
To: sprintf('&hmf2=%#g', hmF2_M3000F2)

Change Line 1055
From: data = sscanf(result(newlines(77)+1 : newlines(77 + sweeplen)-1), '%f');
To : data = sscanf(result(newlines(78)+1 : newlines(78 + sweeplen)-1), '%f');

Please help: I got an error as follows.

Error using ==> iri2012 at 941
Curl command did not work. It returned status:60, % Total % Received % Xferd
Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed

0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
curl: (60) SSL certificate problem: unable to get local issuer certificate
More details here: https://curl.haxx.se/docs/sslcerts.html

curl performs SSL certificate verification by default, using a "bundle"
of Certificate Authority (CA) public keys (CA certs). If the default
bundle file isn't adequate, you can specify an alternate file
using the --cacert option.
If this HTTPS server uses a certificate signed by a CA represented in
the bundle, the certificate verification probably failed due to a
problem with the certificate (it might be expired, or the name might
not match the domain name in the URL).
If you'd like to turn off curl's verification of the certificate, use
the -k (or --insecure) option.
HTTPS-proxy has similar options --proxy-cacert and --proxy-insecure.
.

Saeed Bello

The program runs fine after downloading the cur.exe on this link:
https://bintray.com/vszakats/generic/curl/

Ensure you make changes on line 795 as suggested by D

Saeed Bello

1. Kindly please help use to update the code to read iri2016. Specifically the new 'F-peak height' input.
2. Also,I got an error after updating the address at line 795 for iri2012.
The error looks like this:
??? Error using ==> iri2012 at 904
Curl command did not work. It returned status:60, % Total % Received % Xferd Average Speed
Time Time Time Current
Dload Upload Total Spent Left Speed

0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
0 0 0 0 0 0 0 0 --:--:-- 0:00:01 --:--:-- 0
0 0 0 0 0 0 0 0 --:--:-- 0:00:02 --:--:-- 0
0 0 0 0 0 0 0 0 --:--:-- 0:00:03 --:--:-- 0
0 0 0 0 0 0 0 0 --:--:-- 0:00:04 --:--:-- 0
0 0 0 0 0 0 0 0 --:--:-- 0:00:04 --:--:-- 0
curl: (60) SSL certificate problem: unable to get local issuer certificate
More details here: https://curl.haxx.se/docs/sslcerts.html

curl performs SSL certificate verification by default, using a "bundle"
of Certificate Authority (CA) public keys (CA certs). If the default
bundle file isn't adequate, you can specify an alternate file
using the --cacert option.
If this HTTPS server uses a certificate signed by a CA represented in
the bundle, the certificate verification probably failed due to a
problem with the certificate (it might be expired, or the name might
not match the domain name in the URL).
If you'd like to turn off curl's verification of the certificate, use
the -k (or --insecure) option.
HTTPS-proxy has similar options --proxy-cacert and --proxy-insecure.

Deans Yu

notice::::if used @ D's update method, you will get iri-2016 value not iri-2012

D

D (view profile)

The IRI model website is encrypted now (it is now https and not http). Please update the following address at line number 795 from

'" http://omniweb.gsfc.nasa.gov/cgi/vitmo/vitmo_model.cgi > "'

to

'" https://omniweb.gsfc.nasa.gov/cgi/vitmo/vitmo_model.cgi > "'

Drew Compston

Saeed: your error is likely caused by the IG12 input (9th input) not being a scalar. That input should be a scalar between -50 and 400 (which the help text in the beginning specifies).

Moraes: Sorry I missed your question. This should be possible, though I don't have the time to work out the details. It's a matter of figuring out where the geomagnetic poles are from the IGRF and then applying a coordinate transform. This page and the references therein might be helpful for this problem: https://www.spenvis.oma.be/help/background/coortran/coortran.html

Saeed Bello

Thank you for this code. Kindly help me fix this error after running this command:
out = iri2012(time, latitude, longitude, height, utc, coord, ...
curldir, bottom)
The error is:
??? Operands to the || and && operators must be convertible to logical scalar
values.

Error in ==> iri2012 at 576
if isempty(IG12) || (IG12 >= -50 && IG12 <= 400)

Thank you

Alison Moraes

Dear Drew,
Is there a way to compute the geomagnetic coordinate having the geodetic coordinate as input?
Regards,
Moraes

Drew Compston

Auroral: You need an active internet connection for curl to work. Is the computer you are using connected to the internet? Sounds like maybe not.

Auroral

Auroral

downloaded curl.exe iritest program still came out the 'curl error';
besides , when running my own program using iri2007/2012, always inform error that----' Failed to connect to omniweb.gsfc.nasa.gov port 80: Timed out' somebody help me ?

Has anyone tried using this in octave?

rui zhou

a

Drew Compston

The output of the iri2012 program is an Nx44 array, where N is the number of input locations/times. To get the 13th output of the IRI, simply select the 13th column of the output array. For example:
>> TEC = out(:, 13);
So in iritest, you could replace all the instances of out(:, 1) with out(:, 13) to plot TEC rather than electron density. There are four instances on lines 42, 54, 73, and 80.

Sri Ekawati

the iritest program compute and shows the Electron Density (Ne) only... As we know that output of IRI2012 have 44 output. How to get value of TEC (for example, output no. 13).... could anyone help me please

Sri Ekawati

@Muresan Aronia : First, I have same problem with you. But when I download the curl.exe and placed the matlab program at the same directory.. the program is successfull.... FYI, I use Windows..

Drew Compston

It's hard for me to troubleshoot problems you might be having with curl, especially with as little information as has been given in some of these comments. There is a link in the description to the curl executable program I use in this MATLAB code. I will point out: Someone I work with had trouble getting this to work on her Mac. It had something to do with the curl file provided by MATLAB in her version. I think we fixed it by removing the curl file from the MATLAB install files. But that's all I remember now.

Hi everyone.I'm trying to simulate the IRI model but I get the same error with the Curl command.I read above that somebody says to download the curl command but I couldn't find something like this.Could anyone help me?

Hi everyone.I'm trying to simulate the IRI model but I get the same error with the Curl command.I read above that somebody says to download the curl command but I couldn't find something like this.Could anyone help me?

Cory

Cory (view profile)

For anyone with the Curl error, you have to download the command (for Windows for sure, not sure about other OS) and set the directory or have it in the same directory. See the description.

Cory

Cory (view profile)

Good stuff! Small error: if I want to look at December 31st in a non-leap year in a sweep (e.g. 12/31/1990), the code computes the sweep stop as 365 + (sweepstep)/10, e.g. 365.1. The IRI 2012 interface rejects this.

I've removed the step/10 bit as a stopgap, but good to correct in later versions.

alberto akel

I tested the iritest,but shows error as below:
Error using iri (line 603)
Curl command did not work. It returned status:127

Chao-Yen

I trid the iritest, but it shows some error as below : Error using iri (line 603)
Curl command did not work. It
returned status:1,
would you please fixed it or tell me what's wrong. Thanks

Drew Compston

Guanyi, The IRI 2007 model online interface I have been using for this function does not allow for inputting the 10.7 indices (just Rz12 and IG12). But it looks like they have an updated model (IRI 2012) that does incorporate that. I'll provide an updated version soon that utilizes the new model.

Guanyi

Guanyi (view profile)

I tried the iritest. Many thanks for such a powerful programs. However, when I tried to input F10.7 in the program, I found that it is in the output. Can I use the observed 10.7 index as an input? How should I modified the program? Thanks!

Derek

Derek (view profile)

Drew, thank you! That fixed my problems! Thanks again for this awesome code!

Drew Compston

Derek, there were some problems in some of the time sweeps (unrelated to number of points) which I just fixed and uploaded. Longitude sweeps can also be tricky: First of all, they only work for altitude = 100, and something like [-2 -1 0 1 2] will not work because the negative numbers wrap around to near 360, resulting in a big gap. Please feel free to post any other specific examples where maybe it should calculate a linear sweep but doesn't.

Derek

Derek (view profile)

Actually, I retract my statement saying "I believe this is because sweepstop = min([sweep(end) + sweepstep/10, sweepmax]); should be sweepstop = [sweep(end) + sweepstep/10, sweepmax];"

Derek

Derek (view profile)

Thank you for submitting this code and updating it. On that note, I believe there is an issue with sweeping linear arrays greater than 500 elements. The program should enter into case {1 2 3 4 5 6 7} however, it instead moves to case 8. If the adjustment is made to force the program into case {1 2 3 4 5 6 7}, sweeping still fails. I believe this is because sweepstop = min([sweep(end) + sweepstep/10, sweepmax]); should be sweepstop = [sweep(end) + sweepstep/10, sweepmax];

Brandon

On line 496 in iri.m, there is a conversion from time into hours (in decimal form), and I think there is a mistake. The conversion divides seconds by 360 when I think it should be 3600.

Drew Compston

Krishna, as you pointed out, there was a bug in my geocentric coordinate conversion which might have caused your confusion. Look at it when the new version I just uploaded gets approved. When the input COORD is 'geoc', input LATITUDE is elevation, input LONGITUDE is azimuth, and input ALTITUDE is range.

Hi This is a great piece of code.But I have a small doubt.When the input is geocentric coordinate system we need azimuth,elevation and range to convert it to geodetic coordinates your code converts does this conversion but where does you give elevation,azimuth and range as input.And there is minor bug in the code where you used sph2cart function.Have a look at it.May be I am wrong I am not sure.But this is really awesome stuff it helped me a lot..
Thanks

Allen Kummer

Allen Kummer

Allen Kummer

For robustness, I would suggest updating the definition for endcmd at line 386 with below. As written, if your path has a space in it, curl gets confused, so adding quotes around the path name helps.

Otherwise the file seems to work great!

Also, for your information, at least my mac has curl built in.

endcmd = [Rz12 IG12 tec_hmax ...
'&ne_top=' ne_top ...
'&imap=' fpeak ...
'&ffof2=' storm ...
'&ib0=' bottom ...
'&probab=' f1prob ...
'&dreg=' d_reg ...
'&tset=' Te_top ...
'&icomp=' ioncomp ...
sprintf('&nmf2=%g.', f2peak_N) ...
sprintf('&f2=%g.', f2peak_M) ...
sprintf('&vars=%i', 11:50) ...
'" http://omniweb.gsfc.nasa.gov/cgi/vitmo/vitmo_model.cgi > "' ...
fullfile(fpath, 'temp.html"')];

Updates

1.14.0.0

Fixed issue with non-leap year day of year sweeps (as pointed out by Cory in comments above).

1.13.0.0

Fixed error in input argument order in the list in the initial comment block for the iri2012 function.

1.12.0.0

Made iri2012 compatible with new online interface having auroral boundary option.

1.11.0.0

Added more information on inputs in initial comment block, provided functions to call both IRI-2007 and IRI-2012, added capability to run functions in a parfor loop, changed output from multiple vectors to single matrix.

1.10.0.0

Fixed some problems in sweeping day of year/month/etc.

1.9.0.0

Fixed problem where online interface would hang without returning anything for some inputs (including in iritest.m).

1.8.0.0

Fixed bug pointed out by Brandon (old line 459 actually I believe, not 496) and also fixed an odd issue with the online interface output for longitude sweeps and non-default altitude (first noticed by John H.).

1.7.0.0

Updated initial comment block, added an error check on calling curl, fixed/updated some of the other error checks, and added capability to run example script without Mapping Toolbox.

1.5.0.0

Fixed geocentric coordinate conversion bug.

1.3.0.0

Fixed a problem where the online interface didn't do a full sweep for fractional steps and added an error check on reading temp.html from the interface.

1.2.0.0

Fixed some more typos in the comments of the files and made the changes suggested in Allen Kummer's comments.

1.1.0.0

Fixed typo in title/description.

MATLAB Release Compatibility
Created with R2007b
Compatible with any release
Platform Compatibility
Windows macOS Linux
Acknowledgements

Inspired: MSIS-E-90

Discover Live Editor

Create scripts with code, output, and formatted text in a single executable document.


Learn About Live Editor
