Simulink model for Fetal ECG extraction (HDL Compatible algorithm)

version 1.0.0.0 (26 KB) by Igal
This is an HDL Coder compatible Fetal ECG extraction algorithm.
3.7
3 Ratings

19 Downloads

Updated 26 Feb 2012

View License

Editor's Note: This file was selected as MATLAB Central Pick of the Week

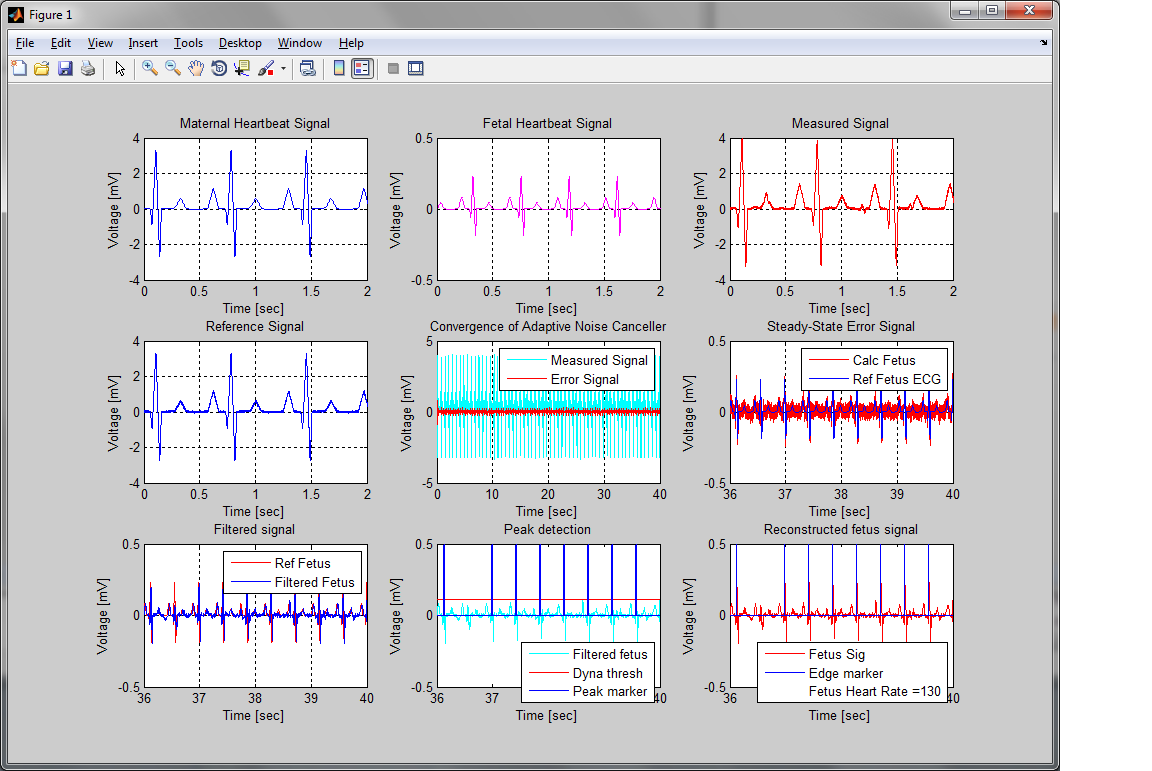

This is an HDL Coder compatible Fetal ECG extraction algorithm. The Simulink model follows the floating point MATLAB algorithm with some changes forced by the HDL Coder compatibility.

The "blue" subsystem is HDL Coder compatible.

* Note: this is only a demonstration of tools' capabilities and not a commercial grade algorithm!

Cite As

Igal (2021). Simulink model for Fetal ECG extraction (HDL Compatible algorithm) (https://www.mathworks.com/matlabcentral/fileexchange/35328-simulink-model-for-fetal-ecg-extraction-hdl-compatible-algorithm), MATLAB Central File Exchange. Retrieved .
