Fractional Variable Order Derivative Simulink Toolkit

version 2.0.0.0 (145 KB) by Dominik Sierociuk
The toolkit for simulation constant and variable fractional order derivatives.

12 Downloads

Updated 14 May 2015

View License

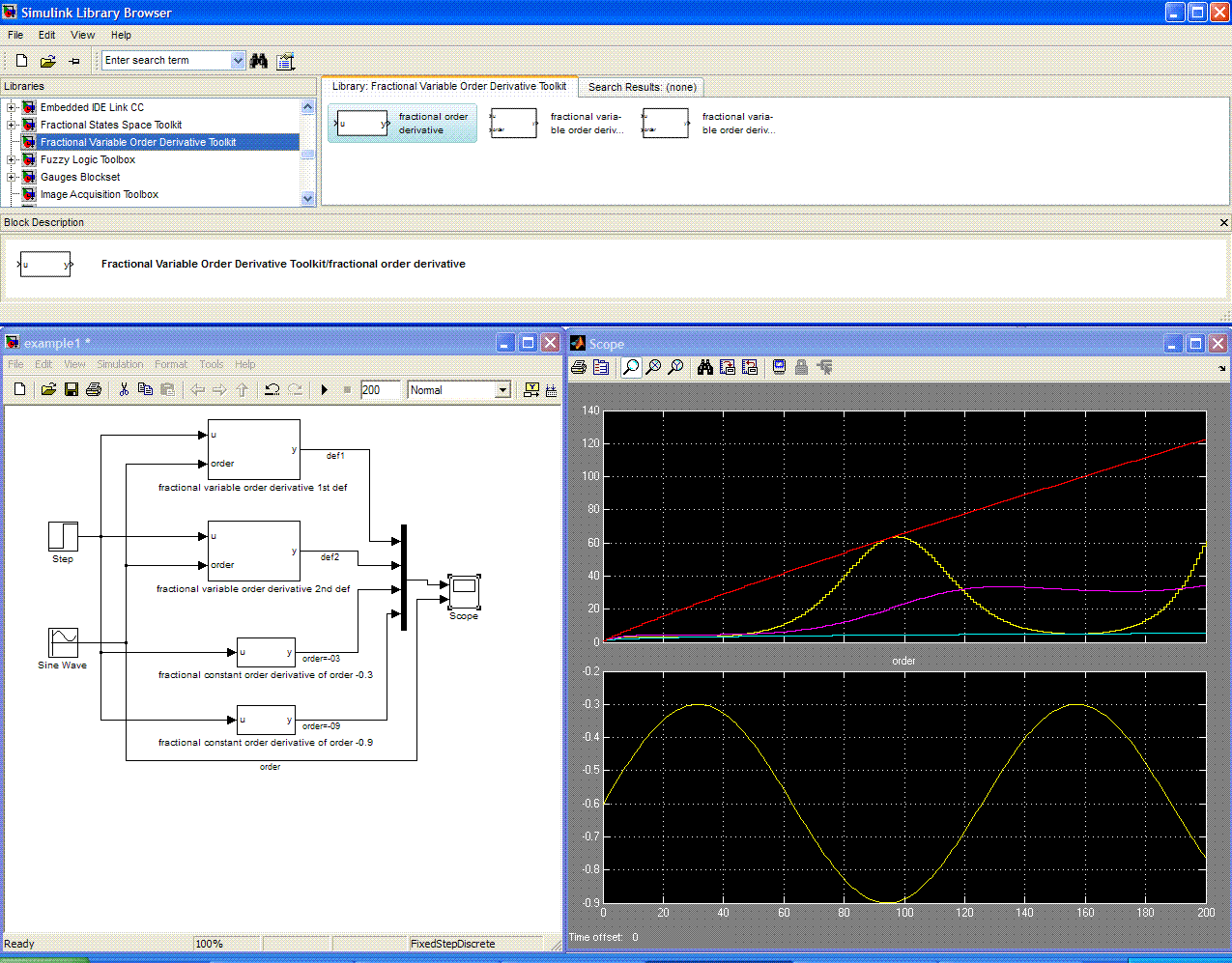

The toolkit is a set of Simulinks' blocks for simulation of constant and variable fractional order derivatives according to the Grunwald-Letnikov definition. For implementation of variable order derivatives, four types of G-L definition extensions were used. Blocks are implemented as C-MEX S-functions.

Comments and Ratings (10)

ye yang

sir,plz....tell me how to create fractional order pid (FOPID) mask block plzzz

yixing chen

i am very sorry to ask,how to use?
Error using mex (line 206)
Unable to complete successfully.

help me,3Q!
my email:87249815@qq.com

Tran

Thanks for your sharing!

biki routh

how to download and install help fren..urgent

thank you..

Are the 3rd and 4th definitions available?
If so please update this post
Thanks in advance

Stephane

Thank you !! Very helpfull !

Hassan

Very accurate and useful toolkit.
quite applicable with a very illustrative example.

Updates

2.0.0.0

Two blocks for simulation recursive Fractional Variable Order Derivatives (D-type and E-type) were added. Additionally, two examples were added and User Guide was improved.

1.2.0.0

Problem with time sampling in 2nd definition block fixed.

MATLAB Release Compatibility
Created with R2009a
Compatible with any release
Platform Compatibility
Windows macOS Linux
