okomarov/schemaball

version 1.1.0.0 (318 KB) by Oleg Komarov

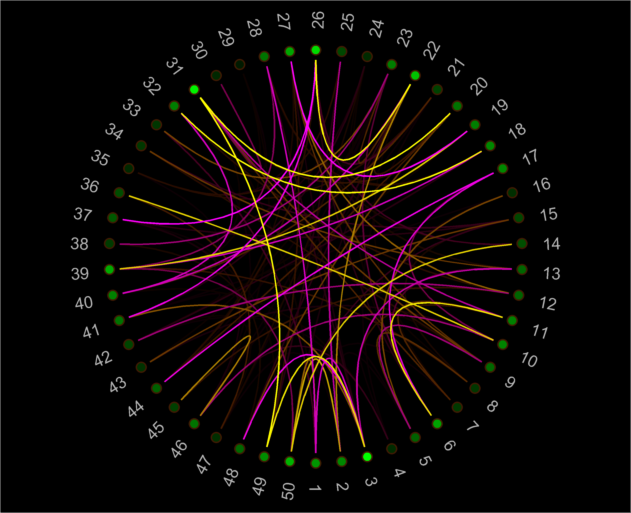

Plot correlation matrix as a schemaball

10 Downloads

Updated 16 Feb 2017

View License on GitHub

Editor's Note: This file was selected as MATLAB Central Pick of the Week

Plots correlation matrix as a schemaball.
EXAMPLES:

- Base demo
schemaball

- Supply your own correlation matrix (only lower off-diagonal triangular part is considered)
x = rand(10).^3;
x(:,3) = 1.3*mean(x,2);
schemaball(x)

- Supply custom labels as ['aa'; 'bb'; 'cc'; ...] or {'Hi','how','are',...}
schemaball(x, repmat(('a':'j')',1,2))
schemaball(x, {'Hi','how','is','your','day?', 'Do','you','like','schemaballs?','NO!!'})

- Customize curve colors
schemaball([],[],[1,0,1;1 1 0])

- Customize node color
schemaball([],[],[],[0,1,0])

- Customize manually other aspects
h = schemaball;
set(h.l(~isnan(h.l)), 'LineWidth',1.2)
set(h.s, 'MarkerEdgeColor','red','LineWidth',2,'SizeData',100)
set(h.t, 'EdgeColor','white','LineWidth',1)

For details see help

Comments and Ratings (23)

Arun Kumar

adajaga

I'd like to change the node colors according to known categories, but can't figure out logic behind the 'CData' of the scatter plot part of the graph. E.g. with a 128X128 matrix:

h.s.CData(1,:) = [1 0 0] % Changes color of node # 101
h.s.CData(2,:) = [1 0 0] % Changes color of node # 97
h.s.CData(3,:) = [1 0 0] % Changes color of node # 100
h.s.CData(4,:) = [1 0 0] % Changes color of node # 26

Text seems to be in order, anybody know how to deal with the scatter plot?

To plot on the white background, change the following two lines in schemaball.m file:

A) Change
ccolor = hsv2rgb([repmat(ccolor(1,1:2),N,1), linspace(ccolor(1,end),0,N)';
repmat(ccolor(2,1:2),N,1), linspace(0,ccolor(2,end),N)']);
To:
ccolor = hsv2rgb([repmat(ccolor(1,1),N,1), linspace(ccolor(1,end),0,N)', repmat(ccolor(1,3),N,1);
repmat(ccolor(2,1),N,1), linspace(0,ccolor(2,end),N)', repmat(ccolor(2,3),N,1)]);

B) Change ['color', 'k'] in
set(gca, 'Xlim',xlims,'Ylim',ylims, 'color', 'k','XColor','none','YColor','none',...
'clim',[-1,1])
To ['color', 'w']:
set(gca, 'Xlim',xlims,'Ylim',ylims, 'color', 'w','XColor','none','YColor','none',...
'clim',[-1,1])

Amazing toolbox. thank you.

Can someone explain me that color correspond to what vector like [1 0 1] ?

Oleg Komarov

I am currently working on a bright theme (to address @Julia and other's request) and on allowing fully formed custom colormaps. This requires a bit of rework in the parameter parsing and on colour control.

Oleg Komarov

@Julia: you can set(gca,'Color','white') but be aware that the way the colormap is set, average values will be dark/black, so you will have a central mass of dark lines. To see what I mean, check the default colormap here http://stackoverflow.com/a/17111675/2180721
To achieve white background you will need to change the colormap such that the two extremes blend in the middle into white.

Really useful and easy to manage! I have a question... Is it possible to change the background of the graph to white? I tried it and I can just change the background of the figure. Any advice will help, thanks!

Oleg Komarov

@cmo I cannot reproduce the issue. Can you provide an example?

@Anca Mitrea You need to save it with optional arguments for higher resolution. Please, see the matlab docs for print() and/or saveas(). You can also try export_fig http://www.mathworks.com/matlabcentral/fileexchange/23629-export-fig

Anca Mitrea

Awesome tool, love it! I have a question... I would like to print the result on an A0 or A1 paper size and if I simply save it as it is, when I zoom it, it gets pixeled. What should I do? Thank you very much!

cmo

cmo (view profile)

works great!
when I use "saveas", the resulting PNG has a white background.
How do I print it to file with the black background?

Nebitno

Thanks Oleg!

Nebitno

Silly question: how do I reference a figure that I generated using your code?

Nebitno

Oleg Komarov

@Pascal
You can normalize your matrix. I left this aspect to the user, since she can choose how to re-map the matrix to an arbitrary interval.

Absolutely fantastic.
But, I'd love a way to also input arbitrary matrices with arbitrary value ranges. Is there a way to do that?

amanita

Wilma

Wilma (view profile)

jun

jun (view profile)

fantastic!!!

Updates

1.1.0.0

Move to github

1.1.0.0

Added link to fex page in the help.
