ReversePlot
- 12 files
- 19 downloads

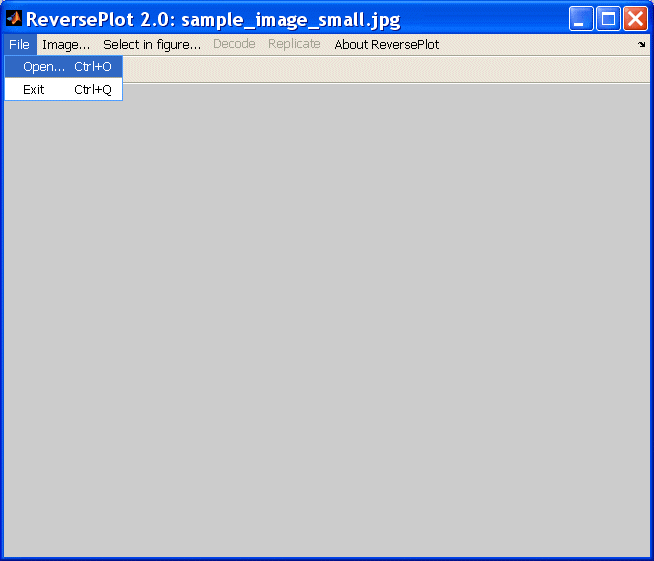

This function opens an image file containing a plot. Then the origin, maximum X and Y axis, and data points can be manually and automatically selected to obtain a new vectorial plot (the animated screenshot shows the menus included).
Using Image Processing Toolbox to open idexed and gray images (functions ind2rgb, gray2rgb).
More functions at http://robotica.udl.cat
Comments and Ratings (12)
Updates
| 1.1.0.0 | This update has automatic data points selection and manipulation, zooming, escaling, etc (see the animated screenshot). |
|
| 1.0.0.0 | 1) New functions to decode the information from points of the scanned image. 2) The data can be exported to the workspace. |
|
New options added in the menus:
|
MATLAB Release Compatibility
Platform Compatibility
Windows macOS LinuxTags
Discover Live Editor
Create scripts with code, output, and formatted text in a single executable document.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
Select web siteYou can also select a web site from the following list:
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
Guillaume Adamczak (view profile)
Nice software but logscaling is not working in R2015b
Anna (view profile)
Great code!
David Abraham (view profile)
Just tried it out and it works simply and well. I like software that doesn't require any reading of manuals, and the results are great. Thanks!
Enrico Segre (view profile)
Bug "Delete an area of the curve...:
I think all is needed to correct it is to change line 420 with
rbbox %(no arguments)
Enrico Segre (view profile)
Comparing with GRABIT
(http://www.mathworks.co.uk/matlabcentral/fileexchange/7173-grabit):
-Zooming the figure is not possible in reverseplot;
-reverseplot doesn't mark the datapoints manually pointed at, while marking them one by one, only at the end;
-reverseplot does not offer to delete the last point erroneously pointed (could e.g. be bound to Backspace)
-GRABIT misses the automatic curve detection;
Besides, I just realized that in reverseplot "Delete an area of the curve..." has a bug (the selection rectangle is misplaced)
Anyway, both pieces of software are nice and useful.
Enrico Segre (view profile)
I see no reason why png should not be supported. To that extent, it is sufficient to change lines 84-90 with:
[filename, pathname] = uigetfile( ...
{'*.jpg;*.jpeg;*.gif;*.bmp;*.tif;*.png','All suported formats'
'*.jpg;*.jpeg','JPEG (*.jpg;*.jpeg)'; ...
'*.gif','Gif (*.gif)'; '*.png','PNG (*.png)'; ...
'*.bmp','Bitmap (*.bmp)'; ...
'*.tif','TIFF (*.tif)'}, ...
'Open scanned image...');
Enrico Segre (view profile)
Coooooool. I've found a basic bug, though. In function loaddata, lines 98-100,
info = imfinfo([lower(pathname) lower(filename)]);
[a,map] = imread([lower(pathname) lower(filename)]);
is plainly wrong on a case-sensitive OS like unix, and files with uppercase pathnames won't load. Removing all lower() solves the problem.
dewi (view profile)
Really useful for me.....
I wonder if it's could work on a plot-with-marker like seismic plot.
A very neat bit of code that provides a useful function. Deals with log as well as linear axes. Would be even more useful if it could return the coordinates as data values in the MATLAB workspace.
This is super handy
Really useful !
