Mohr's Circle

Version 1.2.1.0 (216 KB) by Peter L Bishay

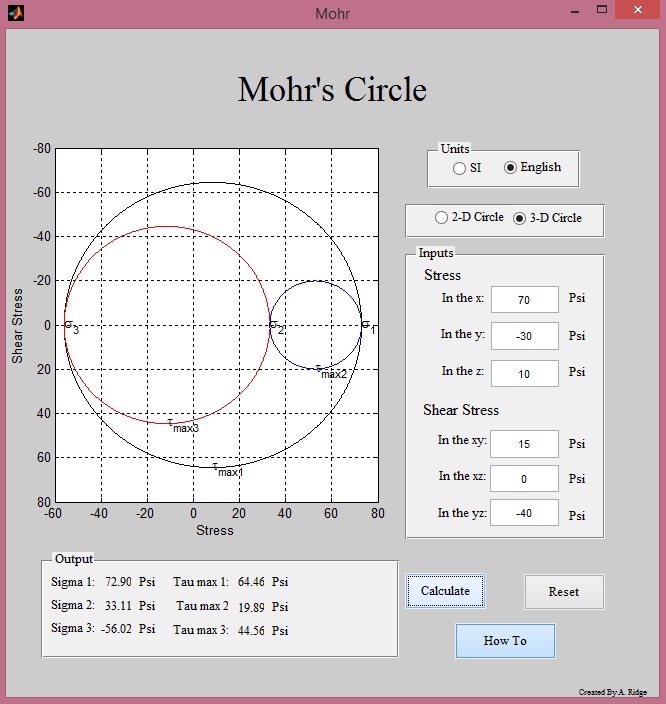

App that plots Mohr's circles (2D and 3D) given the state of stress.
4.7
(7)

2.9K Downloads

Updated 19 Jan 2017

View License

This App was created as a course project in "ME 305: Engineering Computer Applications" course, taught by Dr. Peter L. Bishay at Saint Martin's University (SMU), Fall 2014. The project was called "FEApps" denoting "Fundamentals of Engineering Apps". For more details about this course project as well as other Apps created by other students, refer to the paper published by Dr. Bishay in Computer Applications in Engineering Education (CAE) journal:
http://onlinelibrary.wiley.com/doi/10.1002/cae.21723/abstract
http://www.csun.edu/~pbishay/pubs/Bishay_CAEE_2016.pdf
The App was created by Andrew Ridge, under supervision of Dr. Peter L. Bishay.
