Radiation pattern plotter
Version 2.0 (70.3 KB) by
Héctor Esteban González
Plots a radiation pattern

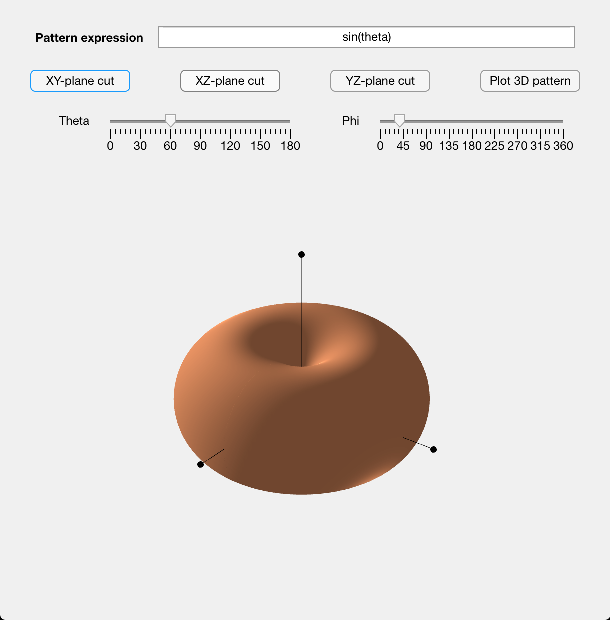

You write the mathematical formula of a radiation pattern as a function of the spherical coordinates theta and phi, and the radiation pattern in plotted in 3D. You can change the view angle, and you cat cut the 3D pattern in the main coordinates planes (XY, XZ, YZ).
