From the series: Stateflow Tutorials
Michael Carone, MathWorks

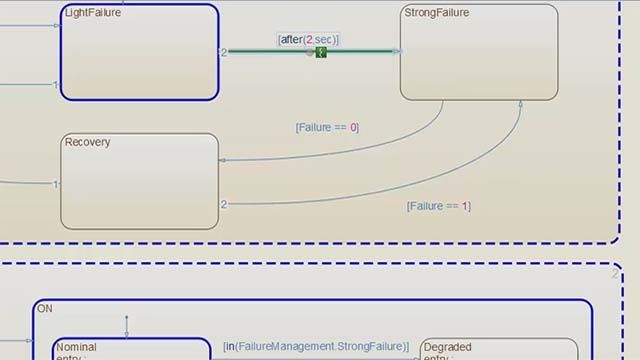

Part 1: States and Transitions In Part 1, we begin by discussing the foundational elements of Stateflow: states and transitions. We then move onto additional features, such as state entry actions, subcharts, and graphical functions.
Part 2: Parallel Execution and Truth Tables In Part 2, we continue adding functionality to the Stateflow chart we started building in Part 1. Concepts covered include parallel states, truth tables, and temporal logic.
