MATLAB Function Reference

xlabel, ylabel, zlabel - Label x-, y-, and z-axis

GUI Alternative

To control the presence and appearance of axis labels on a graph, use the Property Editor, one of the plotting tools . For details, see The Property Editor in the MATLAB^® Graphics documentation.

Syntax

xlabel('string')
xlabel(fname)
xlabel(...,'PropertyName',PropertyValue,...)
xlabel(axes_handle,...)
h = xlabel(...)


ylabel(...)
ylabel(axes_handle,...)
h = ylabel(...)


zlabel(...)
zlabel(axes_handle,...)
h = zlabel(...)

Description

Each axes graphics object can have one label for the x-, y-, and z-axis. The label appears beneath its respective axis in a two-dimensional plot and to the side or beneath the axis in a three-dimensional plot.

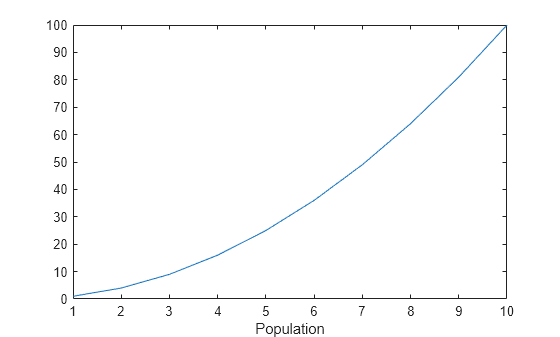

xlabel('string') labels the x-axis of the current axes.

xlabel(fname) evaluates the function fname, which must return a string, then displays the string beside the x-axis.

xlabel(...,'PropertyName',PropertyValue,...) specifies property name and property value pairs for the text graphics object created by xlabel.

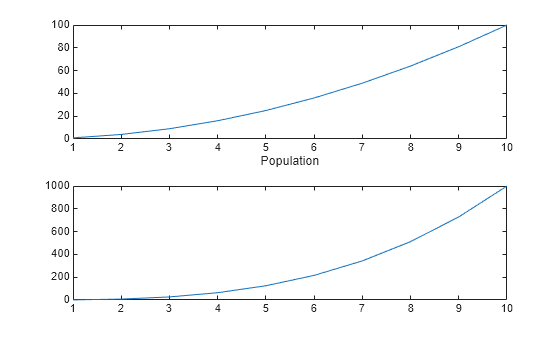

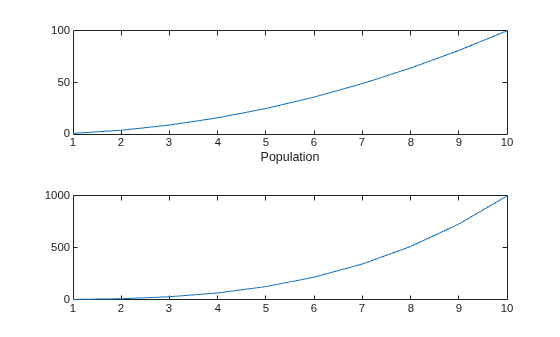

xlabel(axes_handle,...), ylabel(axes_handle,...), and zlabel(axes_handle,...) plot into the axes with handle axes_handle instead of the current axes (gca).

h = xlabel(...), h = ylabel(...), and h = zlabel(...) return the handle to the text object used as the label.

ylabel(...) and zlabel(...) label the y-axis and z-axis, respectively, of the current axes.

Remarks

Reissuing an xlabel, ylabel, or zlabel command causes the new label to replace the old label.

For three-dimensional graphics, MATLAB puts the label in the front or side, so that it is never hidden by the plot.

Examples

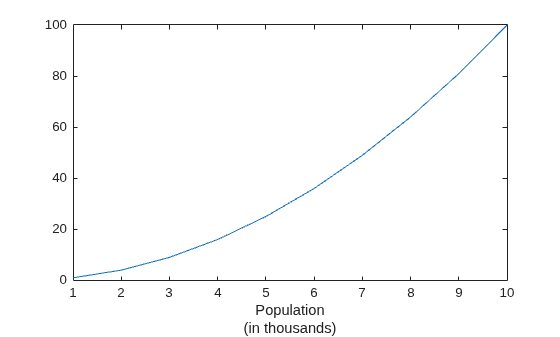

Create a multiline label for the x-axis using a multiline cell array:

xlabel({'first line';'second line'})

Create a bold label for the y-axis that contains a single quote:
