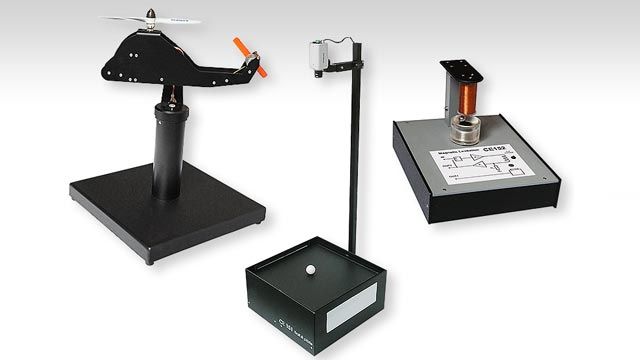

You can use Simulink® to teach control system engineering with Humusoft® lab experiments. The lab experiments are designed to help students apply control engineering principles with real-time dynamic systems. Three lab experiments are available: helicopter, ball and plate, and magnetic levitation.
These lab experiments operate from Simulink and Simulink Desktop Real-Time™. With Simulink Desktop Real-Time, you can run Simulink models in real time and interface with physical devices. You can create and control a system for real-time testing applications, including rapid prototyping and hardware-in-the-loop (HIL) simulation, directly from Simulink using your laptop or desktop running Windows® or Mac OS X.
Humusoft lab experiments and Simulink enable students to work on sophisticated experiments, including system identification, state estimation, and adaptive, nonlinear, fuzzy, and neural network-based controller design.
Humusoft lab experiments include the following:
Using Simulink and Humusoft lab experiments, students can develop a graphical model of a control system, monitor performance during simulation, and execute the control system in real time to observe performance with actual hardware.
