Model Infinite Ground Plane for Balanced Antennas

This example shows how to model an infinite ground plane and calculate fundamental antenna parameters for balanced antennas.

Create Antenna On Infinite Ground Plane

Create a reflector antenna on a ground plane of infinite length.

r = reflector(GroundPlaneLength=inf)

r =
  reflector with properties:

              Exciter: [1×1 dipole]
            Substrate: [1×1 dielectric]
    GroundPlaneLength: Inf
     GroundPlaneWidth: 0.2000
              Spacing: 0.0750
      EnableProbeFeed: 0
            Conductor: [1×1 metal]
                 Tilt: 0
             TiltAxis: [1 0 0]
                 Load: [1×1 lumpedElement]

View Antenna Geometry

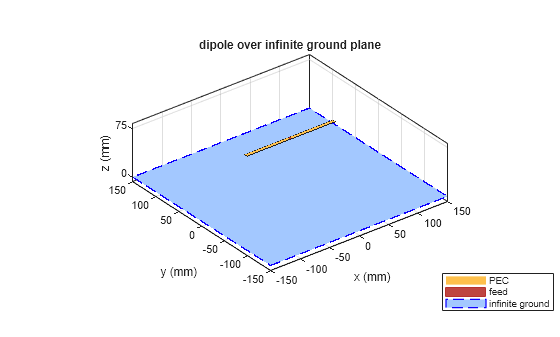

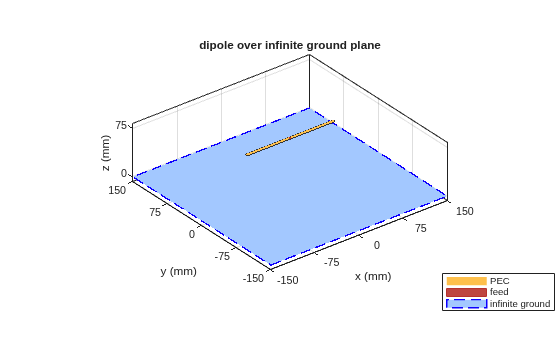

View the reflector antenna with infinite ground plane.

figure
show(r)

Calculate Impedance of Antenna

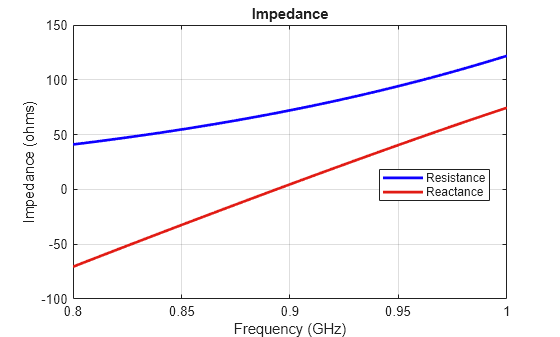

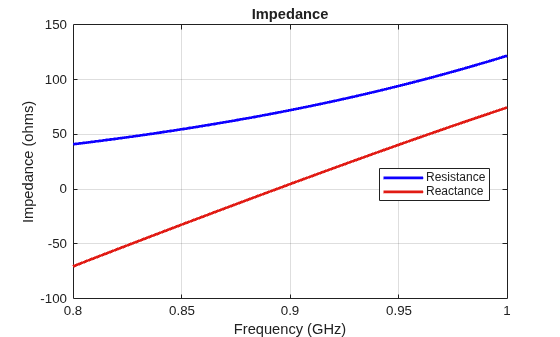

Calculate the impedance of reflector antenna over a frequency range of 800MHz to 1GHz.

figure
impedance(r,800e6:5e6:1e9);

Plot Radiation Pattern of Antenna

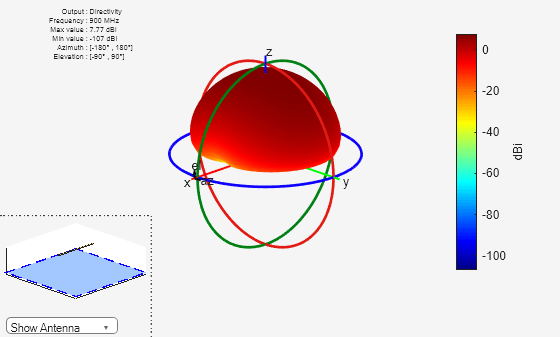

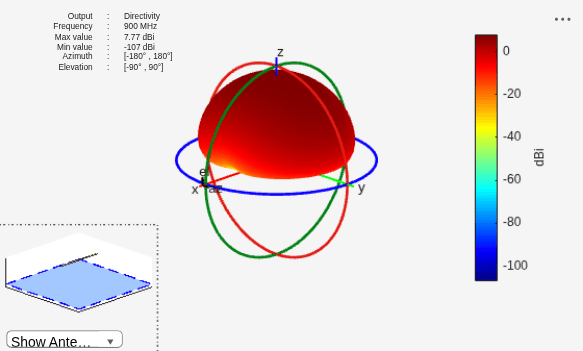

Plot the radiation pattern of reflector antenna at a frequency of 900MHz.

figure
pattern(r,900e6);

Visualize Antenna Mesh

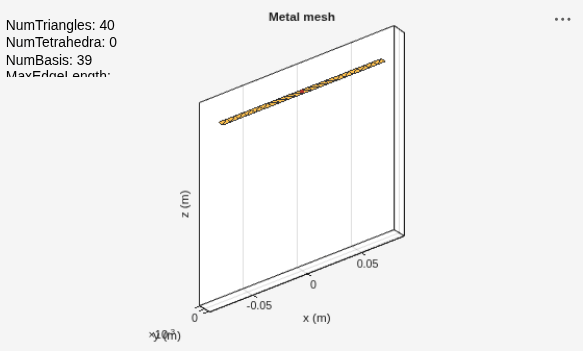

Mesh and view the infinite ground plane reflector antenna.

figure
mesh(r);
