This tutorial introduces the Musical Instrument Digital Interface (MIDI) protocol and how you can use Audio Toolbox™ to interact with MIDI devices. The tools described here enable you to send and receive all MIDI messages as described by the MIDI protocol. If you are interested only in sending and receiving Control Change messages with a MIDI control surface, see MIDI Control Surface Interface. If you are interested in using MIDI to control your audio plugins, see MIDI Control for Audio Plugins. To learn more about MIDI in general, consult The MIDI Manufacturers Association.
MIDI is a technical standard for communication between electronic instruments, computers, and related devices. MIDI carries event messages specific to audio signals, such as pitch and velocity, as well as control signals for parameters and clock signals to synchronize tempo.
A MIDI device is any device capable of sending or receiving MIDI messages. MIDI devices have input ports, output ports, or both. The MIDI protocol defines messages as unidirectional. A MIDI device can be real-world or virtual.
Audio Toolbox enables you to create an interface to a MIDI device using
create a MIDI interface to a specific device, use
query your system for available devices. Then create a
mididevice object by
specifying a MIDI device by name or ID.
MIDI devices available: ID Direction Interface Name 0 output MMSystem 'Microsoft MIDI Mapper' 1 input MMSystem 'USB MIDI Interface ' 2 output MMSystem 'Microsoft GS Wavetable Synth' 3 output MMSystem 'USB MIDI Interface '
device = mididevice('USB MIDI Interface ')
device = mididevice connected to Input: 'USB MIDI Interface ' (1) Output: 'USB MIDI Interface ' (3)
You can specify a
mididevice object to listen for input messages, send
output messages, or both. In this example, the
mididevice object receives
MIDI messages at the input port named
'USB MIDI Interface ', and sends
MIDI messages from the output port named
'USB MIDI Interface '.
A MIDI message contains information that describes an audio-related action. For example, when you press a key on a keyboard, the corresponding MIDI message contains 3 bytes:
The first byte describes the kind of action and the channel. The first byte is referred to as the Status Byte.
The second byte describes which key is pressed. The second byte is referred to as a Data Byte.
The third byte describes how hard the key is played. The third byte is also a Data Byte.
This message is a Note On message. Note On is referred to as the message name, command, or type.
In MATLAB®, a MIDI message is packaged as a
midimsg object and
can be manipulated as scalars or arrays. To create a MIDI message, call
midimsg with a message type and then specify the required parameters for
the specific message type. For example, to create a note on message, specify the
'NoteOn' and then specify the required
inputs: channel, note, and velocity.
channel = 1; note = 60; velocity = 64; msg = midimsg('NoteOn',channel,note,velocity)
msg = MIDI message: NoteOn Channel: 1 Note: 60 Velocity: 64 Timestamp: 0 [ 90 3C 40 ]
midimsg displays the message type, channel, additional
parameters, timestamp, and the constructed message in hexadecimal form. Hexadecimal is the
preferred form because it has a straightforward interpretation:
To retrieve MIDI messages from the buffer, call
receivedMessages = midireceive(device)
receivedMessages = MIDI message: NoteOn Channel: 1 Note: 36 Velocity: 64 Timestamp: 15861.9 [ 90 24 40 ] NoteOn Channel: 1 Note: 36 Velocity: 0 Timestamp: 15862.1 [ 90 24 00 ]
midimsgobjects. In this example, a MIDI keyboard key is pressed.
To send MIDI messages to a MIDI device, call
The type of MIDI message you create is defined as a character vector or string. To create a MIDI message, specify it by its type and the required property values. For example, create a Channel Pressure MIDI message by entering the following at the command prompt:
channelPressureMessage = midimsg('ChannelPressure',1,20)
channelPressureMessage = MIDI message: ChannelPressure Channel: 1 ChannelPressure: 20 Timestamp: 0 [ D0 14 ]
channelPressureMessage.ChannelPressure = 37
channelPressureMessage = MIDI message: ChannelPressure Channel: 1 ChannelPressure: 37 Timestamp: 0 [ D0 25 ]
The table summarizes valid MIDI message types.
The Audio Toolbox provides convenience syntaxes to create multiple MIDI messages used in
sequence and to create arrays of MIDI messages. See
midimsg for a
complete list of syntaxes.
The MIDI protocol does not define message timing and assumes that messages are acted
on immediately. Many applications require timing information for queuing and batch
processing. For convenience, the Audio Toolbox packages timing information with MIDI messages into a single
midimsg objects have a
Timestamp property, which
is set during creation as an optional last argument or after creation. The default
Timestamp is zero.
The interpretation of the
Timestamp property depends on how a
MIDI message is created and used:
When receiving MIDI messages using
midireceive, the underlying infrastructure assigns a timestamp when
receiving MIDI messages. Conceptually, the timing clock starts when a
object is created and attached as a listener to a given MIDI input port. If another
mididevice is attached to the same input port, it receives
timestamps from the same timing clock as the first object.
When sending MIDI messages using
midisend, timestamps are interpreted as when to send the message.
If there have been no recent calls to
midisend interprets timestamps as relative to the current
real-world time. A message with a timestamp of zero is sent immediately. If there
has been a recent call to
midisend interprets timestamps as relative to the largest
timestamp of the last call to
midisend. The timestamp clock for
midisend is specific to the MIDI output port that
mididevice is connected to.
Consider a pair of MIDI messages that turn a note on and off. The messages specify that the note starts after one second and is sustained for one second.
Create Note On and Note Off messages.
OnMsg = midimsg('NoteOn',1,59,64); OffMsg = midimsg('NoteOn',1,59,0);
To send on and off messages using a single call to
midisend, specify the timestamps of the messages relative to
the same start
OnMsg.Timestamp = 1; OffMsg.Timestamp = 2; midisend(device,[OnMsg;OffMsg]))

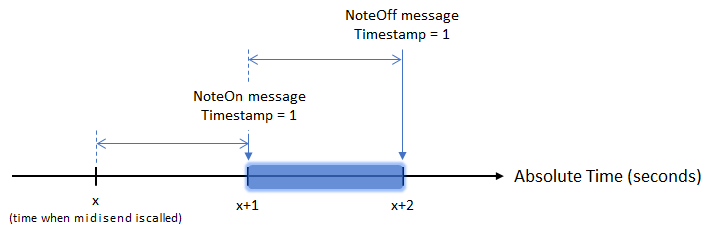

To send the Note Off message separately, specify the timestamp of the Note Off
message relative to the largest timestamp of the previous call to
OnMsg.Timestamp = 1; OffMsg.Timestamp = 1; midisend(device,OnMsg) midisend(device,OffMsg)
The "start" time, or reference time, for
midisend is the
max between the absolute time and the largest timestamp in the last call to
midisend. For example, consider that x,
the arbitrary start time, is equal to the current absolute time. If there is a
1.5-second pause between sending the note on and note off messages, the resulting
note duration is 1.5 seconds.
OnMsg.Timestamp = 1; OffMsg.Timestamp = 1; midisend(device,OnMsg) pause(1.5) midisend(device,OffMsg)
Usually, MIDI messages are sent faster than or at real-time speeds so there is no need to track the absolute time.
For live performances or to enable interrupts in a MIDI stream, you can set
timestamps to zero and then call
midisend at appropriate
real-world time intervals. Depending on your use case, you can divide your MIDI
stream into small repeatable time chunks.
