attempts to decode the received signal in
decoded = bchdec(
code using an
K) BCH decoder with the
narrow-sense generator polynomial. Parity symbols are at the end and the leftmost
symbol is the most significant symbol.
decoded Galois field array, each row represents the
attempt at decoding the corresponding row in
Results of Error Correction
BCH-decode an input that has more errors per codeword than the error correcting capability of the BCH decoder. Decode a BCH coded message with two errors per codeword using a single-error correcting BCH decoder. View the effects of the error mismatch on the output codeword.
Check the number of errors per codeword a [63,57] BCH decoder is capable of correcting.
n = 63; k = 57; t = bchnumerr(n,k)
t = 1
The [63,57] BCH decoder is capable of correcting one error per codeword.
Create a random stream and use it to generate a GF array. Encode the message.
s = RandStream('swb2712','Seed',9973); msg = gf(randi(s,[0 1],1,k)); code = bchenc(msg,n,k);
Add two errors per codeword and decode the errored code.
cnumerr2 = zeros(nchoosek(n,2),1); nErrs = zeros(nchoosek(n,2),1); cnumerrIdx = 1; for idx1 = 1 : n-1 %sprintf('idx1 for 2 errors = %d', idx1) for idx2 = idx1+1 : n errors = zeros(1,n); errors(idx1) = 1; errors(idx2) = 1; erroredCode = code + gf(errors); [decoded2, cnumerr2(cnumerrIdx)] ... = bchdec(erroredCode,n,k);
Encode the decoded message. Check that the re-encoded message differs from the errored message in only one bit.
if cnumerr2(cnumerrIdx) == 1 code2 = bchenc(decoded2,n,k); nErrs(cnumerrIdx) = biterr(double(erroredCode.x), ... double(code2.x)); end cnumerrIdx = cnumerrIdx + 1; end end

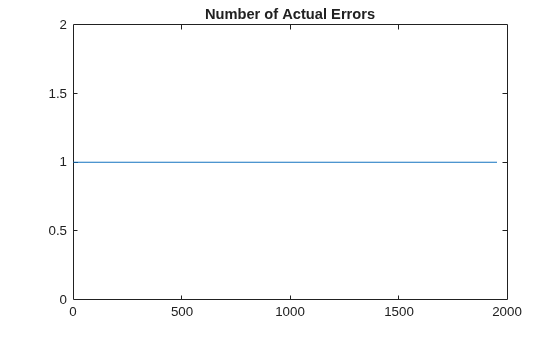

Plot the computed number of errors, based on the difference between the doubly-errored code and the re-encoded version of the initial decoding.
plot(nErrs) title('Number of Actual Errors')
All inputs with two errors were decoded to a codeword that differs in exactly one bit from the re-encoded version.
Decode Received BCH Codeword in Noisy Channel
Set the BCH parameters for a Galois array of GF(2).
M = 4; n = 2^M-1; % Codeword length k = 5; % Message length nwords = 10; % Number of words to encode
Create a message.
msgTx = gf(randi([0 1],nwords,k));
Find the error-correction capability.
t = bchnumerr(n,k)
t = 3
Encode the message.
enc = bchenc(msgTx,n,k);
Corrupt up to
t bits in each codeword.
noisycode = enc + randerr(nwords,n,1:t);
Decode the noisy code.
msgRx = bchdec(noisycode,n,k);
Validate that the message was properly decoded.
ans = logical 1
Increase the number of possible errors, and generate another noisy codeword.
t2 = t + 1; noisycode2 = enc + randerr(nwords,n,1:t2);
Decode the new received codeword.
[msgRx2,numerr] = bchdec(noisycode2,n,k);
Determine if the message was properly decoded by examining the number of corrected errors,
numerr. Entries of
-1 correspond to decoding failures, which occur when the codeword has more errors than can be corrected for the specified
numerr = 10×1 1 2 -1 2 3 1 -1 4 2 3
Two of the ten transmitted codewords were not correctly received.
K — Message length
Message length, specified as an integer.
K must produce a narrow-sense BCH code.
5 specifies a Galois field array with five
paritypos — Parity position
'end' (default) |
decoded — Decoded message
Galois field array of symbols over GF(2)
Decoded message, returned as a Galois field array of symbols over GF(2).
Each row represents the attempt at decoding the corresponding row in
code. A decoding failure occurs if
bchdec detects more than T
errors in a row of
code, where T is
the number of errors per codeword that the decoder is capable of correcting.
When a decoding failure occurs,
bchdec forms the
corresponding row of
decoded by removing
K symbols from the end of
the row of
code. For more information, see Error Correcting Capability.
cnumerr — Number of corrected errors
Number of corrected errors in the corresponding row of
code, returned as a column vector. A value of –1 in
cnumerr indicates a decoding failure in that row in
ccode — Corrected version of code
Galois field array
Corrected version of
code, returned as a Galois field
ccode has the same format as the input
code. If a decoding failure occurs in a certain row
code, the corresponding row in
ccode contains that row unchanged.
Error Correcting Capability
BCH decoders correct up to a specified number of errors per
codeword based on the (
K) pair used to
BCH encode that message. The error correcting capability, T, of a
K) pair is returned by
bchnumerr. See Tips for information about valid
N values, valid
K) pairs, and error correcting
capabilities for a given BCH code.
If the coded message contains more errors per codeword than the decoder is capable
of correcting, the decoder is unlikely to decode to the correct codeword. For
example, when a single-error-correcting BCH decoder (T=1) is
given an input with two errors per codeword, it decodes it to a valid codeword but
not the correct codeword. When a double-error-correcting BCH decoder
(T=2) is given an input with three errors per codeword, the
decoder sometimes decodes to an invalid codeword. The
ccode output provide feedback to analyze the correctness of
the decoded message.
bchdec uses the Berlekamp-Massey decoding algorithm. For
information about this algorithm, see the works listed in References.
 Wicker, Stephen B. Error Control Systems for Digital Communication and Storage. Upper Saddle River, NJ: Prentice Hall, 1995.
 Berlekamp, Elwyn R. Algebraic Coding Theory. New York: McGraw-Hill, 1968.
Introduced before R2006a
