Generate CRC bits according to generator polynomial and append to input data frames

CRC sublibrary of Error Correction and Detection

The General CRC Generator block generates cyclic redundancy code (CRC) bits for each input data frame and appends them to the frame. This block accepts a binary column vector input signal.

You specify the generator polynomial for the CRC algorithm using the
**Generator polynomial** parameter. This block is general in the
sense that the degree of the polynomial does not need to be a power of two. You
represent the polynomial in one of these ways:

As a polynomial character vector such as

`'x^3 + x^2 + 1'`

.As a binary row vector containing the coefficients in descending order of powers. For example,

`[1 1 0 1]`

represents the polynomial*x*^{3 }+*x*^{2 }+ 1.As an integer row vector containing the powers of nonzero terms in the polynomial, in descending order. For example,

`[3 2 0]`

represents the polynomial*x*^{3 }+*x*^{2 }+ 1.

You specify the initial state of the internal shift register by the **Initial
states** parameter. The **Initial states** parameter is
either a scalar or a binary row vector of length equal to the degree of the generator
polynomial. A scalar value is expanded to a row vector of length equal to the degree of
the generator polynomial. For example, the default initial state of
`[0]`

is expanded to a row vector of all zeros.

You specify the number of checksums that the block calculates for each input frame by
the **Checksums per frame** parameter. The **Checksums per
frame** value must evenly divide the size of the input frame. If the value
of **Checksums per frame** is *k*, the block does the
following:

Divides each input frame into

*k*subframes of equal sizePrefixes the

**Initial states**vector to each of the*k*subframesApplies the CRC algorithm to each augmented subframe

Appends the resulting checksums at the end of each subframe

Outputs concatenated subframes

If the size of the input frame is *m* and the degree of the generator
polynomial is *r*, the output frame has size *m* +
*k* * *r*.

This block supports `double`

and `boolean`

data
types. The block inherits the output data type from the input signal.

Suppose the size of the input frame is 10, the degree of the generator polynomial
is 3, **Initial states** is `[0]`

, and
**Checksums per frame** is `2`

. The block
divides each input frame into two subframes of size 5 and appends a checksum of size
3 to each subframe, as shown below. The initial states are not shown in this
example, because an initial state of `[0]`

does not affect the
output of the CRC algorithm. The output frame then has size 5 + 3 + 5 + 3 = 16.

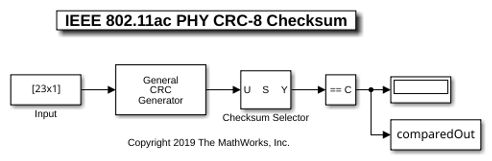

This example clarifies the operation of the General CRC Generator
block by comparing the generated CRC bits from the library block with those

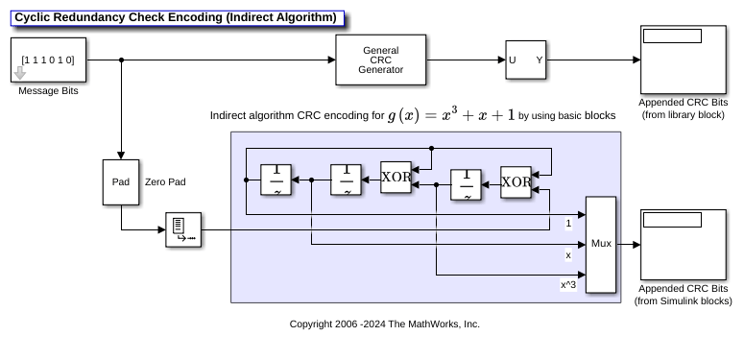

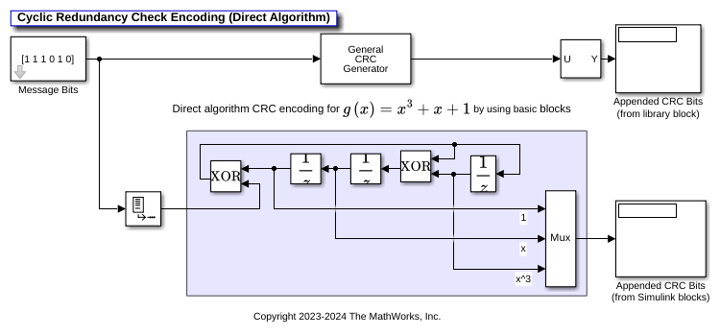

generated from primitive Simulink^{®} blocks. To open the model,
enter `doc_crcgen`

at the MATLAB^{®} command line.

For a known input message with a length of 6 bits, the model generates CRC bits for a generator polynomial, $$g(x)={x}^{3}+x+\text{}1$$, and a specific initial state of the register.

You can experiment with different initial states by changing the value of
**Initial states** prior to running the simulation. For all
values, the comparison (generated CRC bits from the library block with those
generated from primitive Simulink blocks) holds true.

Using the General CRC Generator block allows you to easily specify the generator polynomial (especially for higher order polynomials).

The General CRC Generator block has one input port and one output port. Both ports support binary column vector signals.

**Generator polynomial**A polynomial character vector, a binary row vector in descending order of powers, or an integer row vector in descending order of powers.

**Initial conditions**Binary scalar or a binary row vector of length equal to the degree of the generator polynomial, specifying the initial state of the internal shift register.

**Direct method**When you select this check box, the object uses the direct algorithm for CRC checksum calculations. When you clear this check box, the object uses the non-direct algorithm for CRC checksum calculations.

**Reflect input bytes**When you select this check box, the block flips the input data on a bytewise basis prior to entering the data into the shift register. For this application, the input frame length (and any current input frame length for variable-size signals) divided by the value for the

**Checksums per frame**parameter must be a multiple of eight. When you clear this check box, the block does not flip the input data.**Reflect checksums before final XOR**When you select this check box, the block flips the CRC checksums around their centers after the input data are completely through the shift register. When you clear this check box, the block does not flip the CRC checksums.

**Final XOR**Specify the value with which the CRC checksum is to be XORed as a binary scalar or vector. The block applies the XOR operation just prior to appending the input data. The vector length is the degree of the generator polynomial that you specify in the

**Generator polynomial**parameter. When you specify the final XOR value as a scalar, the block expands the value to a row vector with a length equal to the degree of the generator polynomial. The default value of this parameter is`0`

, which is equivalent to no XOR operation.**Checksums per frame**Specify the number of checksums the block calculates for each input frame. This value must be a positive integer. The input frame length (and any current input frame length for variable-size signals) must be a multiple of this parameter value.

For a description of the CRC algorithm as implemented by this block, see Cyclic Redundancy Check Codes in *Communications
Toolbox™ User's Guide*.

[1] Sklar, Bernard, *Digital Communications:
Fundamentals and Applications*. Englewood Cliffs, N.J.,
Prentice-Hall, 1988.

[2] Wicker, Stephen B., *Error Control Systems for
Digital Communication and Storage*, Upper Saddle River, N.J.,
Prentice Hall, 1995.
