Quadrature amplitude modulation

`y = qammod(x,M)`

`y = qammod(x,M,symOrder)`

`y = qammod(___,Name,Value)`

specifies
modulation behavior using `y`

= qammod(___,`Name,Value`

)`Name,Value`

pairs and
any of the previous syntaxes.

`x`

— Input signalscalar | vector | matrix | 3-D array

Input signal, specified as a scalar, vector, matrix, or 3-D array. The elements of x must be
binary values or integers that range from 0 to (`M`

– 1),
where `M`

is the modulation order.

To process input signal as binary elements, set the
'`InputType`

' name-value pair to
`'bit'`

. For binary inputs, the number of rows must
be an integer multiple of log_{2}(`M`

). Groups of log_{2}(`M`

) bits are mapped onto a symbol, with the first bit
representing the MSB and the last bit representing the LSB.

**Data Types: **`double`

| `single`

| `fi`

| `int8`

| `int16`

| `uint8`

| `uint16`

`M`

— Modulation orderscalar integer

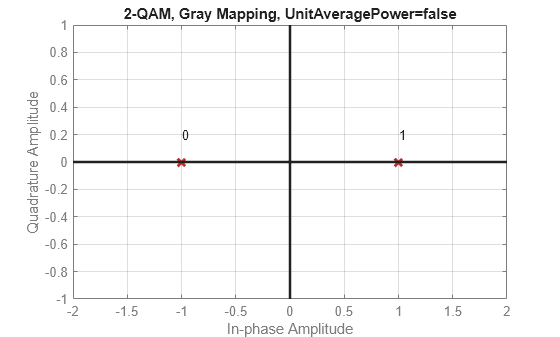

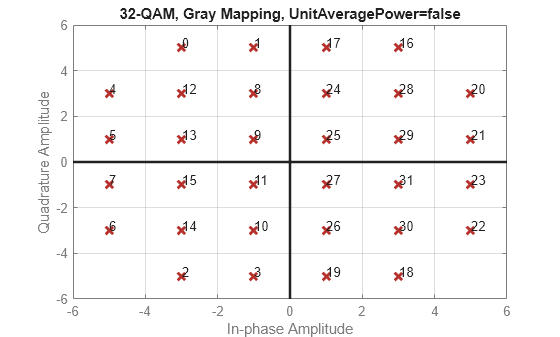

Modulation order, specified as a power-of-two scalar integer. The modulation order specifies the number of points in the signal constellation.

**Example: **`16`

**Data Types: **`double`

`symOrder`

— Symbol order`'gray'`

(default) | `'bin'`

| vectorSymbol order, specified as `'gray'`

, `'bin'`

,
or a vector.

`'gray'`

— Use Gray Code ordering`'bin'`

— Use natural binary-coded orderingVector — Use custom symbol ordering

Vectors must use unique elements whose values range from 0 to `M`

–
1. The first element corresponds to the upper-left point of the constellation,
with subsequent elements running down column-wise from left to right.

**Example: **[0 3 1 2]

**Data Types: **`char`

| `double`

Specify optional
comma-separated pairs of `Name,Value`

arguments. `Name`

is
the argument name and `Value`

is the corresponding value.
`Name`

must appear inside quotes. You can specify several name and value
pair arguments in any order as
`Name1,Value1,...,NameN,ValueN`

.

`'InputType'`

— Input type`'integer'`

(default) | `'bit'`

Input type, specified as the comma-separated pair consisting of `'InputType'`

and either `'integer'`

or `'bit'`

. If
you specify `'integer'`

, the input signal must consist
of integers from 0 to `M`

– 1. If you specify
`'bit'`

, the input signal must contain binary
values, and the number of rows must be an integer multiple of log_{2}(`M`

).

**Data Types: **`char`

`'UnitAveragePower'`

— Unit average power flag`false`

(default) | `true`

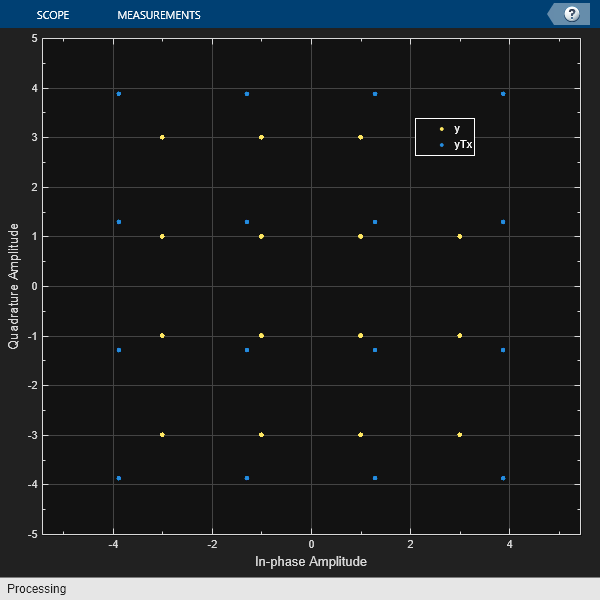

Unit average power flag, specified as the comma-separated pair consisting of
`UnitAveragePower`

and a logical scalar. When
this flag is `true`

, the function scales the
constellation to an average power of 1 watt referenced to 1 ohm. When
this flag is `false`

, the function scales the
constellation so that the QAM constellation points are separated by a
minimum distance of 2.

**Data Types: **`logical`

`'OutputDataType'`

— Output data type`numerictype`

objectOutput data type, specified as the comma-separated pair consisting
of `'OutputDataType'`

and a numeric type object.
See `numerictype`

for more
information on constructing these objects. If `OutputDataType`

is
omitted, the output data type is `double`

for `double`

or
built-in integer inputs, and `single`

for `single`

inputs.

`'PlotConstellation'`

— Option to plot constellation`false`

(default) | `true`

Option to plot constellation, specified as the comma-separated pair consisting of
`'PlotConstellation'`

and a logical scalar. To plot
the QAM constellation, set `PlotConstellation`

to
`true`

.

**Data Types: **`logical`

`y`

— Modulated signalscalar | vector | matrix | 3-D array

Modulate data using QAM and display the result in a scatter plot.

Set the modulation order to 16 and create a data vector containing each of the possible symbols.

M = 16; x = (0:M-1)';

Modulate the data using the `qammod`

function.

y = qammod(x,M);

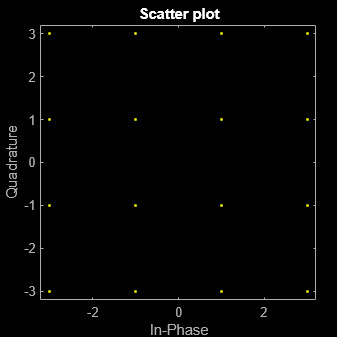

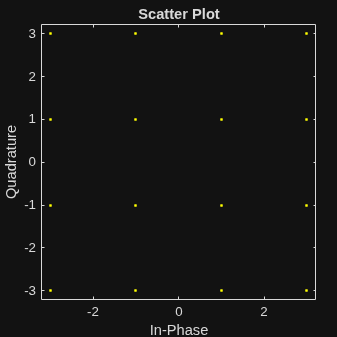

Display the modulated signal constellation using the `scatterplot`

function.

scatterplot(y)

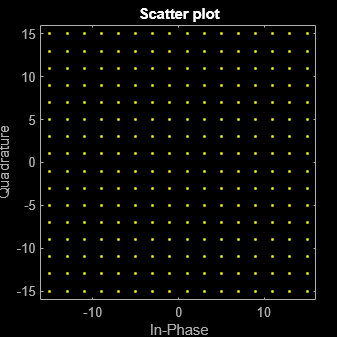

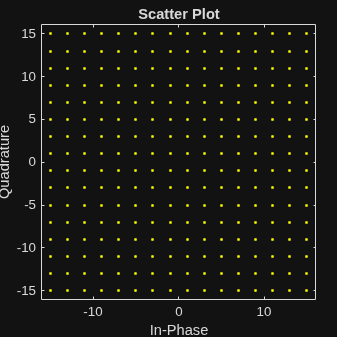

Set the modulation order to 256, and display the scatter plot of the modulated signal.

M = 256; x = (0:M-1)'; y = qammod(x,M); scatterplot(y)

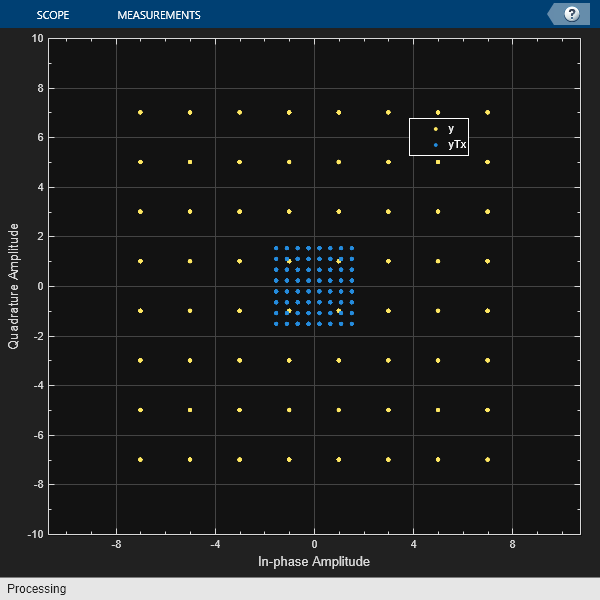

Modulate random data symbols using QAM. Normalize the modulator output so that it has an average signal power of 1 W.

Set the modulation order and generate random data.

M = 64; x = randi([0 M-1],1000,1);

Modulate the data. Use the `'UnitAveragePower'`

name-value pair to set the output signal to have an average power of 1 W.

`y = qammod(x,M,'UnitAveragePower',true);`

Confirm that the signal has unit average power.

avgPower = mean(abs(y).^2)

avgPower = 1.0070

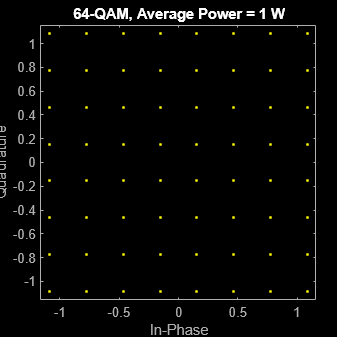

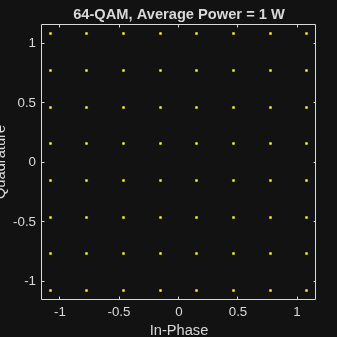

Plot the resulting constellation.

```
scatterplot(y)
title('64-QAM, Average Power = 1 W')
```

Plot QAM constellations for Gray, binary, and custom symbol mappings.

Set the modulation order, and create a random data sequence.

M = 16; d = randi([0 M-1],1000,1);

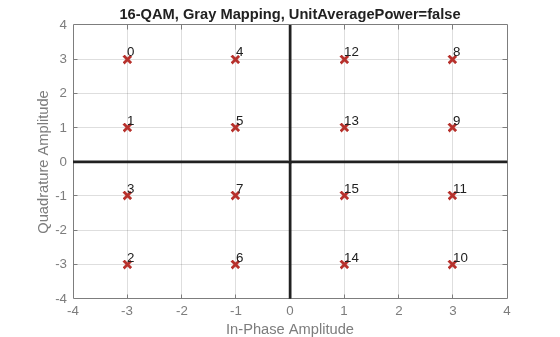

Modulate the data, and plot its constellation.

`y = qammod(d,M,'PlotConstellation',true);`

The default symbol mapping uses Gray ordering. The ordering of the points is not sequential.

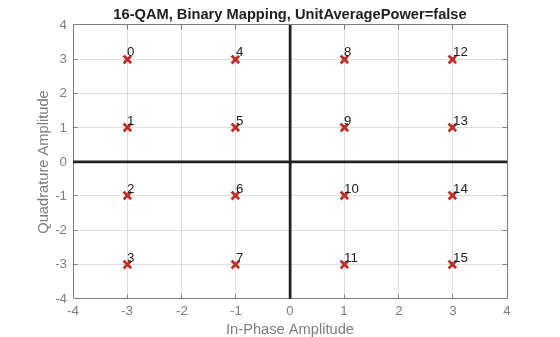

Repeat the modulation process with binary symbol mapping.

z = qammod(d,M,'bin','PlotConstellation',true);

The symbol mapping follows a natural binary order and is sequential.

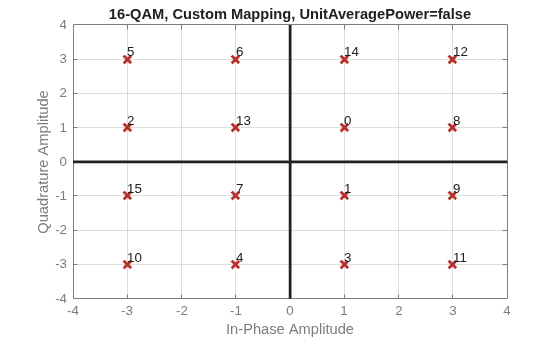

Create a custom symbol mapping.

smap = randperm(16)-1;

Modulate and plot the constellation.

`w = qammod(d,M,smap,'PlotConstellation',true);`

Modulate a sequence of bits using 64-QAM. Pass the signal through a noisy channel. Display the resultant constellation diagram.

Set the modulation order, and determine the number of bits per symbol.

M = 64; k = log2(M);

Create a binary data sequence. When using binary inputs, the number of rows in the input must be an integer multiple of the number of bits per symbol.

data = randi([0 1],1000*k,1);

Modulate the signal using bit inputs, and set it to have unit average power.

txSig = qammod(data,M,'InputType','bit','UnitAveragePower',true);

Pass the signal through a noisy channel.

rxSig = awgn(txSig,25);

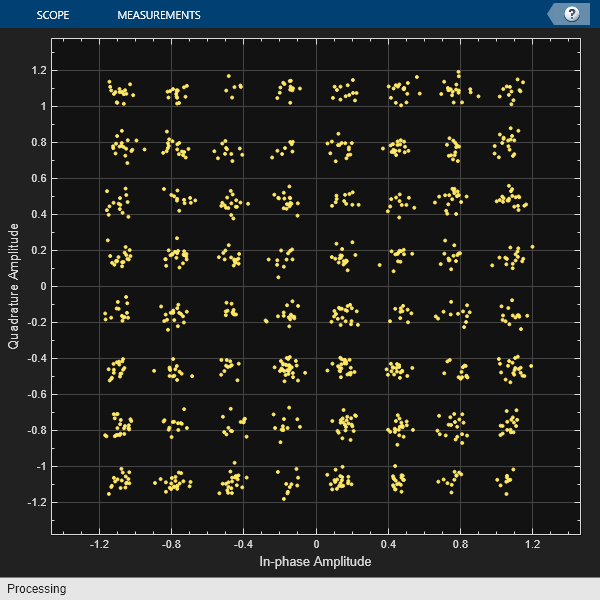

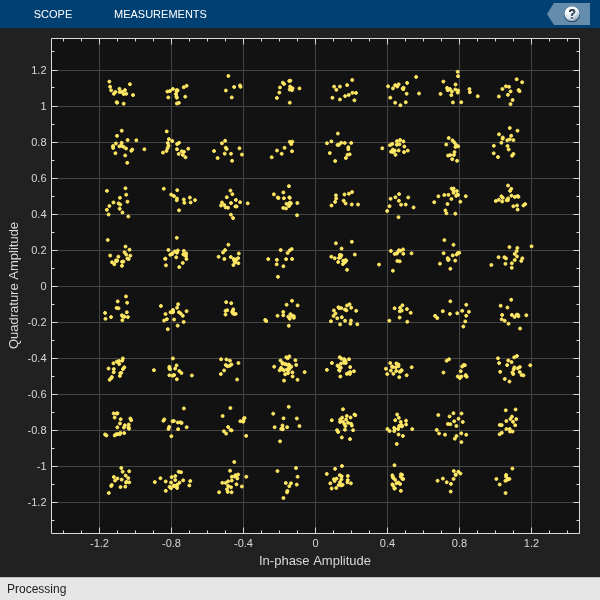

Plot the constellation diagram.

```
cd = comm.ConstellationDiagram('ShowReferenceConstellation',false);
step(cd,rxSig)
```

Demodulate a fixed-point QAM signal and verify that the data is recovered correctly.

Set the modulation order, and determine the number of bits per symbol.

M = 64; bitsPerSym = log2(M);

Generate random bits. When operating in bit mode, the length of the input data must be an integer multiple of the number of bits per symbol.

x = randi([0 1],10*bitsPerSym,1);

Modulate the input data using a binary symbol mapping. Set the modulator to output fixed-point data. The numeric data type is signed with a 16-bit word length and a 10-bit fraction length.

y = qammod(x,M,'bin','InputType','bit','OutputDataType', ... numerictype(1,16,10));

Demodulate the 64-QAM signal. Verify that the demodulated data matches the input data.

z = qamdemod(y,M,'bin','OutputType','bit'); s = isequal(x,double(z))

`s = `*logical*
1

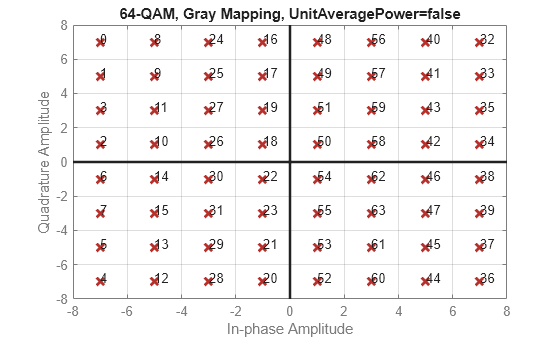

A *Gray code*, also known
as a reflected binary code, is a system where the bit patterns in
adjacent constellation points differ by only one bit.

*Errors starting in R2018b*

Starting in R2018b, you can no longer offset the initial phase for the QAM
constellation using the `qammod`

function.

Instead use `genqammod`

to offset the initial
phase of the data being modulated, or you can multiply the
`qammod`

output by the desired initial
phase:

y = qammod(x,M) .* exp(1i*initPhase)

Generate C and C++ code using MATLAB® Coder™.
