Scattered translates collocation matrix

`colmat = stcol(centers,x,type) `

colmat = stcol(...,'tr')

`colmat = stcol(centers,x,type) `

is the
matrix whose (`i`

,`j`

)th entry is

$${\psi}_{j}\left(x(:,i)\right),\text{}i=1:\text{size}(x,2),j=1:n$$

with the bivariate functions *ψ _{j}* and the
number

`n`

depending on the `centers`

and the
character vector `type`

, as detailed in the description of
`stmak`

. `centers`

and `x`

must be matrices with the same
number of rows.

The default for `type`

is the character vector
`'tp'`

, and for this default, `n`

equals
`size(centers,2)`

, and the functions
*ψ _{j}* are given by

$${\psi}_{j}(x)=\psi \left(x-\text{centers}(:,j)\right),\text{}j=1:n$$

with *ψ* the thin-plate spline basis function

$$\psi (x)={\left|x\right|}^{2}\mathrm{log}{\left|x\right|}^{2}$$

and with |*x*| denoting the Euclidean norm of the vector
*x*.

**Note**

See `stmak`

for a description of
other possible values for `type`

.

The matrix `colmat`

is the coefficient matrix in the linear
system

$$\sum _{j}{a}_{j}{\psi}_{j}(x(:,i))={y}_{i},\text{}i=1:\text{size}(x,2)$$

that the coefficients *a _{j}* of the function

`x(:,i)`

, all `i`

.`colmat = stcol(...,'tr') `

returns the
transpose of the matrix returned by `stcol(...)`

.

**Example 1.** The following evaluates and plots the
function

$$f(x)=\psi (x-{c}_{1})+\psi (x-{c}_{2})+\psi (x-{c}_{3})-3.5\psi (x)$$

on a regular mesh, with *ψ* the above thin-plate basis function,
and with *c*_{1},
*c*_{2},
*c*_{3} three points on the unit circle;

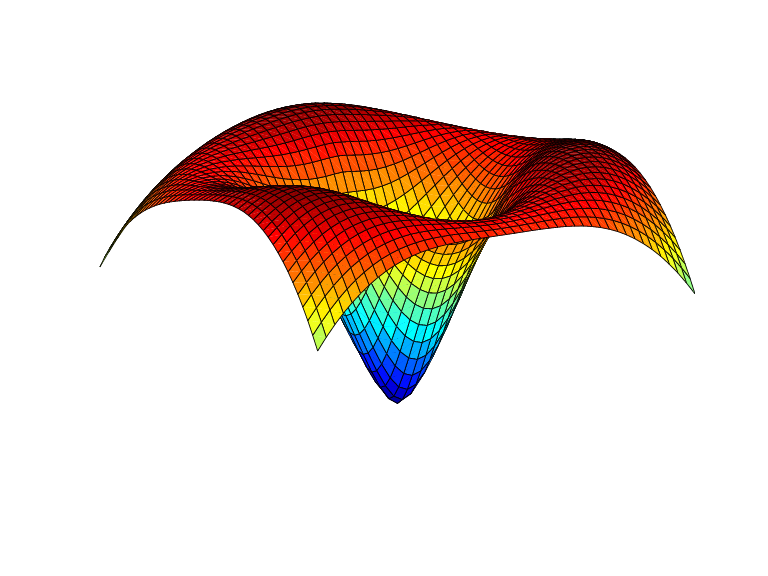

see the figure below.

a = [0,2/3*pi,4/3*pi]; centers = [cos(a), 0; sin(a), 0]; [xx,yy] = ndgrid(linspace(-2,2,45)); xy = [xx(:) yy(:)].'; coefs = [1 1 1 -3.5]; zz = reshape( coefs*stcol(centers,xy,'tr') , size(xx)); surf(xx,yy,zz), view([240,15]), axis off

**Example 2.** The following also evaluates, on the
same mesh, and plots the length of the gradient of the function in Example 1.

zz = reshape( sqrt(... ([coefs,0]*stcol(centers,xy,'tp10','tr')).^2 + ... ([coefs,0]*stcol(centers,xy,'tr','tp01')).^2), size(xx)); figure, surf(xx,yy,zz), view([220,-15]), axis off
