generateSimulink

Class: Autoencoder

Generate a Simulink model for the autoencoder

Syntax

generateSimulink(autoenc)

Description

example

generateSimulink(autoenc) creates a Simulink® model for the autoencoder, autoenc.

Input Arguments

expand all

Trained autoencoder, returned as an object of the Autoencoder class.

Examples

expand all

Load the training data.

X = digitsmall_dataset;

The training data is a 1-by-500 cell array, where each cell containing a 28-by-28 matrix representing a synthetic image of a handwritten digit.

Train an autoencoder with a hidden layer containing 25 neurons.

hiddenSize = 25;
autoenc = trainAutoencoder(X,hiddenSize,...
        'L2WeightRegularization',0.004,...
        'SparsityRegularization',4,...
        'SparsityProportion',0.15);

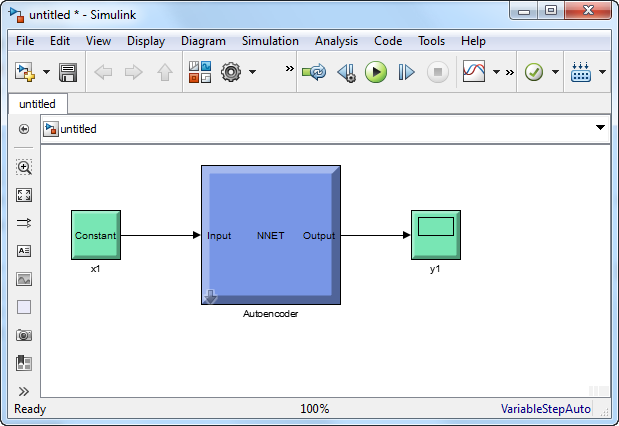

Create a Simulink model for the autoencoder, autoenc.

generateSimulink(autoenc)

Introduced in R2015b
